The geomagnetic field was quiet on February 26. Solar wind speed at SOHO ranged between 334 and 364 km/s.
Solar flux at 20h UTC on 2.8 GHz was 178.2 (increasing 17.7 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 152.5. The Potsdam WDC planetary A index was 2 (STAR Ap - based on the mean of three hour interval ap indices: 1.8). Three hour interval K indices: 20000001 (planetary), 20002211 (Boulder).
The background x-ray flux is at the class B9 level.
At the time of counting spots (see image time) spots were observed in 21 active regions in 2K resolution (SN: 448) and 19 active regions in 1K resolution (SN: 310) SDO images on the visible solar disk.
Region 11981 [S08W60] decayed losing spots and
penumbral area.

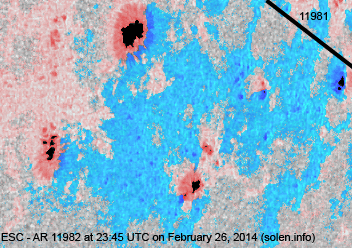

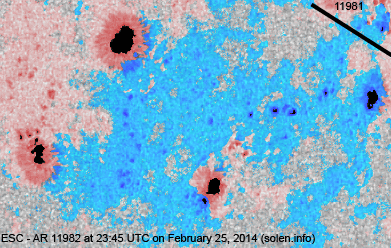

Region 11982 [S11W48] decayed slowly and lost the magnetic delta
structure after the M class flare.
C5+ flare: M1.1/1N at 15:01 UTC.
Region 11983 [S14W63] developed slowly and quietly.
Region 11984 [S17W62] matured quickly and was quiet.

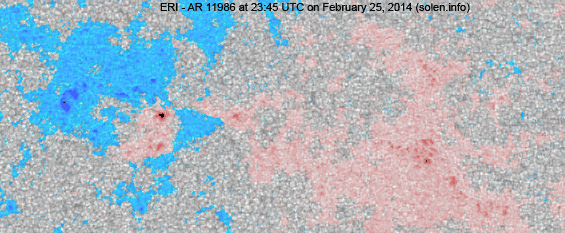

Region 11986 [N13W13] decayed slowly and quietly.

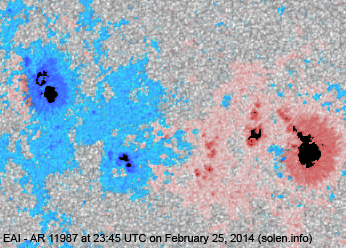

Region 11987 [S02E09] gained a few spots and was quiet.

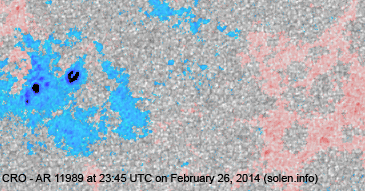

Region 11989 [N08E26] decayed slowly and quietly.

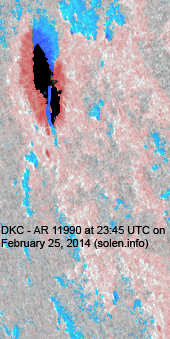

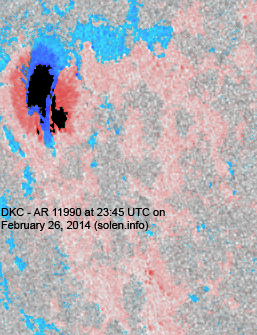

Region 11990 [S12E52] was mostly quiet. With a strong magnetic
delta structure inside the single large spot another major flare is possible.
New region 11991 [S25E67] rotated into view on February 25 and was
numbered the next day by SWPC.
New region 11992 [S20E21] emerged on February 25 and received its NOAA
number the following day.
New region 11993 [N17E58] emerged on February 25 and developed further on
February 26 when it was numbered by SPWC.
Spotted regions not numbered (or interpreted differently) by SWPC:
S3141 [S06W49] decayed significantly and was quiet.
S3150 [S16W23] reemerged with penumbra spots.
S3155 [S06E12] was quiet and stable.
S3156 [N05E34] was quiet and stable.
S3163 [S11E33] was quiet and stable.
S3164 [N18E47] has tiny penumbra spots in an old plage area.
New region S3167 [N09W61] emerged early in the day, then decayed slowly
during the latter hald of the day.
New region S3168 [S09W23] emerged quickly and could generate C flares.
New region S3169 [N11E45] emerged with penumbra spots.
New region S3170 [S23W31] emerged with a penumbra spot.
February 24, 26: No obviously Earth directed CMEs were observed in LASCO and
STEREO imagery.
February 25: An asymmetric full halo CME was observed after the X4 flare in AR
11990. The CME will likely reach Earth on February 27.
Coronal hole history (since October
2002)
Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago
A negative polarity trans equatorial coronal hole (CH605) was in an Earth facing position on February 24-25.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor.
The geomagnetic field is expected to be quiet to minor storm on February 27-28 due to CME and coronal hole effects. Quiet to unsettled is likely on March 1.
Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

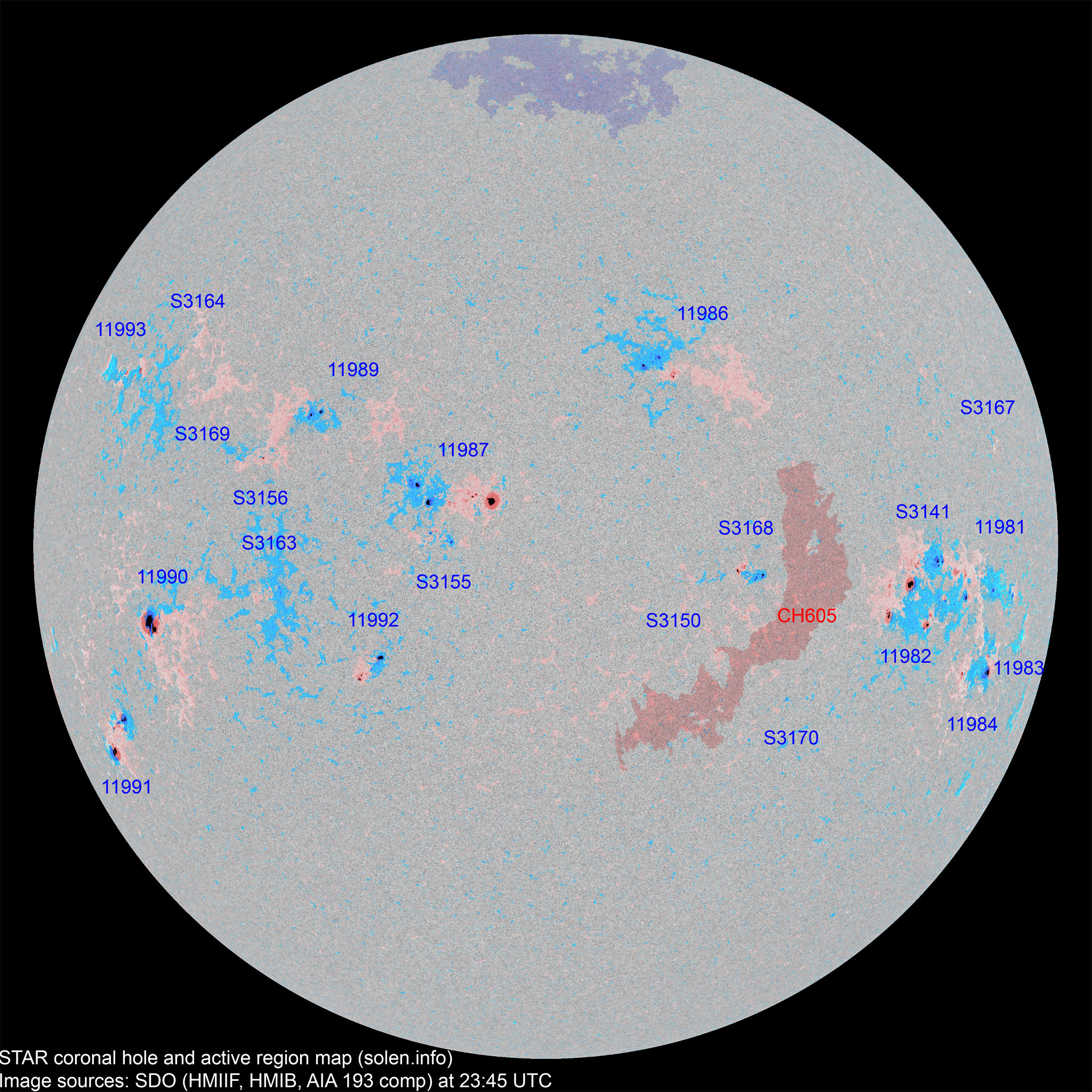

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlay |
Comment | ||||
---|---|---|---|---|---|---|---|---|---|---|---|
SWPC | STAR SDO | SWPC | STAR | Current | Previous | ||||||
2K | 1K | ||||||||||
11983 | 2014.02.16 2014.02.18 |
5 | 2 | S13W73 | 0020 | BXO |
location: S14W63 |
||||
11982 | 2014.02.16 2014.02.17 |
33 | 29 | 15 | S09W50 | 0320 | ESC | ESC |
beta-gamma area: 0300 location: S11W48 |
||
11981 | 2014.02.16 2014.02.17 |
13 | 17 | 7 | S08W47 | 0100 | EAI | ERI | |||
11984 | 2014.02.17 2014.02.18 |
8 | 10 | 3 | S18W62 | 0060 | CAO | DAO |
area: 0110 |
||
11986 | 2014.02.19 2014.02.20 |
13 | 23 | 10 | N13W18 | 0010 | BXO | DRI |
area: 0100 location: N13W13 |
||
S3141 | 2014.02.19 | 32 | 16 | S06W49 | 0100 | CAI | |||||
11987 | 2014.02.21 | 14 | 26 | 18 | S01E09 | 0190 | DAI | ESI |
area: 0280 |
||
11988 | 2014.02.21 2014.02.22 |
S10W21 |
plage location: S10W18 |
||||||||
S3150 | 2014.02.22 | 3 | 1 | S16W23 | 0012 | AXX | plage | ||||
11989 | 2014.02.22 2014.02.23 |
2 | 13 | 6 | N09E26 | 0030 | DAO | CRO |
area: 0060 location: N08E26 |
||
S3154 | 2014.02.23 | S27W19 | plage | ||||||||
S3155 | 2014.02.23 | 7 | 5 | S06E12 | 0025 | CRO | |||||
S3156 | 2014.02.23 | 5 | 1 | N05E34 | 0020 | HRX | |||||
S3159 | 2014.02.24 | S22W16 | plage | ||||||||
11990 | 2014.02.24 | 3 | 9 | 4 | S12E50 | 0210 | DKC | DKC |
delta area: 0420 |
||
11991 | 2014.02.25 2014.02.26 |
4 | 13 | 8 | S25E65 | 0120 | DSO | DAO |
area: 0280 location: S25E67 |
||
11992 | 2014.02.25 2014.02.26 |
3 | 12 | 8 | S19E20 | 0010 | CRO | DRO | area: 0080 | ||
S3163 | 2014.02.25 | 9 | 2 | S11E33 | 0015 | BXO | |||||
S3164 | 2014.02.25 | 2 | N18E47 | 0002 | BXO | ||||||
11993 | 2014.02.25 2014.02.26 |
4 | 7 | 5 | N16E57 | 0010 | BXO | CRO | area: 0035 | ||
S3166 | 2014.02.25 | N06W02 | plage | ||||||||
S3167 | 2014.02.26 | 1 | N09W61 | 0001 | AXX | ||||||
S3168 | 2014.02.26 | 11 | 9 | S09W23 | 0050 | DRI | |||||
S3169 | 2014.02.26 | 3 | 1 | N11E45 | 0009 | BXO | |||||
S3170 | 2014.02.26 | 1 | 1 | S23W31 | 0004 | AXX | |||||
Total spot count: | 97 | 238 | 120 | ||||||||
Sunspot number: | 197 | 448 | 310 | (total spot count + 10 * number of spotted regions) | |||||||
Weighted SN: | 140 | 297 | 179 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
Relative sunspot number (Wolf number): | 118 | 157 | 171 | k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for STAR SDO 2K, k = 0.55 for STAR SDO 1K |
Month | Average solar flux | International sunspot number (WDC-SILSO) |
Smoothed sunspot number | Average ap (3) |
|
---|---|---|---|---|---|
Measured | 1 AU | ||||
2011.11 | 153.5 | 96.7 (cycle peak) | 61.1 (+1.2) | 5.55 | |
2012.02 | 106.5 | 32.9 | 66.9 (+1.4) | 8.81 | |
2012.11 | 121.3 | 118.3 | 61.8 | 59.7 (+1.1) | 7.08 |
2012.12 | 108.6 | 105.0 | 40.8 | 59.6 (-0.1) | 3.44 |
2013.01 | 127.1 | 123.1 | 62.9 | 58.7 (-0.9) | 4.69 |
2013.02 | 104.3 | 101.8 | 38.0 | 58.4 (-0.3) | 6.11 |
2013.03 | 111.3 | 110.2 | 57.9 | 57.5 (-0.9) | 10.56 |
2013.04 | 124.8 | 125.9 | 72.4 | 57.9 (+0.4) | 5.40 |
2013.05 | 131.4 | 134.3 | 78.7 | 59.9 (+2.0) | 9.73 |
2013.06 | 110.1 | 113.7 | 52.5 | 62.6 (+2.7) | 12.60 |
2013.07 | 115.5 | 119.3 | 57.0 | 65.5 (+2.9) | 9.47 |
2013.08 | 114.6 | 118.3 | 66.0 | (69.0 projected, +3.5) | 8.27 |
2013.09 | 102.6 | 103.7 | 36.9 | (73.0 projected, +4.0) | 5.23 |
2013.10 | 132.1 | 131.2 | 85.6 | (74.0 projected, +1.0) | 7.71 |
2013.11 | 148.3 | 145.1 | 77.6 | (72.9 projected, -1.1) | 5.68 |
2013.12 | 147.7 | 143.1 | 90.3 | (71.8 projected, -1.1) | 4.68 |
2014.01 | 157.4 (cycle peak) |
152.4 | 82.0 | (71.0 projected, -0.8) | 5.44 |
2014.02 | 170.1 (1) | 156.5 (2A) / 168.6 (2B) / 114.9 (2C) | (71.2 projected, +0.2) | (10.5) |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The
official WDC-SILSO international sunspot number is typically 30-50% lower. 2B)
Boulder SN current month
average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices.
Values in red are based on the definitive
international
GFZ Potsdam
WDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
