Recent activity

The geomagnetic field was quiet on March 22. Solar wind speed at SOHO ranged between 343 and 460 km/s, weakly under the influence of a low to moderate speed stream from CH608.

Solar flux at 20h UTC on 2.8 GHz was 154.9 (decreasing 16.9 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 153.3. The Potsdam WDC planetary A index was 4 (STAR Ap - based on the mean of three hour interval ap indices: 4.1). Three hour interval K indices: 20012111 (planetary), 21113422 (Boulder).

The background x-ray flux is at the class B6 level.

At the time of counting spots (see image time), spots were observed in 16 active regions in 2K resolution (SN: 326) and 16 active regions in 1K resolution (SN: 246) SDO images on the visible solar disk.

Region 12005 [N12W59] was mostly unchanged. The region was the source of a long duration C4.8/1F event peaking at 09:07 UTC. This event was associated with a partial halo CME.
Region 12008 [S11W19] developed slightly with umbra forming on a small spot.
Region 12010 [S14E01] is a compact region with poor separation between opposite polarity spots. A minor M class flare is possible.
Region 12011 [S07W77] matured and simplified magnetically after the M class event.
C5+ flare: M1.1/1F at 07:02 UTC. This event was associated with a CME off the west limb.
Region 12012 [S12E12] developed early in the day, then decayed again.
Region 12013 [N14E16] was quiet and stable.
Region 12014 [S13E33] was quiet and stable
. The region was the source of a long duration C5 event peaking before 04h UTC on March 23.
New region 12015 [S13W27] was first observed with spots on March 15, became spotless and then reemerged with spots on March 21. SWPC numbered the region the next day as it developed quickly. The two main spots are very close and could develop a magnetic delta structure if the current development continues. The inversion line has an east-west orientation.
New region 12016 [S28E07] emerged on March 17 and was numbered by SWPC 5 days later. The region developed slowly on March 21 and early on March 22. Decay was observed during the latter half of the day.
New region 12017 [N10E60] rotated into view on March 21 and developed the next day when it was numbered by SWPC. The region has minor polarity intermixing.

Spotted regions not numbered (or interpreted differently) by SWPC:
S3226 [S10W33] decayed slowly and quietly. SWPC has moved AR 12008 10 degrees to the west to include the spots in AR S3226.
S3248 [S01E46] was quiet and stable.
New region S3255 [S12E56] emerged with a penumbra spot.
New region S3256 [S08E52] emerged with a penumbra spot.
New region S3257 [S19W51] emerged with a penumbra spot.
New region S3258 [S06W33] emerged on March 21 and was split off from AR S3226.

Coronal mass ejections (CMEs)

March 20-21: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.
March 22: A partial halo CME was observed after the LDE in AR 12005, it is uncertain if this CME has Earth directed extensions.

Coronal holes

Coronal hole history (since October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A small trans equatorial coronal hole (CH608) was in an Earth facing position on March 19-20.

Coronal hole map

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor to fair. Propagation on long distance northeast-southwest paths is poor.

Forecast

The geomagnetic field is expected to be quiet on March 23 with a chance of unsettled intervals due to weak effects from CH608. Quiet conditions are likely on March 24-25 with some uncertainty on March 25 due to possible effects from the March 22 CME.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

Active solar regions

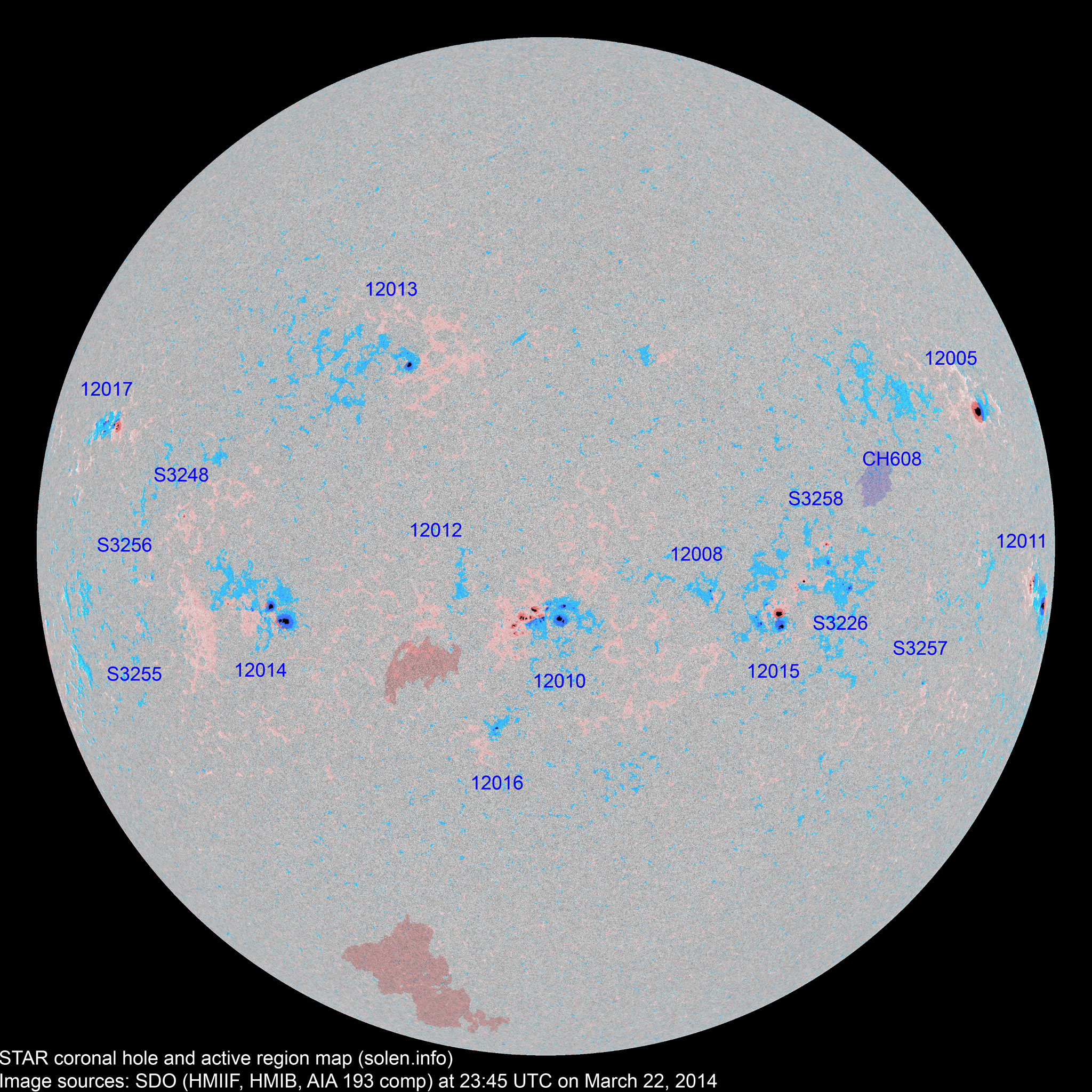

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlay
Comment
SWPC Magnetic
(SDO)
SWPC STAR Current Previous
2K 1K
12005 2014.03.11
2014.03.12
1 4 3 N12W60 0190 HSX CHO images/AR_12005_20140321_2345.png area: 0260
12007 2014.03.13
2014.03.14
      N11W47           trailing part of AR 12005
12009 2014.03.13
2014.03.16
      N14W86           plage

location: N11W84

12008 2014.03.14
2014.03.15
8 3 2 S11W30 0030 DRO BXO area: 0020

SWPC has moved the region 10 degrees to the west and currently counts the spots of AR S3226.

real location: S11W19

12015 2014.03.15
2014.03.22
5 18 7 S15W28 0060 DAC DAC beta-gamma

area: 0150

location: S13W27

S3226 2014.03.15   11 8 S10W33 0050   DRO
S3227 2014.03.15       S26W40           plage
S3229 2014.03.16       S08W54           plage
12010 2014.03.16
2014.03.17
26 44 28 S15W00 0130 DAC DAC

beta-gamma

area: 0320

location: S14E01

S3231 2014.03.16       S19W39           plage
S3232 2014.03.16       S24W43           plage
S3233 2014.03.17       S27W09           plage
12012 2014.03.17
2014.03.18
  6 1 S09E05 0010   BXO location: S12E12
12013 2014.03.17
2014.03.18
1 17 5 N13E30 0030 HAX CAO area: 0070
12016 2014.03.17
2014.03.22
2 5 4 S29E06 0010 BXO CRO area: 0020
S3237 2014.03.17       S23W25           plage
12011 2014.03.18 12 5 4 S07W77 0300 DHO DSO

area: 0320

12014 2014.03.18
2014.03.19
9 13 10 S14E35 0170 DSO DSO

location: S13E33

area: 0220

S3241 2014.03.18       N14W13         plage
S3242 2014.03.18       N21W44           plage
S3244 2014.03.19       N17E02           plage
S3245 2014.03.19       S18W35           plage
S3246 2014.03.19       S02W28           plage
S3248 2014.03.20   1 1 S01E46 0010   HRX
S3250 2014.03.20       N39W17           plage
S3251 2014.03.21       S09W51         plage
12017 2014.03.21
2014.03.22
5 11 7 N09E58 0030 CAO DAI beta-gamma

area: 0130

S3254 2014.03.21       S02W07         plage
S3255 2014.03.22   1 1 S12E56 0003   AXX
S3256 2014.03.22   1 1 S08E52 0004   AXX
S3257 2014.03.22   1 1 S19W51 0007   AXX
S3258 2014.03.22   5 3 S06W33 0025   CRO
Total spot count: 69 146 86
Sunspot number: 159 326 246  (total spot count + 10 * number of spotted regions)
Weighted SN: 112 198 139  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 95 114 135 k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for MSN 2K, k = 0.55 for MSN 1K (MSN=Magnetic Sunspot Number)

Monthly solar cycle data

Month Average solar flux International sunspot number
(WDC-SILSO)
Smoothed sunspot number Average ap
(3)
Measured 1 AU
2012.11 121.3 118.3 61.8 59.7 (+1.1) 7.08
2012.12 108.6 105.0 40.8 59.6 (-0.1) 3.44
2013.01 127.1 123.1 62.9 58.7 (-0.9) 4.69
2013.02 104.3 101.8 38.0 58.4 (-0.3) 6.11
2013.03 111.3 110.2 57.9 57.5 (-0.9) 10.56
2013.04 124.8 125.9 72.4 57.9 (+0.4) 5.40
2013.05 131.4 134.3 78.7 59.9 (+2.0) 9.73
2013.06 110.1 113.7 52.5 62.6 (+2.7) 12.60
2013.07 115.5 119.3 57.0 65.5 (+2.9) 9.47
2013.08 114.6 118.3 66.0 69.0 (+3.5) 8.27
2013.09 102.6 103.7 36.9 (72.8 projected, +3.8) 5.23
2013.10  132.1 131.2 85.6 (73.8 projected, +1.0) 7.71
2013.11  148.3 145.1 77.6 (72.7 projected, -1.1) 5.68
2013.12 147.7 143.1 90.3 (71.6 projected, -1.1) 4.68
2014.01 157.4 152.4 82.0 (71.6 projected, 0.0) 5.44
2014.02 170.3
(cycle peak)
166.3 102.8 (cycle peak) (70.9 projected, -0.7) 10.70
2014.03 149.6 (1)   102.2 (2A) / 144.0 (2B) / 120.9 (2C) (71.0 projected, +0.1) (4.6)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official WDC-SILSO international sunspot number is typically 30-50% lower. 2B) Boulder SN current month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
