The geomagnetic field was quiet to unsettled on May 22. Solar wind speed at SOHO ranged between 286 and 413 km/s. A geomagnetic disturbance began around 10h UTC and caused unsettled conditions for the remainder of the day. The source of the disturbance is likely a CME, as evidenced by ACE EPAM data.
Solar flux at 20h UTC on 2.8 GHz was 111.3 (decreasing 13.4 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 147.3. The Potsdam WDC planetary A index was 8 (STAR Ap - based on the mean of three hour interval ap indices: 7.6). Three hour interval K indices: 11112323 (planetary), 22213423 (Boulder).
The background x-ray flux is at the class B2-3 level.
At the time of counting spots (see image time), spots were observed in 9 active regions in 2K resolution (SN: 161) and 9 active regions in 1K resolution (SN: 118) SDO images on the visible solar disk.
Region 12061 [S24W73] was quiet and stable.
Region 12065 [S17W31] developed slowly as a negative polarity spot
emerged in the middle of the positive polarity area.
Region 12066 [S17W81] decayed slowly and was mostly quiet.
Region 12071 [S11E37] matured and was
mostly quiet.
Region 12072 [S19W18] decayed quickly after a C4 flare early in the day.
Region 12073 [S11E50] was quiet and stable.
Spotted regions not numbered (or interpreted differently) by SWPC:
New region S3459 [S13W19] emerged with several spots.
New region S3460 [S12E57] emerged with a few spots to the east of AR
12073.
New region S3461 [S19W38] emerged with penumbra spots.
Magnitude | Time (UTC) | Location | AR |
C4.8 | 03:11 | S19W07 | 12072 |
May 20-22: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.
Coronal hole history (since October
2002)
Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago
A small trans equatorial coronal hole (CH618) was in an Earth facing position on May 21.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor to fair.
The geomagnetic field is expected to be quiet to unsettled on May 23 and quiet on May 24-25. On May 24 there is a slight chance of unsettled intervals should a stream from CH618 reach Earth.
Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

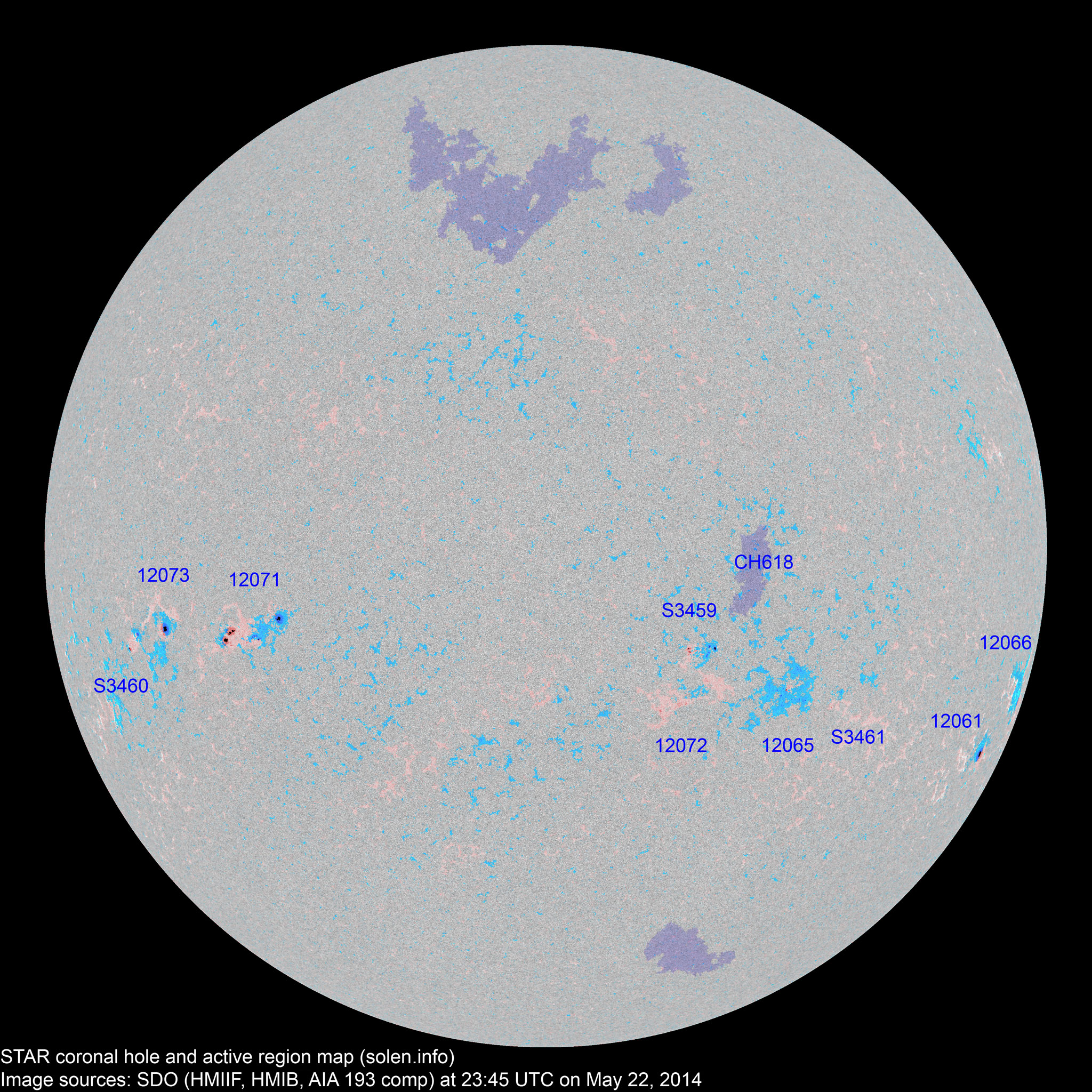

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlay |
Comment | ||||
---|---|---|---|---|---|---|---|---|---|---|---|
SWPC | Magnetic (SDO) |
SWPC | STAR | Current | Previous | ||||||
2K | 1K | ||||||||||
12061 | 2014.05.10 2014.05.11 |
1 | 1 | 1 | S24W74 | 0100 | HSX | HSX | |||
S3422 | 2014.05.13 | S23W42 | plage | ||||||||
12063 | 2014.05.13 2014.05.14 |
N09W67 |
plage |
||||||||
12064 | 2014.05.13 2014.05.14 |
N09W82 | plage | ||||||||
12066 | 2014.05.13 2014.05.16 |
4 | 3 | 1 | S17W79 | 0020 | CRO | CRO | |||
12065 | 2014.05.14 2014.05.15 |
17 | 5 | S17W31 | 0040 | CRI | |||||
S3436 | 2014.05.15 | N08W43 | plage | ||||||||
S3437 | 2014.05.15 | N25W23 | plage | ||||||||
12068 | 2014.05.16 2014.05.17 |
S15W44 | plage | ||||||||
S3444 | 2014.05.17 | S25E08 | plage | ||||||||
12069 | 2014.05.17 2014.05.18 |
S19W01 | plage | ||||||||
S3446 | 2014.05.17 | N03W26 | plage | ||||||||
S3448 | 2014.05.17 | S35W37 | plage | ||||||||
S3449 | 2014.05.18 | N26W26 | plage | ||||||||
12071 | 2014.05.19 | 9 | 23 | 7 | S11E49 | 0100 | DAI | DAI | area: 0220 | ||
12072 | 2014.05.20 | 5 | 9 | 3 | S18W19 | 0010 | BXO | BXO |
|
||
12073 | 2014.05.20 2014.05.21 |
1 | 2 | 1 | S11E49 | 0050 | HSX | HAX | area: 0080 | ||
S3457 | 2014.05.20 | N20W33 | plage | ||||||||
S3459 | 2014.05.22 | 10 | 6 | S13W19 | 0040 | DRI | |||||
S3460 | 2014.05.22 | 4 | 2 | S12E57 | 0020 | DRO | |||||
S3461 | 2014.05.22 | 2 | 2 | S19W38 | 0005 | BXO | |||||
Total spot count: | 20 | 71 | 28 | ||||||||
Sunspot number: | 70 | 161 | 118 | (total spot count + 10 * number of spotted regions) | |||||||
Weighted SN: | 38 | 98 | 55 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
Relative sunspot number (Wolf number): | 42 | 56 | 65 | k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for MSN 2K, k = 0.55 for MSN 1K (MSN=Magnetic Sunspot Number) |
Month | Average solar flux | International sunspot number (WDC-SILSO) |
Smoothed sunspot number | Average ap (3) |
|
---|---|---|---|---|---|
Measured | 1 AU | ||||
2013.02 | 104.3 | 101.8 | 38.0 | 58.4 (-0.3) | 6.11 |
2013.03 | 111.3 | 110.2 | 57.9 | 57.5 (-0.9) | 10.56 |
2013.04 | 124.8 | 125.9 | 72.4 | 57.9 (+0.4) | 5.40 |
2013.05 | 131.4 | 134.3 | 78.7 | 59.9 (+2.0) | 9.73 |
2013.06 | 110.1 | 113.7 | 52.5 | 62.6 (+2.7) | 12.60 |
2013.07 | 115.5 | 119.3 | 57.0 | 65.5 (+2.9) | 9.47 |
2013.08 | 114.6 | 118.3 | 66.0 | 69.0 (+3.5) | 8.27 |
2013.09 | 102.6 | 103.7 | 36.9 | 73.1 (+4.1) | 5.23 |
2013.10 | 132.1 | 131.2 | 85.6 | 75.0 (+1.9) | 7.71 |
2013.11 | 148.3 | 145.1 | 77.6 | (75.6 projected, +0.6) | 5.68 |
2013.12 | 147.7 | 143.1 | 90.3 | (76.6 projected, +1.0) | 4.68 |
2014.01 | 157.4 | 152.4 | 82.0 | (77.6 projected, +1.0) | 5.44 |
2014.02 | 170.3 (cycle peak) |
166.3 | 102.8 (cycle peak) | (77.4 projected, -0.2) | 10.70 |
2014.03 | 149.9 | 148.5 | 92.2 | (77.9 projected, +0.5) | 4.88 |
2014.04 | 143.9 | 144.8 | 84.7 | (77.0 projected, -0.9) | 7.88 |
2014.05 | 138.8 (1) | 90.2 (2A) / 127.0 (2B) / 96.0 (2C) | (74.4 projected, -2.6) | (5.6) |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The
official WDC-SILSO international sunspot number is typically 30-50% lower. 2B)
Boulder SN current month
average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices.
Values in red are based on the definitive
international
GFZ Potsdam
WDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
