Recent activity

The geomagnetic field was quiet to active on October 28. Solar wind speed at SOHO ranged between 383 and 572 km/s.

Solar flux at 20h UTC on 2.8 GHz was 167.2 (increasing 12.1 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 143.4. The Potsdam WDC planetary A index was 11 (STAR Ap - based on the mean of three hour interval ap indices: 11.4). Three hour interval K indices: 43232321 (planetary), 42243322 (Boulder).

The background x-ray flux is at the class C2 level.

At the time of counting spots (see image time), spots were observed in 10 active regions using 2K resolution (SN: 207) and 9 active regions using 1K resolution (SN: 155) SDO images on the visible solar disk.

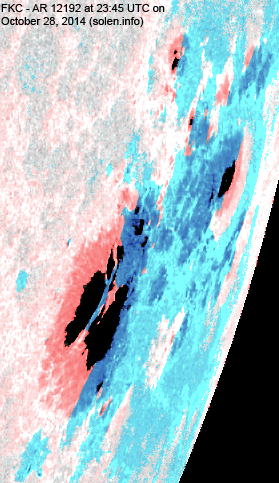

Region 12192 [S15W68] became less active as slow decay continued. The magnetic delta in the western section of the largest penumbra is still there and further major flares are possible over the next 2-3 days until the region has rotated well out of view.
Region 12194 [S12W34] was quiet and stable.

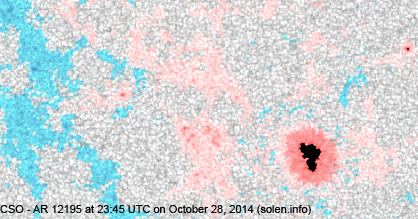

Region 12195 [N07W08] was quiet and stable.

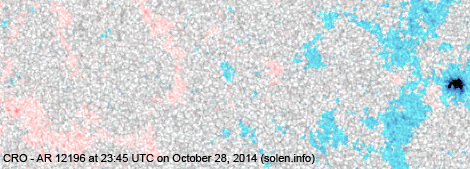

Region 12196 [S04E16] was quiet and stable.

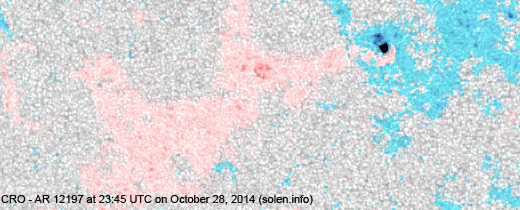

Region 12197 [S13E13] decayed slowly and quietly.
New region 12198 [S14W18] emerged on October 27 and was numbered the next day by SWPC.

Spotted regions not numbered (or interpreted differently) by SWPC:
S3937 [S16E03] was quiet and stable.
New region S3944 [S16E77] rotated into view.
New region S3945 [N04W53] emerged with penumbra spots.
New region S3946 [S03W42] emerged with a penumbra spot.

An interesting region is approaching the northeast limb. It was the location of a backsided CME late on October 28.

C2+ flares (GOES):

Magnitude Peak time (UTC) Location AR Comment
M3.4 (LDE) 02:42 S14W61 12192
M6.6 03:32   12192
C4.2 06:10 S15W63 12192
C6.5 08:24 S22W63 12192
C5.3/1F 11:05 S17W62 12192
M1.6 14:06 S18W72 12192

Coronal mass ejections (CMEs)

October 26-28: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.

Coronal holes

[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]

A northern hemisphere coronal hole (CH641) will likely rotate across the central meridian on October 29-30.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is fair to good. Propagation on long distance northeast-southwest paths is good.

Forecast

The geomagnetic field is expected to be quiet to unsettled on October 29-31.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

Active solar regions

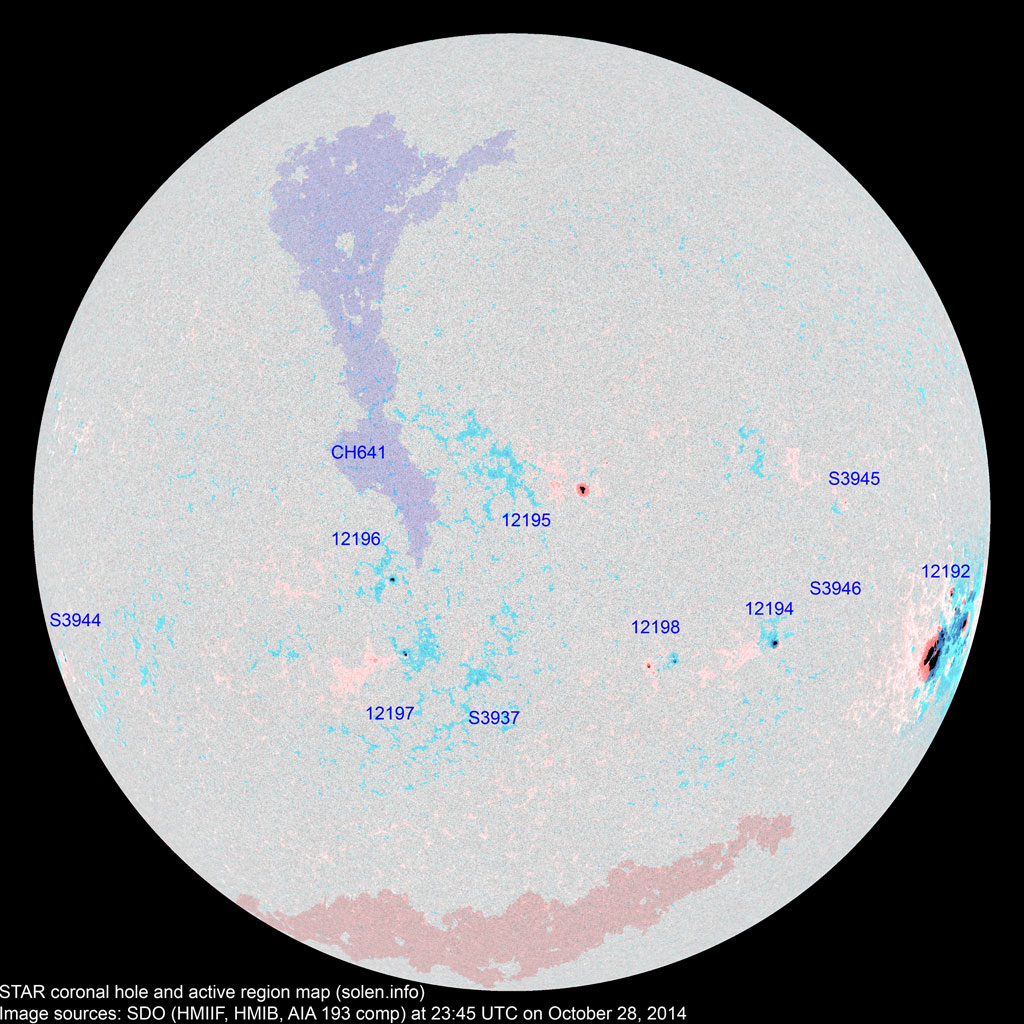

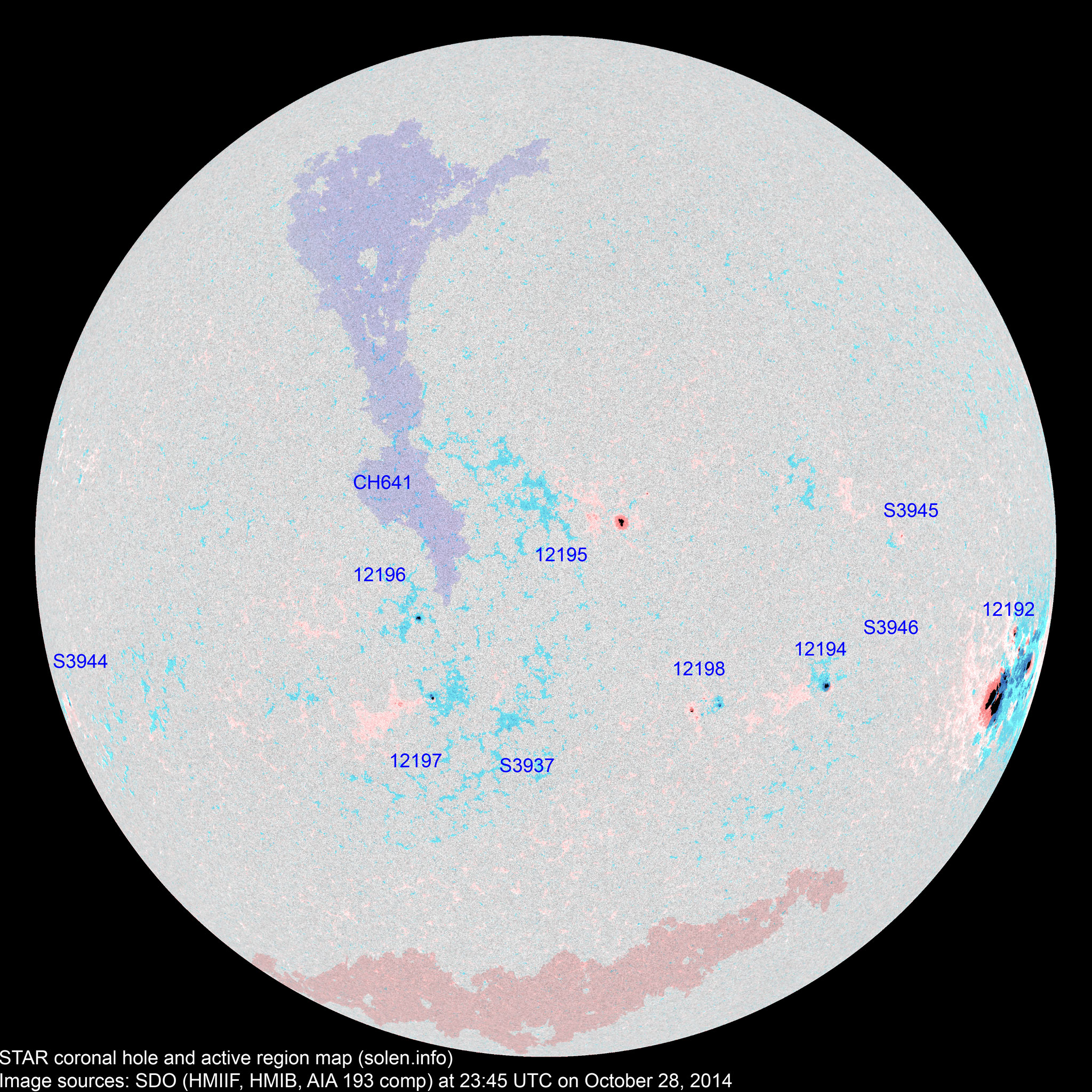

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlay
Comment
SWPC Magnetic
(SDO)
SWPC STAR Current Previous
2K 1K
12192 2014.10.16
2014.10.17
36 51 35 S13W71 2680 FKC FKC beta-gamma-delta

location: S15W68

12194 2014.10.19
2014.10.21
1 7 4 S11W36 0030 HAX CAO area: 0060

location: S12W34

12195 2014.10.21
2014.10.22
5 10 8 N08W07 0050 CSO CSO area: 0110
S3930 2014.10.22       N07W36           plage
12197 2014.10.23
2014.10.24
5 16 6 S12E10 0010 BXO CRO
12196 2014.10.23
2014.10.24
1 6 2 S03E12 0010 AXX CRO
S3936 2014.10.25       S29W27           plage
S3937 2014.10.25   4   S16E03 0010   AXX
S3940 2014.10.27       S16E52         plage
S3941 2014.10.27       S15E29         plage
12198 2014.10.27
2014.10.28
1 8 6 S14W18 0010 AXX DRO area: 0030
S3944 2014.10.28   2 2 S16E77 0010   CRO
S3945 2014.10.28   2 1 N04W53 0006   AXX
S3946 2014.10.28   1 1 S03W42 0003   AXX
Total spot count: 49 107 65
Sunspot number: 109 207 155  (total spot count + 10 * number of spotted regions)
Weighted SN: 69 139 97  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 65 72 85 k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for MSN 2K, k = 0.55 for MSN 1K (MSN=Magnetic Sunspot Number)

Monthly solar cycle data

Month Average solar flux International sunspot number
(WDC-SILSO)
Smoothed sunspot number Average ap
(3)
Measured 1 AU
2013.06 110.1 113.7 52.5 62.6 (+2.7) 12.60
2013.07 115.5 119.3 57.0 65.5 (+2.9) 9.47
2013.08 114.6 118.3 66.0 69.0 (+3.5) 8.27
2013.09 102.6 103.7 36.9 73.1 (+4.1) 5.23
2013.10  132.1 131.2 85.6 75.0 (+1.9) 7.71
2013.11  148.3 145.1 77.6 75.4 (+0.4) 5.68
2013.12 147.7 143.1 90.3 76.0 (+0.6) 4.68
2014.01 157.4 152.4 81.8 77.3 (+1.3) 5.44
2014.02 170.3
(cycle peak)
166.3 102.3 (cycle peak) 78.4 (+1.1) 10.70
2014.03 149.9 148.5 91.9 80.8 (+2.4) 4.88
2014.04 143.9 144.8 84.7 (82.7 projected, +1.9) 7.88
2014.05 129.7 132.9 75.2 (82.3 projected, -0.4) 5.75
2014.06 122.0 125.8 71.0 (81.1 projected, -1.2) 6.72
2014.07 137.4 141.8 72.5 (79.4 projected, -1.7) 4.50
2014.08 124.7 127.9 74.7 (77.1 projected, -2.3) 7.71
2014.09 146.6   87.6 (73.8 projected, -3.3) 9.78
2014.10 155.1 (1)   83.2 (2A) / 92.1 (2B) / 83.6 (2C) (71.4 projected, -2.4) (9.0)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official WDC-SILSO international sunspot number is typically 30-50% lower. 2B) Boulder SN current month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
