Last major update issued on September 21, 2014 at 05:10 UTC.

[Solar and geomagnetic data - last month (updated daily)]
[Solar wind and electron fluence charts (updated daily)]
[Solar cycles 23-24 (last update September 1, 2014)] [Cycle 24 progress (last update September 1, 2014) ]
[Solar cycles 1-20]
[Graphical comparison of cycles 21, 22, 23 and 24 (last update September 1, 2014)]
[Graphical comparison of cycles 10, 12, 13, 14, 16 and 24 (last update September 1, 2014)]
[Historical solar and geomagnetic data charts 1954-2006 (last update April 5, 2007)]
[Archived reports since January 2003 (last update September 6, 2014)]

[New: Noon SDO count 1K 4K (large file)]

[POES auroral activity level October 2009 - December 2012]
[Solar polar fields vs solar cycles - updated September 6, 2014]
[Presentations: 3rd SSN Workshop, Tucson, 2013 (pdf) / 4th SSN Workshop, Locarno, 2014]

Recent activity

The geomagnetic field was quiet on September 20. Solar wind speed at SOHO ranged between 416 and 552 km/s under the influence of a high speed coronal hole stream.

Solar flux at 20h UTC on 2.8 GHz was 119 (decreasing 21.9 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 134.6. The Potsdam WDC planetary A index was 5 (STAR Ap - based on the mean of three hour interval ap indices: 5.0). Three hour interval K indices: 22112111 (planetary), 22123212 (Boulder).

The background x-ray flux is at the class B4 level.

At the time of counting spots (see image time), spots were observed in 10 active regions using 2K resolution (SN: 162) and 9 active regions using 1K resolution (SN: 123) SDO images on the visible solar disk.

Region 12166 [N14W32] decayed slowly and quietly.
Region 12167 [N07W18] was quiet and stable.
Region 12168 [S21E05] decayed slowly and quietly.
Region 12169 [N04E26] was quiet and stable.
Region 12170 [N10E27] was quiet and stable.
Region 12171 [S10E53] developed slowly and could produce C and minor M class flares.
New region 12172 [S11E79] rotated into view as a complex and compact region. A major flare is possible.
New region 12173 [S15E66] rotated into view on September 19 and was numbered by SWPC the next day.

Spotted regions not numbered (or interpreted differently) by SWPC:
S3821 [S08W09] reemerged with penumbra spots.
S3829 [N16W53] reemerged with penumbra spots.

C2+ flares (GOES):

Magnitude Peak time (UTC) Location AR Comment


Coronal mass ejections (CMEs)

September 18-20: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.

Coronal holes

[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]

A northern hemisphere coronal hole (CH635) was in an Earth facing position on September 20 and early on Sept.21. A recurrent southern hemisphere coronal hole will likely rotate into an Earth facing positon on September 22-24.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor to fair.

Forecast

The geomagnetic field is expected to be quiet on September 21-22. On September 23-27 coronal hole effects could cause quiet to unsettled conditions with a chance of isolated active intervals.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

Active solar regions

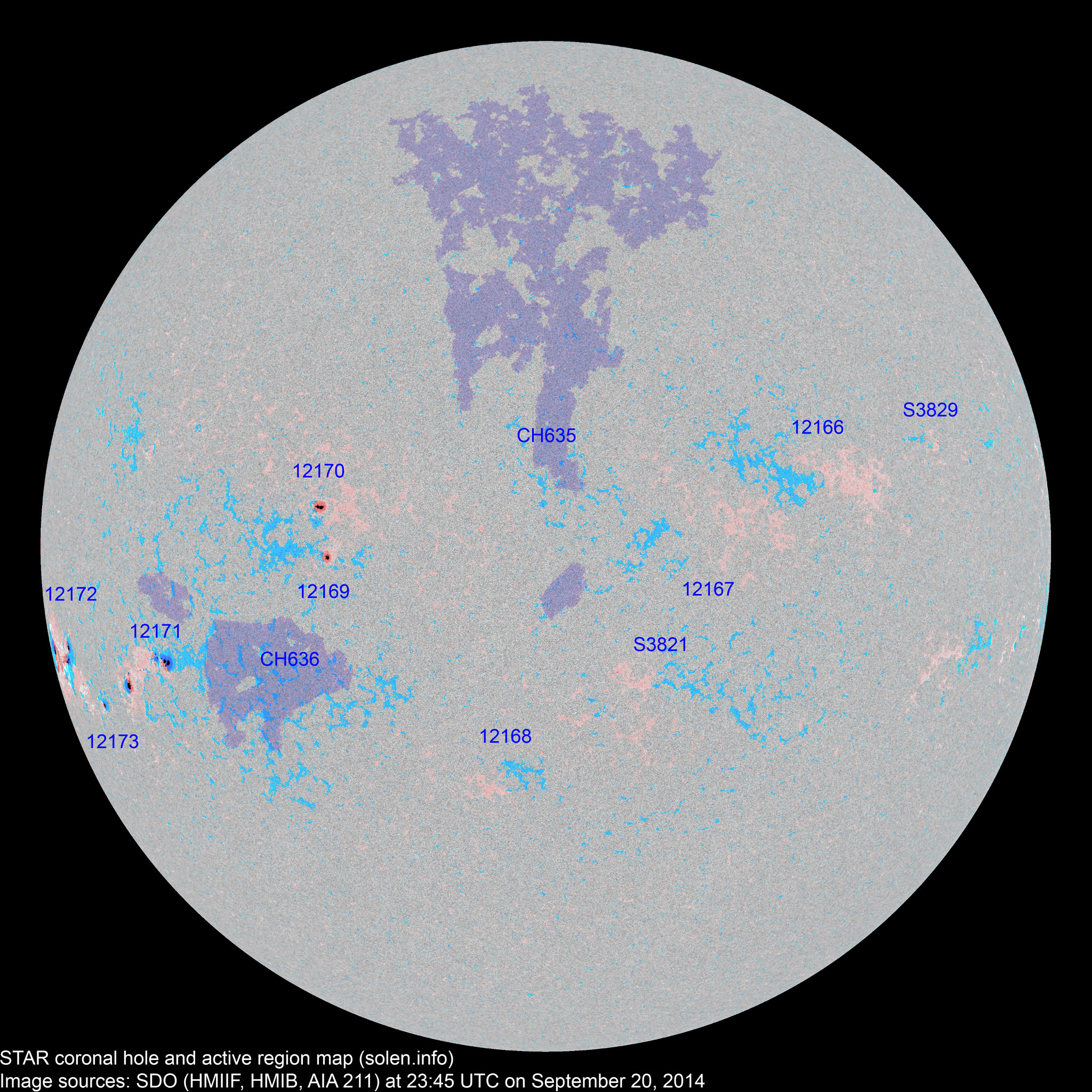

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlay
Comment
SWPC Magnetic
(SDO)
SWPC STAR Current Previous
2K 1K
12165 2014.09.10
2014.09.11
      S08W58           plage
12166 2014.09.12   11 4 N11W41 0020   BXO location: N14W32
12167 2014.09.13
2014.09.14
  4 3 N09W28 0013   BXO images/AR_12167_20140919_2345.png location: N07W18
S3821 2014.09.14   2 1 S08W09 0008   BXO
12169 2014.09.16
2014.09.17
2 6 3 N05E26 0030 HAX CAO location: N04E39

area: 0070

12170 2014.09.16
2014.09.17
2 8 3 N11E27 0050 HAX CSO area: 0090

location: N10E27

12168 2014.09.16
2014.09.17
2 4   S22E04 0010 AXX BXO location: S21E05
S3829 2014.09.17   2 1 N16W53 0009   AXX
12171 2014.09.18
2014.09.19
7 15 10 S10E53 0160 DAO EAO

beta-gamma

area: 0330

S3831 2014.09.18       S23E36           plage
12173 2014.09.19
2014.09.20
1 4 2 S15E65 0020 HRX CAO
S3833 2014.09.19       N07W45         plage
12172 2014.09.20 1 6 6 S09E75 0020 HRX EKC   beta-gamma-delta?

location: S11E79

area: 0580

Total spot count: 15 62 33
Sunspot number: 75 162 123  (total spot count + 10 * number of spotted regions)
Weighted SN: 36 92 63  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 45 57 68 k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for MSN 2K, k = 0.55 for MSN 1K (MSN=Magnetic Sunspot Number)

Monthly solar cycle data

Month Average solar flux International sunspot number
(WDC-SILSO)
Smoothed sunspot number Average ap
(3)
Measured 1 AU
2013.05 131.4 134.3 78.7 59.9 (+2.0) 9.73
2013.06 110.1 113.7 52.5 62.6 (+2.7) 12.60
2013.07 115.5 119.3 57.0 65.5 (+2.9) 9.47
2013.08 114.6 118.3 66.0 69.0 (+3.5) 8.27
2013.09 102.6 103.7 36.9 73.1 (+4.1) 5.23
2013.10  132.1 131.2 85.6 75.0 (+1.9) 7.71
2013.11  148.3 145.1 77.6 75.4 (+0.4) 5.68
2013.12 147.7 143.1 90.3 76.0 (+0.6) 4.68
2014.01 157.4 152.4 81.8 77.3 (+1.3) 5.44
2014.02 170.3
(cycle peak)
166.3 102.3 (cycle peak) 78.4 (+1.1) 10.70
2014.03 149.9 148.5 91.9 (80.3 projected, +1.9) 4.88
2014.04 143.9 144.8 84.7 (81.0 projected, +0.7) 7.88
2014.05 129.7 132.9 75.2 (79.2 projected, -1.8) 5.75
2014.06 122.0 125.8 71.0 (76.6 projected, -2.6) 6.72
2014.07 137.4 141.8 72.5 (73.6 projected, -3.0) 4.50
2014.08 124.7 127.9 74.7 (70.1 projected, -3.5) 7.71
2014.09 140.9 (1)   84.9 (2A) / 127.4 (2B) / 84.1 (2C) (65.9 projected, -4.2) (9.0)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official WDC-SILSO international sunspot number is typically 30-50% lower. 2B) Boulder SN current month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
