Recent activity

The geomagnetic field was quiet to unsettled on April 18 under the decreasing influence of a high speed stream. Solar wind speed at SOHO ranged between 450 and 568 km/s.

Solar flux at 20h UTC on 2.8 GHz was 147.6 (increasing 25.2 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 127.6. The Potsdam WDC planetary A index was 9 (STAR Ap - based on the mean of three hour interval ap indices: 9.0). Three hour interval K indices: 22222232 (planetary), 22333322 (Boulder).

The background x-ray flux is at the class B5 level.

At the time of counting spots (see image time), spots were observed in 16 active regions using 2K resolution (SN: 308) and 15 active regions using 1K resolution (SN: 234) SDO images on the visible solar disk.

Region 12321 [N11W26] decayed slowly and produced a few C flares.
Region 12322 [N12W52] was quiet and stable.
Region 12324 [N19E08] decayed slowly and quietly.
Region 12325 [N04E17] was mostly unchanged and produced a C flare.
Region 12326 [N15W12] decayed slowly and quietly.
Region 12327 [S09E58] was quiet and stable.
New region 12328 [S02W68] emerged on April 17 and was numbered by SWPC the next day.

Spotted regions not numbered (or interpreted differently) by SWPC:
S4367 [N08W17] decayed slowly and quietly.
S4380 [S18E10] was quiet and stable.
S4383 [S09E37] was quiet and stable.
S4385 [S19W27] decayed slowly and quietly.
S4391 [S08W32] developed slowly and quietly.
S4392 [N11W44] developed slowly and quietly.
New region S4394 [S08E19] emerged with a few spots.
New region S4395 [S15W24] emerged with penumbra spots.
New region S4396 [N14W47] emerged with a single spot.

C2+ flares:

Magnitude Peak time (UTC) Location AR Recorded by Comment
C2.3 13:37 N01E26 12325 GOES15
C5.2/1F 14:19 N10W15 12321 GOES15
C2.9/1F 18:25 N11W22 12321 GOES15

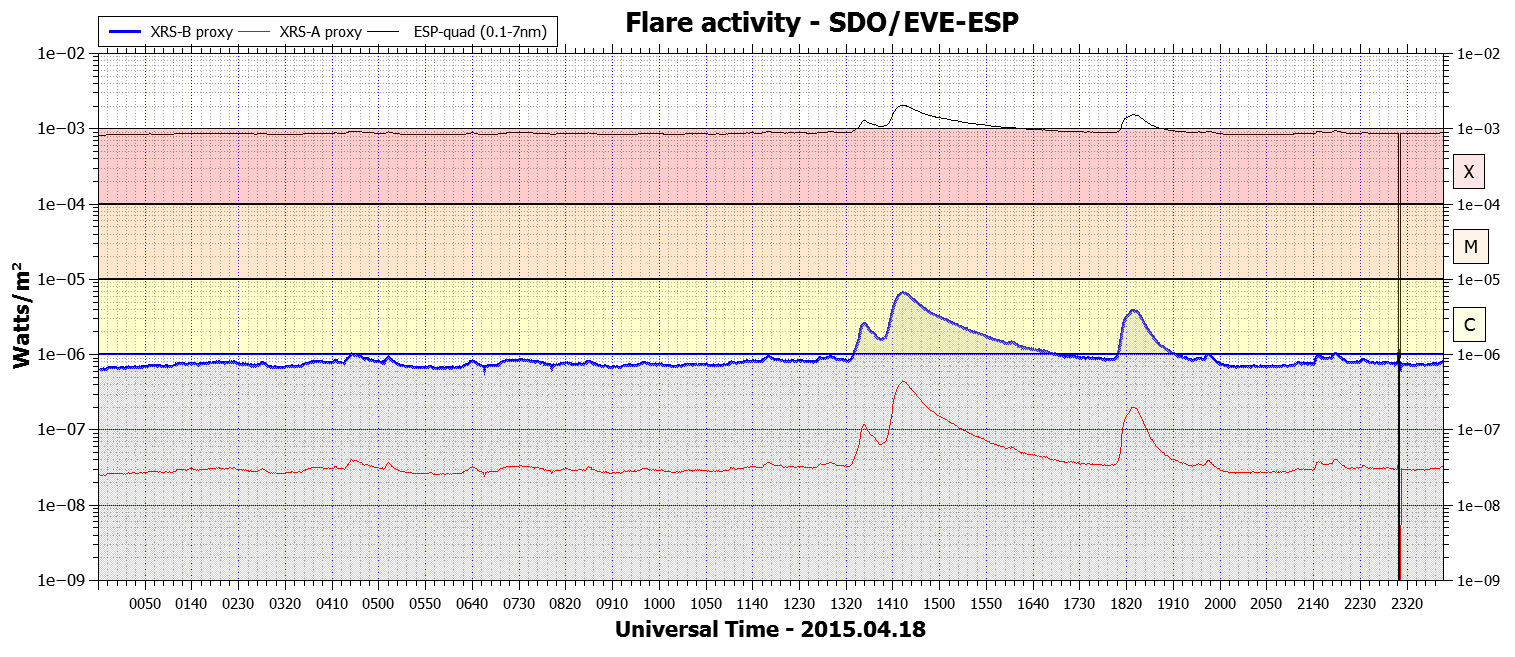

Flare activity according to SDO/EVE/ESP XRS-B proxy

Coronal mass ejections (CMEs)

April 16-18: No obviously Earth directed CMEs were observed.

Coronal holes

[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]

A southern hemisphere coronal hole (CH664) rotated across the central meridian on April 16-18.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor to fair.

Forecast

The geomagnetic field is expected to be quiet to unsettled on April 19-21. On April 19-20 there is a chance of occasional active intervals due to effects from CH664.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

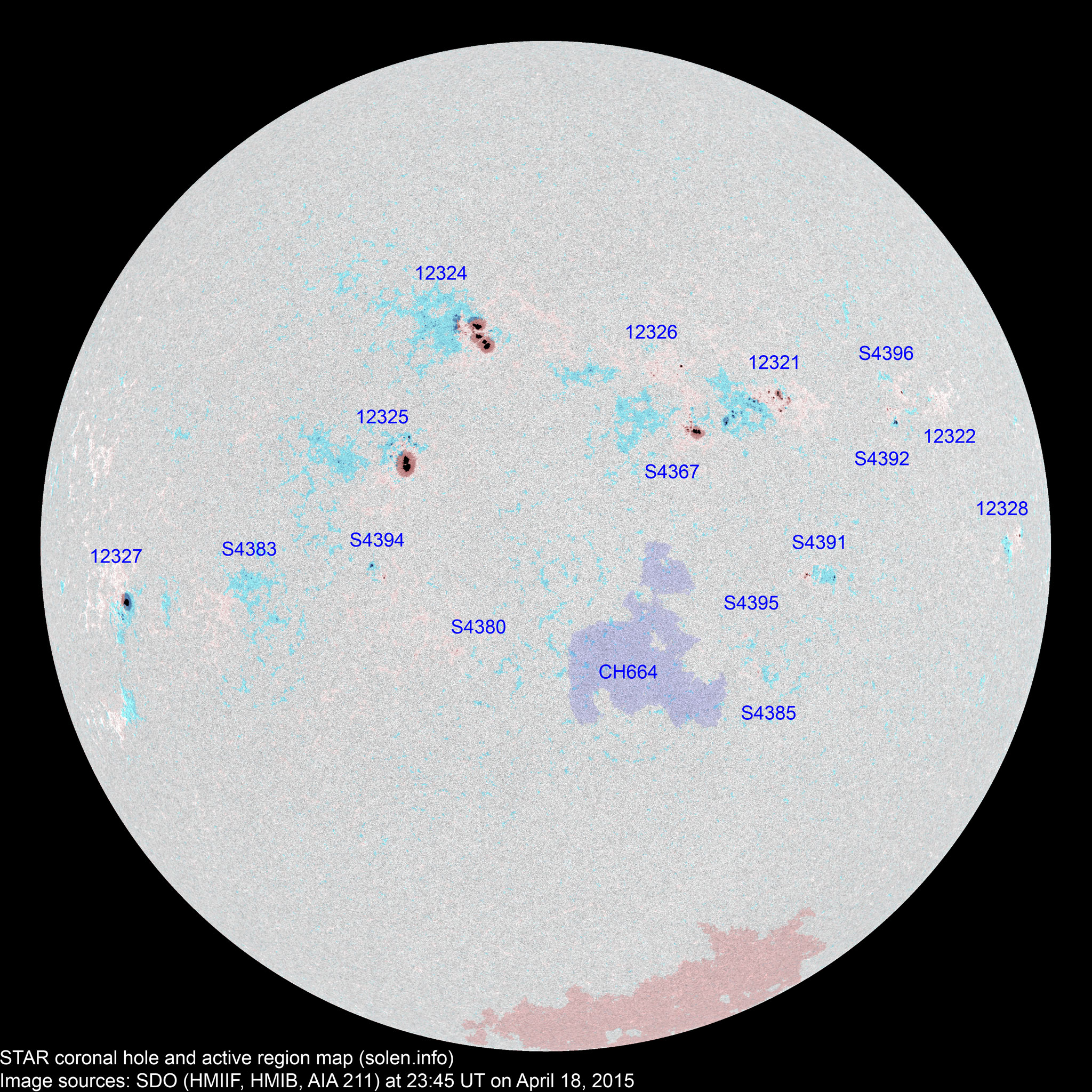

Active solar regions

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlay
Comment
SWPC Magnetic
(SDO)
SWPC STAR Current Previous
2K 1K
12322 2015.04.10
2015.04.11
2 3   N16W50 0010 BXO BXO

area: 0005

location: N13W52

12321 2015.04.10
2015.04.11
16 30 18 N11W22 0180 EAC DAI
S4367 2015.04.11   14 8 N08W17 0130   CAO
12326 2015.04.11
2015.04.16
5 11 6 N15W16 0030 BXO CRO
12324 2015.04.13
2015.04.14
6 25 13 N19E08 0360 DKO CAO
S4372 2015.04.13       S18W25
12325 2015.04.13
2015.04.14
9 22 13 N05E18 0160 CAI DKO area: 0350
S4375 2015.04.13       N10W30
S4377 2015.04.14       N11W47
S4379 2015.04.15       N22W41
S4380 2015.04.15   4 2 S18E10 0008   BXO
S4381 2015.04.15       N18W10
S4383 2015.04.16   5 3 S09E37 0015   AXX
12327 2015.04.16
2015.04.17
2 8 4 S09E57 0140 CSO CAO
S4385 2015.04.16   1 1 S19W27 0004   AXX
12328 2015.04.17
2015.04.18
4 5 4  S02W69 0010 BXO CRO
S4388 2015.04.17        N17W31
S4389 2015.04.17        S22E65
S4390 2015.04.17        S12E52
S4391 2015.04.17   7 5  S08W32 0030   DRO
S4392 2015.04.17   5 3  N11W44 0030   CRO
S4394 2015.04.18   4 2  S08E19 0025   DRO
S4395 2015.04.18   2 1  S15W24 0005   BXO
S4396 2015.04.18   1 1  N14W47 0008   HRX
Total spot count: 44 148 84
Sunspot number: 114 308 234  (total spot count + 10 * number of spotted regions)
Weighted SN: 69 196 132  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 68 108 129 k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for MSN 2K, k = 0.55 for MSN 1K (MSN=Magnetic Sunspot Number)

Monthly solar cycle data

Month Average solar flux International sunspot number
(WDC-SILSO)
Smoothed sunspot number Average ap
(3)
Measured 1 AU
2013.11  148.3 145.1 77.6 75.4 (+0.4) 5.68
2013.12 147.7 143.1 90.3 76.0 (+0.6) 4.68
2014.01 157.4 152.4 81.8 77.3 (+1.3) 5.44
2014.02 170.3
(cycle peak)
166.3 102.3 (cycle peak) 78.4 (+1.1) 10.70
2014.03 149.9 148.5 91.9 80.8 (+2.4) 4.88
2014.04 143.9 144.8 84.7 81.9 (+1.1)
(likely solar max)
7.88
2014.05 129.7 132.9 75.2 80.5 (-1.4) 5.75
2014.06 122.0 125.8 71.0 79.7 (-0.8) 6.72
2014.07 137.4 141.8 72.5 78.6 (-1.1) 4.50
2014.08 124.7 127.9 74.7 75.6 (-3.0) 7.71
2014.09 146.6 148.1 87.6 70.9 (-4.7) 9.78
2014.10 153.4 152.9 60.6 (67.3 projected, -3.6) 8.96
2014.11 154.8 151.4 70.1 (64.7 projected, -2.6) 9.33
2014.12 158.7 153.8 78.0 (62.4 projected, -2.3) 11.24
2015.01 141.9 137.3 67.0 (60.2 projected, -2.2) 9.46
2015.02 129.1 126.0 44.8 (58.4 projected, -1.8) 9.92
2015.03 125.9 124.6 38.4 (56.1 projected, -2.3) 16.14
2015.04 (128.8)   39.0 (2A) / 65.1 (2B) / 78.7 (2C) (53.4 projected, -2.7) (12.4)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official WDC-SILSO international sunspot number is typically 30-50% lower. 2B) Boulder SN current month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
