The geomagnetic field was quiet to unsettled on August 13. Solar wind speed at SOHO ranged between 322 and 360 km/s.
Solar flux at 20h UTC on 2.8 GHz was 94.8 (decreasing 2.6 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 114.9. The Potsdam WDC planetary A index was 9 (STAR Ap - based on the mean of three hour interval ap indices: 8.8). Three hour interval K indices: 33222111 (planetary), 34322211 (Boulder).
The background x-ray flux is at the class B2 level.
At the time of counting spots (see image time), spots were observed in 8 active regions using 2K resolution (SN: 129) and 6 active regions using 1K resolution (SN: 85) SDO images on the visible solar disk.
Region 12396 [S18W80] decayed very quickly with no
spots retaining mature penumbra by the end of the day.
Region 12398 [N18W15] lost the leading polarity spots.
Region 12400 [N17E08] developed slowly and quietly.
New region 12401 [S11E51] emerged on August 12 with SWPC numbering the
region the following day. The region is compact and a magnetic delta has formed.
The region is small and growing and has produced several small C flares early on
August 14. A minor M class event is possible.
Spotted regions not numbered (or interpreted differently) by SWPC:
S4686 [S02W22] developed early in the day, then decayed and lost the
leading polarity spot.
New region S4687 [S07E54] emerged early in the day and decayed slowly
towards the end of the day.
New region S4688 [N20E18] was observed with penumbra spots.
New region S4689 [S23E01] was observed with a penumbra spot.
C2+ flares:
| Magnitude | Peak time (UTC) | Location | AR | Recorded by | Comment |
August 11, 13: No obviously Earth directed CMEs were observed.
August 12: A partial halo CME was observed after multiple filament
eruptions in the southwest quadrant. The first eruption began after 14h UTC and
likely triggered a second eruption close to CH682.
[Coronal hole
history (since October 2002)]
[Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago]
A recurrent trans equatorial coronal hole (CH682) was in an Earth facing position on August 12-13. An extension of a northern hemisphere coronal hole (CH683) will likely rotate across the central meridian on August 15-17. A co-rotating interaction region may be associated with CH683 and could cause a geomagnetic disturbance on August 17-19.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor.
The geomagnetic field is expected to be quiet on August 14. A high speed stream associated with CH682 could cause unsettled and active conditions on August 15-16. A CME associated with a filament eruption observed on August 12 could arrive late on August 15 and contribute to the ongoing disturbance.
| Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

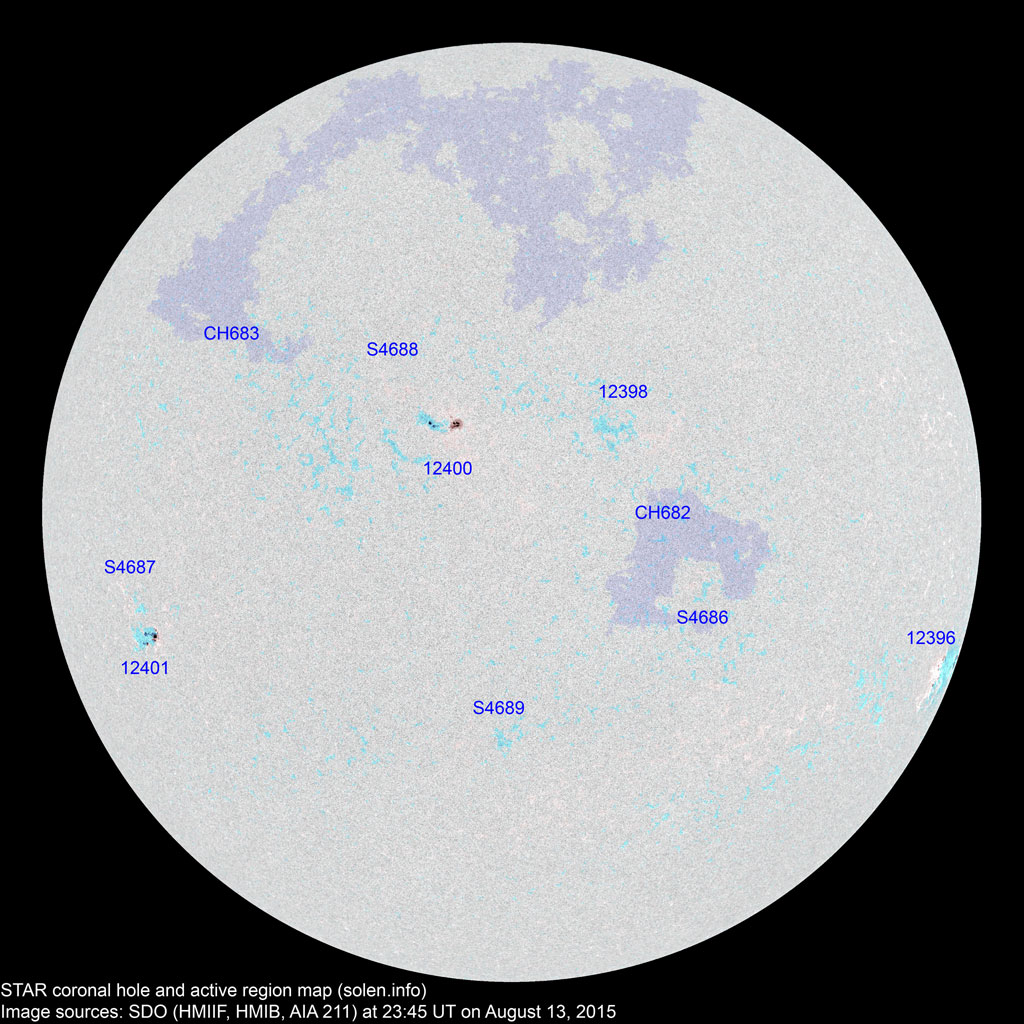

(Click on image for 2K resolution)
Compare to the previous day's image.
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
| Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlays |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC | Magnetic (SDO) |
SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 12395 | 2015.08.02 2015.08.03 |
N12W70 | |||||||||
| 12396 | 2015.08.03 | 9 | 13 | 8 | S18W79 | 0230 | EAC | ERI |
 |
 |
area: 0080 |
| S4667 | 2015.08.04 | S18W50 | |||||||||
| 12398 | 2015.08.06 2015.08.07 |
2 | 1 | N16W22 | 0006 | AXX |
 |
 |
location: N18W15 | ||
| S4679 | 2015.08.09 | S17W42 | |||||||||
| 12399 | 2015.08.10 2015.08.11 |
S16W28 |
 |
||||||||
| 12400 | 2015.08.11 | 7 | 12 | 6 | N17E07 | 0050 | DAO | DAO |
 |
 |
area: 0120 |
| S4683 | 2015.08.12 | N03W45 |
 |
||||||||
| S4684 | 2015.08.12 | N20W56 |
 |
||||||||
| 12401 | 2015.08.12 2015.08.13 |
5 | 15 | 8 | S11E50 | 0010 | BXO | DRI |
 |
 |
beta-delta area: 0060 |
| S4686 | 2015.08.12 | 1 | S02W22 | 0002 | AXX |
 |
 |
||||
| S4687 | 2015.08.13 | 1 | 1 | S07E54 | 0003 | AXX |
 |
||||
| S4688 | 2015.08.13 | 4 | 1 | N20E18 | 0010 | BXO |
 |
||||
| S4689 | 2015.08.13 | 1 | S23E01 | 0002 | AXX |
 |
|||||
| Total spot count: | 21 | 49 | 25 | ||||||||
| Sunspot number: | 51 | 129 | 85 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 31 | 60 | 36 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 56 | 71 | 72 | k * (sunspot number) As of July 1, 2015: k = 1.1 for SWPC, k = 0.55 for MSN 2K, k = 0.85 for MSN 1K (MSN=Magnetic Sunspot Number) |
|||||||
| Month | Average solar flux | International sunspot number (WDC-SILSO) (4) |
Smoothed sunspot number (4) | Average
ap (3) |
|
|---|---|---|---|---|---|
| Measured | 1 AU | ||||
| 2014.02 | 170.3 (cycle peak) |
166.3 | 146.1 (cycle peak) | 110.5 (+1.2) | 10.70 |
| 2014.03 | 149.9 | 148.5 | 128.7 | 114.3 (+3.8) | 4.88 |
| 2014.04 | 143.9 | 144.8 | 112.5 | 116.4 (+2.1) (solar max) | 7.88 |
| 2014.05 | 129.7 | 132.9 | 112.5 | 115.0 (-1.4) | 5.75 |
| 2014.06 | 122.0 | 125.8 | 102.9 | 114.1 (-0.9) | 6.72 |
| 2014.07 | 137.4 | 141.8 | 100.2 | 112.6 (-1.5) | 4.50 |
| 2014.08 | 124.7 | 127.9 | 106.9 | 108.3 (-4.3) | 7.71 |
| 2014.09 | 146.6 | 148.1 | 130.0 | 101.9 (-6.4) | 9.78 |
| 2014.10 | 153.4 | 152.9 | 90.0 | 97.4 (-4.5) | 8.96 |
| 2014.11 | 154.8 | 151.4 | 103.6 | 95.0 (-2.4) | 9.33 |
| 2014.12 | 158.7 | 153.8 | 112.9 | 92.6 (-2.4) | 11.24 |
| 2015.01 | 141.9 | 137.3 | 93.0 | 89.8 (-2.8) | 9.46 |
| 2015.02 | 129.1 | 126.0 | 66.7 | (86.8 projected, -3.0) | 9.92 |
| 2015.03 | 125.9 | 124.6 | 54.5 | (83.1 projected, -3.7) | 16.14 |
| 2015.04 | 128.8 | 129.7 | 78.0 | (79.8 projected, -3.3) | 10.73 |
| 2015.05 | 120.0 | 122.6 | 90.0 | (77.4 projected, -2.4) | 8.29 |
| 2015.06 | 122.3 | 126.1 | 68.3 | (73.9 projected, -3.5) | 13.15 |
| 2015.07 | 107.0 | 110.8 | 66.4 | (70.2 projected, -3.7) | 8.8 |
| 2015.08 | (108.2) | 30.6 (2A) / 73.0 (2B) / 74.9 (2C) | (69.0 projected, -1.2) | (8.3) | |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B)
Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day
average.
3) Running average based on the quicklook and definitive Potsdam WDC ap
indices. Values in red are based on the definitive
international
GFZ Potsdam
WDC
ap indices.
4) Updated to new data set from WDC-SILSO on July 1, 2015
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.
