The geomagnetic field was quiet to unsettled on March 31. Solar wind speed at SOHO ranged between 298 and 533 km/s. A weak solar wind shock was observed at SOHO at 07:40 UT.
Solar flux at 20h UTC on 2.8 GHz was 128.1 (increasing 3.9 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 129.4. The Potsdam WDC planetary A index was 7 (STAR Ap - based on the mean of three hour interval ap indices: 7.4). Three hour interval K indices: 11222321 (planetary), 11233322 (Boulder).
The background x-ray flux is at the class B4 level.
At the time of counting spots (see image time), spots were observed in 15 active regions using 2K resolution (SN: 219) and 9 active regions using 1K resolution (SN: 116) SDO images on the visible solar disk.
Region 12305 [S10W64] was quiet and stable.

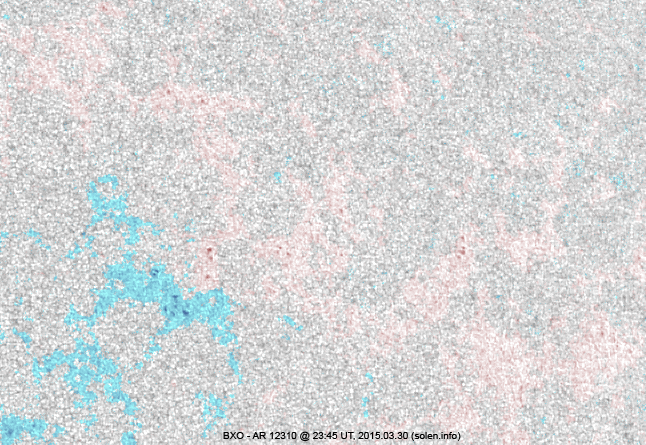

Region 12310 [N08W38] was quiet and stable.

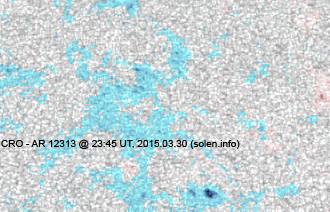

Region 12313 [N18W22] decayed slowly and quietly.

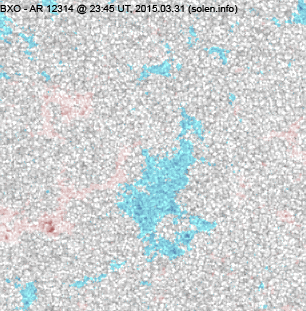

Region 12314 [S23E04] was mostly quiet and stable. The region was the
source of the only C flare of the day, a C1.3 event at 01:17 UT.
Region 12315 [S19W52] decayed slowly and was quiet.
Region 12316 [S20E19] decayed slowly and quietly.
Spotted regions not numbered (or interpreted
differently) by SWPC:
S4311 [S26W25] was quiet and stable.

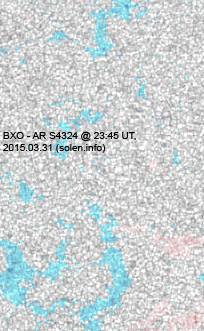

S4324 [N03E10] was quiet and stable.
S4326 [N16W08] was quiet and stable.
S4327 [S11E06] was quiet and stable.
New region S4329 [N14E35] emerged with a penumbra spot.
New region S4330 [N15E19] was observed with penumbra spots.
New region S4331 [S12E44] emerged with a penumbra spot.
New region S4332 [S42W36] was observed with a penumbra spot at a high
latitude.

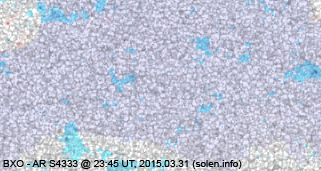

New region S4333 [S09W08] emerged with penumbra
spots.
C2+ flares:
| Magnitude | Peak time (UTC) | Location | AR | Recorded by | Comment |
Flare activity according to SDO/EVE/ESP XRS-B proxy
March 29-31: No obviously Earth directed CMEs were observed.
[Coronal hole
history (since October 2002)]
[Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago]

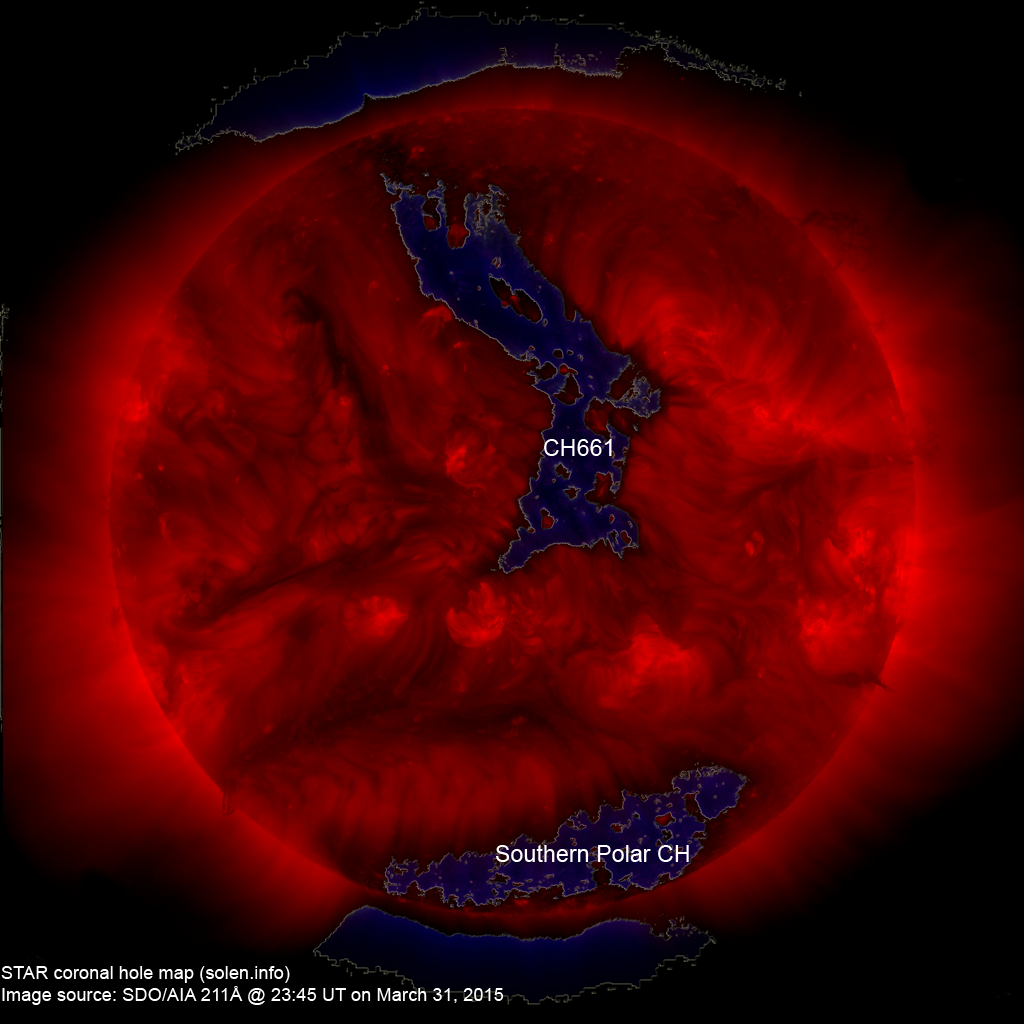

A recurrent trans equatorial coronal hole (CH661) was in an Earth facing position on March 30-31.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor.
The geomagnetic field is expected to be quiet on April 1. On April 2-3 a high speed stream associated with CH661 could cause unsettled to active conditions.
| Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

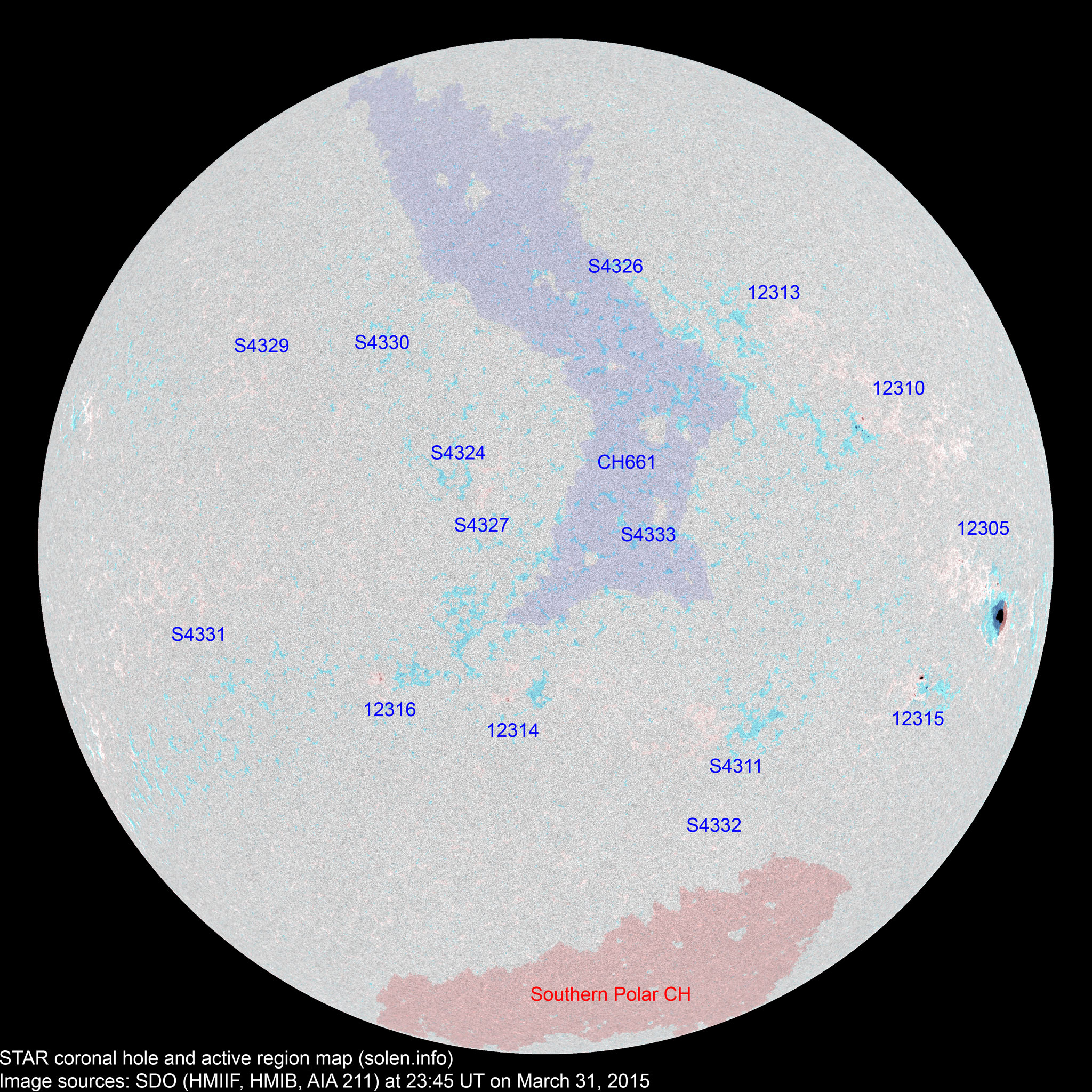

(Click on image for 2K resolution) Compare to the previous day's image. 0.5K image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
| Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlay |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC | Magnetic (SDO) |
SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 12305 | 2015.03.20 2015.03.21 |
6 | 9 | 6 | S11W64 | 0310 | CHO | DKO |
 |
 |
area: 0460 |
| 12310 | 2015.03.22 2015.03.23 |
11 | 5 | N04W54 | 0030 | CRO |
 |
images/AR_12310_20150330_2345.png |
location: N08W38 |
||
| 12312 | 2015.03.23 | N08W43 | trailing part of AR 12310 | ||||||||
| 12315 | 2015.03.23 2015.03.28 |
3 | 7 | 4 | S21W53 | 0020 | CAO | CRO |
 |
 |
location: S19W52 |
| S4311 | 2015.03.23 | 6 | S26W25 | 0010 | BXO |
 |
 |
||||
| 12313 | 2015.03.23 2015.03.24 |
3 | 3 | 2 | N18W26 | 0010 | BXO | AXX |
 |
 |
location: N18W22 |
| S4315 | 2015.03.24 | S10W44 | |||||||||
| 12314 | 2015.03.25 2015.03.26 |
6 | 2 | S21W01 | 0015 | BXO |
 |
 |
location: S23E04 | ||
| S4320 | 2015.03.26 | S03W37 | |||||||||
| S4321 | 2015.03.26 | S16W51 | |||||||||
| 12316 | 2015.03.27 2015.03.29 |
1 | 5 | 2 | S21E16 | 0010 | AXX | BXO |
 |
 |
location: S20E19 |
| S4324 | 2015.03.28 | 4 | N03E10 | 0008 | BXO |
 |
 |
||||
| S4325 | 2015.03.28 | S15W21 | |||||||||
| S4326 | 2015.03.29 | 5 | 1 | N16W08 | 0015 | AXX |
 |
 |
|||
| S4327 | 2015.03.29 | 4 | 3 | S11E06 | 0010 | AXX |
 |
 |
|||
| S4328 | 2015.03.30 | N23E13 |
 |
||||||||
| S4329 | 2015.03.31 | 1 | N14E35 | 0003 | AXX |
 |
|||||
| S4330 | 2015.03.31 | 2 | N15E19 | 0003 | BXO |
 |
|||||
| S4331 | 2015.03.31 | 1 | S12E44 | 0001 | AXX |
 |
|||||
| S4332 | 2015.03.31 | 1 | S42W26 | 0002 | AXX |
 |
|||||
| S4333 | 2015.03.31 | 4 | 1 | S09W08 | 0007 | BXO |
 |
||||
| Total spot count: | 13 | 69 | 26 | ||||||||
| Sunspot number: | 53 | 219 | 116 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 28 | 85 | 42 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 32 | 77 | 64 | k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for MSN 2K, k = 0.55 for MSN 1K (MSN=Magnetic Sunspot Number) | |||||||
| Month | Average solar flux | International sunspot number (WDC-SILSO) |
Smoothed sunspot number | Average
ap (3) |
|
|---|---|---|---|---|---|
| Measured | 1 AU | ||||
| 2013.11 | 148.3 | 145.1 | 77.6 | 75.4 (+0.4) | 5.68 |
| 2013.12 | 147.7 | 143.1 | 90.3 | 76.0 (+0.6) | 4.68 |
| 2014.01 | 157.4 | 152.4 | 81.8 | 77.3 (+1.3) | 5.44 |
| 2014.02 | 170.3 (cycle peak) |
166.3 | 102.3 (cycle peak) | 78.4 (+1.1) | 10.70 |
| 2014.03 | 149.9 | 148.5 | 91.9 | 80.8 (+2.4) | 4.88 |
| 2014.04 | 143.9 | 144.8 | 84.7 | 81.9 (+1.1) (likely solar max) |
7.88 |
| 2014.05 | 129.7 | 132.9 | 75.2 | 80.5 (-1.4) | 5.75 |
| 2014.06 | 122.0 | 125.8 | 71.0 | 79.7 (-0.8) | 6.72 |
| 2014.07 | 137.4 | 141.8 | 72.5 | 78.6 (-1.1) | 4.50 |
| 2014.08 | 124.7 | 127.9 | 74.7 | 75.6 (-3.0) | 7.71 |
| 2014.09 | 146.6 | 148.1 | 87.6 | 70.9 (-4.7) | 9.78 |
| 2014.10 | 153.4 | 152.9 | 60.6 | (67.3 projected, -3.6) | 8.96 |
| 2014.11 | 154.8 | 151.4 | 70.1 | (64.7 projected, -2.6) | 9.33 |
| 2014.12 | 158.7 | 153.8 | 78.0 | (62.4 projected, -2.3) | 11.24 |
| 2015.01 | 141.9 | 137.3 | 67.0 | (60.2 projected, -2.2) | 9.46 |
| 2015.02 | 129.1 | 126.0 | 44.8 | (58.4 projected, -1.8) | 9.92 |
| 2015.03 | 126.0 | 124.6 | 38.4 | (56.1 projected, -2.3) | 15.5 |
| 2015.04 | () | (2A/2B) / 62.5 (2C) | (53.4 projected, -2.7) | () | |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC)
sunspot number (accumulated daily sunspots / month days). The official WDC-SILSO
international sunspot number is typically 30-50% lower. 2B) Boulder SN current
month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap
indices. Values in red are based on the definitive
international
GFZ Potsdam
WDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
