Recent activity

The geomagnetic field was quiet on May 8. Solar wind speed at SOHO ranged between 341 and 508 km/s.

Solar flux at 20h UTC on 2.8 GHz was 149.8 (increasing 26.9 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 125.5. The Potsdam WDC planetary A index was 5 (STAR Ap - based on the mean of three hour interval ap indices: 5.1). Three hour interval K indices: 22221011 (planetary), 33231212 (Boulder).

The background x-ray flux is at the class C1 level.

At the time of counting spots (see image time), spots were observed in 10 active regions using 2K resolution (SN: 244) and 8 active regions using 1K resolution (SN: 163) SDO images on the visible solar disk.

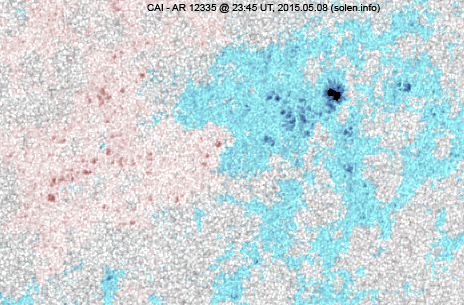

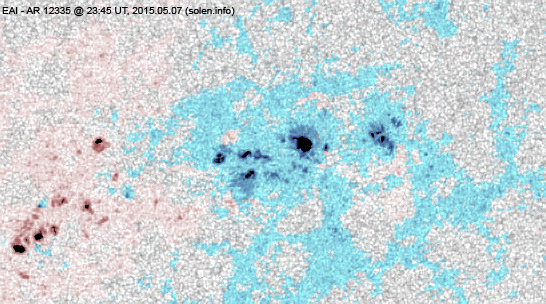

Region 12335 [S16W31] decayed quickly losing spots and area.
Region 12337 [S18W10] decayed slowly and quietly.
Region 12338 [N04W11] decayed slowly and quietly.

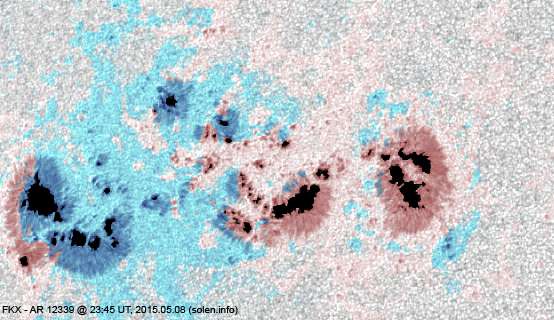

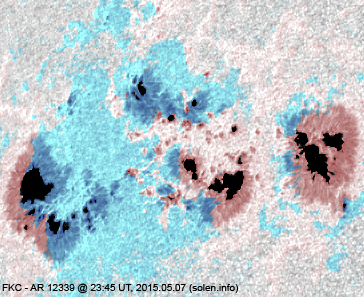

Region 12339 [N11E34] has several small magnetic deltas, two in northern central penumbrae and one in the southern part of the large trailing penumbra. Another major flare is still possible.
Region 12340 [S08E53] developed slowly and quietly.
Region 12341 [S20E60] was quiet and stable.

Spotted regions not numbered (or interpreted differently) by SWPC:
S4442 [S29W18] reemerged with a penumbra spot.
S4449 [N26W11] reemerged with a penumbra spot.
S4450 [N15E49] was quiet and stable.
New region S4452 [N18E76] rotated into view. This region was the source of a long duration C7.4 event peaking at 01:34 UT on May 9. A CME was observed off the northeast limb.

C2+ flares:

Magnitude Peak time (UTC) Location AR Recorded by Comment
C5.5/1N 04:09 N10E46 12339 GOES15
C4.1 09:40 N12E49 12339 GOES15
C2.0 (LDE) 21:50 N10E36 12339 GOES15

Flare activity according to SDO/EVE/ESP XRS-B proxy

Coronal mass ejections (CMEs)

May 6-8: No obviously Earth directed CMEs were observed.

Coronal holes

[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]

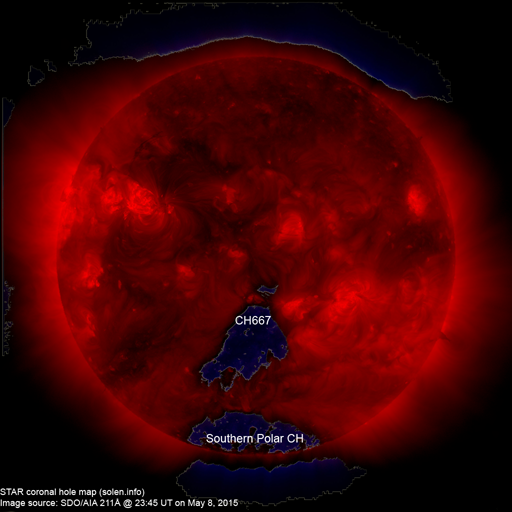

A recurrent extension (CH667) of the southern polar coronal hole rotated across the central meridian on May 8-9 and may be associated with a co-rotating interaction region.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor.

Forecast

The geomagnetic field is expected to be quiet on May 9-10. On May 11-12 effects from CH667 and a co-rotating interaction region could cause unsettled to minor storm conditions.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

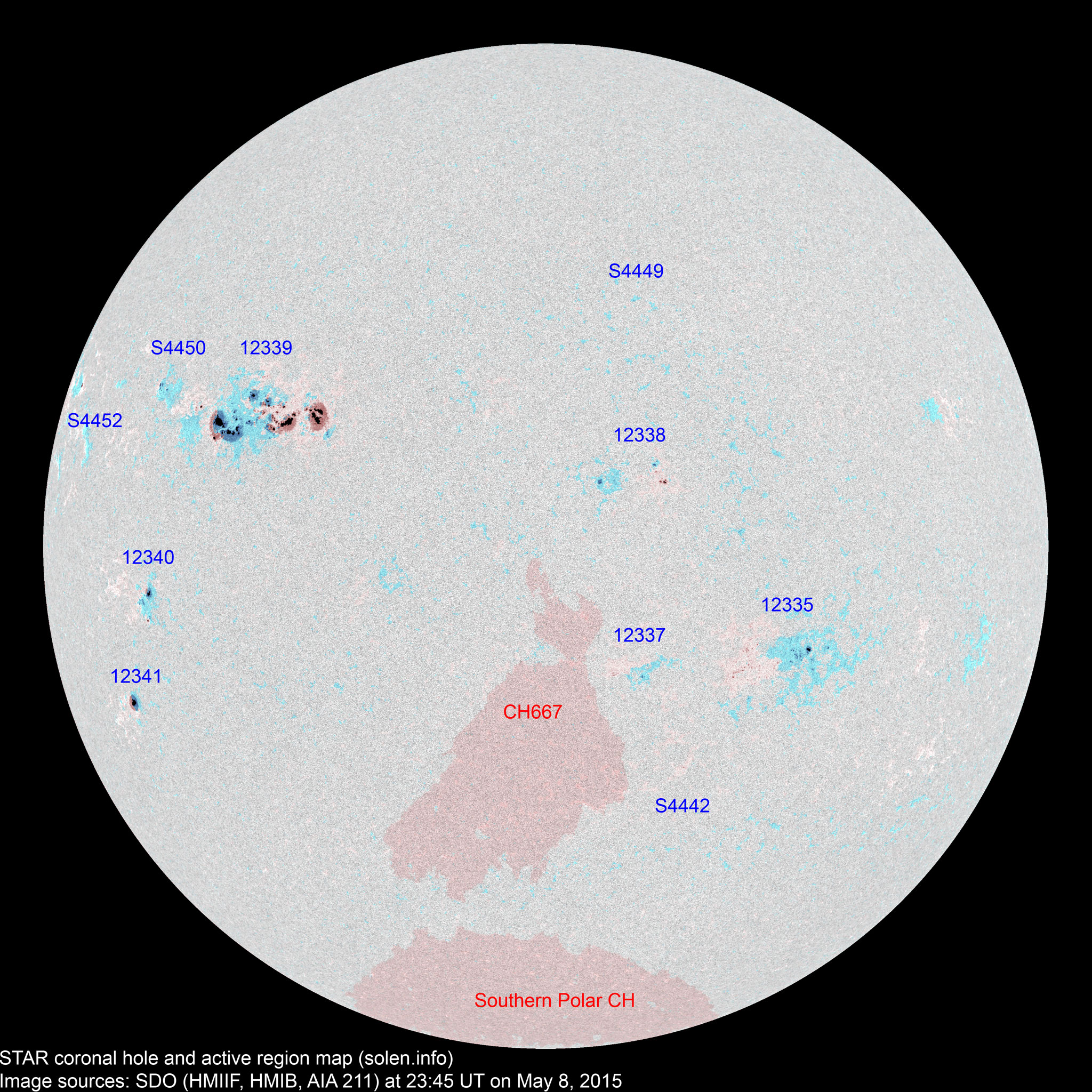

Active solar regions


(Click on image for 2K resolution) Compare to the previous day's image.

0.5K image

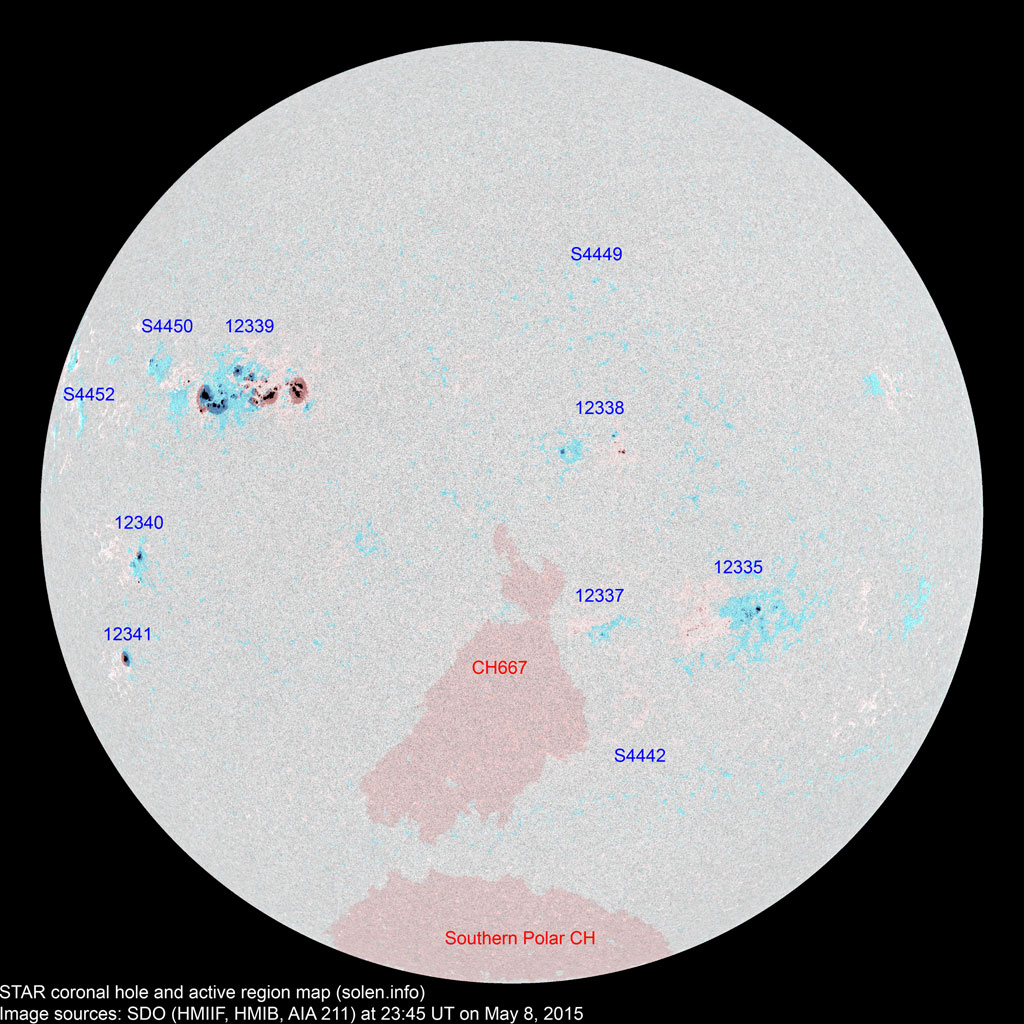

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlays
Comment
SWPC Magnetic
(SDO)
SWPC STAR Current Previous
2K 1K

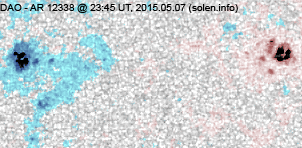

12335 2015.04.30 15 32 17 S16W31 0120 EAI CAI
S4426 2015.04.30       S12W49
S4429 2015.05.01       S26W50
12338 2015.05.02
2015.05.03
7 11 7 N04W11 0050 DSO DRO
12336 2015.05.02
2015.05.03
2     N13W57 0010 BXO     spotless
12337 2015.05.02
2015.05.03
3 5 3 S18W11 0010 BXO BXO
S4438 2015.05.03       N05E01
S4439 2015.05.03       N12E08
12339 2015.05.03
2015.05.04
32 70 42 N13E35 0900 FKC FKC beta-gamma-delta

area: 1300

location: N11E34

S4441 2015.05.04       N13W17
S4442 2015.05.04   1   S29W18 0002   AXX
S4444 2015.05.05       S03E08
S4445 2015.05.05       S04W17
12340 2015.05.06
2015.05.07
4 12 6 S07E52 0050 CAO DAO

location: S08E53

12341 2015.05.06
2015.05.07
1 1 1 S20E60 0090 HSX HSX area: 0150
S4449 2015.05.06   1   N26W11 0003   AXX
S4450 2015.05.07   9 6 N15E49 0030   DRO
S4451 2015.05.07       S17E05
S4452 2015.05.08   2 1 N18E76 0020   HRX
Total spot count: 64 144 83
Sunspot number: 134 244 163  (total spot count + 10 * number of spotted regions)
Weighted SN: 94 178 117  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 80 85 90 k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for MSN 2K, k = 0.55 for MSN 1K (MSN=Magnetic Sunspot Number)

Monthly solar cycle data

Month Average solar flux International sunspot number
(WDC-SILSO)
Smoothed sunspot number Average ap
(3)
Measured 1 AU
2013.12 147.7 143.1 90.3 76.0 (+0.6) 4.68
2014.01 157.4 152.4 81.8 77.3 (+1.3) 5.44
2014.02 170.3
(cycle peak)
166.3 102.3 (cycle peak) 78.4 (+1.1) 10.70
2014.03 149.9 148.5 91.9 80.8 (+2.4) 4.88
2014.04 143.9 144.8 84.7 81.9 (+1.1) (solar max) 7.88
2014.05 129.7 132.9 75.2 80.5 (-1.4) 5.75
2014.06 122.0 125.8 71.0 79.7 (-0.8) 6.72
2014.07 137.4 141.8 72.5 78.5 (-1.2) 4.50
2014.08 124.7 127.9 74.7 75.5 (-3.0) 7.71
2014.09 146.6 148.1 87.6 70.8 (-4.7) 9.78
2014.10 153.4 152.9 60.6 67.3 (-3.5) 8.96
2014.11 154.8 151.4 70.1 (64.9 projected, -2.4) 9.33
2014.12 158.7 153.8 78.0 (62.6 projected, -2.3) 11.24
2015.01 141.9 137.3 67.0 (60.4 projected, -2.2) 9.46
2015.02 129.1 126.0 44.8 (58.7 projected, -1.7) 9.92
2015.03 125.9 124.6 38.4 (56.3 projected, -2.4) 16.14
2015.04 128.8 129.7 54.4 (53.7 projected, -2.6) 10.3
2015.05 (125.1)    21.4 (2A) / 83.0 (2B) / 81.2 (2C) (51.5 projected, -2.2) (7.3)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official WDC-SILSO international sunspot number is typically 30-50% lower. 2B) Boulder SN current month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
