Recent activity

The geomagnetic field was quiet to active on August 5. Solar wind speed at SOHO ranged between 518 and 719 km/s. Solar wind speed decreased slowly early on August 5 due to the waning influence of CH753. The, after about 4 UT, a high speed stream from CH754 became the dominant solar wind source and caused a significant increase in solar wind speed.

Solar flux at 20h UTC on 2.8 GHz was 79.8 (decreasing 12.4 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 88.8. The Potsdam WDC planetary A index was 15 (STAR Ap - based on the mean of three hour interval ap indices: 15.3). Three hour interval K indices: 14444223 (planetary), 24433323 (Boulder).

The background x-ray flux is at the class B1 level.

Region 12570 [N10W40] reemerged with tiny spots.
Region 12571 [N12E09] developed slowly and was mostly quiet.
New region 12572 [N13W45] was numbered as SWPC realized this was not AR 12570. The region continued to develop and could produce further C class events.

Spotted regions not numbered (or interpreted differently) by SWPC:
New region S5389 [S17W69] emerged near the southwest limb with tiny spots.
New region S5390 [N20E47] was observed with a tiny spot.

C2+ flares:

Magnitude Peak time (UT) Location AR Recorded by Comment

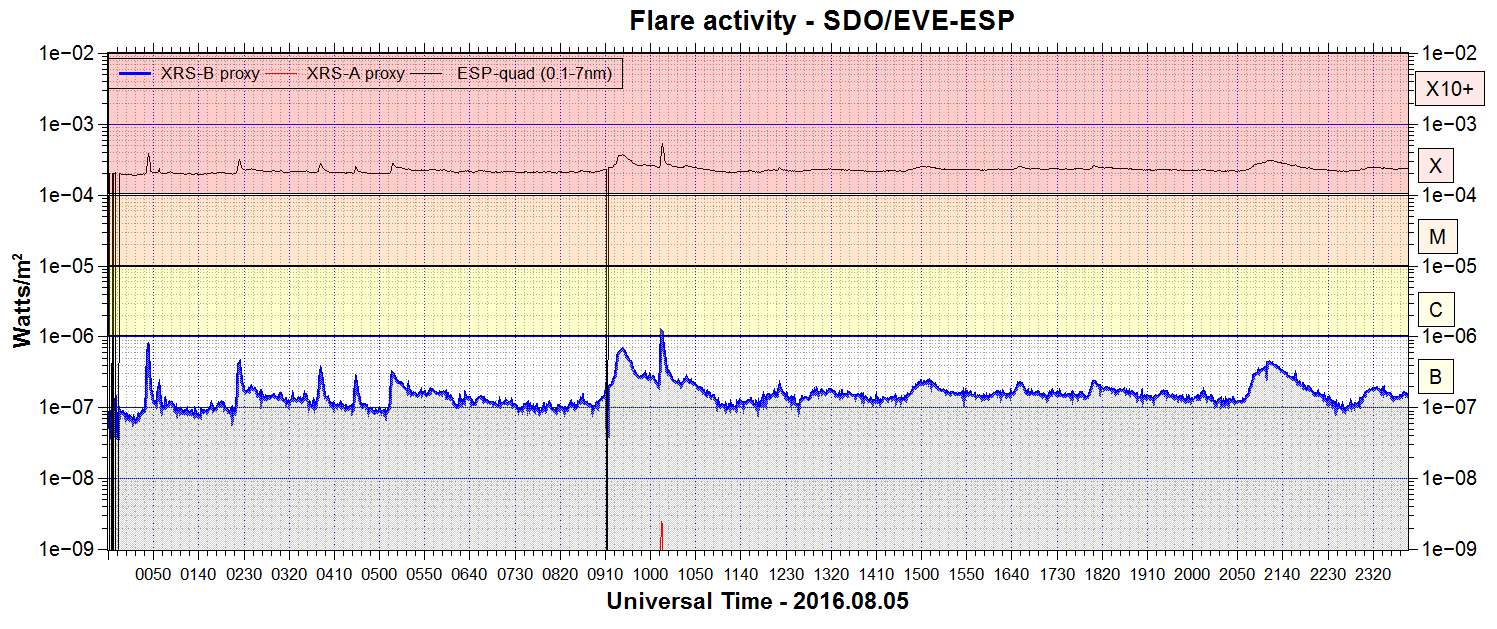

Flare activity (SDO/EVE/ESP XRS-B proxy)

Coronal mass ejections (CMEs)

August 3-5: No obviously Earth directed CMEs were observed in available LASCO imagery.

Coronal holes

[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]

A recurrent trans equatorial coronal hole (CH754) was Earth facing on August 2-4.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is fair.

Forecast

The geomagnetic field is expected to be quiet to active on August 6-7 due to effects from CH754 and quiet to unsettled on August 8-9 as the easternmost part of CH753 becomes geoeffective.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

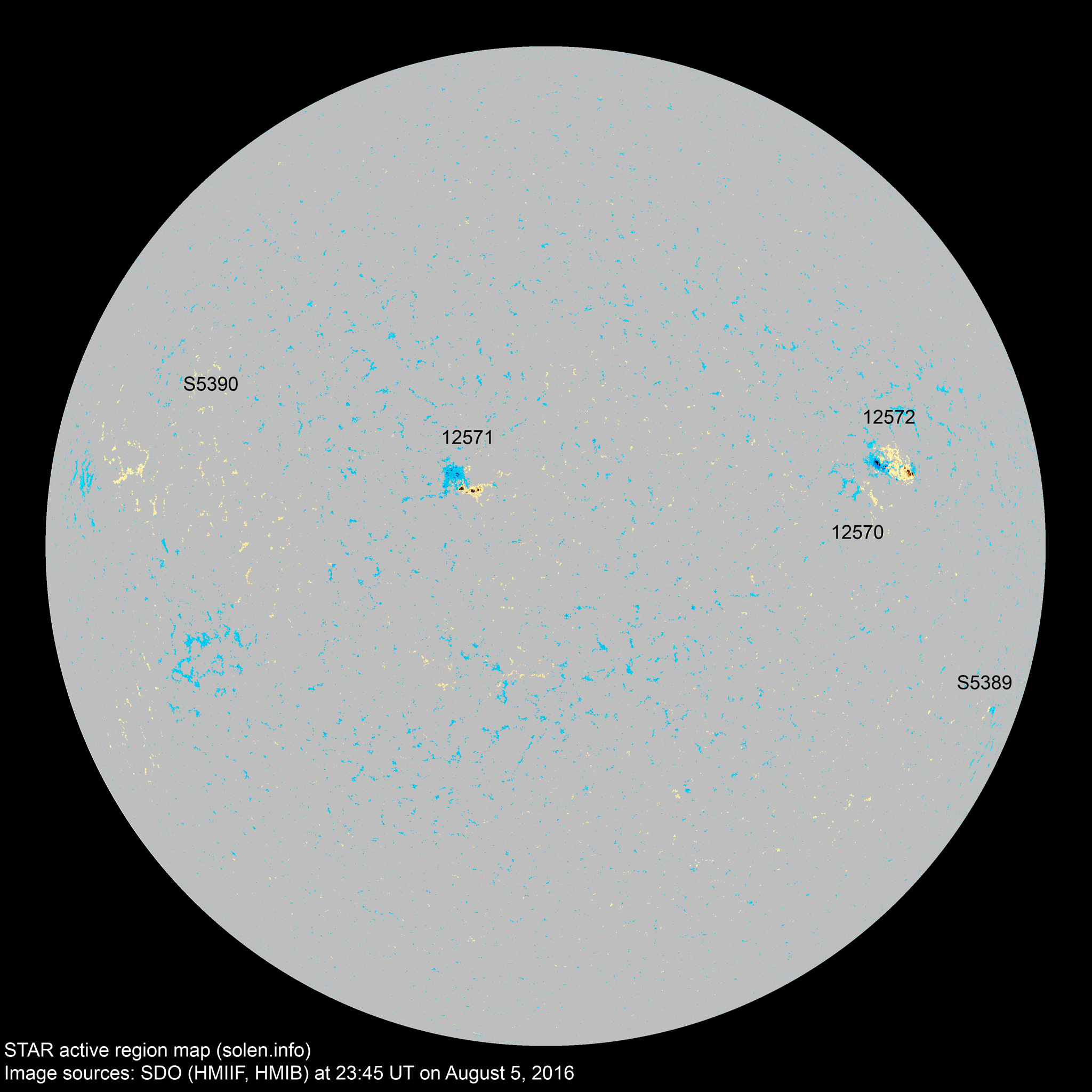

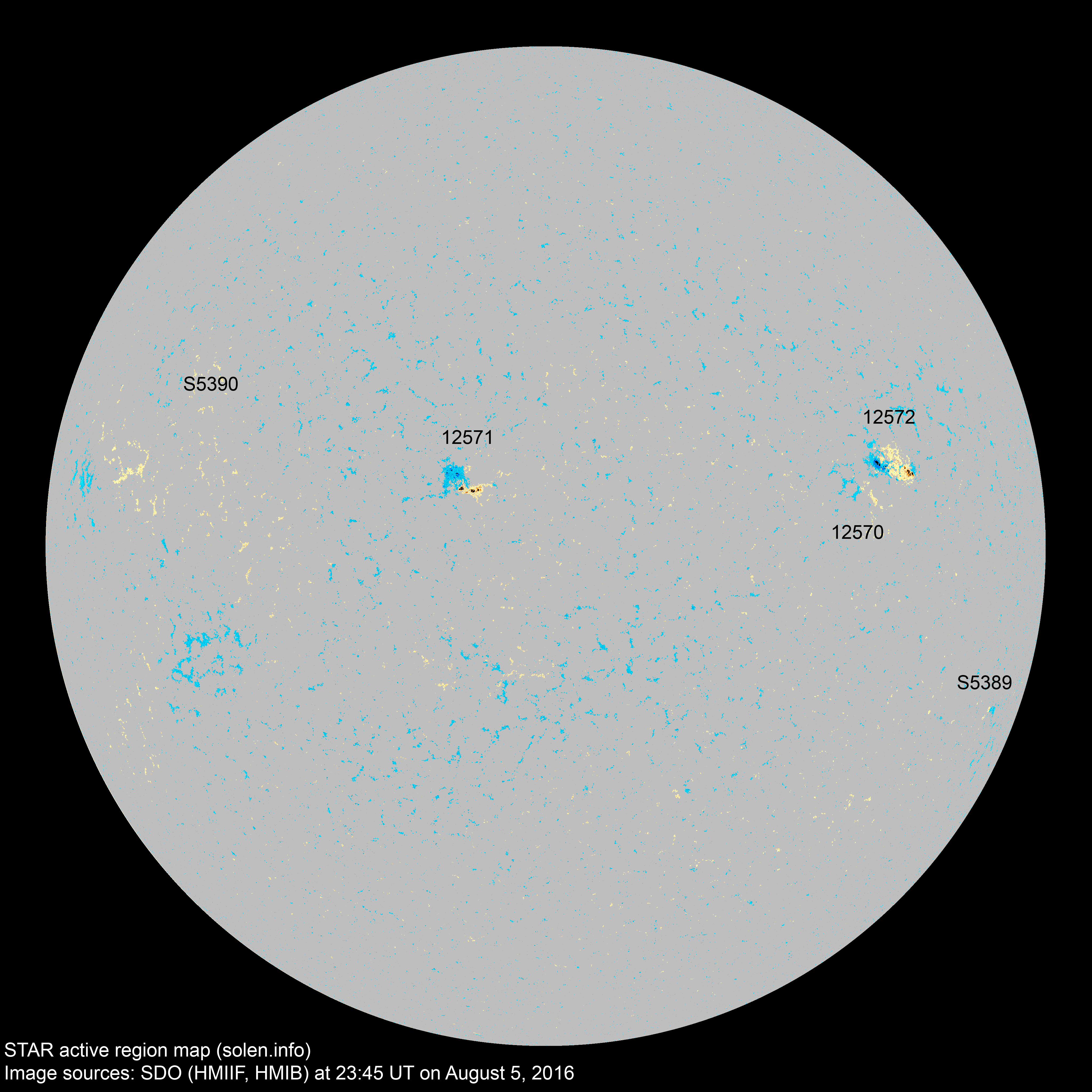

Active solar regions


(Click on image for 2K resolution). 4K resolution. Compare to the previous day's image.
0.5K image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlays
Comment
SWPC Magnetic
(SDO)
SWPC STAR Current Previous
2K 1K
12570 2016.07.28   2   N10W43 0003   BXO   location: N10W40
12572 2016.08.02
2016.08.05
9 16 8 N13W46 0060 DAO DAI area: 0120
12571 2016.08.04 7 17 10 N13E09 0020 DRO DRI area: 0080
S5386 2016.08.04       S09W01
S5389 2016.08.05   2   S17W69 0002   BXO
S5390 2016.08.05   1   N20E47 0002   AXX
Total spot count: 16 38 18
Sunspot number: 36 88 38  (total spot count + 10 * number of spotted regions)
Weighted SN: 24 46 26  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 40 48 30 k * (sunspot number)
As of May 7, 2016: k = 1.1 for SWPC, k = 0.55 for MSN 2K, k = 0.80 for MSN 1K (MSN=Magnetic Sunspot Number)

Monthly solar cycle data

Month Average solar flux International sunspot number
(WDC-SILSO) (4)
Smoothed sunspot number (4) Average ap
(3)
Measured 1 AU
2014.02 170.3
(cycle peak)
166.3 146.1 (cycle peak) 110.5 (+1.2) 10.70
2014.04 143.9 144.8 112.5 116.4 (+2.1) (solar max) 7.88
2015.05 120.0 122.6 88.8 76.1 (-2.8) 8.29
2015.06 122.3 126.1 66.5 72.1 (-4.0) 13.15
2015.07 107.0 110.8 65.8 68.3 (-3.8) 8.83
2015.08 105.4 108.0 64.4 66.4 (-1.9) 14.58
2015.09 101.7 102.7 78.6 65.9 (-0.5) 15.78
2015.10 104.1 103.3 63.6 64.3 (-1.6) 14.02
2015.11 109.3 106.9 62.2 61.3 (-3.0) 12.09
2015.12 113.1 109.5 58.0 57.8 (-3.5) 14.29
2016.01 103.4 100.1 57.0 54.5 (-3.3) 9.4
2016.02 103.6 101.0 56.4 (51.8 projected, -2.7) 9.9
2016.03 91.5 90.6 54.1 (48.2 projected, -3.6) 10.58
2016.04 93.3 94.0 38.0 (44.8 projected, -3.4) 9.03
2016.05 93.0 95.3 52.1 (42.1 projected, -2.7) 11.65
2016.06 81.9 84.5 20.9 (39.5 projected, -2.6) 8.44
2016.07 86.0 88.9 32.5 (36.8 projected, -2.7) 8.9
2016.08 (75.5)   2.8 (2A / 17.4 (2B) / 39.7 (2C) (34.0 projected, -2.8) (15.1)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.
4) Updated to new data set from WDC-SILSO on July 1, 2015

This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
