Recent activity

The geomagnetic field was quiet to active on August 30 under the influence of a relatively low speed stream from CH757. Solar wind speed at SOHO ranged between 337 and 442 km/s.

Solar flux at 20h UTC on 2.8 GHz was 100.4 (increasing 25.6 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 86.7. The Potsdam WDC planetary A index was 17 (STAR Ap - based on the mean of three hour interval ap indices: 17.3). Three hour interval K indices: 32223444 (planetary), 33324443 (Boulder).

The background x-ray flux is at the class B6 level.

At the time of counting spots (see image time), spots were observed in 6 active regions using 2K resolution (SN: 130) and 6 active regions using 1K resolution (SN: 94) SDO images on the visible solar disk.

Region 12580 [S17W41] gained a few tiny spots and was quiet.
Region 12581 [N12W34] developed slowly and quietly as a few spots emerged.
Region 12582 [N10W81] decayed slowly and quietly.
Region 12583 [N13W77] developed again and could produce further C flares.

Spotted regions not numbered (or interpreted differently) by SWPC:
S5416 [S04E65] developed slowly and quietly.
New region S5417 [N09E81] rotated into view with a large leader spot. A minor M class flare is possible. The region was the source of the 2 C2+ events of the day.

C2+ flares:

Magnitude Peak time (UT) Location AR Recorded by Comment
C2.3 14:21   S5417 SDO/EVE
C2.9 (LDE) 18:50   S5417 SDO/EVE

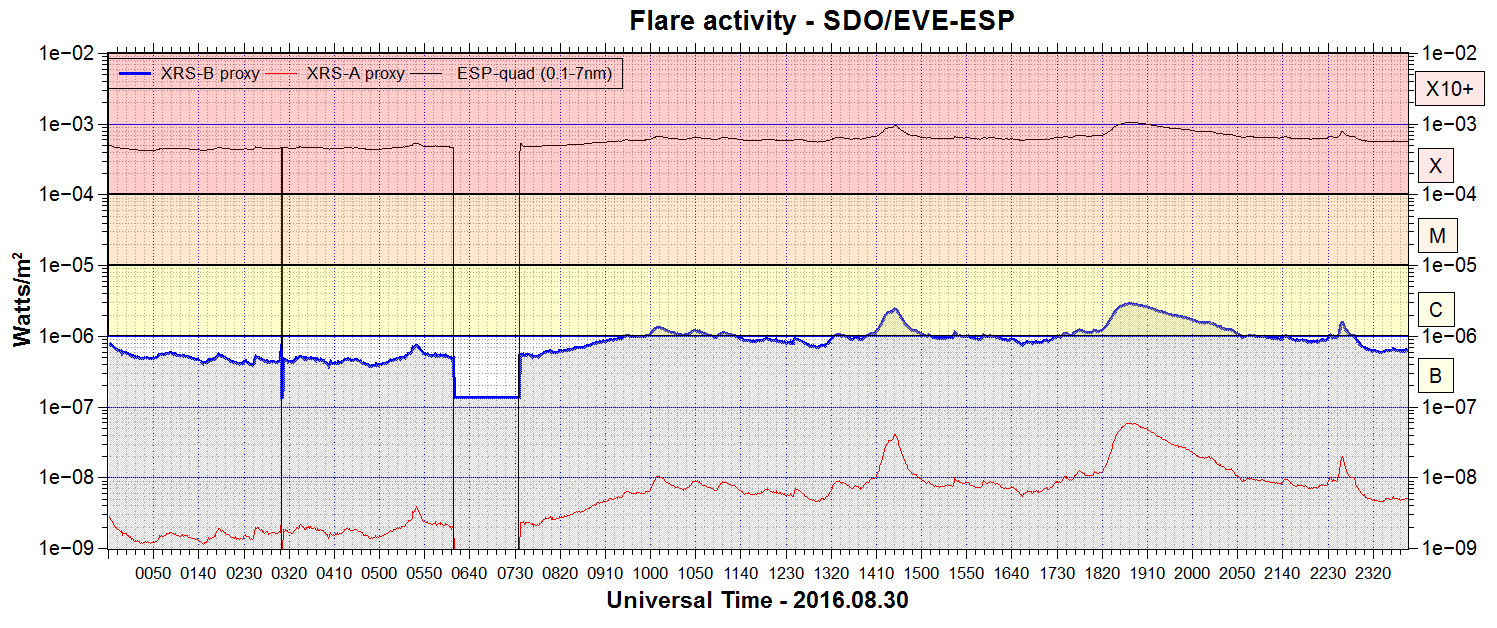

Flare activity (SDO/EVE/ESP XRS-B proxy)

Coronal mass ejections (CMEs)

August 28-30: No obviously Earth directed CMEs were observed in available LASCO imagery.

Coronal holes

[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]

A recurrent trans equatorial coronal hole (CH757) was in an Earth facing position on August 26-27. A recurrent northern hemisphere coronal hole (CH758) will rotate into an Earth facing position on August 29-31. A trans equatorial coronal hole (CH759) could become Earth facing on August 31-September 1.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is fair.

Forecast

The geomagnetic field is expected to be quiet to active on August 31 due to effects from CH757. On September 1-5 quiet to active conditions are likely due to effects from CH758 and CH759, some minor storm intervals are possible.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

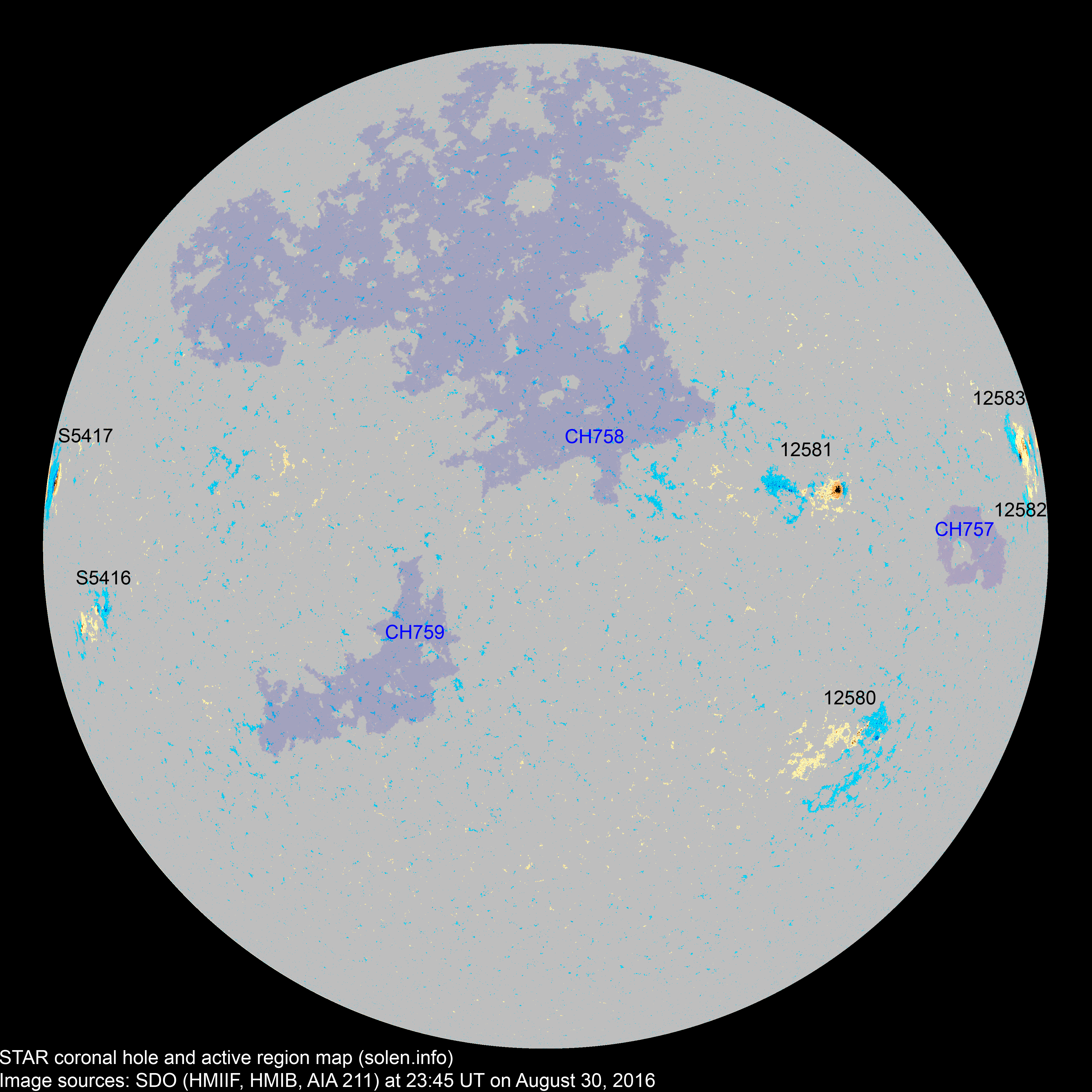

Active solar regions


(Click on image for 2K resolution). 4K resolution. Compare to the previous day's image.
0.5K image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlays
Comment
SWPC Magnetic
(SDO)
SWPC STAR Current Previous
2K 1K
12580 2016.08.21
2016.08.22
8 18 8 S17W43 0030 CAO CRI



12579 2016.08.22       N11W89



12581 2016.08.24
2016.08.25
9 22 11 N11W34 0090 CAO CSI

beta-gamma

12583 2016.08.25
2016.08.28
6 14 5 N14W80 0120 CAO DAI
12582 2016.08.26
2016.08.27
1 2 1 N09W83 0050 CSO AXX impossible SWPC classification with only 1 spot
S5416 2016.08.29   8 5 S04E65 0040   DRO
S5417 2016.08.30   6 4 N09E81 0370   DKO
Total spot count: 24 70 34
Sunspot number: 64 130 94  (total spot count + 10 * number of spotted regions)
Weighted SN: 44 96 60  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 70 72 75 k * (sunspot number)
As of May 7, 2016: k = 1.1 for SWPC, k = 0.55 for MSN 2K, k = 0.80 for MSN 1K (MSN=Magnetic Sunspot Number)

Monthly solar cycle data

Month Average solar flux International sunspot number
(WDC-SILSO) (4)
Smoothed sunspot number (4) Average ap
(3)
Measured 1 AU
2014.02 170.3
(cycle peak)
166.3 146.1 (cycle peak) 110.5 (+1.2) 10.70
2014.04 143.9 144.8 112.5 116.4 (+2.1) (solar max) 7.88
2015.05 120.0 122.6 88.8 76.1 (-2.8) 8.29
2015.06 122.3 126.1 66.5 72.1 (-4.0) 13.15
2015.07 107.0 110.8 65.8 68.3 (-3.8) 8.83
2015.08 105.4 108.0 64.4 66.4 (-1.9) 14.58
2015.09 101.7 102.7 78.6 65.9 (-0.5) 15.78
2015.10 104.1 103.3 63.6 64.3 (-1.6) 14.02
2015.11 109.3 106.9 62.2 61.3 (-3.0) 12.09
2015.12 113.1 109.5 58.0 57.8 (-3.5) 14.29
2016.01 103.4 100.1 57.0 54.5 (-3.3) 9.4
2016.02 103.6 101.0 56.4 (51.8 projected, -2.7) 9.9
2016.03 91.5 90.6 54.1 (48.2 projected, -3.6) 10.58
2016.04 93.3 94.0 38.0 (44.8 projected, -3.4) 9.03
2016.05 93.0 95.3 52.1 (42.1 projected, -2.7) 11.65
2016.06 81.9 84.5 20.9 (39.5 projected, -2.6) 8.44
2016.07 86.0 88.9 32.5 (36.8 projected, -2.7) 9.43
2016.08 (84.5)   43.9 (2A) / 45.4 (2B) / 48.9 (2C) (34.0 projected, -2.8) (9.5)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.
4) Updated to new data set from WDC-SILSO on July 1, 2015

This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
