Last major update issued on February 17, 2016 at 04:20 UT.

Charts (* = updated daily) Data and archive
  Solar wind (*) Solar and geomagnetic data - last month (*)
  Electron fluence (*) Archived daily reports and monthly data from 2003.01 (February 1, 2016)
Solar cycle Solar cycles 23-24 (February 1, 2016) Historical solar and geomagnetic data charts 1954-2006 (April 5, 2007)
  Cycle 24 progress (February 1, 2016) Noon SDO sunspot count 1K Reference: 4K (large file) (*)
  Solar cycles 1-24 (July 17, 2015) POES auroral activity level October 2009 - December 2012
  Comparison of cycles 21, 22, 23 and 24 (February 1, 2016) 3rd SSN Workshop, Tucson, 2013
  Comparison of cycles 12, 13, 14, 16 and 24 (February 1, 2016) 4th SSN Workshop, Locarno, 2014
  Solar polar fields vs. solar cycles (January 29, 2016)

Recent activity

The geomagnetic field was unsettled to minor storm on February 16. Solar wind speed at SOHO ranged between 380 and 656 km/s. The disturbance that began late on February 15 intensified on February 16 as solar wind increased due to a high speed stream from CH715.

Solar flux at 20h UTC on 2.8 GHz was 104.0 (increasing 3.6 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 105.5. The Potsdam WDC planetary A index was 33 (STAR Ap - based on the mean of three hour interval ap indices: 33.4). Three hour interval K indices: 43445555 (planetary), 33345544 (Boulder).

The background x-ray flux is at the class B6 level.

At the time of counting spots (see image time), spots were observed in 8 active regions using 2K resolution (SN: 127) and 6 active regions using 1K resolution (SN: 81) SDO images on the visible solar disk.

Region 12497 [N12W78] still has multiple magnetic deltas and could produce an M class flare before rotating out of view.
Region 12498 [N18W36] regained a tiny spot.
Region 12501 [N04E50] developed slowly and was quiet.
New region 12502 [N08W00] was first observed with spots on February 13, developed slightly on February 15 and was numbered the next day by SWPC as the region slowly decayed.

Spotted regions not numbered (or interpreted differently) by SWPC:
S5100 [N04E15] was quiet and stable.
S5109 [S04E27] was quiet and stable.
New region S5111 [S17E34] emerged with tiny spots.
New region S5112 [S09E05] emerged with a tiny spot.

C2+ flares:

Magnitude Peak time (UT) Location AR Recorded by Comment
C3.5 01:59   12497 GOES15
C2.4 06:45   12497 GOES15
C2.3 15:35   12497 SDO/EVE
C2.1 15:48   12497 GOES15
C2.8 18:50   12497 GOES15

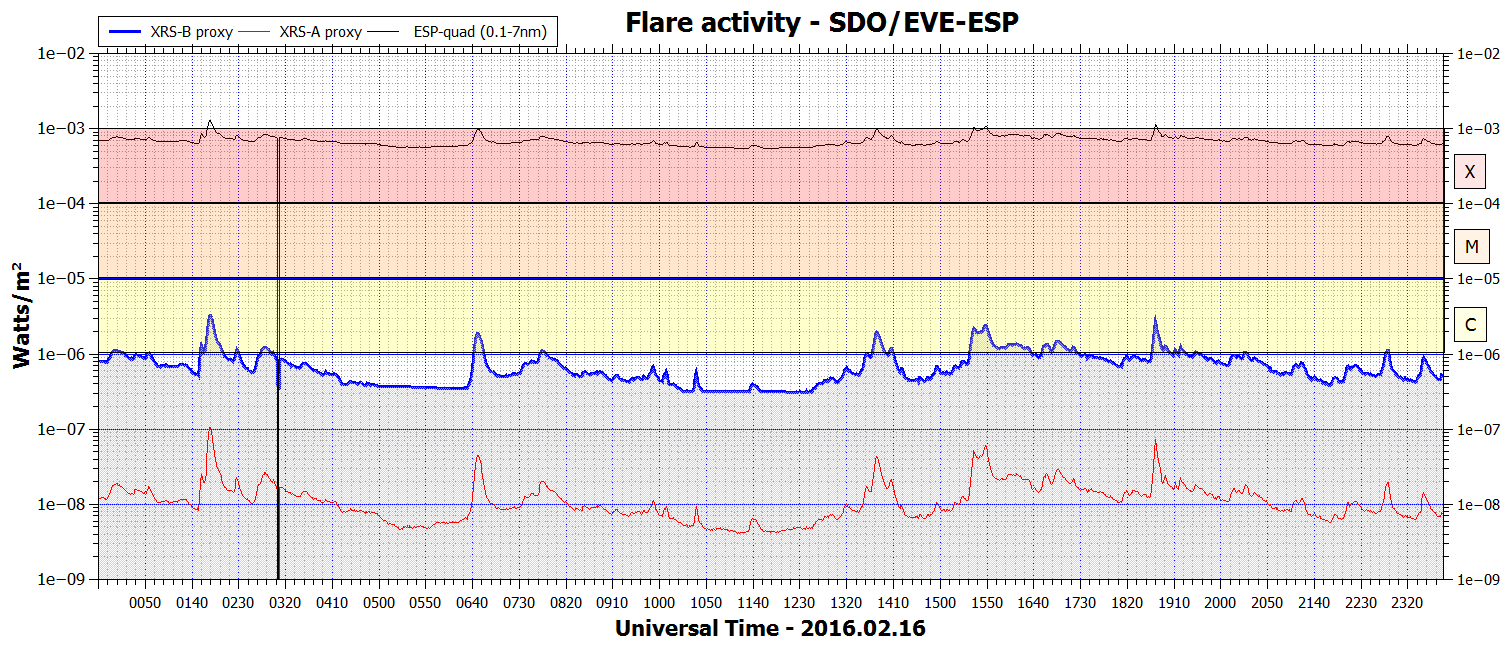

Flare activity (SDO/EVE/ESP XRS-B proxy)

Coronal mass ejections (CMEs)

February 14-16: No obviously Earth directed CMEs were observed in available LASCO imagery.

Coronal holes

[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]

An extension (CH715) of the southern polar coronal hole rotated across the central meridian on February 13-14.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is fair.

Forecast

The geomagnetic field is expected to be unsettled to minor storm on February 17 due to effects from CH715 and quiet to unsettled on February 18-19.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

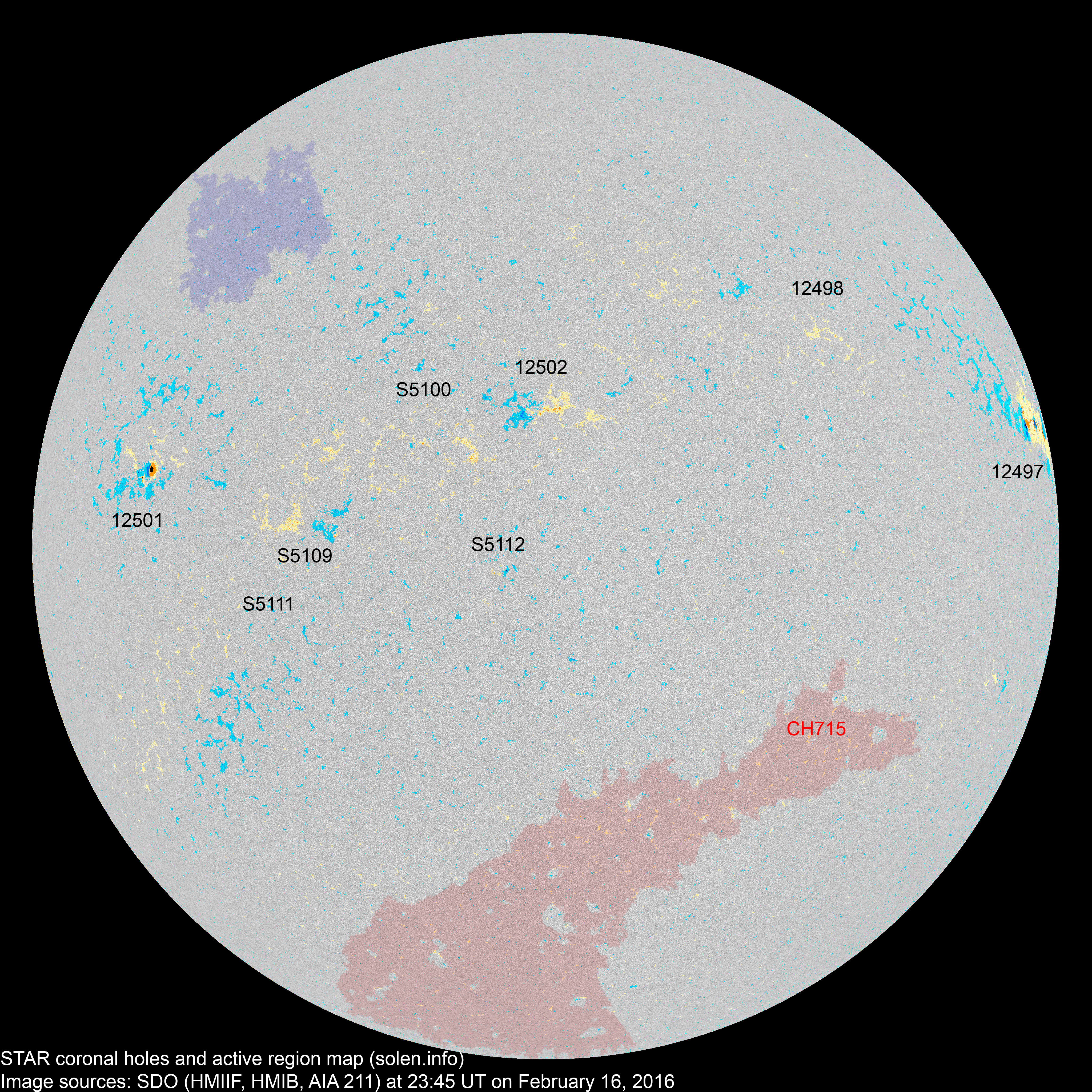

Active solar regions


(Click on image for 2K resolution). 4K resolution. Compare to the previous day's image.
0.5K image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlays
Comment
SWPC Magnetic
(SDO)
SWPC STAR Current Previous
2K 1K
12497 2016.02.05
2016.02.06

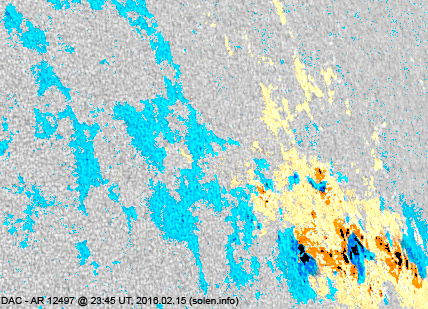

14 17 8 N13W76 0220 EAC DAC beta-gamma-delta



12498 2016.02.08
2016.02.09
  1 1 N18W40 0004   AXX   location: N18W36
12499 2016.02.10
2016.02.12
      N11W17
S5098 2016.02.10       N22W37

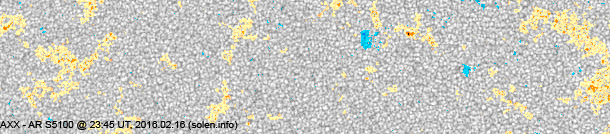

S5100 2016.02.11   5 2 N04E15 0015   AXX images/AR_S5100_20160216_2345.png
S5101 2016.02.11       S24W48
S5102 2016.02.12       N21W15
12500 2016.02.13       S18W70
S5105 2016.02.13       S11E06
12502 2016.02.13
2016.02.16
4 13 6 N08W00 0010 BXO CRI area: 0030
S5107 2016.02.13       S08W54
12501 2016.02.14 1 4 3 N04E48 0030 HSX CSO area: 0120

location: N04E50

S5108 2016.02.15       N26E34
S5109 2016.02.15   4   S04E27 0010   BXO
S5110 2016.02.15       S38E05
S5111 2016.02.16   2   S17E34 0004   AXX
S5112 2016.02.16   1 1 S09E05 0004   AXX
Total spot count: 19 47 21
Sunspot number: 49 127 81  (total spot count + 10 * number of spotted regions)
Weighted SN: 29 60 34  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 54 70 69 k * (sunspot number)
As of July 1, 2015: k = 1.1 for SWPC, k = 0.55 for MSN 2K, k = 0.85 for MSN 1K (MSN=Magnetic Sunspot Number)

Monthly solar cycle data

Month Average solar flux International sunspot number
(WDC-SILSO) (4)
Smoothed sunspot number (4) Average ap
(3)
Measured 1 AU
2014.02 170.3
(cycle peak)
166.3 146.1 (cycle peak) 110.5 (+1.2) 10.70
2014.04 143.9 144.8 112.5 116.4 (+2.1) (solar max) 7.88
2014.12 158.7 153.8 112.9 92.2 (-2.5) 11.24
2015.01 141.9 137.3 93.0 89.3 (-2.9) 9.46
2015.02 129.1 126.0 66.7 86.1 (-3.2) 9.92
2015.03 125.9 124.6 54.5 82.2 (-3.9) 16.14
2015.04 128.8 129.7 75.3 78.8 (-3.4) 10.73
2015.05 120.0 122.6 88.8 76.0 (-2.8) 8.29
2015.06 122.3 126.1 66.5 72.0 (-4.0) 13.15
2015.07 107.0 110.8 66.4 68.2 (-3.8) 8.83
2015.08 105.4 108.0 64.6 (66.1 projected, -2.1) 14.58
2015.09 101.7 102.7 78.1 (66.1 projected, +0.0) 15.78
2015.10 104.1 103.3 61.7 (65.7 projected, -0.4) 14.02
2015.11 109.3 106.9 63.2 (63.6 projected, -2.1) 12.09
2015.12 113.1 109.5 57.7 (61.9 projected, -1.7) 14.29
2016.01 103.4 100.1 56.6 (60.2 projected, -1.7) 9.4
2016.02 111.9   38.5 (2A) / 69.8 (2B) / 89.1 (2C) (57.8 projected, -2.4) (9.5)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.
4) Updated to new data set from WDC-SILSO on July 1, 2015

This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
