Last major update issued on February 18, 2016 at 03:50 UT.

Charts (* = updated daily) Data and archive
  Solar wind (*) Solar and geomagnetic data - last month (*)
  Electron fluence (*) Archived daily reports and monthly data from 2003.01 (February 1, 2016)
Solar cycle Solar cycles 23-24 (February 1, 2016) Historical solar and geomagnetic data charts 1954-2006 (April 5, 2007)
  Cycle 24 progress (February 1, 2016) Noon SDO sunspot count 1K Reference: 4K (large file) (*)
  Solar cycles 1-24 (July 17, 2015) POES auroral activity level October 2009 - December 2012
  Comparison of cycles 21, 22, 23 and 24 (February 1, 2016) 3rd SSN Workshop, Tucson, 2013
  Comparison of cycles 12, 13, 14, 16 and 24 (February 1, 2016) 4th SSN Workshop, Locarno, 2014
  Solar polar fields vs. solar cycles (January 29, 2016)

Recent activity

The geomagnetic field was unsettled to minor storm on February 17 under the influence of a high speed stream from CH715. Solar wind speed at SOHO ranged between 488 and 578 km/s.

Solar flux at 20h UTC on 2.8 GHz was 99.9 (decreasing 4.1 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 105.4. The Potsdam WDC planetary A index was 29 (STAR Ap - based on the mean of three hour interval ap indices: 28.9). Three hour interval K indices: 53434345 (planetary), 62443344 (Boulder).

The background x-ray flux is at the class B3 level.

At the time of counting spots (see image time), spots were observed in 8 active regions using 2K resolution (SN: 132) and 6 active regions using 1K resolution (SN: 78) SDO images on the visible solar disk.

Region 12501 [N04E37] was quiet and stable.
Region 12502 [N08W14] was quiet and stable.
New region 12503 [N05W00] rotated into view on February 11. New spots formed on February 17 when the region was numbered by SWPC.

Spotted regions not numbered (or interpreted differently) by SWPC:
S5102 [N24W21] reemerged with tiny spots.
S5109 [S03E14] was quiet and stable.
S5112 [S09E08] was quiet and stable.
New region S5113 [N06E11] emerged with several spots.
New region S5114 [N12W23] emerged with a tiny spot.

C2+ flares:

Magnitude Peak time (UT) Location AR Recorded by Comment
C2.2 01:48   12497 GOES15
C2.0 02:47   12497 GOES15
C9.4 05:01   12497 GOES15
C2.0 05:50   12497 GOES15
C2.9 06:22   12497 GOES15
C2.0 10:02   12497 GOES15
C7.4 18:13   12497 GOES15
C4.6 (LDE) 20:22   12497 GOES15
C2.1 21:58   12497 GOES15

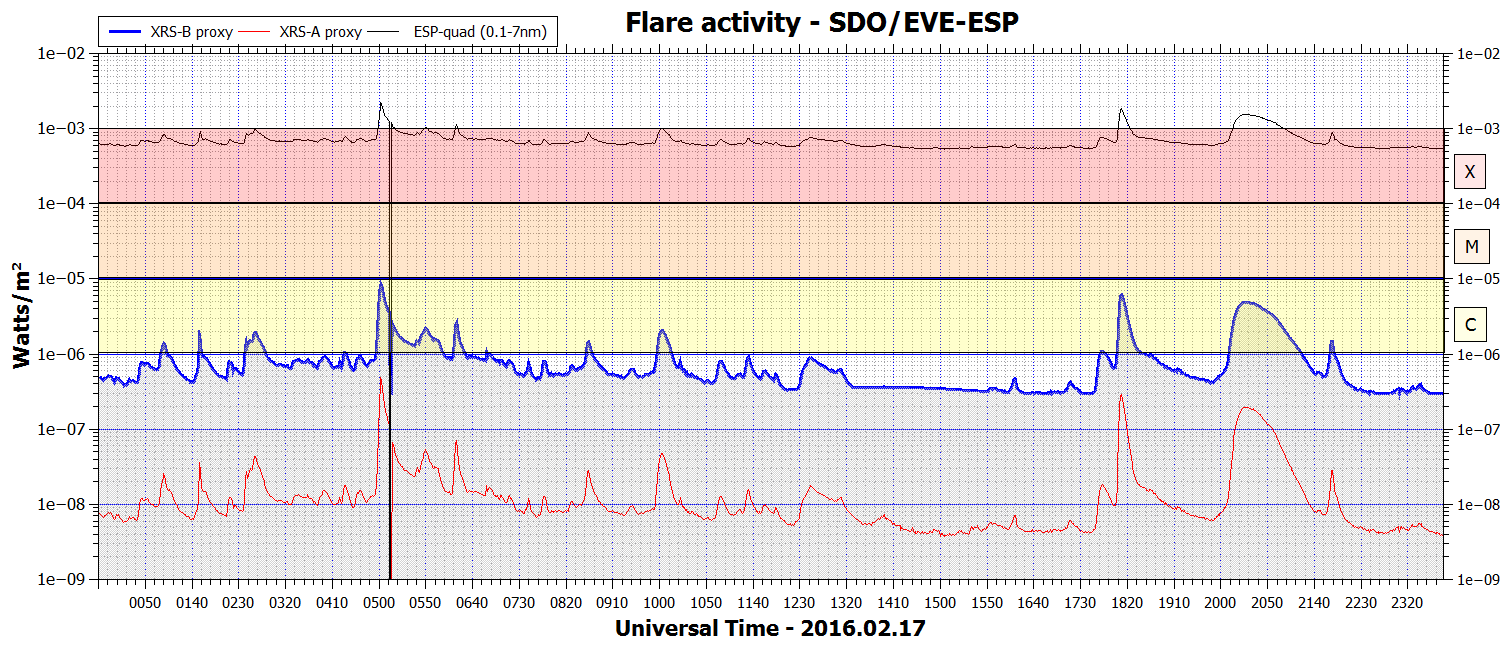

Flare activity (SDO/EVE/ESP XRS-B proxy)

Coronal mass ejections (CMEs)

February 15-17: No obviously Earth directed CMEs were observed in available LASCO imagery.

Coronal holes

[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]

An extension (CH715) of the southern polar coronal hole rotated across the central meridian on February 13-14.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is fair to good.

Forecast

The geomagnetic field is expected to be quiet to minor storm on February 18 due to effects from CH715 and quiet to unsettled on February 19-20.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

Active solar regions


(Click on image for 2K resolution). 4K resolution. Compare to the previous day's image.
0.5K image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlays
Comment
SWPC Magnetic
(SDO)
SWPC STAR Current Previous
2K 1K
12497 2016.02.05
2016.02.06
14     N13W89 0220 EAC     rotated out of view
12498 2016.02.08
2016.02.09
      N18W54
12499 2016.02.10
2016.02.12
      N11W30
S5098 2016.02.10       N22W50
12503 2016.02.11
2016.02.17
3 12 5 N06W00 0020 CRO CRO images/AR_S5100_20160216_2345.png
S5102 2016.02.12   2   N24W21 0003   BXO
12500 2016.02.13       S18W84
S5105 2016.02.13       S11W07
12502 2016.02.13
2016.02.16
2 14 6 N08W14 0010 BXO CRI area: 0030
12501 2016.02.14 1 6 2 N04E37 0050 HSX HSX area: 0120
S5108 2016.02.15       N26E21
S5109 2016.02.15   8   S03E14 0010   BXO
S5110 2016.02.15       S38W08
S5111 2016.02.16       S17E21
S5112 2016.02.16   2 1 S09E08 0004   BXO
S5113 2016.02.17   7 3 N06E11 0020   BXO
S5114 2016.02.17   1 1 N12W23 0004   AXX
Total spot count: 20 52 18
Sunspot number: 60 132 78  (total spot count + 10 * number of spotted regions)
Weighted SN: 33 63 29  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 66 73 66 k * (sunspot number)
As of July 1, 2015: k = 1.1 for SWPC, k = 0.55 for MSN 2K, k = 0.85 for MSN 1K (MSN=Magnetic Sunspot Number)

Monthly solar cycle data

Month Average solar flux International sunspot number
(WDC-SILSO) (4)
Smoothed sunspot number (4) Average ap
(3)
Measured 1 AU
2014.02 170.3
(cycle peak)
166.3 146.1 (cycle peak) 110.5 (+1.2) 10.70
2014.04 143.9 144.8 112.5 116.4 (+2.1) (solar max) 7.88
2014.12 158.7 153.8 112.9 92.2 (-2.5) 11.24
2015.01 141.9 137.3 93.0 89.3 (-2.9) 9.46
2015.02 129.1 126.0 66.7 86.1 (-3.2) 9.92
2015.03 125.9 124.6 54.5 82.2 (-3.9) 16.14
2015.04 128.8 129.7 75.3 78.8 (-3.4) 10.73
2015.05 120.0 122.6 88.8 76.0 (-2.8) 8.29
2015.06 122.3 126.1 66.5 72.0 (-4.0) 13.15
2015.07 107.0 110.8 66.4 68.2 (-3.8) 8.83
2015.08 105.4 108.0 64.6 (66.1 projected, -2.1) 14.58
2015.09 101.7 102.7 78.1 (66.1 projected, +0.0) 15.78
2015.10 104.1 103.3 61.7 (65.7 projected, -0.4) 14.02
2015.11 109.3 106.9 63.2 (63.6 projected, -2.1) 12.09
2015.12 113.1 109.5 57.7 (61.9 projected, -1.7) 14.29
2016.01 103.4 100.1 56.6 (60.2 projected, -1.7) 9.4
2016.02 111.2   40.6 (2A) / 69.2 (2B) / 88.6 (2C) (57.8 projected, -2.4) (10.6)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.
4) Updated to new data set from WDC-SILSO on July 1, 2015

This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
