Recent activity

The geomagnetic field was quiet to unsettled on March 30 under the influence of weak effects from CH724. Solar wind speed at SOHO ranged between 471 and 573 km/s.

Solar flux at 20h UTC on 2.8 GHz was 83.8 (decreasing 14.9 over the last solar rotation). The 90 day 10.7 flux at 1 AU was 97.3. The Potsdam WDC planetary A index was 10 (STAR Ap - based on the mean of three hour interval ap indices: 9.9). Three hour interval K indices: 31123232 (planetary), 312233322 (Boulder).

The background x-ray flux is at the class A8 level.

At the time of counting spots (see image time), spots were observed in 2 active regions using 2K resolution (SN: 32) and 1 active region using 1K resolution (SN: 12) SDO images on the visible solar disk.

Region 12526 [S03W07] decayed slowly and quietly.

Spotted regions not numbered (or interpreted differently) by SWPC:
S5210 [N03E30] decayed slowly and quietly.

C2+ flares:

Magnitude Peak time (UT) Location AR Recorded by Comment

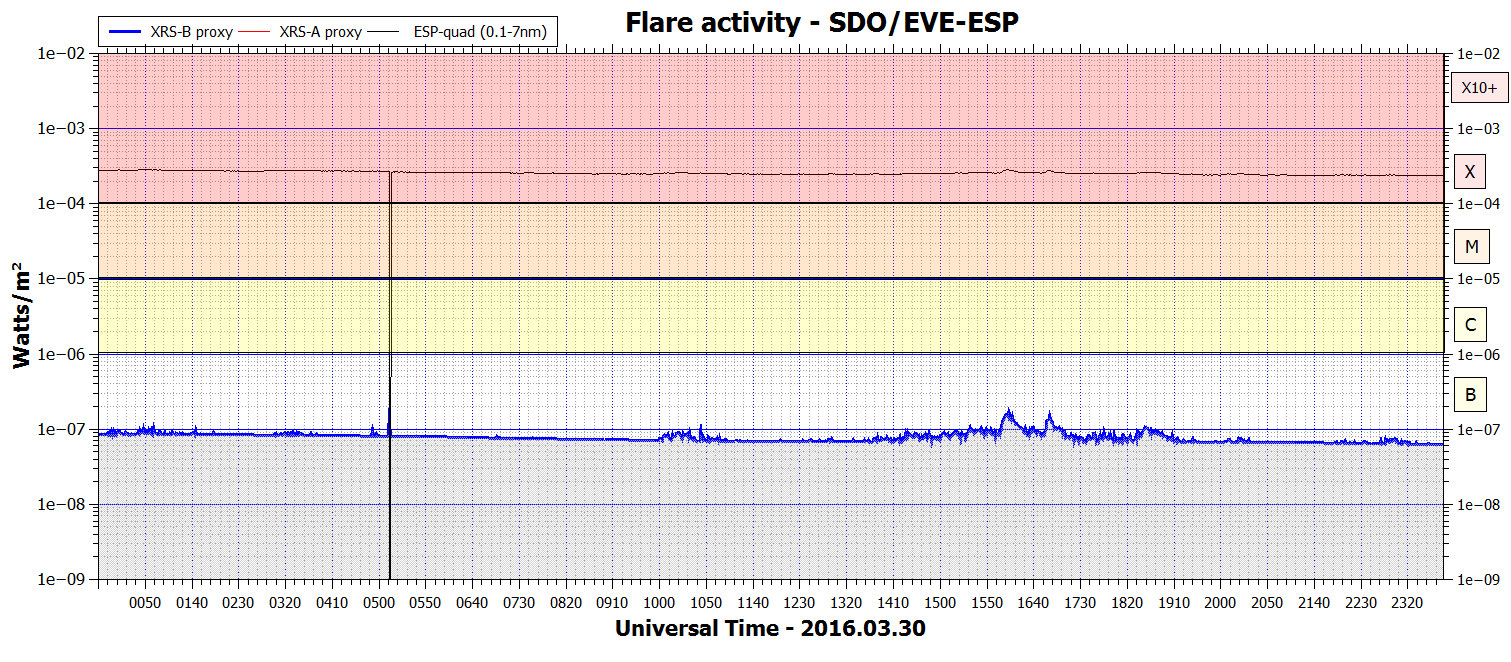

Flare activity (SDO/EVE/ESP XRS-B proxy)

Coronal mass ejections (CMEs)

March 27-29: No obviously Earth directed CMEs were observed in available LASCO imagery.

Coronal holes

[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]

A recurrent and decaying trans equatorial coronal hole (CH725) was in an Earth facing position on March 28-29. A northern hemisphere coronal hole (CH726) will likely rotate across the central meridian on March 30 - April 1.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor to fair.

Forecast

The geomagnetic field is expected to be quiet to unsettled on March 31 due to effects from CH724. April 1-2 could see quiet to active conditions with a chance of minor storm intervals are possible due to effects from CH725.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

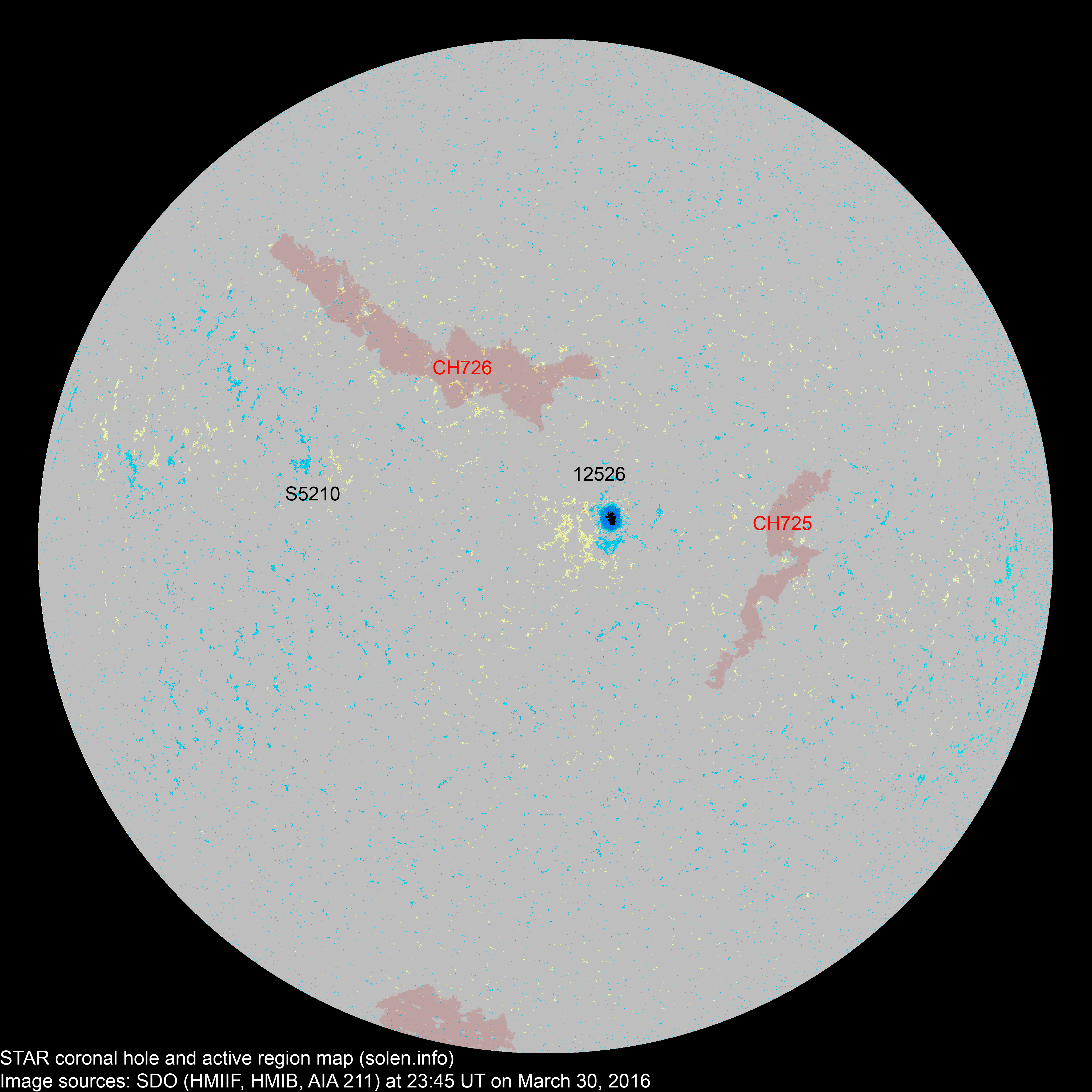

Active solar regions


(Click on image for 2K resolution). 4K resolution. Compare to the previous day's image.
0.5K image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected

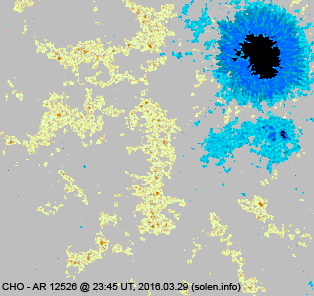

Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlays
Comment
SWPC Magnetic
(SDO)
SWPC STAR Current Previous
2K 1K
S5199 2016.03.22       S07W58
12526 2016.03.23
2016.03.24
2 10 2 S05W09 0190 HSX CHO location: S03W07

area: 0350

S5207 2016.03.26       S24E05
S5208 2016.03.26       S08W24
S5209 2016.03.27       N08E09
S5210 2016.03.29   2   N03E30 0003   AXX
Total spot count: 2 12 2
Sunspot number: 12 32 12  (total spot count + 10 * number of spotted regions)
Weighted SN: 7 22 12  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 13 14 10 k * (sunspot number)
As of February 19, 2015: k = 1.1 for SWPC, k = 0.45 for MSN 2K, k = 0.80 for MSN 1K (MSN=Magnetic Sunspot Number)

Monthly solar cycle data

Month Average solar flux International sunspot number
(WDC-SILSO) (4)
Smoothed sunspot number (4) Average ap
(3)
Measured 1 AU
2014.02 170.3
(cycle peak)
166.3 146.1 (cycle peak) 110.5 (+1.2) 10.70
2014.04 143.9 144.8 112.5 116.4 (+2.1) (solar max) 7.88
2015.01 141.9 137.3 93.0 89.3 (-2.9) 9.46
2015.02 129.1 126.0 66.7 86.1 (-3.2) 9.92
2015.03 125.9 124.6 54.5 82.2 (-3.9) 16.14
2015.04 128.8 129.7 75.3 78.8 (-3.4) 10.73
2015.05 120.0 122.6 88.8 76.0 (-2.8) 8.29
2015.06 122.3 126.1 66.5 72.0 (-4.0) 13.15
2015.07 107.0 110.8 66.4 68.2 (-3.8) 8.83
2015.08 105.4 108.0 64.6 66.3 (-1.9) 14.58
2015.09 101.7 102.7 78.1 (66.0 projected, -0.3) 15.78
2015.10 104.1 103.3 61.7 (65.3 projected, -0.7) 14.02
2015.11 109.3 106.9 63.2 (63.2 projected, -2.1) 12.09
2015.12 113.1 109.5 57.7 (61.5 projected, -1.7) 14.29
2016.01 103.4 100.1 56.6 (59.8 projected, -1.7) 9.4
2016.02 103.6 101.0 57.2 (57.4 projected, -2.4) 9.9
2016.03 (91.8)   39.9 (2A) / 40.3 (2B) / 52.2 (2C) (54.5 projected, -3.1) (10.2)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.
4) Updated to new data set from WDC-SILSO on July 1, 2015

This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.
