|Current research: Solar Cycle 25 Started on November 17, 2019 with 365 Days Smoothing|
The geomagnetic field was unsettled to minor storm on August 31 under the influence of a high speed stream from CH972. Solar wind speed at SOHO ranged between 442 and 679 km/sec.
Solar flux at 20h UT on 2.8 GHz was 69.2 - decreasing 3.8 over the previous solar rotation. (Centered average 90 day SF at 1 AU: Minimum of 67.77 on December 9, 2018. Current: 72.3. Centered 1 year average SF at 1 AU: Minimum of 69.13 on November 17, 2019. Current: 69.93). The Potsdam WDC planetary A index was 24 (STAR Ap - based on the mean of three hour interval ap indices: 24.0). Three hour interval K indices: 34354443 (planetary), 44354333 (Boulder)
The background x-ray flux is at the class A1 level (GOES 16).
At the time of counting spots (see image time), spots were observed in 2 active regions using 2K resolution (SN: 22) and in 0 active regions using 1K resolution (SN: 0) SDO/HMI images.
Spotted regions not observed (or interpreted
differently) by SWPC:
New region S6528 [N29W12] emerged with a tiny spot in an old plage area.
New region S6529 [S06W17] emerged with a tiny spot.
|Magnitude||Peak time (UT)||Location||AR||Recorded by||Comment|
August 29-31: No obviously Earth directed CMEs were observed in available LASCO imagery.
[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]
A recurrent northern hemisphere coronal hole (CH972) was Earth facing on August 25-29.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is good.
The geomagnetic field is expected to be quiet to active on September 1-2 due to effects from CH972 and quiet to unsettled on September 3.
|Coronal holes (1)||Coronal mass ejection (2)||M and X class flares (3)|
1) Effects from a coronal hole
could reach Earth within the next 5 days. When the high speed
stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.
(Click on image for 2K resolution). 4K resolution. Compare to the previous day's image. 0.5K image

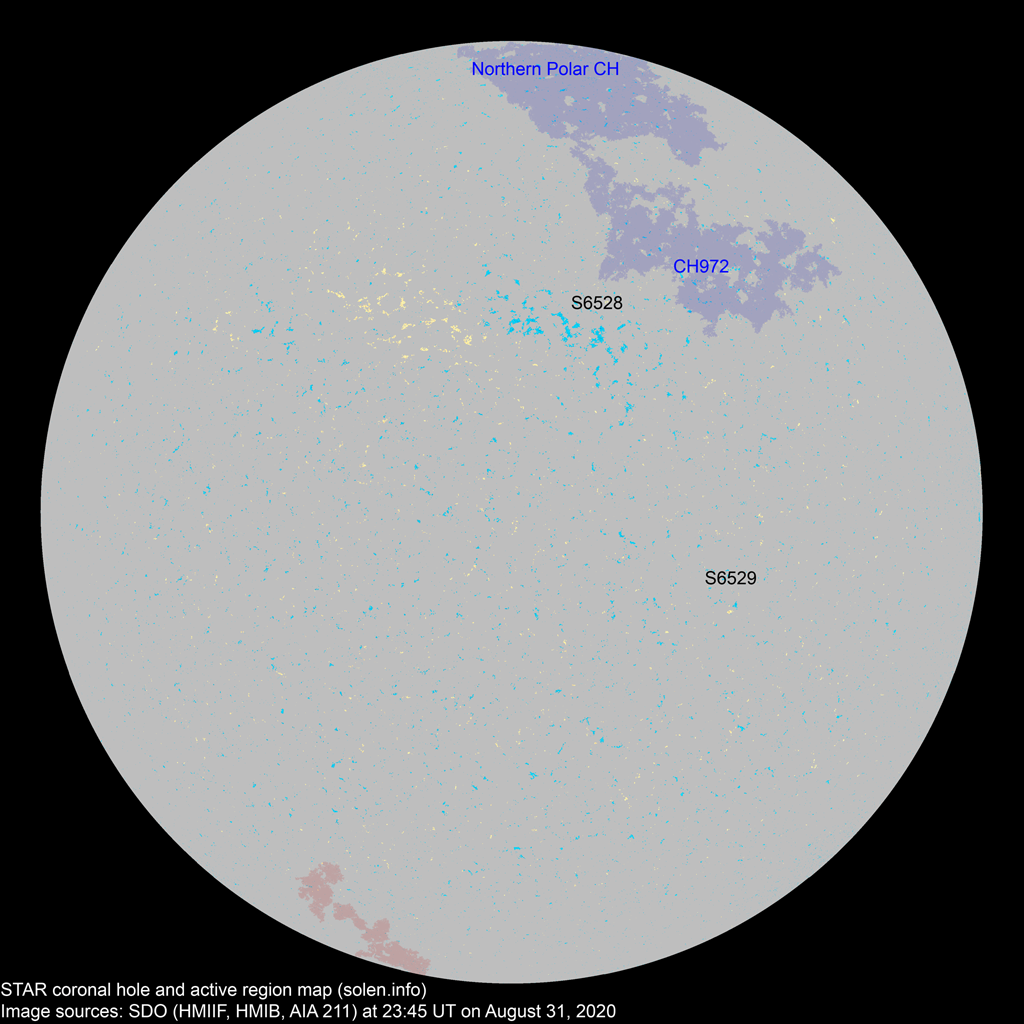

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
|Active region||SWPC date numbered
|Spot count||Location at midnight||Area||Classification||SDO / HMI 4K continuum
image with magnetic polarity overlays
|Total spot count:||0||2||0|
|Sunspot number:||0||22||0||(total spot count + 10 * number of spotted regions)|
|Weighted SN:||0||2||0||(Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)|
|Relative sunspot number (Wolf number):||0||12||0||k * (sunspot number)
As of May 7, 2016: k = 1.1 for SWPC, k = 0.55 for MSN 2K, k = 0.80 for MSN 1K (MSN=Magnetic Sunspot Number)
|Month||Average solar flux||International sunspot number
|Smoothed sunspot number (4)||Average ap
|166.3||146.1 (cycle peak)||110.5||10.70|
|2014.04||143.9||144.8||112.5||116.4 (solar max)||7.88|
|2017.09||91.3||92.3||43.6||18.2 (-1.3)||18.22 (cycle peak)|
(November 17, 2019
is the minimum using 365d smoothing
for 1 AU solar flux,
NOAA SN and both
of STAR 1K and 2K SN)
(ISN 13 months smoothed
|2020.02||71.0||69.3||0.4||(2.9 projected, +0.7)||6.16|
|2020.03||70.2||69.5||1.5||(3.5 projected, +0.6)||5.63|
|2020.04||69.5||70.0||5.4||(4.3 projected, +0.8)||5.32|
|2020.05||69.0||70.6||0.2||(5.4 projected, +1.1)||3.80|
|2020.06||69.5||71.7||5.8||(7.0 projected, +1.6)||3.75|
|2020.07||69.5||71.8||6.3||(8.3 projected, +1.3)||4.28|
|2020.08||71.6||7.8 (2A/2B) / 8.8 (2C)||(9.6 projected, +1.3)||5.7|
|2020.09||()||(11.5 projected, +1.9)||()|
|2020.10||(13.0 projected, +1.5)|
|2020.11||(14.4 projected, +1.4)|
|2020.12||(16.5 projected, +2.1)|
|2021.01||(18.6 projected, +2.1)|
1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.
4) Source: SIDC-SILSO.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
