The geomagnetic field was quiet to active on October 30. The high latitude magnetometer at Andenes recorded quiet to major storm levels.
Solar flux density measured at 20h UT on 2.8 GHz was 107.2 - increasing 25.1 over the previous solar rotation. (Centered 1 year average SF at 1 AU - 183 days ago: 80.67). The Potsdam WDC planetary A index was 9 (STAR Ap - based on the mean of three hour interval ap indices: 9.4). Three hour interval K indices: 22311224 (planetary), 22311223 (Boulder), 32211136 (Andenes).
The background x-ray flux was at the class B3 level (GOES 16).
At the time of counting spots (see image time), spots were observed in 8 active regions using 2K resolution (SN: 163) and in 8 active regions using 1K resolution (SN: 119) SDO/HMI images.
Region 12887 [S25W38] was
quiet and stable.
Region 12888 [S14W06] gained a few spots and was quiet.
Region 12889 [S27W07] decayed slowly and quietly.
Region 12891 [N17E42] decayed losing the magnetic delta and some area. C1 flares:
C1.0 @ 09:22, C1.6 @ 09:53, C1.2 @ 16:21 UT.
New region 12892 [N26W15] emerged on October 29 and was numbered the
next day by SWPC. Slow decay was observed on October 30.
Spotted regions not observed (or interpreted
differently) by SWPC:
S7142
[S29W33] decayed slowly and was mostly quiet.
C1 flares: C1.0 @ 21:29 UT.
New region S7164 [N15E82] rotated into view with a single spot.
New region S7165 [S20E14] was observed with tiny spots in an old
plage area.
C2+ flares:
| Magnitude | Peak time (UT) | Location | AR | Recorded by | Comment |
| C3.9/1N | 03:15 | N14E38 | 12891 | GOES16 | |
| C3.1 | 15:29 | N16E34 | 12891 | GOES16 |
October 29-30: No obviously Earth directed CMEs
were observed in available LASCO imagery.
October 28: A large and fast asymmetric CME was observed after the X1
flare in AR S7142.
[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago]
An extension (CH1039) of the northern pole coronal hole will rotate across the central meridian on October 31.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle and high latitudes is poor due to an ongoing proton event. Propagation on long distance northeast-southwest paths is poor to fair.
The geomagnetic field is expected to be quiet to major storm on October 31-November 1 due to CME effects.
| Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole
could reach Earth within the next 5 days. When the high speed
stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.
(Click on image for 2K resolution).
4K resolution.
Compare to the previous day's image. 0.5K image

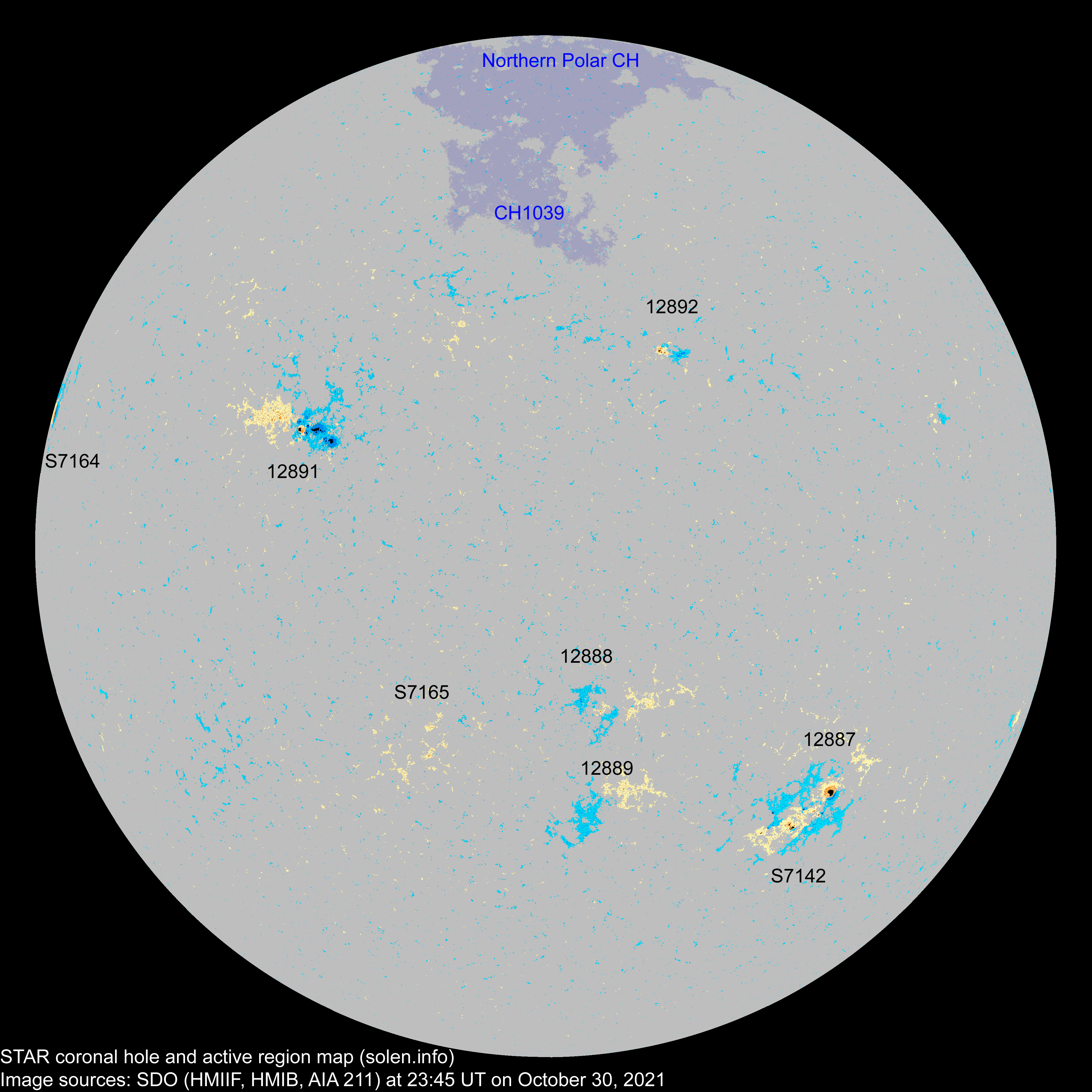

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all officially numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC, all other regions are numbered sequentially as they emerge using the STAR spot number. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers. SWPC data considered to be not sufficiently precise (location, area, classification) are red colored.
| Active region | SWPC date numbered STAR detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlays |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC/ USAF |
Magnetic (SDO) |
SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 12887 | 2021.10.21 2021.10.22 |
13 | 1 | 1 | S28W33 | 0210 | DSO | HSX |
 |
 |
location: S25W38 area: 0120 SWPC data includes AR S7142 |
| S7142 | 2021.10.21 | 24 | 12 | S29W33 | 0070 | CRI |
 |
 |
beta-gamma | ||
| 12888 | 2021.10.23 2021.10.24 |
7 | 2 | S12W15 | 0015 | BXO |
 |
 |
location: S14W06 | ||
| 12889 | 2021.10.24 2021.10.25 |
1 | 5 | 1 | S23W10 | 0010 | AXX | BXO |
 |
 |
location: S27W07 |
| S7148 | 2021.10.24 | N21W43 | |||||||||
| S7149 | 2021.10.24 | N01W48 | |||||||||
| 12890 | 2021.10.25 2021.10.25 |
S18W78 | |||||||||
| S7151 | 2021.10.25 | N14W42 | |||||||||
| 12891 | 2021.10.26 2021.10.26 |
20 | 31 | 15 | N16E29 | 0240 | EAC | DAI |
 |
 |
beta-gamma |
| S7155 | 2021.10.26 | N33W44 | |||||||||
| S7156 | 2021.10.26 | N13W41 | |||||||||
| S7157 | 2021.10.26 | S23W25 | |||||||||
| S7158 | 2021.10.27 | N37W43 | |||||||||
| S7159 | 2021.10.28 | N24E23 | |||||||||
| S7160 | 2021.10.28 | N19W54 |
 |
||||||||
| 12892 | 2021.10.29 2021.10.30 |
2 | 11 | 6 | N27W15 | 0010 | BXO | CRO |
 |
 |
area: 0040 |
| S7162 | 2021.10.29 | S19E02 |
 |
||||||||
| S7163 | 2021.10.29 | S04W21 |
 |
||||||||
| S7164 | 2021.10.30 | 1 | 1 | N15E32 | 0180 | HSX |
 |
||||
| S7165 | 2021.10.30 | 3 | 1 | S20E14 | 0007 | AXX |
 |
||||
| Total spot count: | 36 | 83 | 39 | ||||||||
| Sunspot number: | 76 | 163 | 119 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 46 | 104 | 70 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 83 | 90 | 95 | ||||||||
| Month | Average solar flux | International sunspot number (WDC-SILSO) |
Smoothed sunspot number (4) | Average ap (3) |
|
|---|---|---|---|---|---|
| Measured | 1 AU | ||||
| 2014.02 | 170.3 (cycle peak) |
166.3 | 146.1 (cycle peak) | 110.5 | 10.70 |
| 2014.04 | 143.9 | 144.8 | 112.5 | 116.4 (solar max) | 7.88 |
| 2017.09 | 91.3 | 92.3 | 43.6 | 18.2 (-1.3) | 18.22 (cycle peak) |
| 2019.11 | 70.2 | 68.7 | 0.5 | 2.0 (-0.6) (Solar minimum using 365d smoothing: November 17, 2019) |
4.19 |
| 2019.12 | 70.8 | 68.6 | 1.6 | 1.8 (-0.2) (ISN 13 months smoothed solar minimum) |
3.22 |
| 2020.04 | 69.5 | 70.0 | 5.4 | 3.6 (+0.6) | 5.32 |
| 2020.05 | 69.0 | 70.6 | 0.2 | 5.6 (+2.0) | 3.80 |
| 2020.06 | 69.5 | 71.7 | 5.8 | 7.9 (+2.3) | 3.75 |
| 2020.07 | 69.5 | 71.8 | 6.3 | 9.0 (+1.1) | 4.28 |
| 2020.08 | 71.6 | 73.4 | 7.6 | 9.5 (+0.5) | 5.68 |
| 2020.09 | 70.7 | 71.4 | 0.7 | 10.5 (+1.0) | 8.59 |
| 2020.10 | 74.6 | 74.2 | 14.6 | 11.9 (+1.4) | 6.13 |
| 2020.11 | 89.9 | 88.0 | 34.5 | 13.6 (+1.7) | 4.77 |
| 2020.12 | 86.9 | 84.2 | 23.1 | 15.3 (+1.7) | 4.72 |
| 2021.01 | 76.0 | 73.6 | 10.4 | 17.3 (+2.0) | 4.39 |
| 2021.02 | 74.3 | 72.4 | 8.3 | 19.1 (+1.8) | 9.50 |
| 2021.03 | 76.0 | 75.2 | 17.3 | 21.8 (+2.7) | 10.17 |
| 2021.04 | 75.9 | 76.4 | 24.5 | (26.0 projected, +4.2) | 8.40 |
| 2021.05 | 75.3 | 77.1 | 21.2 | (28.7 projected, +2.7) | 6.50 |
| 2021.06 | 79.4 | 81.8 | 25.3 | (31.9 projected, +3.2) | 5.52 |
| 2021.07 | 81.0 | 83.6 | 34.4 | (36.5 projected, +4.6) | 5.51 |
| 2021.08 | 77.7 | 79.7 | 22.4 | (41.1 projected, +4.6) | 6.19 |
| 2021.09 | 87.0 | 88.2 | 51.5 | (46.8 projected, +5.7) | 6.33 |
| 2021.10 | 88.5 (1) | 33.9 (2A) / 36.3 (2B) / 44.0 (2C) | (51.2 projected, +4.4) | (7.1) | |
| 2021.11 | (55.8 projected, +4.6) | ||||
| 2021.12 | (61.7 projected, +5.9) | ||||
| 2022.01 | (65.3 projected, +3.6) | ||||
| 2022.02 | (70.0 projected, +4.7) | ||||
| 2022.03 | (75.4 projected, +5.4) | ||||
1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz
and any corrections applied to that measurement.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red
are based on the definitive international
GFZ Potsdam WDC ap indices.
4) Source: SIDC-SILSO.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
