The geomagnetic field was quiet to active on February 6 under the influence of a high speed stream associated with CH1058. The high latitude magnetometer at Andenes recorded quiet to minor storm levels.
Solar flux density measured at 20h UT on 2.8 GHz was 123.6 - increasing 21.4 over the previous solar rotation. (Centered 1 year average SF at 1 AU - 183 days ago: 84.92). The Potsdam WDC planetary A index was 14 (STAR Ap - based on the mean of three hour interval ap indices: 13.9). Three hour interval K indices: 43333133 (planetary), 33333223 (Boulder), 54333245 (Andenes).
The background x-ray flux is at the class B5 level (GOES 16).
At the time of counting spots (see image time), spots were observed in 8 active regions using 2K resolution (SN: 199) and in 6 active regions using 1K resolution (SN: 117) SDO/HMI images.
Region 12939 [S16W19] developed when new flux
emerged to the south of the largest spot resulting in polarity intermixing.
The region was the center of a C3.1 long duration event which was
associated with a full halo CME.
Region 12940 [N17W18] decayed slowly and quietly.
Region 12941 [N24E39] was mostly quiet and stable. C1 flares: C1.9 @
01:00 UT.
New region 12942 [S12W61] emerged on February 5 and was numbered by
SWPC the next day.
Spotted regions not observed (or interpreted
differently) by SWPC:
S7328 [S25W21] decayed slowly and quietly.
S7332 [N15W83] was mostly quiet and stable. C1 flares: C1.4 @ 01:24,
C1.0 @ 03:50 UT. That C1.4 flare was wrongly attributed to AR 12936 by SWPC-
S7339 [N13E11] was quiet and stable.
New region S7343 [S20E79] rotated into view with tiny spots.
AR 12936 was still active behind the northwest limb. C1 flares: C1.0 @ 01:45, C1.3 @ 05:12, C1.2 @ 11:24 UT.
C2+ flares:
| Magnitude | Peak time (UT) | Location | Source | Recorded by | Comment |
| C3.1 | 13:41 | S20W07 | 12939 | GOES16 | LDE, halo CME |
February 4-5: No obviously Earth directed CMEs
were observed in available LASCO imagery.
February 6: A faint full halo CME was observed after a C3.1 long
duration event near noon in AR 12939. The region became unstable as new flux
emerged to the south of the leader spot.
[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago]
A southern hemisphere coronal hole (CH1059) was Earth facing on February 3-4. A recurrent southern hemisphere coronal hole (CH1060) will likely rotate across the central meridian on February 9-10.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle and high latitudes is poor. Propagation on long distance northeast-southwest paths is poor to fair.
The geomagnetic field is expected to be quiet to unsettled on February 7-8 due to effects from CH1059. On February 9-10 the CME observed on February 6 could cause unsettled to minor storm conditions.
| Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole
could reach Earth within the next 5 days. When the high speed
stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.
(Click on image for 2K resolution).

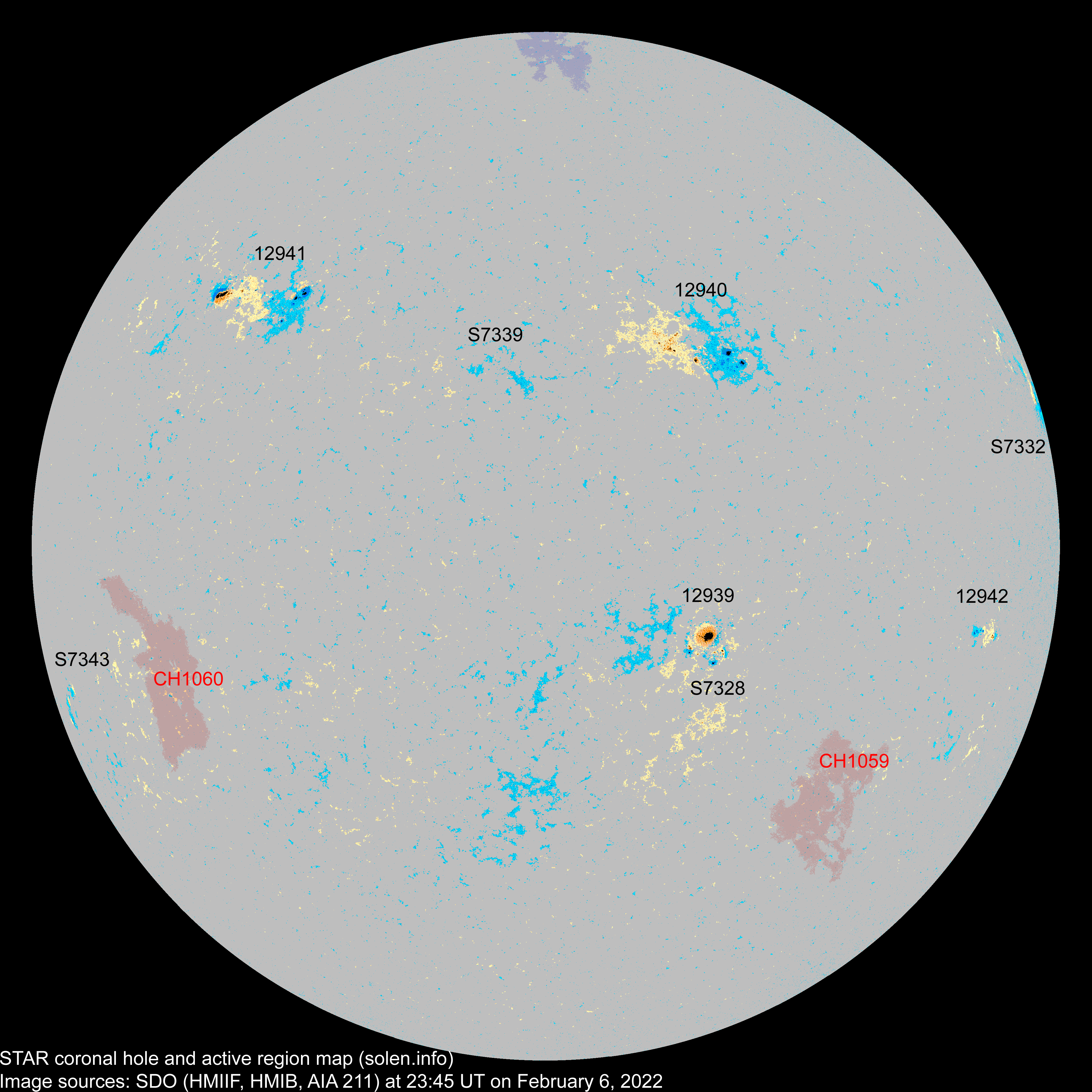

4K resolution.

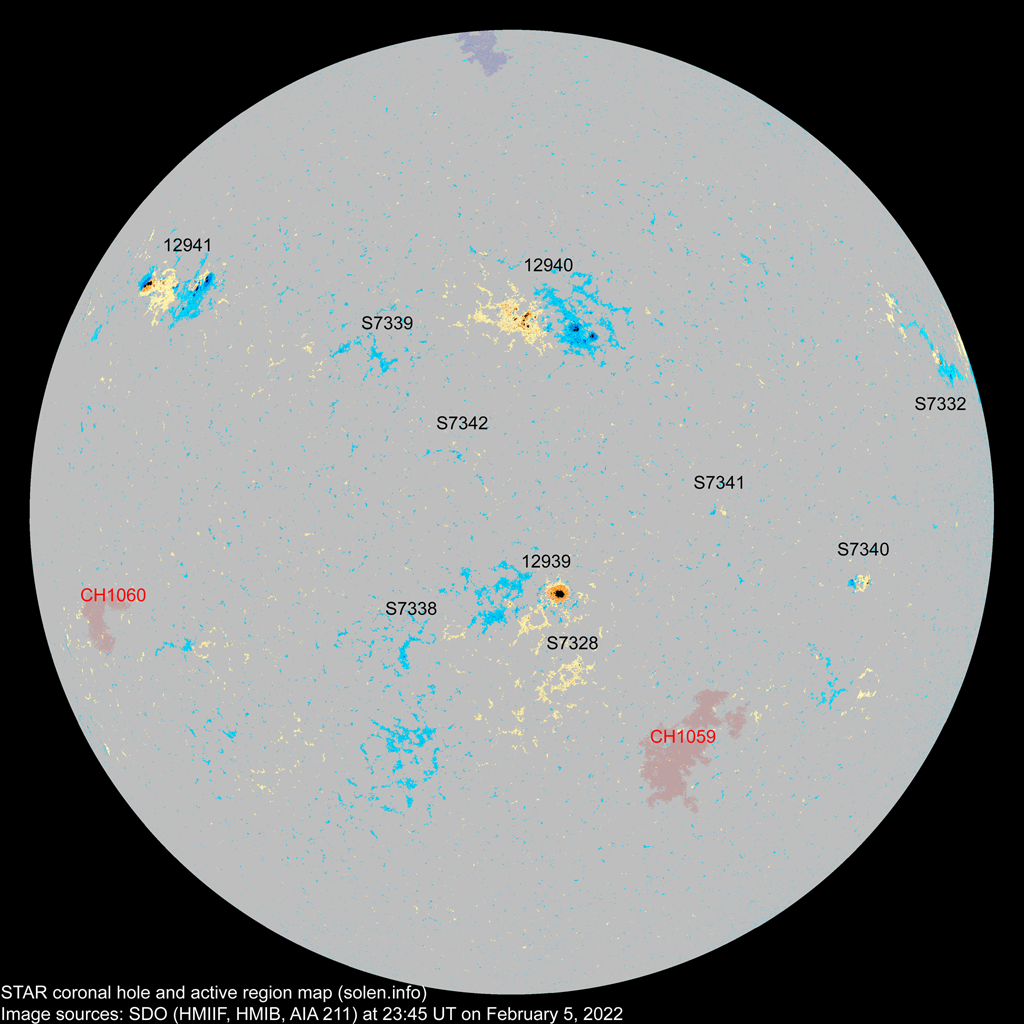

Compare to the previous day's image. 0.5K image

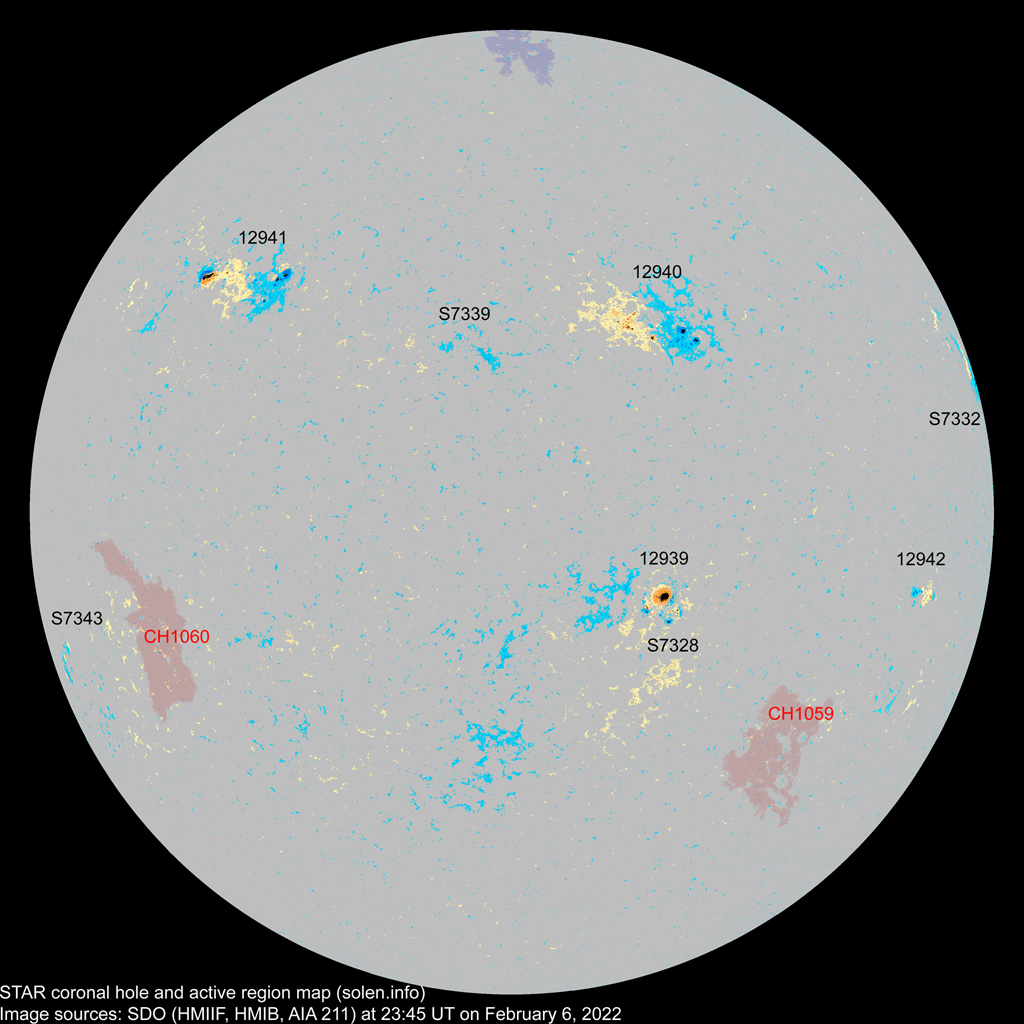

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all officially numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC, all other regions are numbered sequentially as they emerge using the STAR spot number. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers. SWPC data considered to be not sufficiently precise (location, area, classification) are colored red.
| Active region | SWPC date numbered STAR detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlays |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC/ USAF |
Magnetic (SDO) |
SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 12938 | 2022.01.25 2022.01.26 |
4 | N19W85 | 0030 | BXO |
location: N21W76 spotless SWPC has failed to observe AR S7332 and uses data from that region |
|||||
| 12939 | 2022.01.29 2022.01.30 |
4 | 19 | 11 | S16W20 | 0200 | CSO | DSI |
 |
 |
beta-gamma location: S16W19 area: 0270 |

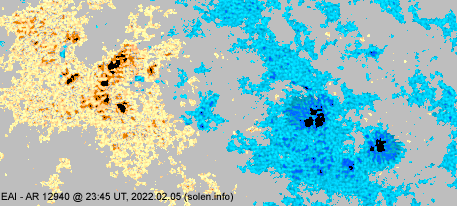

| 12940 | 2022.01.30 2022.01.30 |
12 | 47 | 23 | N16W19 | 0200 | DAO | EAI |
 |
 |
location: N17W18 area: 0160 |
| S7327 | 2022.01.30 | N18W31 | |||||||||
| S7328 | 2022.01.30 | 4 | S25W21 | 0005 | AXX |
 |
 |
||||
| S7331 | 2022.01.31 | N27W46 | |||||||||
| S7332 | 2022.01.31 | 5 | 2 | N15W83 | 0030 | CRO |
 |
 |
|||
| 12941 | 2022.02.02 2022.02.03 |
10 | 27 | 13 | N24E35 | 0290 | EHO | FAI |
 |
 |
location: N24E39 |
| S7335 | 2022.02.02 | S12W57 | |||||||||
| S7336 | 2022.02.02 | S22W18 | reversed polarities | ||||||||
| S7338 | 2022.02.04 | S22W00 |
 |
||||||||
| S7339 | 2022.02.04 | 2 | N13E11 | 0004 | AXX |
 |
 |
||||
| 12942 | 2022.02.05 2022.02.06 |
3 | 10 | 6 | S11W62 | 0020 | BXO | CRI |
 |
 |
|
| S7341 | 2022.02.05 | S06W38 |
 |
||||||||
| S7342 | 2022.02.05 | N00W06 |
 |
probably SC24 | |||||||
| S7343 | 2022.02.06 | 5 | 2 | S20E79 | 0020 | BXO |
 |
||||
| Total spot count: | 33 | 119 | 57 | ||||||||
| Sunspot number: | 83 | 199 | 117 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 53 | 140 | 78 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 91 | 109 | 94 | ||||||||
| Month | Average solar flux | International sunspot number (WDC-SILSO) |
Smoothed sunspot number (4) | Average ap (3) |
|
|---|---|---|---|---|---|
| Measured | 1 AU | ||||
| 2014.02 | 170.3 (cycle peak) |
166.3 | 146.1 (SC24 peak) | 110.5 | 10.70 |
| 2014.04 | 143.9 | 144.8 | 112.5 | 116.4 (solar max) | 7.88 |
| 2017.09 | 91.3 | 92.3 | 43.6 | 18.2 (-1.3) | 18.22 (cycle peak) |
| 2019.11 | 70.2 | 68.7 | 0.5 | 2.0 (-0.6) (Solar minimum using 365d smoothing: November 17, 2019) |
4.19 |
| 2019.12 | 70.8 | 68.6 | 1.6 | 1.8 (-0.2) (ISN 13 months smoothed solar minimum) |
3.22 |
| 2020.07 | 69.5 | 71.8 | 6.1 | 9.0 (+1.1) | 4.28 |
| 2020.08 | 71.6 | 73.4 | 7.5 | 9.5 (+0.5) | 5.68 |
| 2020.09 | 70.7 | 71.4 | 0.7 | 10.5 (+1.0) | 8.59 |
| 2020.10 | 74.6 | 74.2 | 14.6 | 11.9 (+1.4) | 6.13 |
| 2020.11 | 89.9 | 88.0 | 34.5 | 13.6 (+1.7) | 4.77 |
| 2020.12 | 86.9 | 84.2 | 23.1 | 15.3 (+1.7) | 4.72 |
| 2021.01 | 76.0 | 73.6 | 10.4 | 17.3 (+2.0) | 4.39 |
| 2021.02 | 74.3 | 72.4 | 8.2 | 19.0 (+1.7) | 9.50 |
| 2021.03 | 76.0 | 75.2 | 17.2 | 21.7 (+2.7) | 10.17 |
| 2021.04 | 75.9 | 76.4 | 24.5 | 24.8 (+3.1) | 8.40 |
| 2021.05 | 75.3 | 77.1 | 21.2 | 25.8 (+1.0) | 6.50 |
| 2021.06 | 79.4 | 81.8 | 25.0 | 27.7 (+1.9) | 5.52 |
| 2021.07 | 81.0 | 83.6 | 34.3 | 31.4 (+3.7) | 5.51 |
| 2021.08 | 77.7 | 79.7 | 22.0 | (36.2 projected, +4.8) | 6.19 |
| 2021.09 | 87.0 | 88.2 | 51.3 | (42.3 projected, +6.1) | 6.33 |
| 2021.10 | 88.9 | 88.3 | 38.1 | (46.7 projected, +4.4) | 7.38 |
| 2021.11 | 86.2 | 84.4 | 35.0 | (51.3 projected, +4.6) | 9.83 |
| 2021.12 | 103.0 | 99.8 | 67.6 | (57.2 projected, +5.9) | 6.40 |
| 2022.01 | 103.8 | 100.5 | 54.0 | (60.8 projected, +3.6) | 8.9 |
| 2022.02 | 127.1 (1) | 18.0 (2A) / 84.2 (2B) / 80.1 (2C) | (65.5 projected, +4.7) | (16.9) | |
| 2022.03 | (71.0 projected, +5.5) | ||||
| 2022.04 | (76.1 projected, +5.1) | ||||
| 2022.05 | (82.6 projected, +6.5) | ||||
| 2022.06 | (88.4 projected, +5.9) | ||||
| 2022.07 | (95.7 projected, +7.3) | ||||
1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz
and any corrections applied to that measurement.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red
are based on the definitive international
GFZ Potsdam WDC ap indices.
4) Source: SIDC-SILSO.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
