The geomagnetic field was quiet to unsettled on September 22. Solar wind speed at SOHO ranged between 358 and 435 km/sec. The high latitude magnetometer at Andenes recorded quiet to active levels. A disturbance began late in the day, it is not yet certain if it's related to CH1101.
Solar flux density measured at 20h UT on 2.8 GHz was 136.7 - increasing 18.1 over the previous solar rotation. (Centered 1 year average SF at 1 AU - 183 days ago: 112.86). The Potsdam WDC planetary A index was 5 (STAR Ap - based on the mean of three hour interval ap indices: 5.3). Three hour interval K indices: 01102113 (planetary), 11202213 (Boulder), 01002134 (Andenes).
The background x-ray flux is at the class C1 level (GOES 16).
At the time of counting spots (see image time), spots were observed in 6 active regions using 2K resolution (SN: 210) and in 5 active regions using 1K resolution (SN: 129) SDO/HMI images.

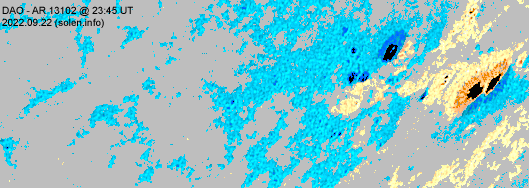

Region 13102 [S27W53] decayed slowly and
was mostly quiet. C1 flares: C1.8 @ 15:55 UT

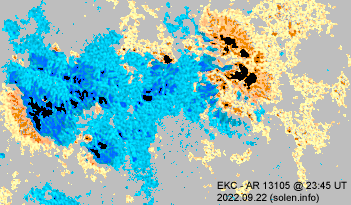

Region 13105 [S16E35] has M class flare potential, however, only
minor polarity intermixing is currently observed. C1 flares: C1.6 @ 09:51,
C1.8 @ 10:24, C1.8 @ 13:11, C1.7 @ 20:28 UT
Region 13107 [S22E48] was mostly unchanged and produced several C
flares. M class flares are possible. C1 flares: C1.7 @ 04:37, C1.8 @ 10:36,
C1.9 @ 13:45, C1.7 @ 20:20, C1.8 @ 00:03 (on September 23) UT
Region 13108 [S12E03] developed slowly and quietly.
New region 13109 [N10W12] emerged on September 21 and received its
NOAA number the next day as the region developed further. C1 flares: C1.6 @
03:56, C1.5 @ 05:17, C1.3 @ 07:13, C1.7 @ 08:47, C1.9 @ 18:27 UT
Spotted regions not observed (or interpreted
differently) by SWPC:
New region S7884 [N17E84] began to rotate into view late in the day
and appears to an emerging region with C class flare potential. C1 flares:
C1.9 @ 21:03, C1.5 @ 22:17, C1.2 @ 23:06 UT
C2+ flares:
| Magnitude | Peak time (UT) | Location | Source | Recorded by | Comment |
| C3.6 | 01:36 | 13105 | GOES16 | ||
| C7.8/1F | 11:34 | S16E43 | 13105 | GOES16 | |
| C3.6 | 14:43 | 13107 | GOES16 | ||
| C2.3 | 21:14 | 13107 | GOES16 |
September 20-22: No obviously Earth directed CMEs were observed.
[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago]
A trans equatorial coronal hole (CH1101) was in an Earth facing position on September 19-20. A recurrent southern hemisphere coronal hole (CH1102) will rotate across the central meridian on September 22-24.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle and high latitudes is fair. Propagation on long distance northeast-southwest paths is poor to fair.
Quiet to active conditions are likely on September 23-24 due to effects from CH1101. Quiet to active conditions are possible on September 25-27 due to effects from CH1102.
| Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole
could reach Earth within the next 5 days. When the high speed
stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.
(Click on image for 2K resolution).
4K resolution.
Compare to the previous day's image. 0.5K image

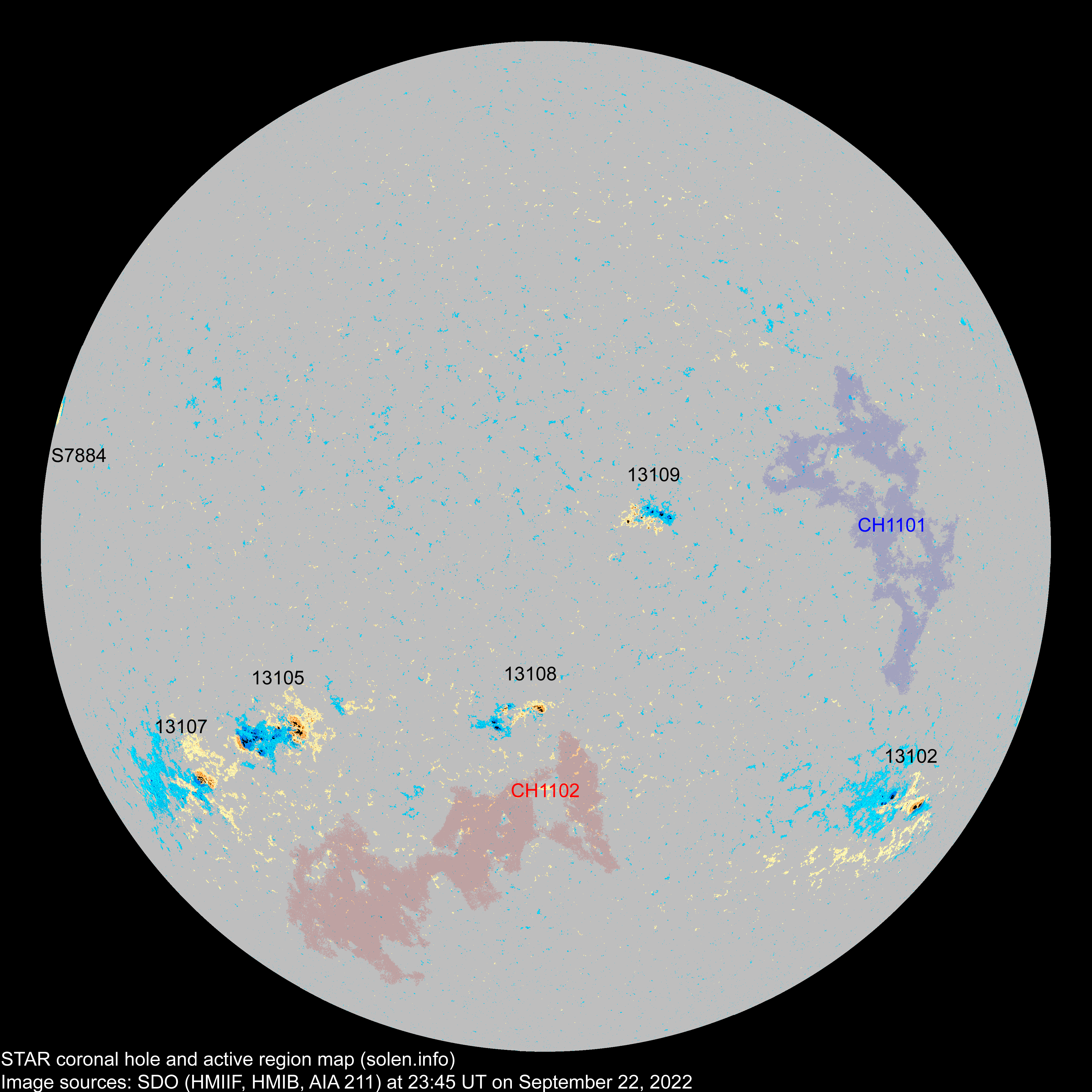

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all officially numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC, all other regions are numbered sequentially as they emerge using the STAR spot number. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers. SWPC data considered to be not sufficiently precise (location, area, classification) are colored red.
| Active region | SWPC date numbered STAR detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlays |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC/ USAF |
Magnetic (SDO) |
SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 13102 | 2022.09.12 2022.09.13 |
8 | 21 | 9 | S25W53 | 0240 | EAO | DAO |
 |
 |
location: S27W53 area: 0170 |
| S7872 | 2022.09.15 | S19W41 | |||||||||
| S7875 | 2022.09.17 | N33W32 | |||||||||
| 13105 | 2022.09.19 2022.09.19 |
22 | 49 | 31 | S17E33 | 0490 | DKI | EKC |
 |
 |
beta-gamma area: 0610 location: S16E35 |
| 13106 | 2022.09.19 2022.09.20 |
S12E24 |
 |
location: S11E23 |
|||||||
| S7880 | 2022.09.20 | N46W44 | |||||||||
| 13108 | 2022.09.20 2022.09.21 |
7 | 19 | 10 | S13E03 | 0030 | DAO | DAI |
 |
 |
beta-gamma area: 0130 location: S12E03 |
| 13107 | 2022.09.20 2022.09.21 |
6 | 30 | 18 | S25E46 | 0190 | CAO | CAI |
 |
 |
location: S22E48 |
| 13109 | 2022.09.21 2022.09.22 |
6 | 28 | 11 | N10W13 | 0030 | CRO | DRI |
 |
 |
area: 0080 |
| S7884 | 2022.09.22 | 3 | N17E84 | 0005 | AXX |
 |
|||||
| Total spot count: | 49 | 150 | 79 | ||||||||
| Sunspot number: | 99 | 210 | 129 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 77 | 178 | 107 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 109 | 116 | 103 | ||||||||
| Month | Average solar flux | International sunspot number (WDC-SILSO) |
Smoothed sunspot number (4) | Average ap (3) |
|
|---|---|---|---|---|---|
| Measured | 1 AU | ||||
| 2014.02 | 170.3 (cycle peak) |
166.3 | 146.1 (SC24 peak) | 110.5 | 10.70 |
| 2014.04 | 143.9 | 144.8 | 112.5 | 116.4 (solar max) | 7.88 |
| 2017.09 | 91.3 | 92.3 | 43.6 | 18.2 (-1.3) | 18.22 (cycle peak) |
| 2019.11 | 70.2 | 68.7 | 0.5 | 2.0 (-0.6) (Solar minimum using 365d smoothing: November 17, 2019) |
4.19 |
| 2019.12 | 70.8 | 68.6 | 1.6 | 1.8 (-0.2) (ISN 13 months smoothed solar minimum) |
3.22 |
| 2021.02 | 74.3 | 72.4 | 8.2 | 19.0 (+1.7) | 9.50 |
| 2021.03 | 76.0 | 75.2 | 17.2 | 21.7 (+2.7) | 10.17 |
| 2021.04 | 75.9 | 76.4 | 24.5 | 24.8 (+3.1) | 8.40 |
| 2021.05 | 75.3 | 77.1 | 21.2 | 25.8 (+1.0) | 6.50 |
| 2021.06 | 79.4 | 81.8 | 25.0 | 27.6 (+1.8) | 5.52 |
| 2021.07 | 81.0 | 83.6 | 34.3 | 31.4 (+3.8) | 5.51 |
| 2021.08 | 77.7 | 79.7 | 22.0 | 35.4 (+4.0) | 6.19 |
| 2021.09 | 87.0 | 88.2 | 51.3 | 40.2 (+4.8) | 6.33 |
| 2021.10 | 88.9 | 88.3 | 37.4 | 45.2 (+5.0) | 7.38 |
| 2021.11 | 86.2 | 84.4 | 34.8 | 50.8 (+5.6) | 9.83 |
| 2021.12 | 103.0 | 99.8 | 67.5 | 55.9 (+5.1) | 6.40 |
| 2022.01 | 103.8 | 100.5 | 55.3 | 60.1 (+4.2) | 8.92 |
| 2022.02 | 109.1 | 106.5 | 60.9 | 64.8 (+4.7) | 10.46 |
| 2022.03 | 117.0 | 115.8 | 78.6 | (68.7 projected, +3.9) | 10.20 |
| 2022.04 | 130.8 | 131.7 | 84.1 | (73.9 projected, +5.2) | 11.79 |
| 2022.05 | 133.8 | 136.8 | 96.5 | (80.3 projected, +6.4) | 7.48 |
| 2022.06 | 116.1 | 119.8 | 70.5 | (86.2 projected, +5.9) | 8.20 |
| 2022.07 | 125.4 | 129.5 | 91.4 | (93.4 projected, +7.2) | 9.51 |
| 2022.08 | 114.2 | 117.1 | 75.4 | (100.0 projected, +6.6) | 10.92 |
| 2022.09 | 133.9 (1) | 57.3 (2A) / 78.2 (2B) / 103.6 (2C) | (104.9 projected, +4.9) | (13.2) | |
| 2022.10 | (108.1 projected, +3.2) | ||||
| 2022.11 | (110.9 projected, +2.8) | ||||
| 2022.12 | (115.7 projected, +4.8) | ||||
| 2023.01 | (121.7 projected, +6.0) | ||||
| 2023.02 | (126.7 projected, +5.0) | ||||
| 2023.11 | (142.5 projected max SC25) | ||||
1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz
and any corrections applied to that measurement.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red
are based on the definitive international
GFZ Potsdam WDC ap indices.
4) Source: SIDC-SILSO.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
