|Charts (* = updated daily)||Data and archive|
|Solar wind (*)||Solar and geomagnetic data - last month (*)|
|Electron fluence (*)||Archived daily reports and monthly data since 2003.01 (April 1, 2023)|
|Solar cycle||Solar cycles 23-25 (April 1, 2023)||Historical solar and geomagnetic data charts 1954-2006 (April 5, 2007)|
|Cycle 24-25 progress (April 1, 2023)||Noon SDO sunspot count 1K image / 4K (*)|
|Solar cycles 1-24 (July 1, 2020)||POES auroral activity level [October 2009 - December 2012]|
|Comparison of cycles 21-25 (April 1, 2023)||3rd SSN Workshop, Tucson, 2013|
|Comparison of cycles 12-14, 16, 24-25 (April 1, 2023)||4th SSN Workshop, Locarno, 2014|
|Solar polar fields vs. solar cycles (January 21, 2023)||Cycle 25 spots (final update December 25, 2019)|
|Solar cycles 24-25 transition using 365d smoothing||Research: Solar Cycle 25 Started on November 17, 2019 with 365 Days Smoothing|
The geomagnetic field was quiet to active on April 3 due to effects from CH1138. Solar wind speed at SOHO ranged between 477 and 557 km/sec. The high latitude magnetometer at Andenes recorded quiet to major storm levels.
Solar flux density measured at 20h UT on 2.8 GHz was 133.6 - decreasing 46.7 over the previous solar rotation. (Centered 1 year average SF at 1 AU - 183 days ago: 138.42). The Potsdam WDC planetary A index was 12 (STAR Ap - based on the mean of three hour interval ap indices: 12.1). Three hour interval K indices: 41223333 (planetary), 32233323 (Boulder), 42224465 (Andenes).
The background x-ray flux is at the class B5 level (GOES 16).
At the time of counting spots (see image time), spots were observed in 14 active regions using 2K resolution (SN: 235) and in 11 active regions using 1K resolution (SN: 157) SDO/HMI images.
Region 13262 [S18W84] decayed slowly and quietly.
Region 13264 [N16W59] decayed slowly and quietly.
Region 13266 [N09W25] developed slowly and quietly.
Region 13267 [S18W19] was quiet and stable.
Region 13269 [S21E26] decayed slowly and quietly.
Region 13270 [S22W17] developed further gaining area and spots. The region has polarity intermixing and a few small magnetic deltas. M class flaring is possible. C1 flares: C1.2 @ 23:18. C1.0 @ 23:44 UT
Spotted regions not observed (or interpreted
differently) by SWPC:

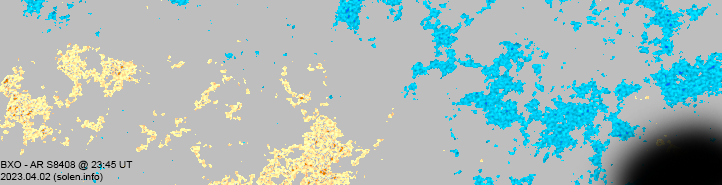

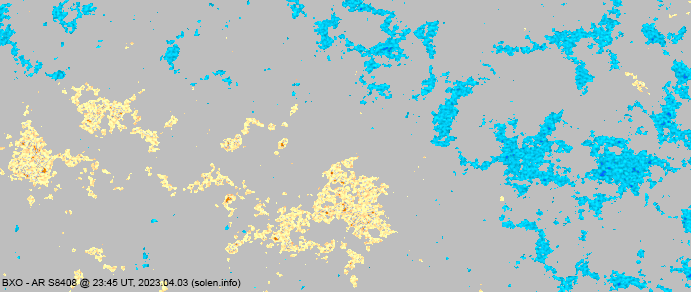

S8408 [N13W01] was quiet and stable.
S8419 [N35W28] developed early in the day, then decayed slowly again.
S8420 [S17W03] was quiet and stable.
S8422 [N11W09] decayed slowly and quietly.
S8423 [S29E21] was quiet and stable.
New region S8424 [S18W30] emerged with tiny spots.
New region S8425 [S05W17] emerged with tiny spots.
New region S8426 [N30E20] was observed with tiny spots in an old plage area.
|Magnitude||Peak time (UT)||Location||Source||Recorded by||Comment|
March 31 - April 2: No obviously Earth directed CMEs were observed.
[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]
A small southern hemisphere coronal hole (CH1139) rotated across the central meridian on April 1. A recurrent northern hemisphere coronal hole (CH1140) will likely become Earth facing on April 7-8.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle and high latitudes is poor. Propagation on long distance northeast-southwest paths is poor.
Quiet to active conditions are expected April 4-5 due to effects from CH1139. Quiet conditions are likely on April 6-7.
|Coronal holes (1)||Coronal mass ejection (2)||M and X class flares (3)|
1) Effects from a coronal hole
could reach Earth within the next 5 days. When the high speed
stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

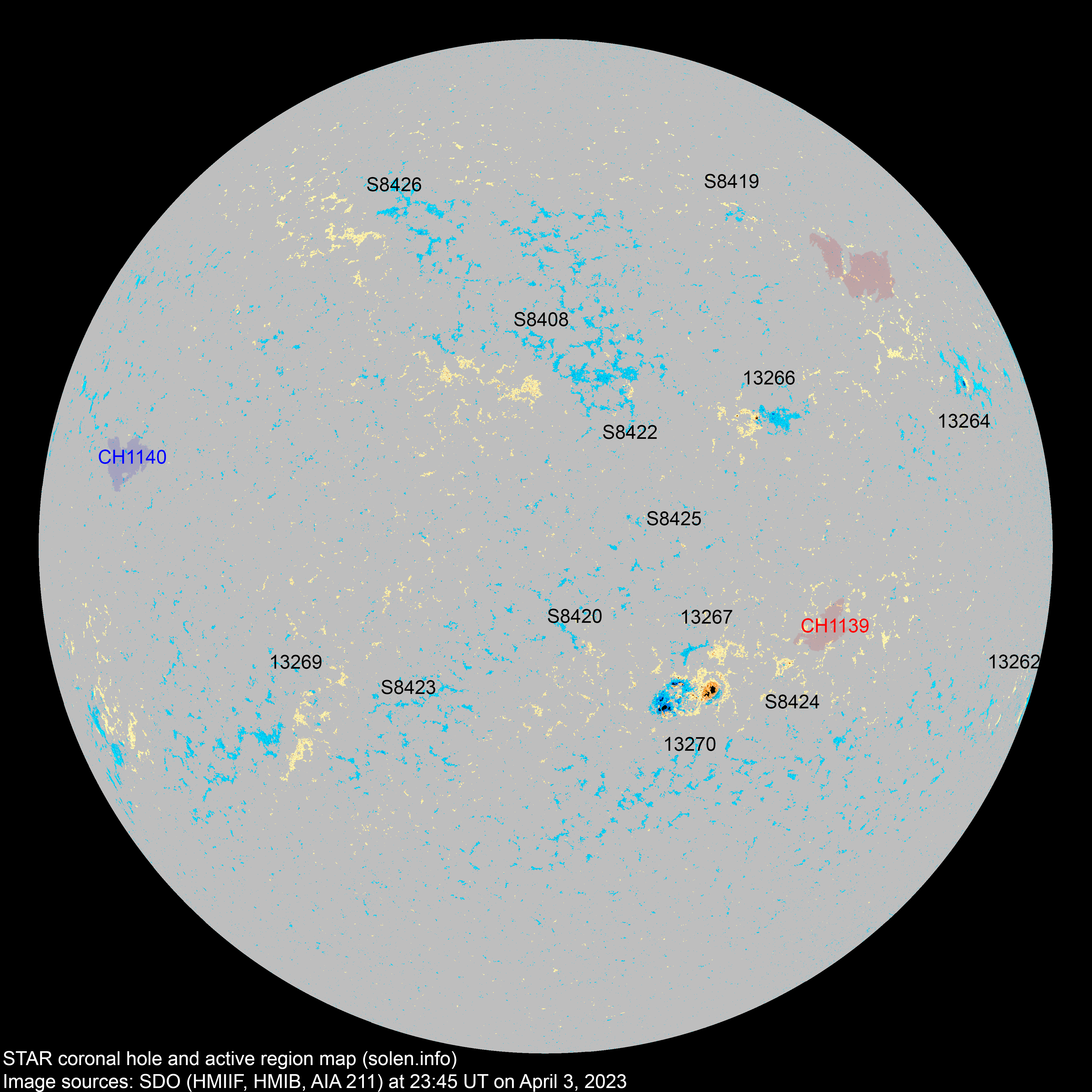

(Click on image for 2K resolution). 4K resolution. Compare to the previous day's image. 0.5K image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all officially numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC, all other regions are numbered sequentially as they emerge using the STAR spot number. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers. SWPC data considered to be not sufficiently precise (location, area, classification) are colored red.
|Active region||SWPC date numbered
|Spot count||Location at midnight||Area||Classification||SDO / HMI 4K continuum
image with magnetic polarity overlays
|Total spot count:||16||95||47|
|Sunspot number:||56||235||157||(total spot count + 10 * number of spotted regions)|
|Weighted SN:||34||112||64||(Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)|
|Relative sunspot number (Wolf number):||62||129||126|
|Month||Average solar flux||International sunspot number
|Smoothed sunspot number (4)||Average ap
|166.3||146.1 (SC24 peak)||110.5||10.70|
|2014.04||143.9||144.8||112.5||116.4 (SC24 solar max)||7.88|
(Solar minimum using 365d smoothing:
November 17, 2019)
(ISN 13 months smoothed
|2022.10||133.5||132.7||95.5||(99.0 projected, +2.6)||11.16|
|2022.11||123.4||120.7||80.5||(102.0 projected, +3.0)||9.33|
|2022.12||147.9||143.4||112.8||(106.8 projected, +4.8)||10.99|
|2023.01||182.4||176.6||143.6||(112.9 projected, +6.1)||8.73|
|2023.02||167.2||163.2||110.9||(117.9 projected, +5.0)||14.48
|2023.03||157.2||155.6||122.6||(121.0 projected, +3.1)||14.5|
|2023.04||128.6 (1)||4.4 (2A) / 44.3 (2B) / 134.9 (2C)||(126.4 projected, +5.4)||(13.1)|
|2023.05||(132.1 projected, +5.7)|
|2023.06||(135.2 projected, +3.1)|
|2023.07||(134.7 projected, -0.5)|
|2023.08||(135.7 projected, +1.0)|
|2023.09||(139.2 projected, +3.5)|
|2023.11||(142.5 projected max SC25)|
1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz
and any corrections applied to that measurement.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.
4) Source: SIDC-SILSO.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
