The geomagnetic field was quiet to unsettled on April 10 due to effects from CH1140. Solar wind speed at SOHO ranged between 370 and 567 km/sec. The high latitude magnetometer at Andenes recorded quiet to minor storm levels.
Solar flux density measured at 20h UT on 2.8 GHz was 139.8 - increasing 1.3 over the previous solar rotation. (Centered 1 year average SF at 1 AU - 183 days ago: 138.88). The Potsdam WDC planetary A index was 13 (STAR Ap - based on the mean of three hour interval ap indices: 13.0). Three hour interval K indices: 33333312 (planetary), 33333312 (Boulder), 54423322 (Andenes).
The background x-ray flux is at the class B8 level (GOES 16).
At the time of counting spots (see image time), spots were observed in 18 active regions using 2K resolution (SN: 362) and in 12 active regions using 1K resolution (SN: 210) SDO/HMI images.

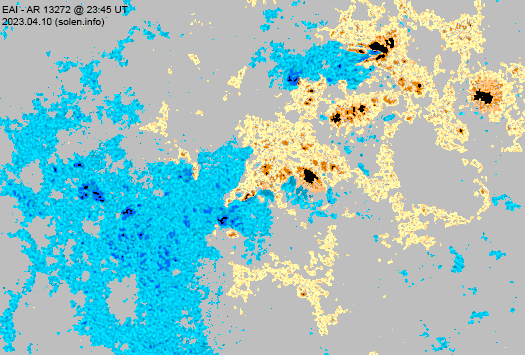

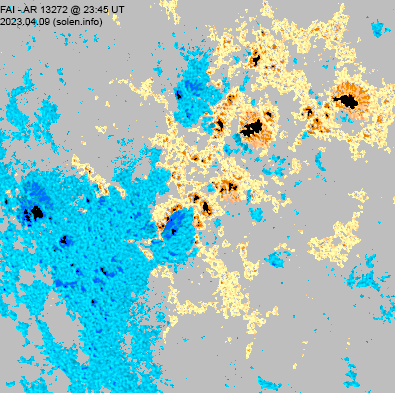

Region 13272 [S21E23] decayed in the southern
spot section while some development was observed in the north. The region
has many spots, most of them small or tiny. The region has polarity
intermixing and M class flare potential. C1 flares: C1.0 @ 02:11, C1.2 @
04:05, C1.3 @ 11:30, C1.0 @ 12:07, C1.3 @ 14:36, C1.8 @ 16:54, C1.3 @ 18:24,
C1.4 @ 19:40, C1.2 @ 22:26, C1.8 @ 22:34 UT
Region 13273 [N09E13] developed slowly and quietly. C1 flares: C1.0 @ 08:26 UT
New region 13274 [S07W01] emerged on April 8. The region decayed slowly on April 10 when it was numbered by SWPC.
New region 13275 [N19E63] rotated into view on April 9 with SWPC numbering the region the next day.
New region 13276 [S21E75] rotated into view early in the day. AR S8452 (trailing AR 13276) appears to have been the source of nearly all the flares at the SE limb.
Spotted regions not observed (or interpreted
differently) by SWPC:

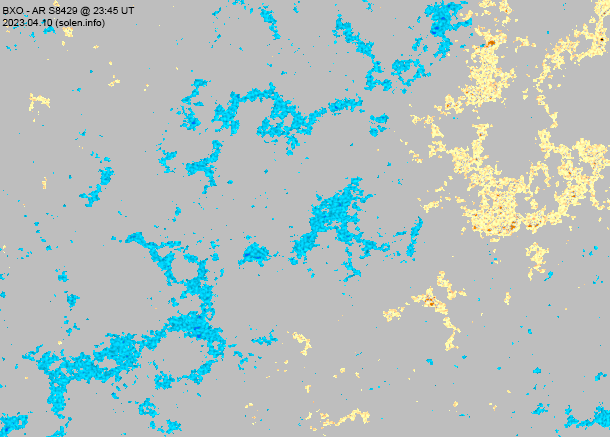

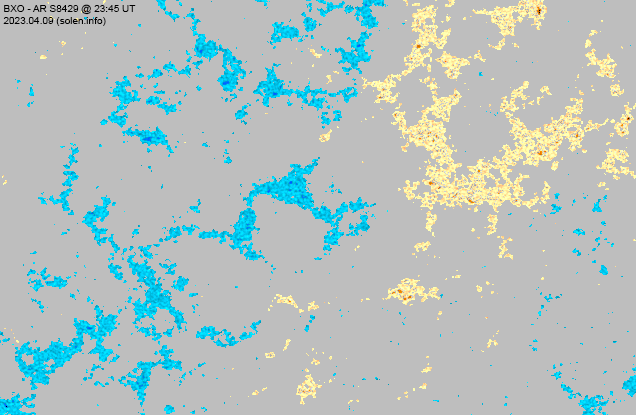

S8429 [S23W21] was quiet and stable.

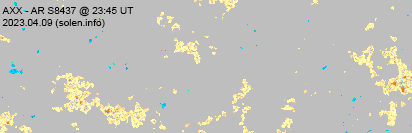

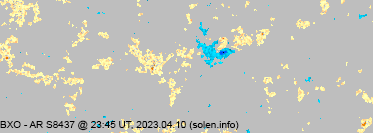

S8437 [S13W26] was quiet and stable.

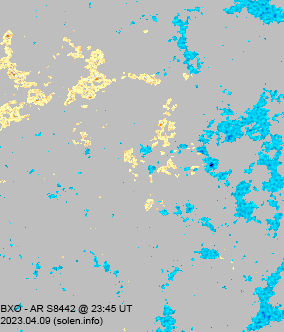

S8442 [N12W07] developed as new flux emerged.

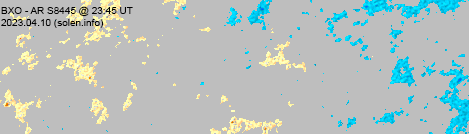

S8445 [N22E30] was quiet and stable.
New region S8450 [N10E36] emerged with tiny spots.
New region S8451 [N29W15] emerged with a tiny spot.
New region S8452 [S20E83] rotated partly into view. C1 flares: C1.4 @ 02:34, C1.4 @ 03:37, C1.7 @ 05:05, C1.3 @ 06:58, C1.0 @ 07:42, C1.3 @ 13:18, C1.6 @ 13:37, C1.9 @ 18:56, C1.8 @ 22:34 UT
New region S8453 [S18W44] emerged with tiny spots.
New region S8454 [S01W09] emerged with a tiny spot.
New region S8455 [N22E30] emerged with tiny spots.
New region S8456 [S09E37] emerged with tiny spots.
New region S8457 [S33E02] was observed with tiny spots in an old plage area.
New region S8458 [S04W43] emerged with tiny spots.
|Magnitude||Peak time (UT)||Location||Source||Recorded by||Comment|
April 10: A filament eruption in the
northeast quadrant began just after 06h UT and lasted until after 09h UT.
Coronal dimming was observed over a fairly large area to the south of the
eruption. Due to the absence of LASCO imagery for the hours after the event,
it is uncertain if a CME was produced.
April 9: A filament eruption in the southwest quadrant was observed beginning in SDO/AIA imagery at 19:06 UT and peaked 40 minutes later. A partial halo CME was observed in LASCO C2 imagery from 20:00 UT. There is a chance components of this CME will reach Earth on April 12 or 13.
April 8: No obviously Earth directed CMEs were observed.
[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]
A recurrent northern hemisphere coronal hole (CH1140) was Earth facing on April 7-8.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle and high latitudes is poor. Propagation on long distance northeast-southwest paths is poor.
Quiet to unsettled conditions are possible on April 11-12 due to effects from CH1140. There's a chance components of the April 9 CME could reach Earth on April 12-13 and cause unsettled to minor storm conditions.
|Coronal holes (1)||Coronal mass ejection (2)||M and X class flares (3)|
1) Effects from a coronal hole
could reach Earth within the next 5 days. When the high speed
stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

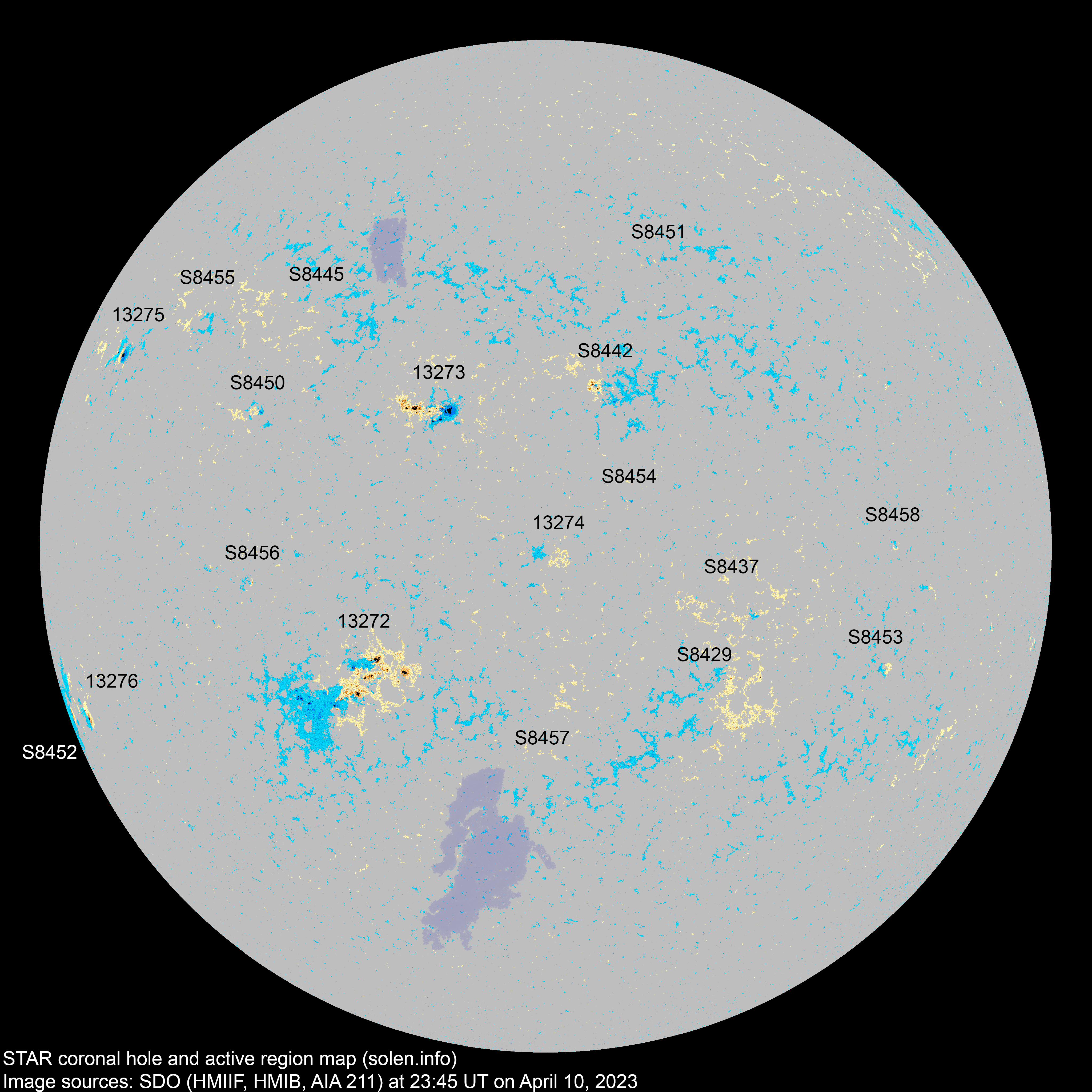

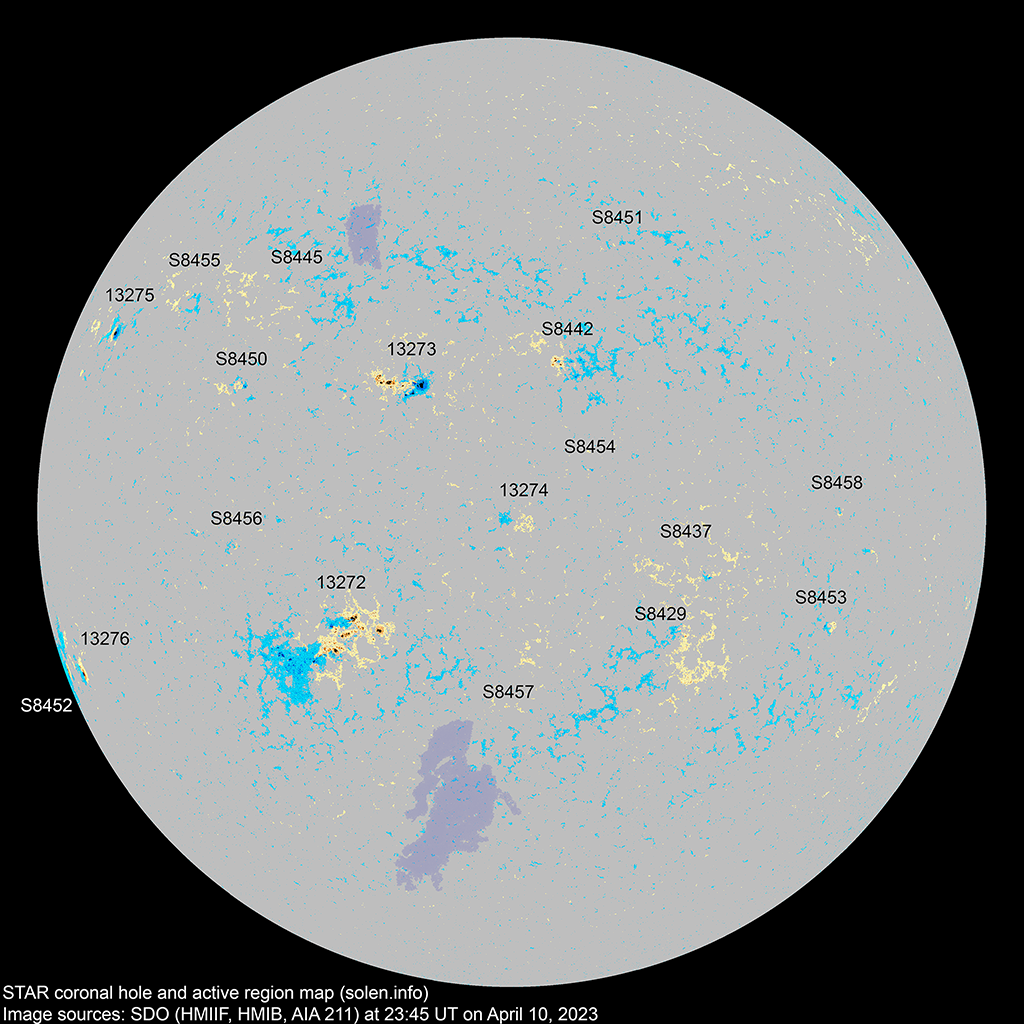

(Click on image for 2K resolution). 4K resolution. Compare to the previous day's image. 0.5K image

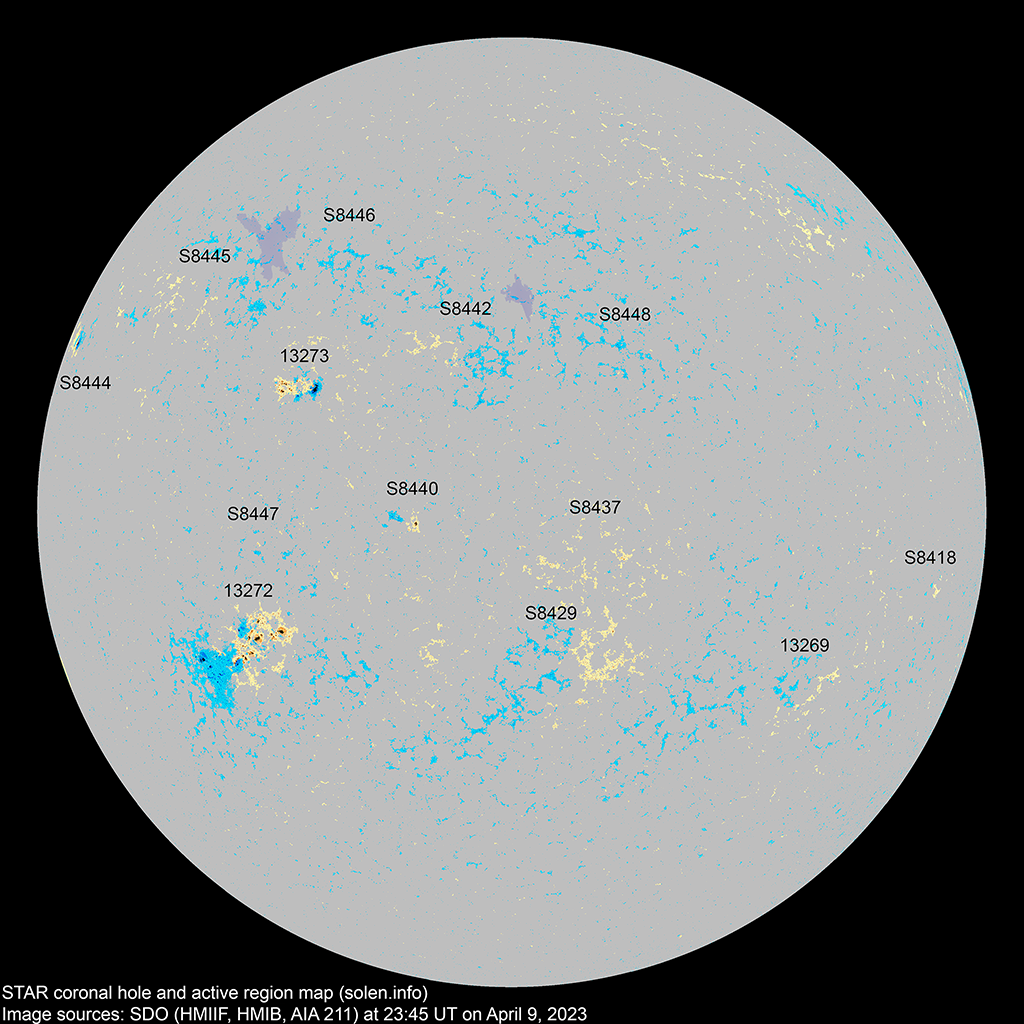

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all officially numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC, all other regions are numbered sequentially as they emerge using the STAR spot number. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers. SWPC data considered to be not sufficiently precise (location, area, classification) are colored red.
|Active region||SWPC date numbered
|Spot count||Location at midnight||Area||Classification||SDO / HMI 4K continuum
image with magnetic polarity overlays
|S8451||2023.04.10||1||1||N29W15||0003||AXX||was AR S8430|
|Total spot count:||42||182||90|
|Sunspot number:||92||362||210||(total spot count + 10 * number of spotted regions)|
|Weighted SN:||67||210||118||(Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)|
|Relative sunspot number (Wolf number):||101||199||168|
|Month||Average solar flux||International sunspot number
|Smoothed sunspot number (4)||Average ap
|166.3||146.1 (SC24 peak)||110.5||10.70|
|2014.04||143.9||144.8||112.5||116.4 (SC24 solar max)||7.88|
(Solar minimum using 365d smoothing:
November 17, 2019)
(ISN 13 months smoothed
|2022.10||133.5||132.7||95.5||(99.0 projected, +2.6)||11.16|
|2022.11||123.4||120.7||80.5||(102.0 projected, +3.0)||9.33|
|2022.12||147.9||143.4||112.8||(106.8 projected, +4.8)||10.99|
|2023.01||182.4||176.6||143.6||(112.9 projected, +6.1)||8.73|
|2023.02||167.2||163.2||110.9||(117.9 projected, +5.0)||14.48
|2023.03||157.2||155.6||122.6||(121.0 projected, +3.1)||14.42|
|2023.04||134.8 (1)||15.9 (2A) / 47.8 (2B) / 120.7 (2C)||(126.4 projected, +5.4)||(10.1)|
|2023.05||(132.1 projected, +5.7)|
|2023.06||(135.2 projected, +3.1)|
|2023.07||(134.7 projected, -0.5)|
|2023.08||(135.7 projected, +1.0)|
|2023.09||(139.2 projected, +3.5)|
|2023.11||(142.5 projected max SC25)|
1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz
and any corrections applied to that measurement.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.
4) Source: SIDC-SILSO.
