The geomagnetic field was quiet to unsettled on February 2, early in the weakly under the influence of a CME. Solar wind speed at SOHO ranged between 313 and 473 km/sec. The high latitude magnetometer at Andenes recorded quiet to minor storm levels.
Solar flux density measured at 20h UT on 2.8 GHz was 134.9 - decreasing 37.5 over the previous solar rotation. (Centered 1 year average SF at 1 AU - 183 days ago: 130.86). The Potsdam WDC planetary A index was 4 (STAR Ap - based on the mean of three hour interval ap indices: 4.5). Three hour interval K indices: 32010001 (planetary), 21000111 (Boulder), 53000023 (Andenes).
The background x-ray flux is at the class B6 level (GOES 16).
At the time of counting spots (see image time), spots were observed in 11 active regions using 2K resolution (SN: 211) and in 10 active regions using 1K resolution (SN: 135) SDO/HMI images.
Region 13201 [N23W60] decayed slowly and

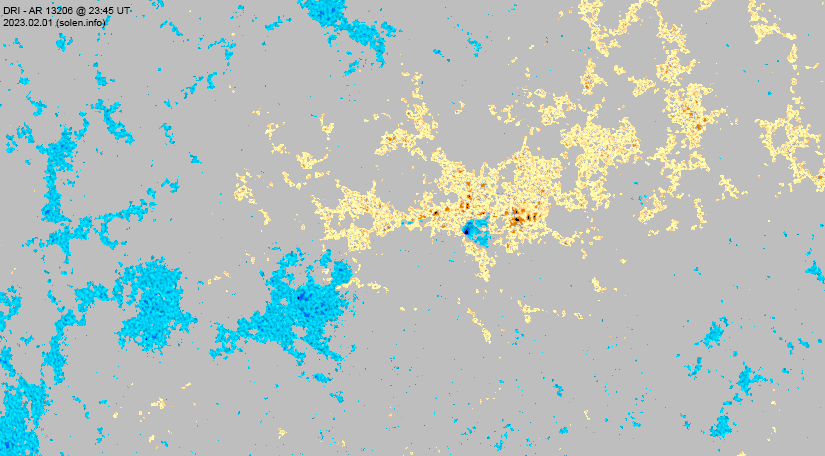

Region 13206 [S21E06] decayed slowly and quietly.
Region 13207 [S12E36] decayed slowly and quietly.
Region 13208 [N15E41] was quiet and stable.
Spotted regions not observed (or interpreted
differently) by SWPC:
S8214 [S17W12] reemerged with a tiny spot.

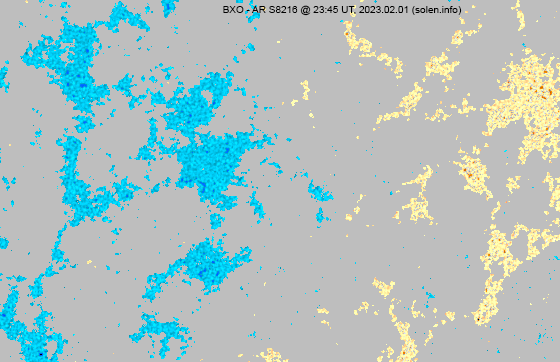

S8216 [S19W29] was quiet and stable.
S8218 [N18W20] reemerged with tiny spots.
S8222 [S20W21] reemerged with tiny spots.
S8227 [N29E22] decayed slowly and quietly.
S8233 [N18E67] was quiet and stable.
New region S8235 [S15E10] emerged with tiny spots.
AR 13204 behind the northwest limb produced a C1.3 flare at 04:39 and a C1.3 flare at 14:12 UT.
|Magnitude||Peak time (UT)||Location||Source||Recorded by||Comment|
January 31 - February 2: No obviously Earth directed CMEs were observed in available LASCO imagery.
[Coronal hole history (since October 2002)]

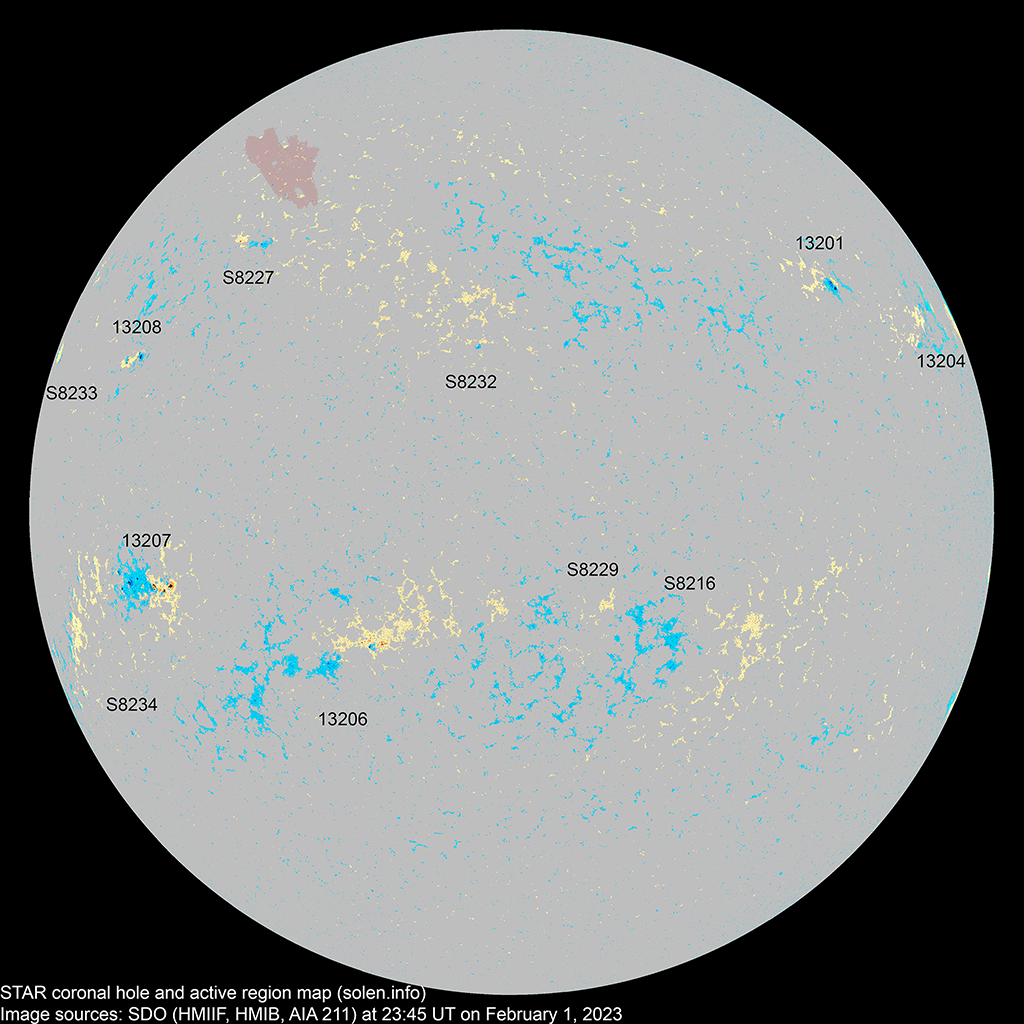

[Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago]
A poorly defined northern hemisphere coronal hole (CH1129) will be Earth facing on February 3-4.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle and high latitudes is fair. Propagation on long distance northeast-southwest paths is poor.
Quiet geomagnetic conditions are likely on February 3-5. On February 6-7 there is a chance of weak effects from CH1129 resulting in a few unsettled or active intervals.
|Coronal holes (1)||Coronal mass ejection (2)||M and X class flares (3)|
1) Effects from a coronal hole
could reach Earth within the next 5 days. When the high speed
stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

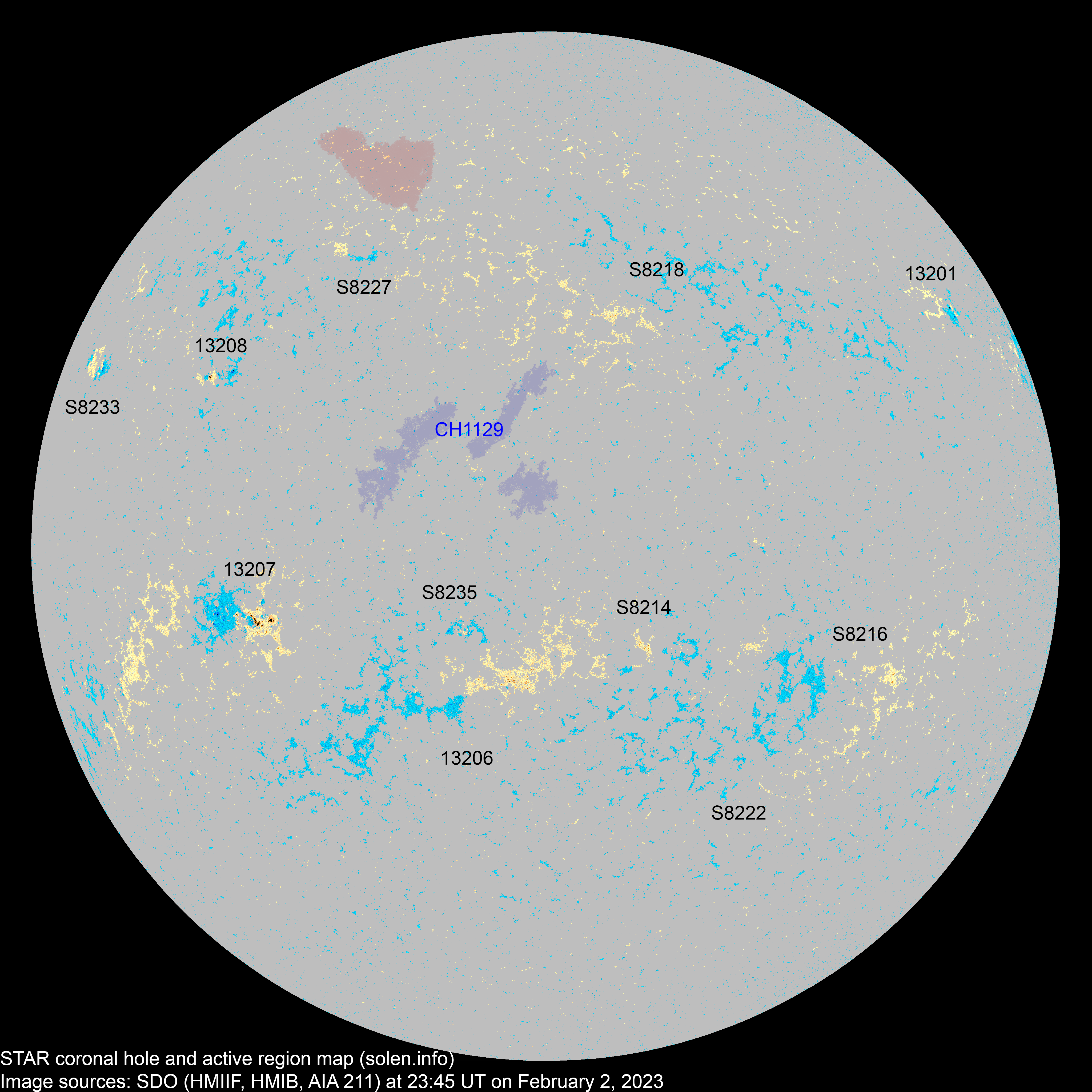

(Click on image for 2K resolution). 4K resolution. Compare to the previous day's image. 0.5K image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all officially numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC, all other regions are numbered sequentially as they emerge using the STAR spot number. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers. SWPC data considered to be not sufficiently precise (location, area, classification) are colored red.
|Active region||SWPC date numbered
|Spot count||Location at midnight||Area||Classification||SDO / HMI 4K continuum
image with magnetic polarity overlays
SWPC classification and spot count don't match
|Total spot count:||16||101||35|
|Sunspot number:||56||211||135||(total spot count + 10 * number of spotted regions)|
|Weighted SN:||24||109||43||(Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)|
|Relative sunspot number (Wolf number):||62||116||108|
|Month||Average solar flux||International sunspot number
|Smoothed sunspot number (4)||Average ap
|166.3||146.1 (SC24 peak)||110.5||10.70|
|2014.04||143.9||144.8||112.5||116.4 (solar max)||7.88|
(Solar minimum using 365d smoothing:
November 17, 2019)
(ISN 13 months smoothed
|2022.08||114.2||117.1||74.6||(92.4 projected, +5.9)||10.92|
|2022.09||135.1||136.5||96.0||(97.4 projected, +5.0)||12.18|
|2022.10||133.5||132.7||95.4||(100.5 projected, +3.1)||11.16|
|2022.11||123.4||120.7||77.6||(103.4 projected, +2.9)||9.33|
|2022.12||147.9||143.4||113.1||(108.2 projected, +4.8)||10.99|
|2023.01||182.4||176.6||143.6||(114.2 projected, +6.0)||8.7|
|2023.02||134.2 (1)||5.2 (2A)/ 72.5 (2B) / 167.9 (2C)||(119.2 projected, +5.0)||(5.0)|
|2023.03||(122.3 projected, +3.1)|
|2023.04||(127.7 projected, +5.4)|
|2023.05||(133.5 projected, +5.8)|
|2023.06||(136.8 projected, +3.3)|
|2023.07||(136.3 projected, -0.5)|
|2023.11||(142.5 projected max SC25)|
1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz
and any corrections applied to that measurement.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international GFZ Potsdam WDC ap indices.
4) Source: SIDC-SILSO.
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
