The geomagnetic field was quiet on July 12. Solar wind speed at SOHO ranged between 280 and 371 km/sec. The high latitude magnetometer at Andenes recorded quiet to minor storm levels.
Solar flux density measured at 20h UT on 2.8 GHz was 193.3 - increasing 40.2 over the previous solar rotation. (Centered 1 year average SF at 1 AU - 183 days ago: 147.18. In comparison SC24 peaked on June 28, 2014 at 145.50). The Potsdam WDC planetary A index was 6 (STAR Ap - based on the mean of three hour interval ap indices: 6.0). Three hour interval K indices: 21101221 (planetary), 22222321 (Boulder), 54122232 (Andenes).
The background x-ray flux is at the class C2 level (GOES 16).
At the time of counting spots (see image time), spots were observed in 16 active regions using 2K resolution (SN: 322) and in 11 active regions using 1K resolution (SN: 187) SDO/HMI images.
Region 13361 [N24W63] decayed and lost mature
penumbra on the trailing spots.
Region 13362 [S08W31] was quiet and stable.

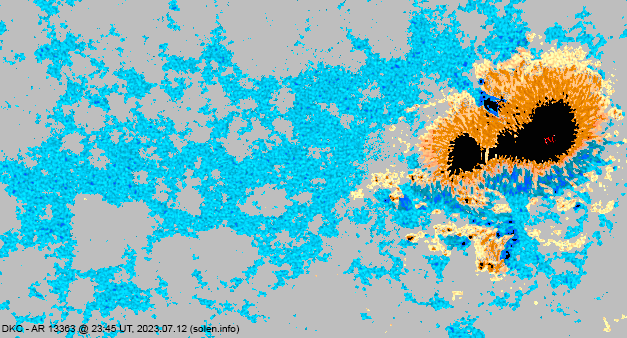

Region 13363 [S21W07] was mostly quiet despite becoming more complex
magnetically. The magnetic delta within the large spot strengthened. A major flare is
possible.
Region 13364 [N23W24] was mostly quiet and stable.
Region 13366 [S10W84] lost all trailing spots and rotated quietly to
the southwest limb.
Region 13367 [N10W41] decayed slowly and produced a few flares.
Region 13368 [S18W74] decayed slowly and quietly.
Region 13370 [S16E34] was quiet and stable.
Region 13371 [S15E47] decayed slowly and quietly.
Region 13372 [N23E66] became less active after a major M6 flare at
08:55 UT. There seems to be a magnetic delta in the trailing spot section
and further major flares are possible.
Spotted regions not observed (or interpreted
differently) by SWPC/USAF:
S8752 [N15E20] decayed slowly and quietly.
S8753 [S29E40] decayed slowly and quietly.
S8756 [S13E21] was quiet and stable.
New region S8758 [N26E29] emerged with tiny spots.
New region S8759 [S01E05] emerged with a tiny spot.
New region S8760 [S08W58] emerged with tiny spots.
What looks like a very weak solar wind shock was observed at DSCOVR at 11:10 UT on July 13, probably the arrival of the July 10 CME.
C2+ flares:
| Magnitude | Peak time (UT) | Location | Source | Recorded by | Comment |
| M1.4 | 00:31 | 13366 | GOES16 | simultaneous flares in AR 13368 and 13372 | |
| C7.5 | 00:57 | 13366 | GOES16 | ||
| C6.1 | 01:28 | 13372 | GOES16 | ||
| C8.7 | 02:19 | N24E77 | 13372 | GOES16 | |
| C7.6 | 02:42 | 13372 | GOES16 | ||
| C7.2 | 03:15 | 13372 | GOES16 | ||
| C7.6 | 03:33 | 13367 | GOES16 | simultaneous flare in AR 13364 | |
| M1.34 | 04:44 | 13361 | GOES16 | ||
| M1.36 | 04:49 | 13372 | GOES16 | ||
| M1.3 | 05:14 | 13361 | GOES16 | simultaneous flare in AR 13372 | |
| C5.6 | 06:17 | 13372 | GOES16 | ||
| C3.3 | 07:20 | 13372 | GOES16 | ||
| C3.2 | 07:49 | 13372 | GOES16 | ||
| C4.1 | 08:32 | 13361 | GOES16 | simultaneous flare in AR 13368 | |
| C5.9 | 08:43 | 13361 | GOES16 | ||
| M6.9/1N | 08:55 | N24E77 | 13372 | GOES16 | |
| C6.7 | 09:32 | 13361 | GOES16 | ||
| C5.0 | 10:20 | 13372 | GOES16 | ||
| C9.1 | 10:29 | 13361 | GOES16 | ||
| C4.0 | 10:50 | 13368 | GOES16 | ||
| C3.3 | 11:39 | 13360 | GOES16 | ||
| C3.2 | 13:37 | 13368 | GOES16 | simultaneous flare in AR 13363 | |
| C4.7/1N | 15:05 | N23W58 | 13361 | GOES16 | |
| C3.2 | 16:01 | 13372 | GOES16 | ||
| C3.6 | 16:16 | 13372 | GOES16 | ||
| C3.0 | 17:03 | 13372 | GOES16 | ||
| C3.6 | 17:32 | 13361 | GOES16 | ||
| C3.9 | 18:40 | 13372 | GOES16 | ||
| C4.9 | 19:38 | 13372 | GOES16 | ||
| C3.2 | 20:24 | 13372 | GOES16 | ||
| C3.1 | 20:48 | 13372 | GOES16 | ||
| C3.3 | 21:33 | 13372 | GOES16 | ||
| C3.6 | 22:30 | 13372 | GOES16 | ||
| C5.5 | 22:50 | S25W08 | 13363 | GOES16 | |
| C6.4 | 22:57 | 13372 | GOES16 | ||
| C7.0 | 23:06 | 13372 | GOES16 | ||
| C4.1 | 23:42 | 13372 | GOES16 |
July 10: An asymmetrical full halo CME was observed after the M2
flare in AR 13366 at 03:55 UT. The main part of the ejecta is not headed
towards Earth, however, components of the CME will likely reach us either
late on July 12 or on July
13 and cause unsettled to minor storm conditions.
July 11: An asymmetrical full halo CME was observed after 19:36 UT
following a large filament eruption near and to the southwest of AR 13363.
The CME could reach Earth on July 14 and cause unsettled to major storm
conditions.
July 12: No obviously Earth directed CMEs were
observed.
[Coronal hole history (since October 2002)]
[Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago]
A recurrent northern hemisphere coronal hole (CH1159) rotated across the central meridian on July 10. CH1159 lost a large part of its area after July 7 due to the development of AR 13367. A large trans equatorial area of weak corona has become CH1160. CH1160 will be Earth facing July 11-13.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over upper middle and high latitudes is poor. Propagation on long distance northeast-southwest paths is poor.
The geomagnetic field is expected to be quiet to active on July 13-16 due to CME and coronal hole effects, minor storm intervals are possible on July 14 if the July 11 CME arrives.
| Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole
could reach Earth within the next 5 days. When the high speed
stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-30% probability, Yellow: 30-70% probability, Red: 70-100% probability.

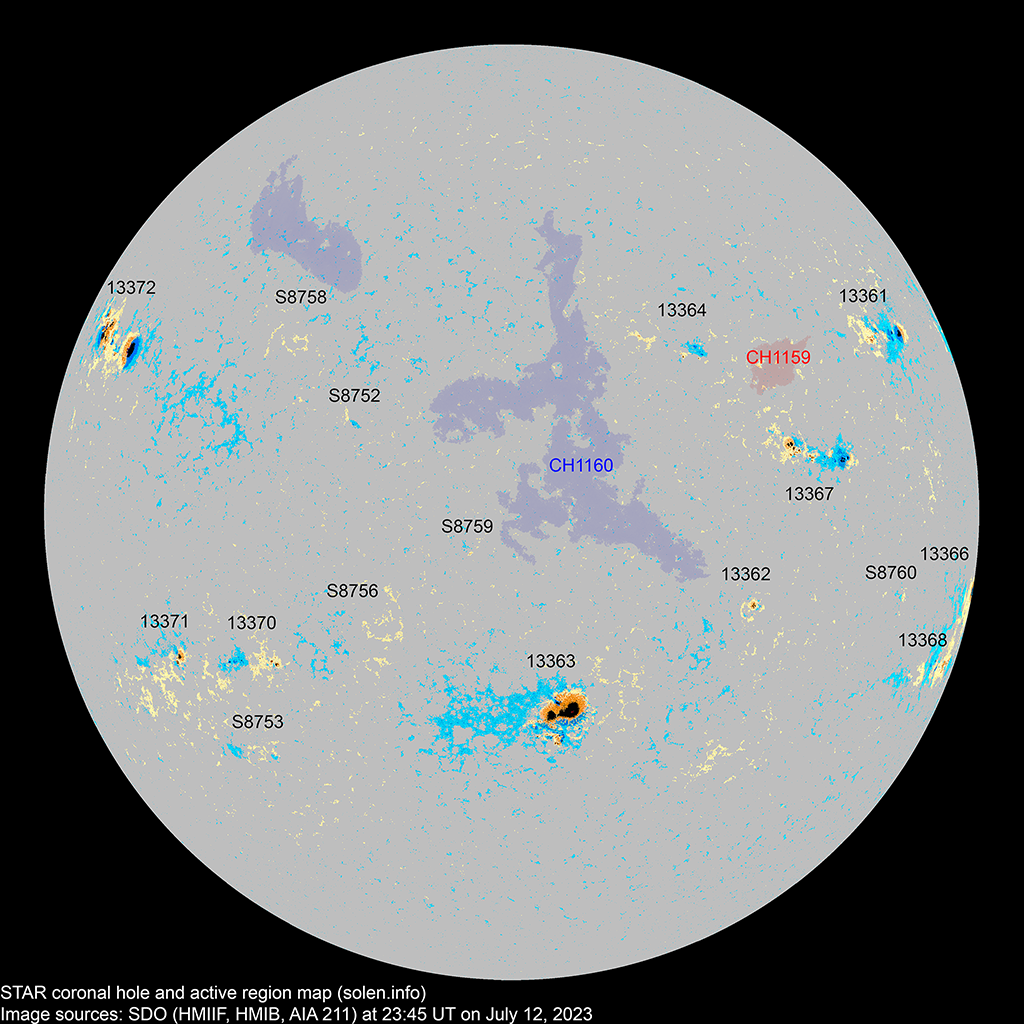

(Click on image for 2K resolution).
4K resolution.
Compare to the previous day's image. 0.5K image

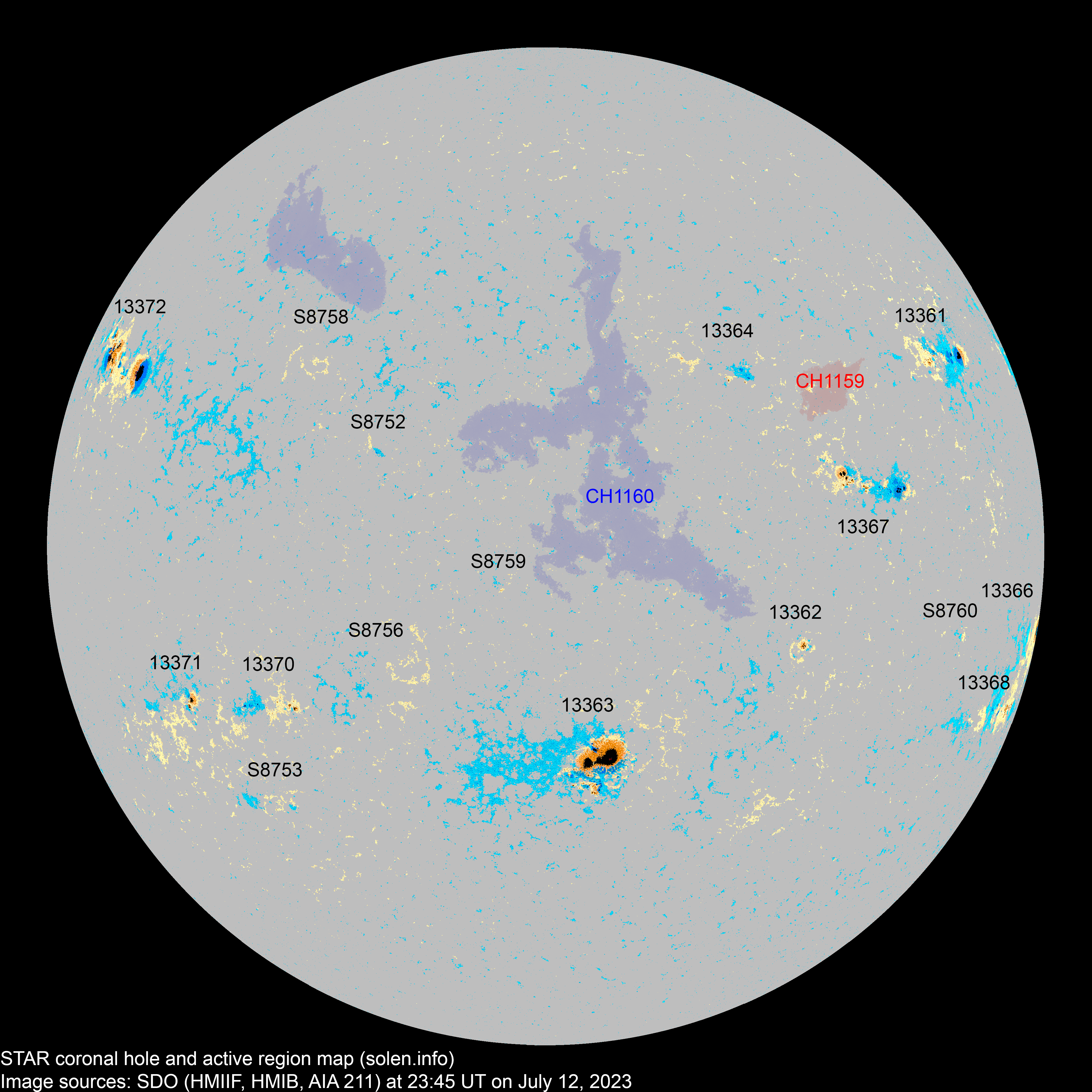

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue is positive.
Data for all officially numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC, all other regions are numbered sequentially as they emerge using the STAR spot number. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers. SWPC data considered to be not sufficiently precise (location, area, classification) are colored red.
| Active region | SWPC date numbered STAR detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlays |
Comment | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| SWPC/ USAF |
Magnetic (SDO) |
SWPC | STAR | Current | Previous | ||||||
| 2K | 1K | ||||||||||
| 13366 | 2023.06.30 2023.07.07 |
1 | 1 | 1 | S11W83 | 0090 | CSO | CKO |
 |
 |
area: 0280 location: S10W84 |
| 13360 | 2023.06.30 2023.07.01 |
1 | N23W89 | 0000 | AXX |
 |
rotated out of view | ||||
| 13368 | 2023.07.02 2023.07.09 |
11 | 13 | 7 | S17W78 | 0080 | DAI | DRI |
 |
 |
|
| 13361 | 2023.07.02 2023.07.04 |
13 | 16 | 7 | N25W65 | 0220 | DSI | DSI |
 |
 |
location: N24W63 |
| 13362 | 2023.07.04 2023.07.05 |
1 | 3 | 2 | S08W34 | 0020 | HRX | HAX |
 |
 |
location: S08W31 area: 0030 |
| 13363 | 2023.07.05 2023.07.06 |
24 | 40 | 14 | S21W09 | 0850 | DKO | DKC |
 |
 |
beta-delta location: S22W07 area: 1080 |
| 13364 | 2023.07.05 2023.07.06 |
5 | 11 | 7 | N25W26 | 0010 | BXO | CRO |
 |
 |
location: N24W25 area: 0020 |
| 13367 | 2023.07.07 2023.07.08 |
18 | 26 | 14 | N10W41 | 0160 | DAI | EAI |
 |
 |
beta-gamma |
| S8743 | 2023.07.07 | N24W47 | |||||||||
| 13369 | 2023.07.08 2023.07.09 |
2 | S18W65 | 0000 | AXX |
 |
spotless location: S19W62 |
||||
| S8746 | 2023.07.08 | S29W29 | |||||||||
| 13370 | 2023.07.09 2023.07.10 |
8 | 15 | 9 | S15E33 | 0030 | DRO | DRI |
 |
 |
area: 0040 location: S16E34 |
| S8748 | 2023.07.09 | N31W20 | |||||||||
| S8749 | 2023.07.09 | S02W56 | |||||||||
| 13371 | 2023.07.10 2023.07.11 |
2 | 4 | 2 | S15E48 | 0030 | HAX | HAX |
 |
 |
area: 0110 location: S15E47 |
| S8752 | 2023.07.10 | 1 | 1 | N15E20 | 0003 | AXX |
 |
 |
|||
| S8753 | 2023.07.10 | 2 | S29E40 | 0002 | BXO |
 |
 |
||||
| 13372 | 2023.07.11 2023.07.11 |
13 | 23 | 13 | N24E65 | 0650 | EKI | FHC |
 |
 |
location: N23E66 area: 1300 |
| S8755 | 2023.07.11 | N51W05 |
 |
||||||||
| S8756 | 2023.07.11 | 1 | S13E21 | 0003 | AXX |
 |
 |
||||
| S8757 | 2023.07.11 | N21E02 |
 |
||||||||
| S8758 | 2023.07.12 | 3 | N26E29 | 0004 | BXO |
 |
|||||
| S8759 | 2023.07.12 | 1 | S01E05 | 0001 | AXX |
 |
|||||
| S8760 | 2023.07.12 | 2 | S08W58 | 0002 | BXO |
 |
|||||
| Total spot count: | 99 | 162 | 77 | ||||||||
| Sunspot number: | 219 | 322 | 187 | (total spot count + 10 * number of spotted regions) | |||||||
| Weighted SN: | 150 | 221 | 136 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
| Relative sunspot number (Wolf number): | 241 | 177 | 150 | ||||||||
| Month | Average solar flux | International sunspot number (WDC-SILSO) |
Smoothed sunspot number (4) | Average ap (3) |
|
|---|---|---|---|---|---|
| Measured | 1 AU | ||||
| 2014.02 | 170.3 (cycle peak) |
166.3 | 146.1 (SC24 peak) | 110.5 | 10.70 |
| 2014.04 | 143.9 | 144.8 | 112.5 | 116.4 (SC24 solar max) | 7.88 |
| 2017.09 | 91.3 | 92.3 | 43.6 | 18.2 (-1.3) | 18.22 (SC24 peak) |
| 2019.11 | 70.2 | 68.7 | 0.5 | 2.0 (-0.6) (Solar minimum using 365d smoothing: November 17, 2019) |
4.19 |
| 2019.12 | 70.8 | 68.6 | 1.6 | 1.8 (-0.2) (ISN 13 months smoothed solar minimum) |
3.22 |
| 2021.12 | 103.0 | 99.8 | 67.5 | 55.9 (+5.1) | 6.40 |
| 2022.01 | 103.8 | 100.5 | 55.3 | 60.1 (+4.2) | 8.92 |
| 2022.02 | 109.1 | 106.5 | 60.9 | 64.7 (+4.6) | 10.46 |
| 2022.03 | 117.0 | 115.8 | 78.6 | 68.7 (+4.0) | 10.20 |
| 2022.04 | 130.8 | 131.7 | 84.0 | 73.0 (+4.3) | 11.79 |
| 2022.05 | 133.8 | 136.8 | 96.5 | 77.4 (+4.4) | 7.48 |
| 2022.06 | 116.1 | 119.8 | 70.3 | 81.1 (+3.7) | 8.20 |
| 2022.07 | 125.4 | 129.5 | 91.4 | 86.7 (+5.6) | 9.51 |
| 2022.08 | 114.2 | 117.1 | 74.6 | 92.5 (+5.8) | 10.92 |
| 2022.09 | 135.1 | 136.5 | 96.0 | 96.4 (+3.9) | 12.18 |
| 2022.10 | 133.5 | 132.7 | 95.5 | 98.7 (+2.3) | 11.16 |
| 2022.11 | 123.4 | 120.7 | 80.5 | 101.0 (+2.3) | 9.33 |
| 2022.12 | 147.9 | 143.4 | 112.8 | 106.6 (+5.6) | 10.99 |
| 2023.01 | 182.4 | 176.6 | 143.6 | (113.7 projected, +6.1) | 8.73 |
| 2023.02 | 167.2 | 163.2 | 110.9 | (118.5 projected, +4.8) | 14.48 (current SC25 peak) |
| 2023.03 | 157.2 | 155.6 | 122.6 | (121.6 projected, +3.1) | 14.42 |
| 2023.04 | 145.4 | 146.4 | 96.4 | (127.0 projected, +5.4) | 13.40 |
| 2023.05 | 155.6 | 159.2 | 137.9 | (132.7 projected, +5.7) | 10.67 |
| 2023.06 | 161.7 | 166.8 | 163.4 | (135.9 projected, +3.2) | 8.9 |
| 2023.07 | 173.9 (1) | 59.9 (2A) / 154.8 (2B) / 172.1 (2C) | (135.4 projected, -0.5) | (6.2) | |
| 2023.08 | (136.4 projected, +1.0) | ||||
| 2023.09 | (139.8 projected, +3.4) | ||||
| 2023.10 | (141.6 projected, +1.8) | ||||
| 2023.11 | (144.2 projected max SC25, +2.6) | ||||
| 2023.12 | (143.4 projected, -0.1) | ||||
| 2024.01 | (140.1 projected, -3.3) | ||||
1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz
and any corrections applied to that measurement.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days).
2B) Boulder SN current month average to date.
2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red
are based on the definitive international
GFZ Potsdam WDC ap indices.
4) Source: WDC-SILSO, Royal Observatory
Of Belgium, Brussels
This report has been prepared by Jan Alvestad. It is based on the analysis of data from whatever sources are available at the time the report is prepared. All time references are to Universal Time. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
