Recent activity

The geomagnetic field was quiet to unsettled on September 24. Solar wind speed ranged between 413 and 590 km/s, weakly under the influence of a high speed stream from CH422.

Solar flux measured at 20h UTC on 2.8 GHz was 82.6 (up 10.7 over the last solar rotation). The planetary A index  was 13 (STAR Ap - based on the mean of three hour interval ap indices: 12.6). Three hour interval K indices: 13333323 (planetary), 23333323 (Boulder).

The background x-ray flux is at the class B1 level.

At midnight UTC the visible solar disk had 2 spotted regions.

Region 11108 was quiet and stable.
Region 11109 developed slowly and could produce C flares or even a minor M class flare.

Minor update added at 10:00 UTC on September 25: Region 11109 is developing fairly quickly in the trailing spot section and has added about 10 spots so far today. Another region has emerged with 5 small spots just west of region 11109.

Coronal mass ejections (CMEs)

September 22-24: No obviously Earth directed CMEs were seen in LASCO or STEREO images.

Coronal holes

Coronal hole history (since late October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A small trans equatorial, recurrent coronal hole (CH423) was in an Earth facing position on September 24.

Image courtesy of SDO (NASA) and the AIA consortium. Annotations are my own. The darkest areas on the solar disk are likely coronal holes.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is fair.

Forecast

The geomagnetic field is expected to be quiet to unsettled on September 25 due to effects from CH422, quiet on September 26-27 and quiet to unsettled on September 28 when effects from CH423 are possible.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)



1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

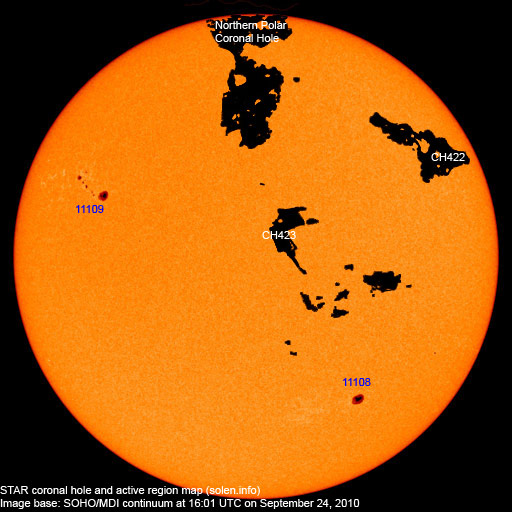

Active solar regions (Recent map)

Compare to the previous day's image

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered Spot count Location at midnight Area Classification SDO (NASA) / AIA 4500
Comment
SWPC STAR SWPC STAR Current Previous
11108 2010.09.16 2 4 S30W34 0280 HKX HKX
11109 2010.09.21 12 21 N22E41 0280 EHO EHI
Total spot count: 14 25
SSN: 34 45

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2000.04 184.2 125.5 120.8
cycle 23 sunspot max.

2000.07 202.3 170.1 119.8
2001.12 235.1 132.2 114.6 (-0.9)
2008.07 65.7 (SF minimum) 0.5 2.8 (-0.4)
2008.12 69.2 0.8 1.7 (-)
sunspot minimum
3.25
2009.06 68.6 2.9 2.7 (+0.4) 5.22
2009.07 68.2 3.2 3.6 (+0.9) 5.49 / 4.55
2009.08 67.3 0.0 4.8 (+1.2) 5.70 / 4.89
2009.09 70.5 4.3 6.2 (+1.4) 3.88 / 3.61
2009.10 72.6 4.8 7.1 (+0.9) 3.66 / 3.56
2009.11 73.6 4.1 7.6 (+0.5) 2.45 / 2.63
2009.12 76.7 10.8 8.3 (+0.7) 1.41 / 1.92
2010.01 81.1 13.2 9.3 (+1.0) 2.93 / 3.07
2010.02 84.7 18.8 10.6 (+1.3) 4.15 / 4.61
2010.03 83.4 15.4 (12.3 predicted, +1.7) 4.58 / 4.65
2010.04 75.9 7.9 (13.9 predicted, +1.6) 10.22 / 10.24
2010.05 73.8 8.8 (15.2 predicted, +1.3) 9.18 / 8.15
2010.06 72.5 13.5 (16.6 predicted, +1.4) 8.17 / 6.85
2010.07 79.8 16.1 (18.3 predicted, +1.7) 6.31 / 5.15
2010.08 79.2 19.6 (19.5 predicted, +1.2) 8.49 / 7.77
2010.09 80.0 (1) 25.5 (2A) / 31.9 (2B) (20.7 predicted, +1.2) (5.34)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official international sunspot number is typically 30-50% lower. 2B) Month average to date.
3) Running average based on the daily SWPC ap indices. Values in red are based on the official NGDC ap indices.

This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
