The geomagnetic field was quiet to active on July 9. Solar wind speed ranged between 335 and 485 km/s under the influence of a high speed stream from CH463.
Solar flux measured at 20h UTC on 2.8 GHz was 85.6 (increasing 1.0 over the last solar rotation). The planetary A index was 12 (STAR Ap - based on the mean of three hour interval ap indices: 12.1). Three hour interval K indices: 34121324 (planetary), 34222324 (Boulder).
The background x-ray flux is at the class B1 level.
At midnight UTC the visible solar disk had 7 spotted regions.
Region 11245 was quiet and stable.
Region 11246 decayed slowly and quietly.

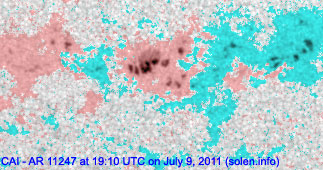

Region 11247 was mostly quiet. While the region appears to have mixed
polarities, the alignment of the polarity fields suggest that region 11247 is
two separate regions.
New region 11249 emerged in the southeastern quadrant on July 7 and was
numbered 2 days later by SWPC.
Spotted regions not numbered by NOAA/SWPC:
[S1101] reemerged on July 9 with a single tiny spot. Location at midnight: S14E10
[S1105] emerged in the northeast quadrant on July 9. Location at midnight:
N15E10
[S1106] emerged in the northwest quadrant on July 9. Location at midnight:
N02W50
July 7-8: No obviously earth directed CMEs were observed.
July 9: A long duration B4 event peaking near 01h UTC was associated
with a filament eruption to the east of region 11247. A CME was observed and
there's a fair chance this CME will reach Earth on July 12.
Coronal hole history (since late October
2002)
Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago
A coronal hole (CH463) in the northern hemisphere was Earth facing on July 5-6. A recurrent coronal hole (CH464) in the southern hemisphere was Earth facing on July 7-8. A trans equatorial coronal hole (CH465) will likely become Earth facing on July 10.

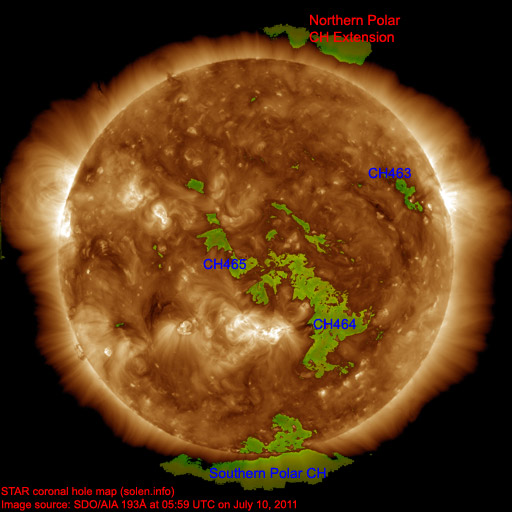

The above coronal hole map is based on a new method where coronal holes are detected automatically. The method may need some fine tuning, however, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using the new method, the extent and intensity of both holes are consistent with other data sources.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is fair.
The geomagnetic field is expected to be quiet to active on July 10-11 due to high speed streams from CH463 and CH464. A weak CME could reach Earth on July 12 and cause a few unsettled and active intervals. A disturbance associated with CH465 may cause quiet to active conditions on July 13-14.
| Coronal holes (1) | Coronal mass ejections (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

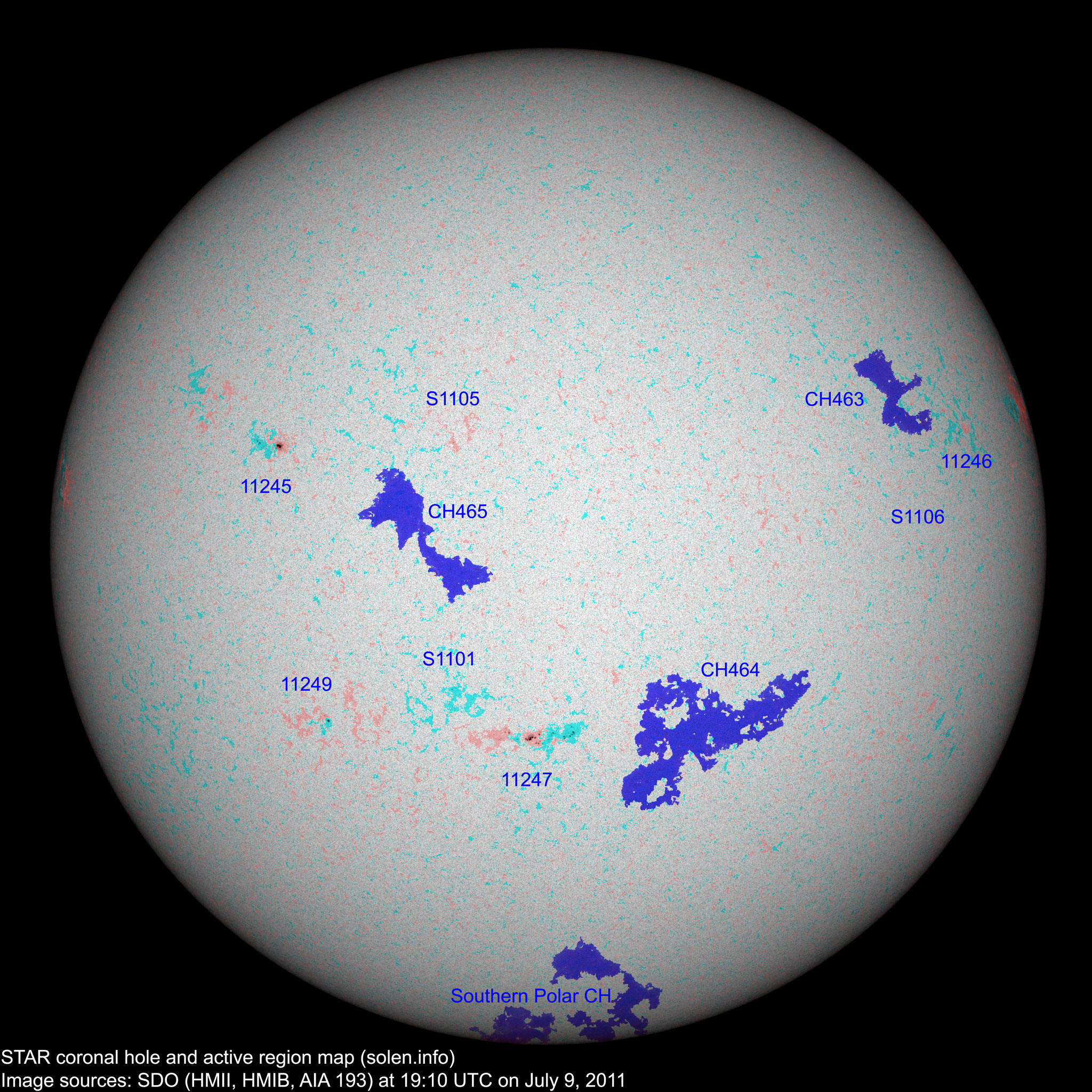

(Click on image for higher resolution image) Compare to the previous day's image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
| Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with polarity overlay |
Comment | |||
|---|---|---|---|---|---|---|---|---|---|---|
| SWPC | STAR SDO | SWPC | STAR | Current | Previous | |||||
| 11243 | 2011.06.27 2011.06.28 |
N15W87 |
 |
|||||||
| S1090 | 2011.06.29 | N15W55 | plage | |||||||
| 11246 | 2011.07.02 2011.07.08 |
1 | 1 | N15W62 | 0000 | AXX | AXX |
 |
 |
location: N14W60 |
| 11247 | 2011.07.03 2011.07.08 |
8 | 20 | S18W02 | 0040 | CAO | CAI |
 |
 |
location: S20W00 area: 0050 |
| S1097 | 2011.07.05 | N01W16 | plage | |||||||
| S1098 | 2011.07.05 | N03W26 | plage | |||||||
| S1099 | 2011.07.05 | S23W25 | plage | |||||||
| S1100 | 2011.07.05 | S35W35 | plage | |||||||
| S1101 | 2011.07.06 | S16E07 | plage | |||||||
| 11245 | 2011.07.06 2011.07.07 |
4 | 5 | N15E31 | 0030 | CAO | CSO |
 |
 |
location: N14E33 |
| 11248 | 2011.07.06 2011.07.08 |
N20E39 |
 |
plage | ||||||
| 11249 | 2011.07.07 2011.07.09 |
2 | 3 | S16E25 | 0000 | AXX | BXO |
 |
 |
formerly region S1104 location: S18E26 |
| S1105 | 2011.07.09 | 1 | N15E10 | 0000 | AXX |
 |
||||
| S1106 | 2011.07.09 | 1 | N02W50 | 0000 | AXX |
 |
||||
| Total spot count: | 15 | 31 | ||||||||
| Sunspot number: | 55 | 101 | ||||||||
| Month | Average measured solar flux | International sunspot number (SIDC) | Smoothed sunspot number | Average ap (3) |
|---|---|---|---|---|
| 2008.07 | 65.7 (SF minimum) | 0.5 | 2.8 (-0.4) | |
| 2008.12 | 69.2 | 0.8 | 1.7 (-) sunspot minimum |
3.25 |
| 2010.04 | 75.9 | 8.0 | 14.0 (+1.7) | 10.22 / 10.24 |
| 2010.05 | 73.8 | 8.7 | 15.5 (+1.5) | 9.18 / 8.15 |
| 2010.06 | 72.5 | 13.6 | 16.4 (+0.9) | 8.17 / 6.85 |
| 2010.07 | 79.8 | 16.1 | 16.7 (+0.3) | 6.31 / 5.15 |
| 2010.08 | 79.2 | 19.6 | 17.4 (+0.7) | 8.49 / 7.77 |
| 2010.09 | 81.1 | 25.2 | 19.6 (+2.2) | 5.33 / 5.45 |
| 2010.10 | 81.6 | 23.5 | 23.2 (+3.6) | 6.07 / 6.27 |
| 2010.11 | 82.5 | 21.5 | 26.5 (+3.3) | 4.80 / 5.50 |
| 2010.12 | 84.2 | 14.4 | 28.8 (+2.3) | 3.41 / 4.35 |
| 2011.01 | 83.6 | 19.1 | (30.6 predicted, +1.8) | 4.32 / 5.51 |
| 2011.02 | 94.6 | 29.4 | (32.6 predicted, +2.0) | 5.41 / 6.44 |
| 2011.03 | 115.0 | 56.2 | (35.2 predicted, +2.6) | 7.79 / 8.18 |
| 2011.04 | 112.6 | 54.4 | (38.1 predicted, +2.9) | 9.71 / 8.83 |
| 2011.05 | 95.8 | 41.6 | (41.4 predicted, +3.3) | 9.18 / 8.94 |
| 2011.06 | 95.8 | 37.0 | (45.2 predicted, +3.8) | 8.96 |
| 2011.07 | 85.6 (1) | 13.5 (2A) / 46.6 (2B) | (49.4 predicted, +4.1) | (9.69) |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The
official SIDC international sunspot number is typically 30-50% lower. 2B) Month
average to date.
3) Running average based on the preliminary daily SWPC ap indices.
Values in red are based on the official NGDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
