Solar Terrestrial Activity Report

Last update issued on March 23, 2003 at 03:40 UTC.

[Solar and geomagnetic data - last 4 weeks (updated daily)]
[Solar wind and electron fluence charts (updated daily)]
[Solar cycles 21-23 (last update March 3, 2003)]
[Solar cycles 1-20]
[Graphical comparison of cycles 21, 22 and 23 (last update March 3, 2003)]
[Graphical comparison of cycles 10, 13, 17, 20 and 23 (last update March 3, 2003)]
[Historical solar and geomagnetic data charts 1954-2002 (last update January 27, 2003)]
[Archived reports (last update March 17, 2003)]

Recent activity

The geomagnetic field was quiet to active on March 22. Solar wind speed ranged between 559 and 714 km/sec under the influence of a high speed coronal hole stream.

Solar flux measured at 20h UTC on 2.8 GHz was 89.0 (this is the lowest recorded solar flux level at 20h UTC since May 22, 1998). The planetary A index was 16 (STAR Ap - based on the mean of three hour interval ap indices: 16.0).
Three hour interval K indices: 34443323 (planetary), 34333223 (Boulder).

The background x-ray flux is at the class B1 level.

At midnight there were 2 spotted regions on the visible disk. Solar flare activity was low. A total of 3 C class events was recorded during the day, all from region 10314 behind the southwest limb: C2.3 at 00:55, C1.0 at 04:42 and C1.3 at 06:58 UTC.

Region 10316 decayed slowly and quietly.
New region 10318 rotated into view at the southeast limb.

Coronal mass ejections (CMEs)

March 20-22: No obviously geoeffective CMEs observed.

Coronal holes

Coronal hole history (since late October 2002)
Compare today's report with the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A well placed, developing and recurrent coronal hole (CH26) mainly in the northern hemisphere will rotate into a geoeffective position on March 22-23. A coronal hole (CH27) in the southern hemisphere will rotate into a geoeffective position on March 24-25.

Processed SOHO EIT 284 image at 01:06 UTC on March 23. Any black areas on the solar disk are likely coronal holes.

Forecast

The geomagnetic field is expected to be quiet to active on March 23-24 due to a high speed stream, then unsettled to minor storm from late on March 24 until March 26 due to a high speed stream from coronal hole CH26. Quiet to active is likely on March 27-29 due to another high speed stream, this time from CH27. Long distance medium wave (AM) band propagation along east-west paths over high and upper middle latitudes is very poor, propagation along north-south paths is fair. [Trans Atlantic propagation conditions are currently monitored every night on 1470 kHz. Dominant station tonight: Radio Vibración (Venezuela)]

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)
Coronal hole indicator CME indicator M and X class flare indicator

1) Effects from a coronal hole could reach Earth within the next 5 days.
2) Material from a CME is likely to impact Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

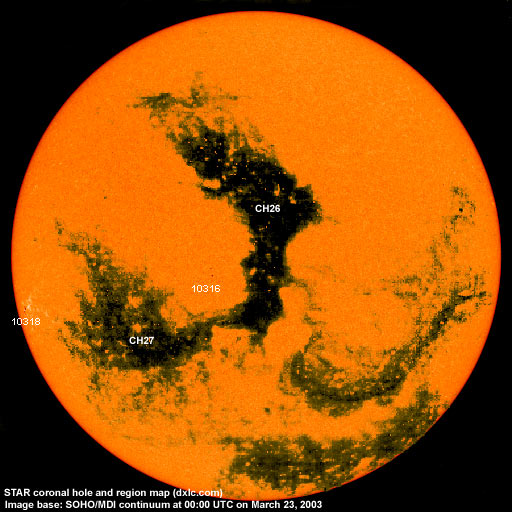

Active solar regions (Recent map)

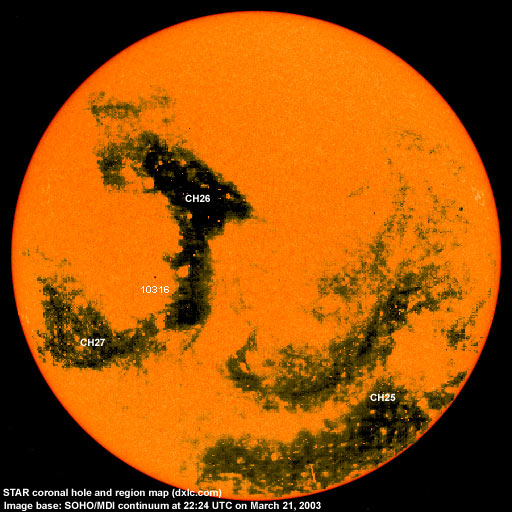

Compare to the previous day's image.

Data for all numbered solar regions according to the Solar Region Summary provided by SEC/NOAA. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SEC or where SEC has observed no spots.

Solar region Date numbered SEC
spot
count
STAR
spot
count
Location at midnight Area Classification Comment
10316 2003.03.18 3 2 S11E11 0010 CSO classification was AXX
at midnight, only
negative polarity spots
observed
10317 2003.03.20 3   N04W25 0020 BXO spotless all day in
all available images
10318 2003.03.22 4 4 S16E74 0040 CAO
S125 emerged on
2003.03.20
    N12W79     plage
Total spot count: 10 6
SSN: 40 26

Monthly solar cycle data

Month Average solar
flux at Earth
International sunspot number Smoothed sunspot number
2000.04 184.2 125.5 120.8
cycle 23 sunspot max.
2000.07 202.3 170.1 119.8
2001.12 235.1 132.2 114.6 (-0.9)
2002.02 205.0 107.4 114.6 (+1.2)
2002.03 179.5 98.4 113.3 (-1.3)
2002.04 189.8 120.7 110.5 (-2.9)
2002.05 178.4 120.8 108.8 (-1.7)
2002.06 148.7 88.3 106.2 (-2.6)
2002.07 173.5 99.6 102.7 (-3.5)
2002.08 183.6 116.4 98.7 (-4.0)
2002.09 175.8 109.6 (94.7 predicted, -4.0)
2002.10 167.0 97.5 (91.2 predicted, -3.5)
2002.11 168.7 95.0 (86.0 predicted, -5.2)
2002.12 157.2 81.6 (81.6 predicted, -4.4)
2003.01 144.0 79.5 (78.6 predicted, -3.0)
2003.02 124.5 46.2 (73.6 predicted, -5.0)
2003.03 131.8 (1) 82.1 (2) (67.9 predicted, -5.7)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2) Unofficial, accumulated value based on the Boulder (SEC/NOAA) sunspot number. The official international sunspot number is typically 25-45% less.

This report has been prepared by Jan Alvestad. It is based partly on my own observations and interpretations, and partly on data from sources noted in solar links. All time references are to the UTC day. Comments and suggestions are always welcome.
