Recent activity

The geomagnetic field was quiet to active on September 2. Solar wind speed ranged between 467 and 612 km/sec under the influence of a high speed stream from coronal hole CH54.

Solar flux measured at 20h UTC on 2.8 GHz was 105.7. The planetary A index was 12 (STAR Ap - based on the mean of three hour interval ap indices: 13.0).
Three hour interval K indices: 32124333 (planetary), 31224323 (Boulder).

The background x-ray flux is at the class B2 level.

At midnight there were 4 spotted regions on the visible disk. Solar flare activity was very low.

Region 10442 was mostly unchanged and will rotate over the southwest limb today.
Region 10448 decayed further and lost most of the small spots. Penumbra developed on a single spot.
Region 10449 decayed slowly and quietly as penumbral area decreased.

Spotted regions not numbered by NOAA/SEC:
[S247] A new region emerged on August 31 in the southwest quadrant and was mostly unchanged on September 1 and 2. Location at midnight: S08W53. Note that SEC has reused region 10452 for these spots.

Coronal mass ejections (CMEs)

August 31 - September 2: No potentially geoeffective CMEs observed.

Coronal holes

Coronal hole history (since late October 2002)
Compare today's report with the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A large recurrent coronal hole (CH54) in the northern hemisphere and with a trans equatorial extension, will rotate into a geoeffective position on August 29- September 3.

Processed SOHO/EIT 284 image from 19:05 UTC on September 2. The darkest areas on the solar disk are likely coronal holes.

Forecast

The geomagnetic field is expected to be unsettled to minor storm until September 6 under the influence of a high speed stream from coronal hole CH54.

Long distance low frequency (below 2 MHz) propagation along east-west paths over high and upper middle latitudes is very poor. Propagation along north-south paths is poor. [Trans Atlantic propagation conditions are currently monitored every night on 1470 kHz. Dominant stations tonight: Radio Vibración (Venezuela) and Radio Cristal del Uruguay].

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)
Coronal hole indicator CME indicator M and X class flare indicator

1) Effects from a coronal hole could reach Earth within the next 5 days.
2) Material from a CME is likely to impact Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

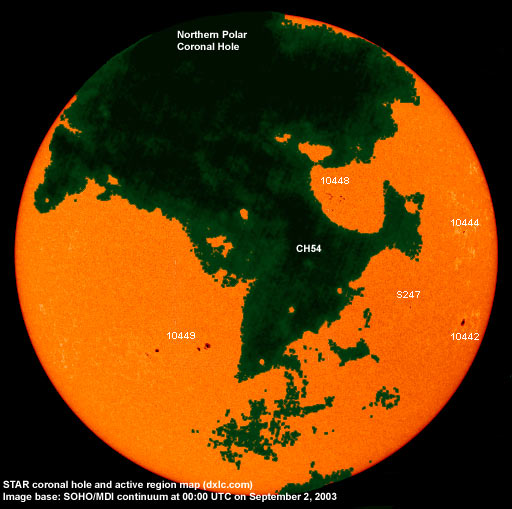

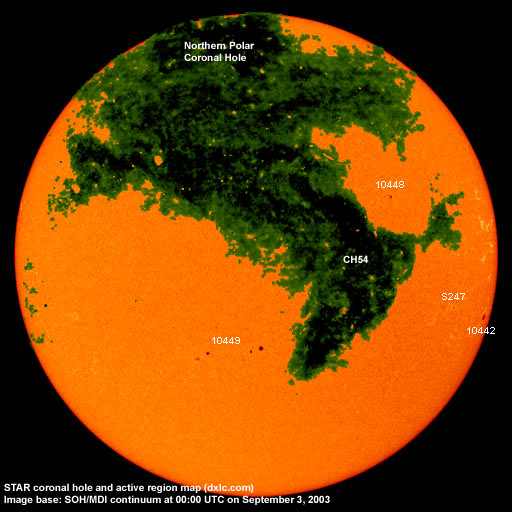

Active solar regions (Recent map)

Compare to the previous day's image.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SEC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SEC or where SEC has observed no spots.

Solar region Date numbered SEC
spot
count
STAR
spot
count
Location at midnight Area Classification Comment
10442 2003.08.22 1 1 S13W74 0110 HSX
10444 2003.08.25 2   N11W74 0020 CSO
10445 2003.08.25     N03W71     plage
10446 2003.08.27     S23W42     plage
10447 2003.08.28     N14W76     plage
10448 2003.08.28 14 4 N19W34 0030 CSO
10449 2003.08.28 4 13 S16E07
(SEC:
S16E00)
0070 DSO merged with 10450
classification was FSO
at midnight, area 0090
10450 2003.08.29 7   S18E14 0040 DSO see comment for
region 10449, these
are the positive polarity
spots of region 10449
10452 2003.08.29 2   S06W44
(SEC:
S07W54)
    spotless, the spots
belong to region S247
S245 emerged on
2003.08.29
    N23W87     plage
S246 emerged on
2003.08.29
    N10W57     plage
S247 emerged on
2003.08.31
  2 S08W53 0010 BXO see region 10452
S248 emerged on
2003.08.31
    S23W61     plage
Total spot count: 30 20
SSN: 90 60

Monthly solar cycle data

Month Average solar
flux at Earth
International sunspot number Smoothed sunspot number
2000.04 184.2 125.5 120.8
cycle 23 sunspot max.
2000.07 202.3 170.1 119.8
2001.12 235.1 132.2 114.6 (-0.9)
2002.07 173.5 99.6 102.7 (-3.5)
2002.08 183.6 116.4 98.7 (-4.0)
2002.09 175.8 109.6 94.6 (-4.1)
2002.10 167.0 97.5 90.5 (-4.1)
2002.11 168.7 95.5 85.2 (-5.3)
2002.12 157.2 80.8 82.0 (-3.2)
2003.01 144.0 79.7 81.0 (-1.0)
2003.02 124.5 46.0 78.5 (-2.5)
2003.03 131.4 61.1 (74.2 predicted, -4.3)
2003.04 126.4 60.0 (69.3 predicted, -4.9)
2003.05 115.7 55.2 (64.4 predicted, -4.9)
2003.06 129.3 77.4 (60.4 predicted, -4.0)
2003.07 127.7 85.0 (56.9 predicted, -3.5)
2003.08 122.1 72.7 (53.9 predicted, -3.0)
2003.09 106.9 (1) 5.0 (2) (51.9 predicted, -2.0)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2) Unofficial, accumulated value based on the Boulder (NOAA/SEC) sunspot number. The official international sunspot number is typically 30-50% less.

This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from sources noted in solar links. All time references are to the UTC day. Comments and suggestions are always welcome.
