The geomagnetic field was quiet on December 19. Solar wind speed ranged between 379 and 519 km/sec, gradually decreasing all day.
Solar flux measured at 20h UTC on 2.8 GHz was 94.0. The planetary A
index was 4 (STAR Ap - based on the mean of three hour interval ap indices: 3.8).
Three hour interval K indices: 10111211 (planetary), 10111221 (Boulder).
The background x-ray flux is at the class B1 level.
At midnight there was 1 spotted region on the visible solar disk. The solar flare activity level was low. A single C class event was recorded during the day.Region 10713 developed slowly and could produce further C class flares. Flare: C1.8 at 04:14 UTC.
December 17-19: No obviously Earth directed CMEs observed.
Coronal hole history (since late October 2002)
Compare today's report with the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago
A recurrent coronal hole (CH134) in the southern hemisphere was in a geoeffective position on December 18.
Processed SOHO/EIT 284 image at 18:03 UTC on December 11. The darkest areas on the solar disk are likely coronal holes.
The geomagnetic field is expected to be quiet on December 20. A weak coronal hole flow could arrive on December 21 or 22 and cause some unsettled intervals.
|Coronal holes (1)||Coronal mass ejections (2)||M and X class flares (3)|
1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived
the color changes to green.
2) Material from a CME is likely to impact Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.
Long distance low and medium frequency (below 2 MHz) propagation along east-west paths over high and upper middle latitudes is poor. Propagation along long distance north-south paths is poor to fair. Trans Atlantic propagation conditions are normally monitored every night on 1470 kHz. Dominant stations tonight: Radio Vibración (Venezuela) and WLAM Lewiston ME. On other frequencies propagation was best towards Venezuela, Colombia and the easternmost parts of North America.

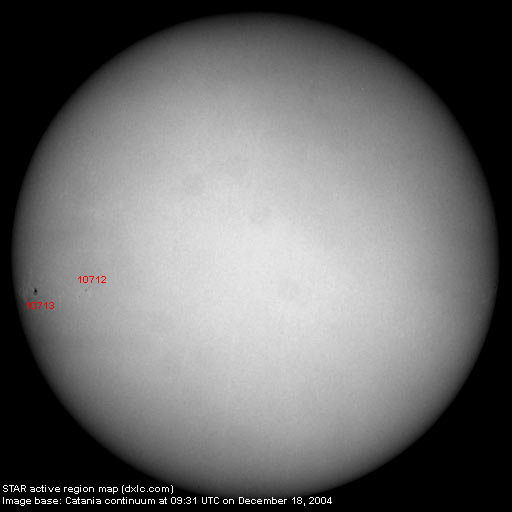

Compare to the previous day's image.

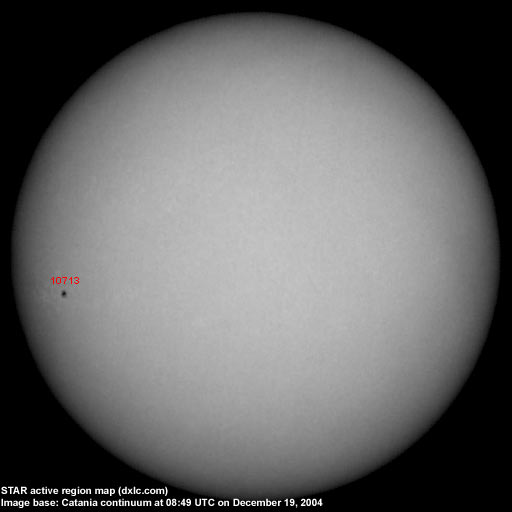

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SEC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SEC or where SEC has observed no spots. SEC active region numbers in the table below and in the active region map above are the historic SEC/USAF numbers.
|Active region||Date numbered||SEC
|Location at midnight||Area||Classification||Comment|
|Total spot count:||9||10|
flux at Earth
|International sunspot number||Smoothed sunspot number|
cycle 23 sunspot max.
|2004.06||97.4||43.2||(42.2 predicted, -1.7)|
|2004.07||119.1||51.0||(40.6 predicted, -1.6)|
|2004.08||109.6||40.9||(39.0 predicted, -1.6)|
|2004.09||103.1||27.7||(37.1 predicted, -1.9)|
|2004.10||105.9||48.4||(34.9 predicted, -2.2)|
|2004.11||113.2||43.7||(33.0 predicted, -1.9)|
|2004.12||92.6 (1)||22.3 (2)||(30.7 predicted, -2.3)|
1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2) Unofficial, accumulated value based on the Boulder (NOAA/SEC) sunspot number. The official international sunspot number is typically 30-50% less.
This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from some of these solar data sources. All time references are to the UTC day. Comments and suggestions are always welcome.
