Last major update issued on November 17, 2004 at 04:30 UTC.
[Solar and geomagnetic data - last month (updated daily)]
[Solar wind and electron fluence charts (updated daily)]
[Solar cycles 21-23 (last update November 4, 2004)]
[Solar cycles 1-20]
[Graphical comparison of cycles 21, 22 and 23 (last update November 4, 2004)]
[Graphical comparison of cycles 2, 10, 13, 17, 20 and 23 (last update November
4, 2004)]
[Historical solar and geomagnetic data charts 1954-2004 (last update November 8,
2004)]
[Archived reports (last update November 12, 2004)]
The geomagnetic field was quiet to unsettled on November 16. Solar wind speed ranged between 363 and 447 km/sec. A weak low speed coronal flow arrived near 04h UTC and caused an increase in geomagnetic activity.
Solar flux measured at 20h UTC on 2.8 GHz was 108.4. The planetary A
index was 8 (STAR Ap - based on the mean of three hour interval ap indices: 8.0).
Three hour interval K indices: 01332222 (planetary), 01333322 (Boulder).
The background x-ray flux is at the class B3 level.
At midnight there were 4 spotted regions on the visible solar disk. The solar flare activity level was low. A total of 5 C class events was recorded during the day.
Region 10700 decayed losing spots and penumbra area. There is still some polarity intermixing within the region which will begin rotating over the northwest limb late today. Flares: C1.4 at 00:13, C1.1 at 01:45, C1.0 at 02:25, C1.0 at 04:38 and C1.0 at 06:17 UTC.Spotted regions not numbered by NOAA/SEC:
[S475] A new region emerged fairly quickly east northeast of region 10699 on November 12 and developed slowly on November
13. Slow decay was observed on November 14-165. SEC has this as region 10699 as they previously failed to separate these two
regions. The original region 10699 is spotless.
[S479] This region emerged quickly in the southwest quadrant on November 16. C flares are possible. Location at midnight:
S10W14
November 14-16: No obviously Earth directed CMEs observed. A large CME was observed in LASCO C3 images at 08:42 UTC on November 16 from a location behind the northeast limb.
Coronal hole history (since late October 2002)
Compare today's report with the situation one solar rotation ago: 28
days ago 27 days ago 26 days ago
Recurrent coronal hole CH127 in the northern hemisphere will be in a geoeffective position on November 15-18.
Processed SOHO/EIT 284 image at 01:06 UTC on November 17. The darkest areas on the solar disk are likely coronal holes.
The geomagnetic field is expected to be quiet to unsettled on November 17. A high speed stream from coronal hole CH127 will likely begin to influence the geomagnetic field on November 18 and cause unsettled to active conditions until November 21 with a chance of minor storm intervals on Nov. 18 and 19.
Coronal holes (1) | Coronal mass ejections (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived
the color changes to green.
2) Material from a CME is likely to impact Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.
Long distance low and medium frequency (below 2 MHz) propagation along east-west paths over high and upper middle latitudes is poor to very poor. Propagation along long distance north-south paths is poor. Trans Atlantic propagation conditions are normally monitored every night on 1470 kHz. Dominant station tonight: Radio Cristal del Uruguay. On other frequencies a few stations from South and North America were detectable, the Florida station on 1700 kHz had one of the best signals.
Compare to the previous day's image.

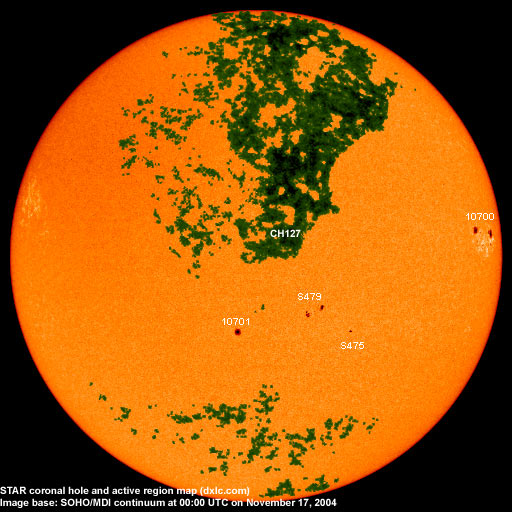

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SEC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SEC or where SEC has observed no spots. SEC active region numbers in the table below and in the active region map above are the historic SEC/USAF numbers.
Active region | Date numbered | SEC spot count |
STAR spot count |
Location at midnight | Area | Classification | Comment |
---|---|---|---|---|---|---|---|
10699 | 2004.11.09 | 4 | S13W23 | 0030 | DSO |
spotless location: S15W29 SEC has failed to separate regions 10699 and S475 |
|
10700 | 2004.11.11 | 11 | 9 | N04W67 | 0320 | EAO |
classification was DAO at midnight, area 0170 |
10701 | 2004.11.11 | 1 | 1 | S15E04 | 0060 | HSX | |
S475 | emerged on 2004.11.12 |
2 | S15W24 | 0020 | HSX | ||
S477 | emerged on 2004.11.14 |
S03E23 | plage | ||||
S479 | emerged on 2004.11.16 |
9 | S10W14 | 0070 | DAO | ||
Total spot count: | 16 | 21 | |||||
SSN: | 46 | 61 |
Month | Average solar flux at Earth |
International sunspot number | Smoothed sunspot number |
---|---|---|---|
2000.04 | 184.2 | 125.5 | 120.8 cycle 23 sunspot max. |
2000.07 | 202.3 | 170.1 | 119.8 |
2001.12 | 235.1 | 132.2 | 114.6 (-0.9) |
2003.08 | 122.1 | 72.7 | 60.0 (-1.7) |
2003.09 | 112.2 | 48.7 | 59.5 (-0.5) |
2003.10 | 151.7 | 65.5 | 58.2 (-1.3) |
2003.11 | 140.8 | 67.3 | 56.7 (-1.5) |
2003.12 | 114.9 | 46.5 | 54.8 (-1.9) |
2004.01 | 114.1 | 37.3 | 52.0 (-2.8) |
2004.02 | 107.0 | 45.8 | 49.3 (-2.7) |
2004.03 | 112.0 | 49.1 | 47.1 (-2.2) |
2004.04 | 101.2 | 39.3 | 45.5 (-1.6) |
2004.05 | 99.8 | 41.5 | (42.8 predicted, -2.7) |
2004.06 | 97.4 | 43.2 | (40.0 predicted, -2.8) |
2004.07 | 119.1 | 51.0 | (38.2 predicted, -1.8) |
2004.08 | 109.6 | 40.9 | (36.6 predicted, -1.6) |
2004.09 | 103.1 | 27.7 | (34.7 predicted, -1.9) |
2004.10 | 105.9 | 48.4 | (32.5 predicted, -2.2) |
2004.11 | 118.7 (1) | 45.7 (2) | (31.0 predicted, -1.5) |
1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2) Unofficial, accumulated value based on the Boulder (NOAA/SEC) sunspot number. The official international sunspot number is typically
30-50% less.
This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from some of these solar data sources. All time references are to the UTC day. Comments and suggestions are always welcome.
