The geomagnetic field was quiet to active on December 10. Solar wind speed ranged between 291 and 380 (all day average 336) km/sec under the influence of a low speed, high density disturbance.
Solar flux measured at 20h UTC
on 2.8 GHz was 91.4. The planetary
index was 12 (STAR Ap - based on the mean of three hour interval ap
Three hour interval K indices: 34312242 (planetary), 34522222 (Boulder).
The background x-ray flux is at the class B1 level.

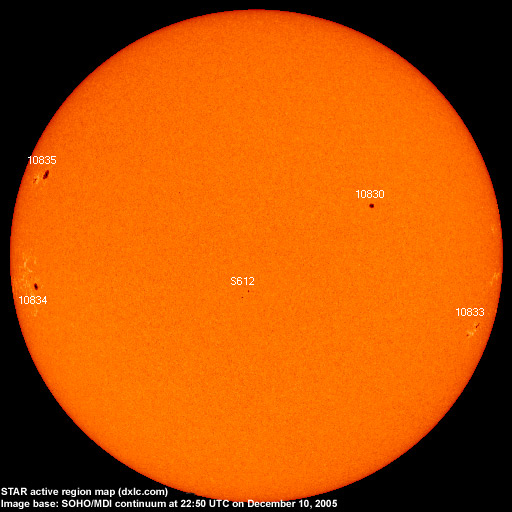

At midnight there were 5 spotted regions on the visible solar disk. The solar flare activity level was very low. No C class events were recorded during the day.
Region 10830 decayed slowly and quietly.
Region 10833 decayed and was quiet.
Region 10834 was quiet and stable.
Region 10835 rotated fully into view and was mostly unchanged.
Spotted regions not numbered by NOAA/SEC:
[S612] This region emerged in the southeast quadrant near the central meridian on December 10. Location at midnight: S08E01
December 8-10: No obvious partly or fully Earth directed CMEs were observed in incomplete imagery.
history (since late October 2002)
Compare today's report with the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago
No obvious coronal holes are currently in or near Earth facing positions.
Processed SOHO/EIT 284 image at 13:06 UTC on December 2. The darkest areas on the solar disk are likely coronal holes.
The geomagnetic field is expected to be quiet to unsettled on December 11-13.
|Coronal holes (1)||Coronal mass ejections (2)||M and X class flares (3)|
1) Effects from a coronal hole could reach
within the next 5 days. When the high speed stream has arrived
the color changes to green.
2) Material from a CME is likely to impact Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.
Long distance low and medium frequency (below 2 MHz) propagation along east-west paths over high and upper middle latitudes is poor to fair. Propagation on long distance northeast-southwest paths is poor. Trans Atlantic propagation conditions are normally monitored every night on 1470 kHz. Dominant stations tonight: WWNN Pompano Beach FL and Radio Vibración (Venezuela). Quite a few stations from the easternmost parts of North America and the Caribbean were noted on other frequencies.
Compare to the previous day's image.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SEC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SEC or where SEC has observed no spots. SEC active region numbers in the table below and in the active region map above are the historic SEC/USAF numbers.
|Active region||Date numbered||SEC
|Location at midnight||Area||Classification||Comment|
|10830||2005.12.02||4||1||N12W28||0050||CSO||classification was HSX at midnight|
|10833||2005.12.09||5||5||S17W67||0050||BXO||classification was DAO at midnight|
|10834||2005.12.09||3||3||S06E63||0070||DSO||classification was CAO at midnight|
|10835||2005.12.09||3||7||N19E64||0180||DKO||classification was DAO at midnight|
|Total spot count:||15||19|
flux at Earth
|International sunspot number||Smoothed sunspot number|
cycle 23 sunspot max.
|2005.06||93.7||39.6||(28.1 predicted, -0.8)|
|2005.07||96.4||39.9||(27.6 predicted, -0.5)|
|2005.08||90.5||36.4||(25.7 predicted, -1.8)|
|2005.09||91.1||22.1||(23.6 predicted, -2.1)|
|2005.10||77.0||8.5||(21.6 predicted, -2.0)|
|2005.11||86.3||18.0||(19.2 predicted, -2.4)|
|2005.12||94.1 (1)||21.8 (2)||(16.4 predicted, -2.8)|
1) Running average based on the
daily 20:00 UTC observed solar flux
value at 2800 MHz.
2) Unofficial, accumulated value based on the Boulder (NOAA/SEC) sunspot number. The official international sunspot number is typically 30-50% lower.
This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from some of these solar data sources. All time references are to the UTC day. Comments and suggestions are always welcome.
