Solar Terrestrial Activity Report

Last major update issued on February 23, 2005 at 05:05 UTC.

[Solar and geomagnetic data - last month (updated daily)]
[Solar wind and electron fluence charts (updated daily)]
[Solar cycles 21-23 (last update January 2, 2005)]
[Solar cycles 1-20]
[Graphical comparison of cycles 21, 22 and 23 (last update January 2, 2005)]
[Graphical comparison of cycles 2, 10, 13, 17, 20 and 23 (last update January 2, 2005)]
[Historical solar and geomagnetic data charts 1954-2004 (last update February 1, 2005)]
[Archived reports (last update February 16, 2005)]

Recent activity

The geomagnetic field was inactive to quiet on February 22. Solar wind speed ranged between 345 and 417 km/sec. The total field of the interplanetary magnetic field was stronger than normal, however, the IMF was mostly northwards all day and no geomagnetic disturbance was observed.

Solar flux measured at 20h UTC on 2.8 GHz was 92.3. The planetary A index was 4 (STAR Ap - based on the mean of three hour interval ap indices: 4.1).
Three hour interval K indices: 11001221 (planetary), 11012332 (Boulder).

The background x-ray flux is at the class B1 level.

At midnight there were 2 spotted regions on the visible solar disk. The solar flare activity level was very low. No C class events were recorded during the day.

Region 10735 decayed slowly and is rotating over the southwest limb.
Region 10736 was mostly unchanged and rotated partly out of view at the northwest limb.

Coronal mass ejections (CMEs)

February 20-22: No obvious fully or partly Earth directed CMEs were observed.

Coronal holes

Coronal hole history (since late October 2002)
Compare today's report with the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A poorly defined trans equatorial coronal hole (CH147) was in a geoeffective position on February 20-22. A recurrent coronal hole (CH148) in the northern hemisphere will likely rotate to a geoeffective position on February 23-24.

Processed SOHO/EIT 284 image at 16:36 UTC on February 22. The darkest areas on the solar disk are likely coronal holes.

Forecast

The geomagnetic field is expected to be quiet to active on February 23-27 due to coronal hole effects.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)
Coronal hole indicator CME indicator M and X class flare indicator

1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Material from a CME is likely to impact Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along east-west paths over high and upper middle latitudes is poor. Propagation along long distance north-south paths is fair. Trans Atlantic propagation conditions are normally monitored every night on 1470 kHz. Dominant stations tonight: Radio Vibración (Venezuela) and an unidentified Spanish language station (probably from Cuba). From North America VOWR on 800 and CJYQ on 930 kHz had the best signals. On 1510 kHz WWZN was weak and had interference from an unidentified Spanish language station.

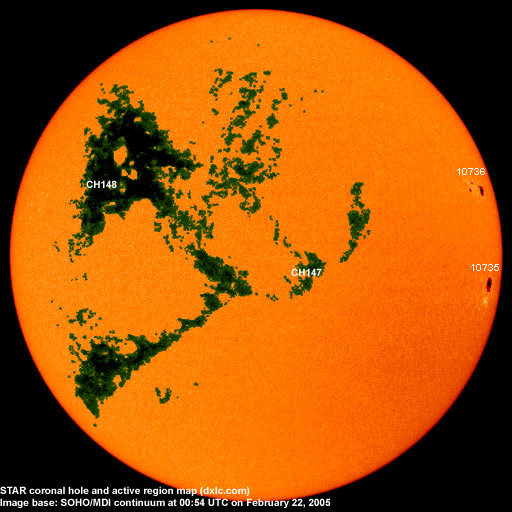

Active solar regions (Recent map)

Compare to the previous day's image.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SEC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SEC or where SEC has observed no spots. SEC active region numbers in the table below and in the active region map above are the historic SEC/USAF numbers.

Active region Date numbered SEC
spot
count
STAR
spot
count
Location at midnight Area Classification Comment
10735 2005.02.10 2 1 S09W85 0300 CKO classification was HHX at midnight
10736 2005.02.20 1 3 N13W77 0210 DKO classification was CSO at midnight, area 0030
S513 emerged on
2005.02.15
  S04W88     plage
S514 emerged on
2005.02.15
    S08W35     plage
S515 emerged on
2005.02.17
    S13W19     plage
S516 emerged on
2005.02.18
    S07W48     plage
Total spot count: 3 4
SSN: 23 24

Monthly solar cycle data

Month Average solar
flux at Earth
International sunspot number Smoothed sunspot number
2000.04 184.2 125.5 120.8
cycle 23 sunspot max.
2000.07 202.3 170.1 119.8
2001.12 235.1 132.2 114.6 (-0.9)
2003.12 114.9 46.5 54.8 (-1.9)
2004.01 114.1 37.3 52.0 (-2.8)
2004.02 107.0 45.8 49.3 (-2.7)
2004.03 112.0 49.1 47.1 (-2.2)
2004.04 101.2 39.3 45.5 (-1.6)
2004.05 99.8 41.5 43.9 (-1.6)
2004.06 97.4 43.2 41.7 (-2.2)
2004.07 119.1 51.0 40.3 (-1.4)
2004.08 109.6 40.9 (38.9 predicted, -1.4)
2004.09 103.1 27.7 (36.6 predicted, -2.3)
2004.10 105.9 48.4 (34.4 predicted, -2.2)
2004.11 113.2 43.7 (32.5 predicted, -1.9)
2004.12 94.5 17.9 (30.2 predicted, -2.3)
2005.01 102.2 31.3 (27.6 predicted, -2.6)
2005.02 102.3 (1) 42.3 (2) (25.2 predicted, -2.4)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2) Unofficial, accumulated value based on the Boulder (NOAA/SEC) sunspot number. The official international sunspot number is typically 30-50% less.

This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from some of these solar data sources. All time references are to the UTC day. Comments and suggestions are always welcome.
