The geomagnetic field was quiet to active on March 30. Solar wind speed ranged between 399 and 469 km/sec. A minor disturbance was observed during the first half of the day.
Solar flux measured at 20h UTC on 2.8 GHz was 77.6. The planetary
index was 9 (STAR Ap - based on the mean of three hour interval ap
Three hour interval K indices: 23421211 (planetary), 23432110 (Boulder).
The background x-ray flux is at the class A1 level.
At midnight there was 1 spotted region on the visible solar disk. The solar flare activity level was very low. No C class events were recorded during the day.
Spotted regions not numbered by NOAA/SEC:
[S531] This region rotated into view at the northeast limb on March 30. Location at midnight: N10E71.
March 28-30: No obvious fully or partly Earth directed CMEs were observed.
history (since late October 2002)
Compare today's report with the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago
A large recurrent coronal hole (CH154) in the northern hemisphere will be in an Earth facing position on March 30-April 2.
Processed SOHO/EIT 284 image at 13:06 UTC on March 11. The darkest areas on the solar disk are likely coronal holes.
The geomagnetic field is expected to be mostly quiet on March 31-April 1. Unsettled to minor storm conditions are possible on April 2-5 due to a high speed stream from CH154.
|Coronal holes (1)||Coronal mass ejections (2)||M and X class flares (3)|
1) Effects from a coronal hole could reach Earth
within the next 5 days. When the high speed stream has arrived
the color changes to green.
2) Material from a CME is likely to impact Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.
Long distance low and medium frequency (below 2 MHz) propagation along east-west paths over high and upper middle latitudes is good. Propagation along long distance north-south paths is poor. Trans Atlantic propagation conditions are normally monitored every night on 1470 kHz. Dominant stations tonight: Radio Vibración (Venezuela) and WLAM Lewiston ME. Propagation was good on frequencies below 1200 kHz, particularly towards New York, Florida, Venezuela and Colombia. Excellent signals were noted from Radio Sensación (Venezuela) on 830, WFTL West Palm Beach FL on 850 and Antena 2 (Colombia) on 650 kHz.

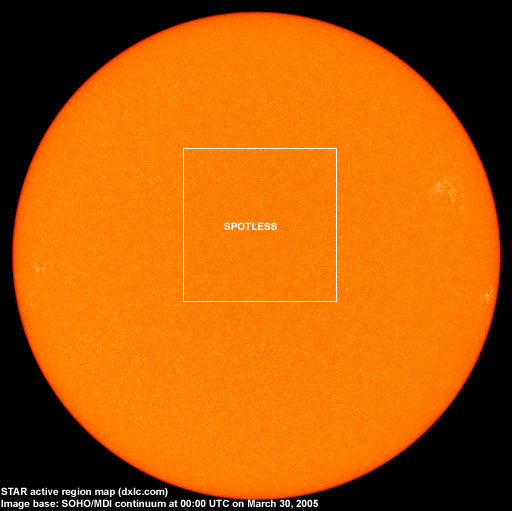

Compare to the previous day's image.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SEC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SEC or where SEC has observed no spots. SEC active region numbers in the table below and in the active region map above are the historic SEC/USAF numbers.
|Active region||Date numbered||SEC
|Location at midnight||Area||Classification||Comment|
|Total spot count:||1||1|
flux at Earth
|International sunspot number||Smoothed sunspot number|
cycle 23 sunspot max.
|2004.09||103.1||27.7||(37.4 predicted, -1.8)|
|2004.10||105.9||48.4||(35.2 predicted, -2.2)|
|2004.11||113.2||43.7||(33.3 predicted, -1.9)|
|2004.12||94.5||17.9||(31.0 predicted, -2.3)|
|2005.01||102.2||31.3||(28.3 predicted, -2.7)|
|2005.02||97.2||29.1||(25.9 predicted, -2.4)|
|2005.03||90.3 (1)||40.3 (2)||(24.1 predicted, -1.8)|
1) Running average based on the daily 20:00 UTC observed solar flux
value at 2800 MHz.
2) Unofficial, accumulated value based on the Boulder (NOAA/SEC) sunspot number. The official international sunspot number is typically 30-50% less.
This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from some of these solar data sources. All time references are to the UTC day. Comments and suggestions are always welcome.
