Recent activity

The geomagnetic field was inactive to unsettled on April 17. Solar wind speed ranged between 445 and 559 (all day average 470) km/sec, weakly under the influence of a high speed stream from CH220. Some increase in geomagnetic activity was observed late in the day and early on April 18 in response to a stronger southward interplanetary magnetic field.

Solar flux measured at 20h UTC on 2.8 GHz was 77.9. The planetary A index was 6 (STAR Ap - based on the mean of three hour interval ap indices: 6.0).
Three hour interval K indices: 21101213 (planetary), 32112222 (Boulder).

The background x-ray flux is at the class A2 level.

At midnight there was 1 spotted region on the visible solar disk. The solar flare activity level was very low. No C class events were recorded during the day.

Region 10871 decayed further and has only a single tiny spot left.

Coronal mass ejections (CMEs)

April 15-17: No partly or fully Earth directed CMEs were observed in LASCO imagery.

Coronal holes

Coronal hole history (since late October 2002)
Compare today's report with the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A coronal hole in the northern hemisphere (CH221) may have been in a partly Earth facing position on April 17-18.

Processed SOHO/EIT 284 image at 01:06 UTC on April 18. The darkest areas on the solar disk are likely coronal holes.

Forecast

The geomagnetic field is expected to be quiet to active on April 18 and quiet on April 19. A few unsettled intervals are possible on April 20-21 due to effects from CH221.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)

1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along east-west paths over high and upper middle latitudes is very poor. Propagation on long distance northeast-southwest paths is poor. Trans Atlantic propagation conditions are normally monitored every night on 1470 kHz. Dominant station tonight: Radio Vibración (Venezuela) with a poor signal. There were only a few, weak signals on other frequencies.

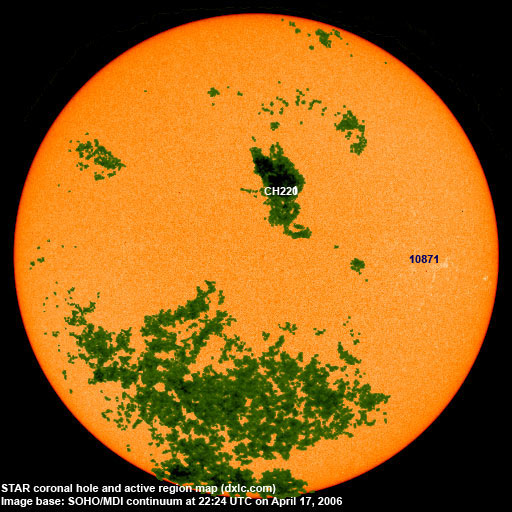

Active solar regions (Recent map)

Compare to the previous day's image.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SEC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SEC or where SEC has observed no spots. SEC active region numbers in the table below and in the active region map above are the historic SEC/USAF numbers.

Active region Date numbered SEC
spot
count
STAR
spot
count
Location at midnight Area Classification Comment
10870 2006.04.10 1   S06W74 0010 AXX spotless
10871 2006.04.10 3 1 S06W46 0030 CSO classification was AXX at midnight, area 0010
10872 2006.04.11 3   S08W05 0010 BXO spotless two consecutive days
10873 2006.04.11 1   S04W37 0000 AXX spotless two consecutive days
Total spot count: 8 1
SSN: 48 11

Monthly solar cycle data

Month Average solar
flux at Earth
International sunspot number Smoothed sunspot number
2000.04 184.2 125.5 120.8
cycle 23 sunspot max.
2000.07 202.3 170.1 119.8
2001.12 235.1 132.2 114.6 (-0.9)
2005.01 102.2 31.3 34.6 (-0.6)
2005.02 97.2 29.2 33.9 (-0.7)
2005.03 89.9 24.5 33.5 (-0.4)
2005.04 86.0 24.2 31.6 (-1.9)
2005.05 99.3 42.7 28.9 (-2.7)
2005.06 93.7 39.3 28.8 (-0.1)
2005.07 96.4 40.1 29.1 (+0.3)
2005.08 90.5 36.4 27.4 (-1.7)
2005.09 91.1 21.9 25.8 (-1.6)
2005.10 77.0 8.5 (24.8 predicted, -1.0)
2005.11 86.3 18.0 (22.7 predicted, -2.1)
2005.12 90.7 41.2 (19.8 predicted, -2.9)
2006.01 83.4 15.4 (16.7 predicted, -3.1)
2006.02 76.5 4.7 (13.6 predicted, -3.1)
2006.03 75.4 10.8 (11.4 predicted, -2.2)
2006.04 88.4 (1) 36.7 (2) (10.7 predicted, -0.7)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2) Unofficial, accumulated value based on the Boulder (NOAA/SEC) sunspot number. The official international sunspot number is typically 30-50% lower.

This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from some of these solar data sources. All time references are to the UTC day. Comments and suggestions are always welcome.
