The geomagnetic field was quiet to major storm on January 26. Solar wind speed ranged between 442 and 719 (all day average 559) km/sec under the influence of a high speed stream. The disturbance associated with this stream was considerably more intense than expected.
Solar flux measured at 20h UTC on 2.8 GHz was 86.9. The planetary A
index was 29 (STAR Ap - based on the mean of three hour interval ap
Three hour interval K indices: 44233653 (planetary), 44233544 (Boulder).
The background x-ray flux is at the class A8 level.
At midnight there was 1 spotted region on the visible solar disk. The solar flare activity level was very low. No C class events were recorded during the day.
Region 10848 decayed further and did not produce any significant activity.
January 24-26: No obviously fully or partly Earth directed CMEs were observed.
Coronal hole history (since late October 2002)
Compare today's report with the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

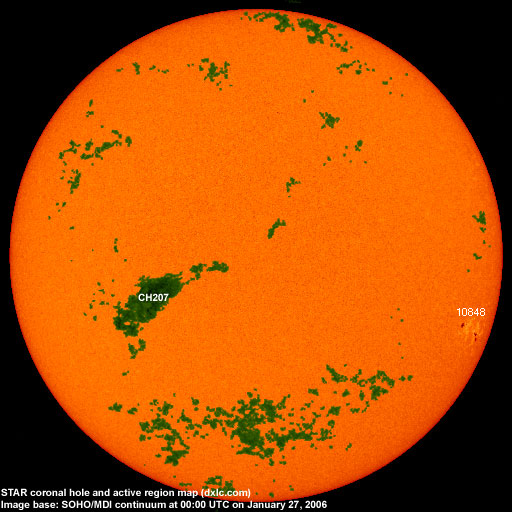

A recurrent trans equatorial coronal hole (CH206) was in an Earth facing position on January 21-23. A southern hemisphere coronal hole (CH207) could rotate into an Earth facing position on January 29.

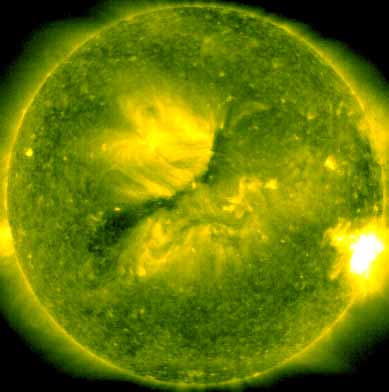

Processed SOHO/EIT 284 image at 01:06 UTC on January 27. The darkest areas on the solar disk are likely coronal holes.
The geomagnetic field is expected to be quiet to unsettled on January 27-29.
|Coronal holes (1)||Coronal mass ejections (2)||M and X class flares (3)|
1) Effects from a coronal hole could reach Earth
within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.
Long distance low and medium frequency (below 2 MHz) propagation along east-west paths over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is very poor. Trans Atlantic propagation conditions are normally monitored every night on 1470 kHz. Dominant station tonight: Radio Vibración (Venezuela) with a poor signal. Surprisingly the most common stations from Newfoundland, like 930 CJYQ, had fair to good signals.
Compare to the previous day's image.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SEC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SEC or where SEC has observed no spots. SEC active region numbers in the table below and in the active region map above are the historic SEC/USAF numbers.
|Active region||Date numbered||SEC
|Location at midnight||Area||Classification||Comment|
|10848||2006.01.18||14||8||S20W66||0130||EAC||classification was DAO at midnight, area 0050|
|Total spot count:||14||8|
flux at Earth
|International sunspot number||Smoothed sunspot number|
cycle 23 sunspot max.
|2005.07||96.4||39.9||(29.1 predicted, +0.3)|
|2005.08||90.5||36.4||(27.4 predicted, -1.7)|
|2005.09||91.1||22.1||(25.4 predicted, -2.0)|
|2005.10||77.0||8.5||(23.4 predicted, -2.0)|
|2005.11||86.3||18.0||(21.0 predicted, -2.4)|
|2005.12||90.7||41.2||(18.2 predicted, -2.8)|
|2006.01||84.1 (1)||25.4 (2)||(15.2 predicted, -3.0)|
1) Running average based on the
daily 20:00 UTC observed solar flux
value at 2800 MHz.
2) Unofficial, accumulated value based on the Boulder (NOAA/SEC) sunspot number. The official international sunspot number is typically 30-50% lower.
This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from some of these solar data sources. All time references are to the UTC day. Comments and suggestions are always welcome.
