The geomagnetic field was quiet to active on July 9. Solar wind speed ranged between 335 and 451 km/s (all day average 359 km/s - decreasing 54 km/s from the previous day). A fairly weak solar wind shock was observed at SOHO at 21:04 UTC. Solar wind speed increased abruptly from 350 to 450 km/sec.
Solar flux measured at 20h UTC on 2.8 GHz was 74.6. The planetary A index
was 5 (STAR Ap - based on the mean of three hour interval ap
Three hour interval K indices: 10000114 (planetary), 00001324 (Boulder).
The background x-ray flux is at the class A3 level.
At midnight there were 2 spotted regions on the visible solar disk. The solar flare activity level was very low. No C class events were recorded during the day.
Region 10898 rotated partly out of view at the southwest limb.
Region 10899 decayed slowly and quietly.
July 7-9: No partly or fully Earth directed CMEs were detected in LASCO imagery.
Coronal hole history (since late October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago
A recurrent coronal hole (CH231) in the southern hemisphere was in an Earth facing position on July 7-9.
Processed SOHO/EIT 284 image at 01:06 UTC on July 10. The darkest areas on the solar disk are likely coronal holes.
The geomagnetic field is expected to be quiet to active on July 10-12, first due to CME effects and later because of a high speed stream from CH231.
|Coronal holes (1)||Coronal mass ejections (2)||M and X class flares (3)|
1) Effects from a coronal hole could reach Earth
within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.
Long distance low and medium frequency (below 2 MHz) propagation along east-west paths over high and upper middle latitudes is very poor. Propagation on long distance northeast-southwest paths is poor to fair. Trans Atlantic propagation conditions are normally monitored every night on 1470 kHz. Radio Cristal del Uruguay and Radio Vibración (Venezuela) were both observed. On other frequencies most of the stations audible were from Brazil. Signals were generally much weaker and fewer than 24 hours ago.

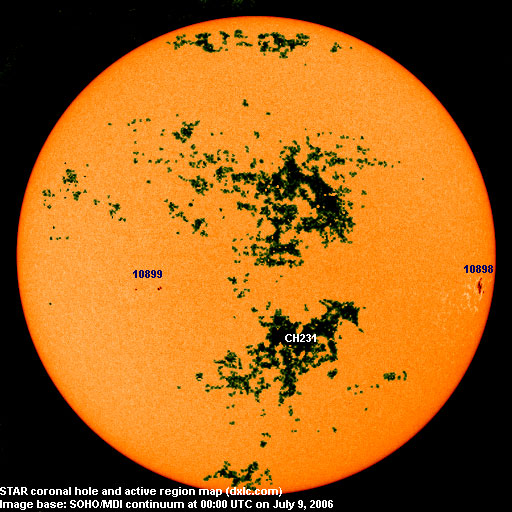

Compare to the previous day's image.

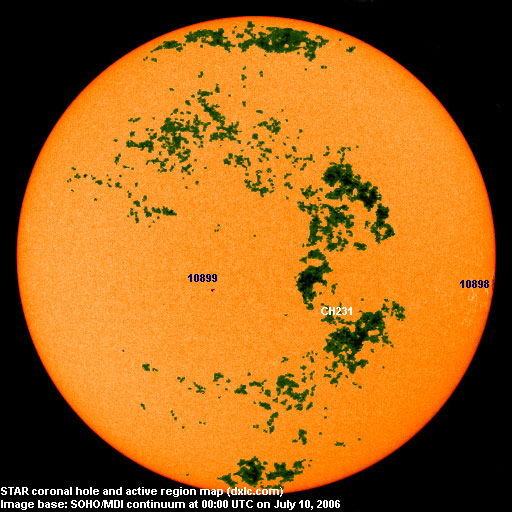

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SEC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SEC or where SEC has observed no spots. SEC active region numbers in the table below and in the active region map above are the historic SEC/USAF numbers.
|Active region||Date numbered||SEC
|Location at midnight||Area||Classification||Comment|
|Total spot count:||13||7|
flux at Earth
|International sunspot number||Smoothed sunspot number|
cycle 23 sunspot max.
|2006.01||83.4||15.4||(20.7 predicted, -2.3)|
|2006.02||76.5||4.7||(18.2 predicted, -2.5)|
|2006.03||75.4||10.8||(16.4 predicted, -1.8)|
|2006.04||89.0||30.2||(15.7 predicted, -0.7)|
|2006.05||80.9||22.2||(14.9 predicted, -0.8)|
|2006.06||76.5||13.9||(12.7 predicted, -2.2)|
|2006.07||83.1 (1)||10.1 (2)||(11.3 predicted, -1.4)|
1) Running average based on the
daily 20:00 UTC observed solar flux
value at 2800 MHz.
2) Unofficial, accumulated value based on the Boulder (NOAA/SEC) sunspot number. The official international sunspot number is typically 30-50% lower.
This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from some of these solar data sources. All time references are to the UTC day. Comments and suggestions are always welcome.
