Recent activity

The geomagnetic field was quiet on February 5. Solar wind speed ranged between 327 and 360 km/s (average speed was 344 km/s, unchanged from the previous day). A weak, low speed coronal stream has influenced the geomagnetic field slightly since 10 UTC on February 5.

Solar flux measured at 20h UTC on 2.8 GHz was 83.0. The planetary A index was 6 (STAR Ap - based on the mean of three hour interval ap indices: 5.8). Three hour interval K indices: 11112222 (planetary), 11223222 (Boulder).

The background x-ray flux is at the class A1 level.

At midnight there were 2 spotted regions on the visible solar disk. The solar flare activity level was very low. No C class events were recorded during the day.

Region 10940 decayed slowly and quietly.
Region 10941 was quiet and stable.

Coronal mass ejections (CMEs)

February 3-5: No obvious partly or fully Earth directed CMEs were detected in LASCO imagery.

Coronal holes

Coronal hole history (since late October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A recurrent coronal hole (CH257) in the southern hemisphere has lost most of its area over the last solar rotation due to the development of an active (and currently spotless) region. CH257 will likely rotate into an Earth facing position on February 8-9.

Processed SOHO/EIT 195 image at 00:00 UTC on February 6. The darkest areas on the solar disk are likely coronal holes.

Forecast

The geomagnetic field is expected to be quiet to unsettled on February 6 and mostly quiet on February 7-10.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)



1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Propagation

Monitoring has been temporarily suspended (as of January 1, 2007).

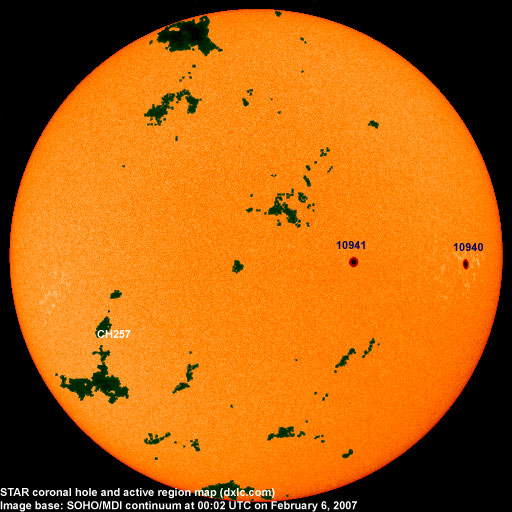

Active solar regions (Recent map)

Compare to the previous day's image.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SEC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SEC or where SEC has observed no spots. SEC active region numbers in the table below and in the active region map above are the historic SEC/USAF numbers.

Active region Date numbered SEC
spot
count
STAR
spot
count
Location at midnight Area Classification Comment
10940 2007.01.25 4 2 S05W58 0180 CAO area was 0110 at midnight
10941 2007.01.29 1 1 S07W22 0120 HSX
Total spot count: 5 3
SSN: 25 23

Monthly solar cycle data

Month Average solar
flux at Earth
International sunspot number Smoothed sunspot number
2000.04 184.2 125.5 120.8
cycle 23 sunspot max.
2000.07 202.3 170.1 119.8
2001.12 235.1 132.2 114.6 (-0.9)
2005.12 90.7 41.1 23.0 (-1.9)
2006.01 83.4 15.3 20.8 (-2.2)
2006.02 76.5 4.9 18.6 (-2.2)
2006.03 75.4 10.6 17.3 (-1.3)
2006.04 89.0 30.2 17.1 (-0.2)
2006.05 80.9 22.2 17.3 (+0.2)
2006.06 76.5 13.9 16.3 (-1.0)
2006.07 75.7 12.2 15.3 (-1.0)
2006.08 79.0 12.9 (15.6 predicted, +0.3)
2006.09 77.8 14.5 (15.7 predicted, +0.1)
2006.10 74.3 10.4 (14.5 predicted, -1.2)
2006.11 86.3 21.5 (12.8 predicted, -1.7)
2006.12 84.5 13.6 (12.1 predicted, -0.7)
2007.01 83.3 16.9 (12.0 predicted, -0.1)
2007.02 86.8 (1) 5.5 (2) (12.1 predicted, +0.1)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2) Unofficial, accumulated value based on the Boulder (NOAA/SEC) sunspot number. The official international sunspot number is typically 30-50% lower.

This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from some of these solar data sources. All time references are to the UTC day. Comments and suggestions are always welcome.
