Recent activity

The geomagnetic field was quiet to active on September 5. Solar wind speed ranged between 419 and 515 km/s (average speed was 463 km/s, decreasing 96 km/s from the previous day).

Solar flux measured at 20h UTC on 2.8 GHz was 67.6. The planetary A index was 12 (STAR Ap - based on the mean of three hour interval ap indices: 12.1). Three hour interval K indices: 24423122 (planetary), 24433221 (Boulder).

The background x-ray flux is below the class A1 level.

At midnight there was 1 spotted region on the visible solar disk. The solar flare activity level was very low. No C class events were recorded during the day.

Region 10970 decayed slowly and was quiet.

Coronal mass ejections (CMEs)

September 3-5: No obvious fully or partly Earth directed CMEs were observed in LASCO imagery.

Coronal holes

Coronal hole history (since late October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A recurrent coronal hole (CH289) in the southern hemisphere was in an Earth facing position on September 2.

Processed STEREO 195 image at 01:13 UTC on September 6. The darkest areas on the solar disk are likely coronal holes.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along east-west paths over high and upper middle latitudes is fair. Propagation on long distance northeast-southwest paths is poor.

Monitoring remarks from a location near N58E06: September 6: Very strong nighttime signals were heard from stations located in Venezuela, Colombia, Cuba. 1060 kHz had Radio 26 (Cuba) with excellent peaks. Haiti was noted on 840 kHz and there was an interesting, fairly strong (and unidentified) French language station on 1420 kHz.

Forecast

The geomagnetic field is expected to be mostly quiet to unsettled on September 6 with a chance of active intervals due to a high speed stream from CH289. Mostly quiet conditions are likely on September 7-10.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)



1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

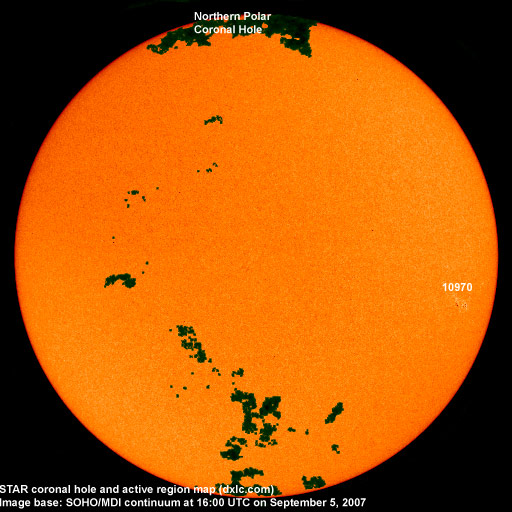

Active solar regions (Recent map)

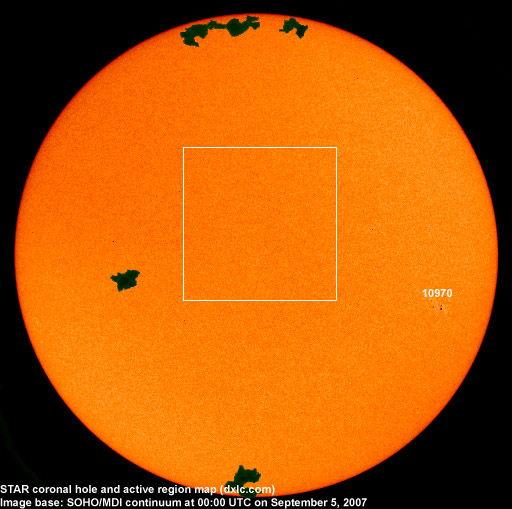

Compare to the previous day's image.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SEC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SEC or where SEC has observed no spots. SEC active region numbers in the table below and in the active region map above are the historic SEC/USAF numbers.

Active region Date numbered SEC
spot
count
STAR
spot
count
Location at midnight Area Classification Comment
10970 2007.09.01 5 5 S09W63 0030 BXO
Total spot count: 5 5
SSN: 15 15

Monthly solar cycle data

Month Average solar
flux at Earth
International sunspot number Smoothed sunspot number
2000.04 184.2 125.5 120.8
cycle 23 sunspot max.
2000.07 202.3 170.1 119.8
2001.12 235.1 132.2 114.6 (-0.9)
2006.07 75.7 12.2 15.3 (-1.0)
2006.08 79.0 12.9 15.6 (+0.3)
2006.09 77.8 14.4 15.6 (+0.0)
2006.10 74.3 10.4 14.2 (-1.4)
2006.11 86.3 21.5 12.7 (-1.5)
2006.12 84.5 13.6 12.1 (-0.6)
2007.01 83.3 16.9 12.0 (-0.1)
2007.02 77.7 10.6 11.6 (-0.4)
2007.03 72.2 4.8 (11.1 predicted, -0.5)
2007.04 72.4 3.7 (10.7 predicted, -0.4)
2007.05 74.4 11.7 (10.2 predicted, -0.5)
2007.06 73.7 12.0 (10.0 predicted, -0.2)
2007.07 71.6 10.0 (10.0 predicted, +0.0)
2007.08 69.1 6.2 (10.3 predicted, +0.3)
2007.09 68.8 (1) 2.8 (2) (11.5 predicted, +1.2)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2) Unofficial, accumulated value based on the Boulder (NOAA/SEC) sunspot number. The official international sunspot number is typically 30-50% lower.

This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from some of these solar data sources. All time references are to the UTC day. Comments and suggestions are always welcome.
