Recent activity

The geomagnetic field was quiet on April 19. Solar wind speed ranged between 456 and 547 km/s.

Solar flux measured at 20h UTC on 2.8 GHz was 71.0. The planetary A index was 5 (STAR Ap - based on the mean of three hour interval ap indices: 5.4). Three hour interval K indices: 22111112 (planetary), 22221211 (Boulder).

The background x-ray flux is below the class A1 level.

At midnight there was 1 spotted region on the visible solar disk. The solar flare activity level was very low.

Coronal mass ejections (CMEs)

April 17-19: No partially or fully Earth directed CMEs were observed.

Coronal holes

Coronal hole history (since late October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A recurrent coronal hole (CH320) in the northern hemipshere was in an Earth facing position on April 18-20. A recurrent trans equatorial coronal hole (CH321) will likely rotate into an Earth facing position on April 21-23.

Processed SOHO/EIT 195 image at 00:24 UTC on April 20. The darkest areas on the solar disk are likely coronal holes.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor.

Forecast

The geomagnetic field is expected to be quiet on April 20 and most of April 21. A high speed stream from CH320 could cause unsettled to minor storm conditions from late on April 21 or early on April 22 and on April 23. A high speed stream from CH321 will likely dominate the solar wind April 24-26 and cause unsettled to active conditions.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)



1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

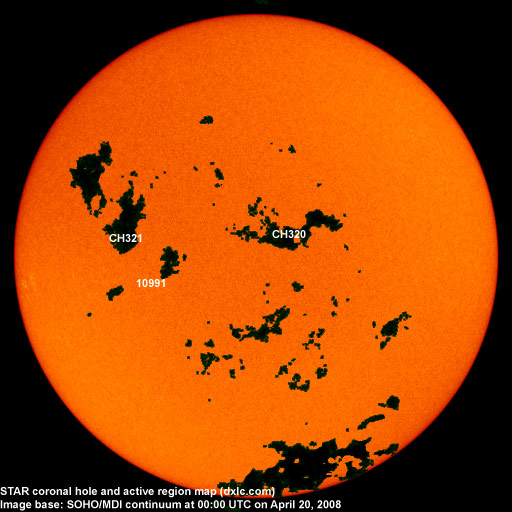

Active solar regions (Recent map)

Compare to the previous day's image.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered SWPC
spot
count
STAR
spot
count
Location at midnight Area Classification Comment
10990 2008.04.14     N27W47     spotless
10991 2008.04.19 3 2 S09E29 0020 BXO classification was AXX
Total spot count: 3 2
SSN: 12 0

Monthly solar cycle data

Month Average solar
flux at Earth
International sunspot number Smoothed sunspot number
2000.04 184.2 125.5 120.8
cycle 23 sunspot max.
2000.07 202.3 170.1 119.8
2001.12 235.1 132.2 114.6 (-0.9)
2007.02 77.7 10.7 11.5 (-0.4)
2007.03 72.2 4.5 10.7 (-0.8)
2007.04 72.4 3.4 9.8 (-0.9)
2007.05 74.4 11.7 8.6 (-1.2)
2007.06 73.7 12.1 7.6 (-1.0)
2007.07 71.6 9.7 6.9 (-0.7)
2007.08 69.1 6.0 6.0 (-0.9)
2007.09 67.1 2.4 5.9 (-0.1)
2007.10 67.4 0.9 (6.3 predicted, +0.4)
2007.11 69.6 1.7 (6.5 predicted, +0.2)
2007.12 78.5 10.1 (6.6 predicted, +0.2)
2008.01 74.3 3.4 (7.0 predicted, +0.4)
2008.02 71.1 2.1 (7.9 predicted, +1.0)
2008.03 72.9 9.3 (9.4 predicted, +1.5)
2008.04 70.6 (1) 3.4 (2) (10.8 predicted, +1.4)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2) Unofficial, accumulated value based on the Boulder (NOAA/SWPC) sunspot number. The official international sunspot number is typically 30-50% lower.

This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from some of these solar data sources. All time references are to the UTC day. Comments and suggestions are always welcome.
