Solar Terrestrial Activity Report

Last major update issued on January 13, 2008 at 06:30 UTC.

[Solar and geomagnetic data - last month (updated daily)]
[Solar wind and electron fluence charts (updated daily)
[Solar cycles 21-23 (last update October 4, 2007)]
[Solar cycles 1-20]
[Graphical comparison of cycles 21, 22 and 23 (last update October 4, 2007)]
[Graphical comparison of cycles 2, 10, 13, 17, 20 and 23 (last update October 4, 2007)]
[Historical solar and geomagnetic data charts 1954-2006 (last update April 5, 2007)]
[Archived reports (last update January 10, 2008)]

Recent activity

The geomagnetic field was quiet to active on January 12. Solar wind speed ranged between 367 and 562 km/s. A high speed stream from CH308 arrived shortly after noon.

Solar flux measured at 20h UTC on 2.8 GHz was 75.7. The planetary A index was 9 (STAR Ap - based on the mean of three hour interval ap indices: 8.6). Three hour interval K indices: 00112432 (planetary), 01122422 (Boulder).

The background x-ray flux is below the class A1 level.

At midnight the visible solar disk was spotless. The solar flare activity level was very low. No C class events were recorded during the day.

Coronal mass ejections (CMEs)

January 10-12: No partially or fully Earth directed CMEs were observed.

Coronal holes

Coronal hole history (since late October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

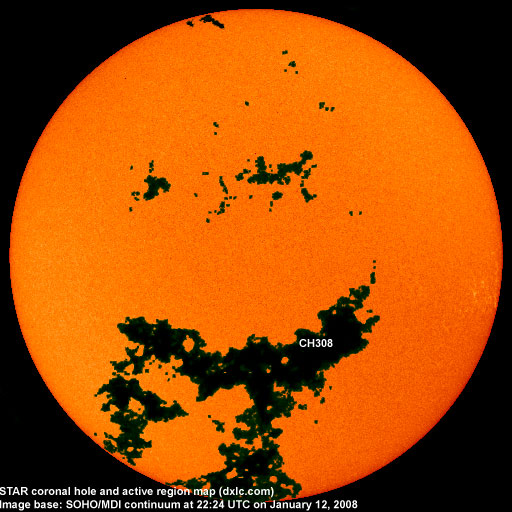

A recurrent coronal hole (CH308) in the southern hemisphere will rotate into an Earth facing position on January 10-14.

Processed SOHO/EIT 195 image at 00:00 UTC on January 13. The darkest areas on the solar disk are likely coronal holes.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor.

Monitoring remarks from a location near N58E06: January 1: Good signals were noted on most TA frequencies in widespread conditions as even a few west coast stations surfaced. Several stations from México had strong signals as did 1570 HRRF.  The best Trans Atlantic propagation sector was 270-300 degrees.

Forecast

The geomagnetic field is expected to be quiet to active on January 13-17 under the influence of a high speed stream from CH308.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)



1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Active solar regions (Recent map)

Compare to the previous day's image.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered SWPC
spot
count
STAR
spot
count
Location at midnight Area Classification Comment
10980 2007.12.31     S08W75     plage
10981 2008.01.04     N27W82     plage
S717 2008.01.05     S08W40     plage
S718 2008.01.09     S06W11     plage
Total spot count: 0 0
SSN: 0 0

Monthly solar cycle data

Month Average solar
flux at Earth
International sunspot number Smoothed sunspot number
2000.04 184.2 125.5 120.8
cycle 23 sunspot max.
2000.07 202.3 170.1 119.8
2001.12 235.1 132.2 114.6 (-0.9)
2006.09 77.8 14.4 15.6 (+0.0)
2006.10 74.3 10.4 14.2 (-1.4)
2006.11 86.3 21.5 12.7 (-1.5)
2006.12 84.5 13.6 12.1 (-0.6)
2007.01 83.3 16.9 12.0 (-0.1)
2007.02 77.7 10.6 11.6 (-0.4)
2007.03 72.2 4.8 10.8 (-0.8)
2007.04 72.4 3.7 9.9 (-0.9)
2007.05 74.4 11.7 8.7 (-1.2)
2007.06 73.7 12.0 7.7 (-1.0)
2007.07 71.6 10.0 (7.2 predicted, -0.5)
2007.08 69.1 6.2 (6.7 predicted, -0.5)
2007.09 67.1 2.4 (6.7 predicted, +0.0)
2007.10 67.4 0.9 (7.2 predicted, +0.5)
2007.11 69.6 1.7 (7.8 predicted, +0.6)
2007.12 78.5 10.1 (8.1 predicted, +0.3)
2008.01 77.8 (1) 3.3 (2) (8.7 predicted, +0.6)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2) Unofficial, accumulated value based on the Boulder (NOAA/SWPC) sunspot number. The official international sunspot number is typically 30-50% lower.

This report has been prepared by Jan Alvestad. It is based partly on my own observations and analysis, and partly on data from some of these solar data sources. All time references are to the UTC day. Comments and suggestions are always welcome.
