The geomagnetic field was quiet to unsettled on December 2. Solar wind speed ranged between 347 and 466 km/s. A weak solar wind disturbance was observed beginning at ACE after 16h UTC.
Solar flux measured at 20h UTC on 2.8 GHz was 157.3 (decreasing 14.6 over the last solar rotation). The planetary A index was 4 (STAR Ap - based on the mean of three hour interval ap indices: 4.3). Three hour interval K indices: 10100131 (planetary), 10200222 (Boulder).
The background x-ray flux is at the class B6 level.
At midnight UTC the visible solar disk had 11 spotted regions (in 2K resolution SDO images).
Region 11358 [N21W56] decayed slowly and quietly.
Region 11361 [N20W33] has weak polarity intermixing and is decaying slowly.
Region 11362 [N09E10] displayed no major changes and remains capable of producing C flares.
Region 11363 [S16E28] was quiet and stable.
Region 11364 [N21E37] was quiet and stable.
New region 11365 [N22E16] emerged in the northeast quadrant on December 1 and was numbered the next day by SWPC. The region developed fairly quickly on Dec.2. C flares are possible.
Spotted regions not reported by NOAA/SWPC:
[S1338] emerged in the northeast quadrant on Nov.26, became spotless, then reemerged on December 2. Location at midnight: N17W18
[S1342] rotated into view at the southeast limb on Nov.28. The region developed quickly on Dec.1-2 and could produce minor M class flares. There's weak polarity intermixing. Location at midnight: S22E33.
[S1343] emerged in the southeast quadrant on November 29, became spotless and reemerged on Dec.2. Location at midnight: S14E18
[S1344] emerged in the northeast quadrant on November 30. Location at midnight: N24E03
[S1347] rotated into view at the northeast limb on December 2. Location at midnight: N18E78
November 30 - December 2: No obviously Earth directed CMEs observed.
Coronal hole history (since late October
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago
No obvious coronal holes are near potentially geoeffective positions.
The above coronal hole map is based on a new method where coronal holes are detected automatically. The method may need some fine tuning, however, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using the new method, the extent and intensity of both holes are consistent with other data sources.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is fair.
The geomagnetic field is expected to be quiet to unsettled on December 3 and quiet on December 4-5.
|Coronal holes (1)||Coronal mass ejections (2)||M and X class flares (3)|
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

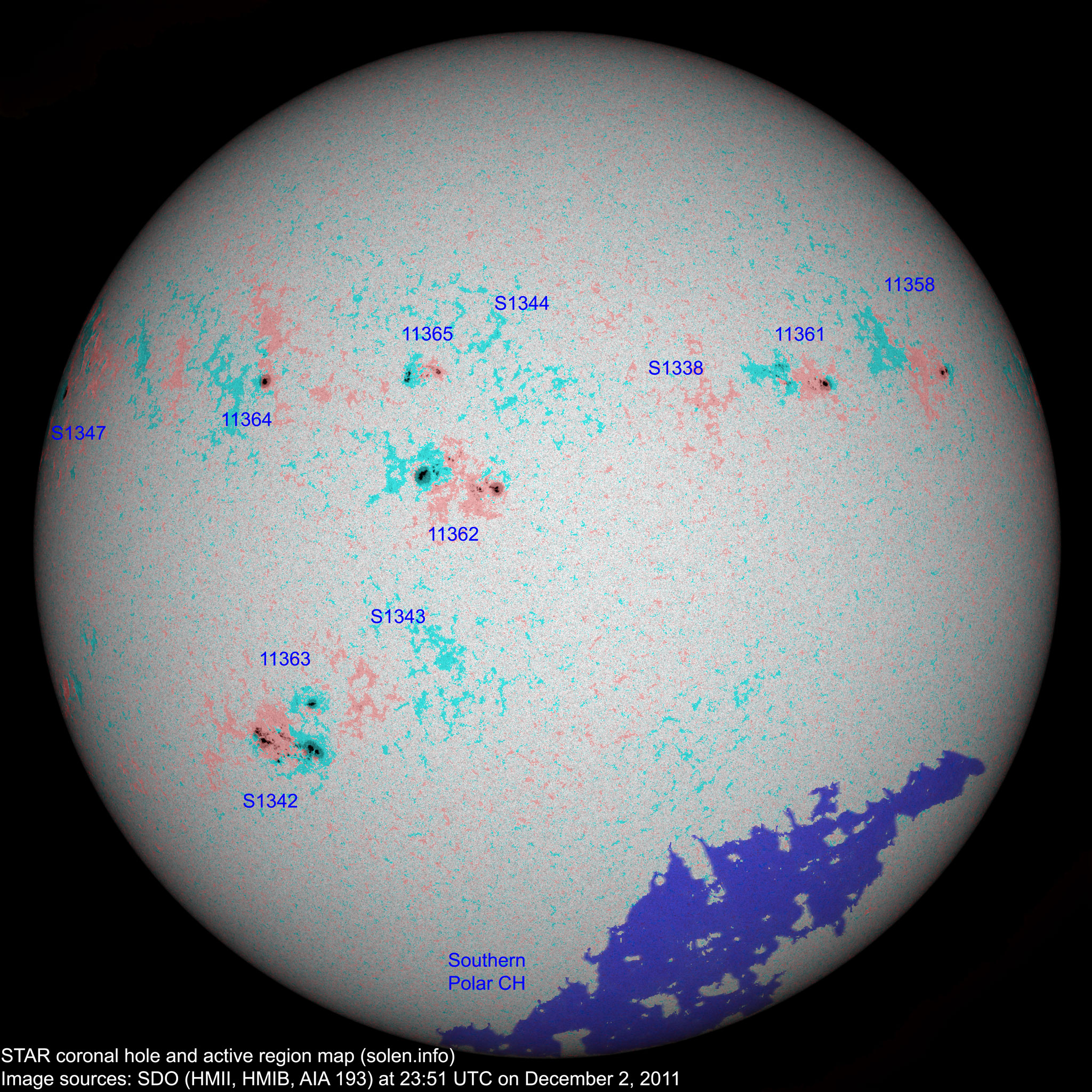

Click on image for higher resolution image) Compare to the previous day's image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
|Active region||Date numbered
|Spot count||Location at midnight||Area||Classification||SDO / HMI 4K continuum
image with magnetic polarity overlay
SWPC includes S1342 in this region
|Total spot count:||46||141|
|Sunspot number:||106||251||(total spot count + 10 * number of spotted regions)|
|Weighted penumbral SN:||81||179||(Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)|
|Relative sunspot number (Wolf number):||64||113||k * (sunspot number). k = 0.6 for SWPC. k = 0.45 (changed from 0.33 on Nov.1) for STAR SDO|
|Month||Average measured solar flux||International sunspot number (SIDC)||Smoothed sunspot number||Average ap
|2008.07||65.7 (SF minimum)||0.5||2.8 (-0.4)|
|2010.10||81.6||23.5||23.2 (+3.6)||6.07 / 6.27|
|2010.11||82.5||21.5||26.5 (+3.3)||4.80 / 5.50|
|2010.12||84.2||14.4||28.8 (+2.3)||3.41 / 4.35|
|2011.01||83.6||19.1||31.0 (+2.2)||4.32 / 5.51|
|2011.02||94.6||29.4||33.4 (+2.4)||5.41 / 6.44|
|2011.03||115.0||56.2||36.9 (+3.5)||7.79 / 8.18|
|2011.04||112.6||54.4||41.8 (+4.9)||9.71 / 8.83|
|2011.05||95.8||41.6||47.6 (+5.8)||9.18 / 8.94|
|2011.06||95.8||37.0||(53.7 projected, +6.1)||8.96 / 8.06|
|2011.07||94.2||43.9||(60.0 projected, +6.3)||9.14 / 8.16|
|2011.08||101.7||50.6||(65.5 projected, +5.5)||8.16 / 7.26|
|2011.09||133.8||78.0||(68.8 projected, +3.3)||12.80 / 12.27|
|2011.10||137.3||88.0||(72.3 projected, +3.5)||7.52|
|2011.11||153.5||96.7||(76.6 projected, +4.3)||4.58|
|2011.12||154.8 (1)||6.3 (2A) / 97.5 (2B)||(82.1 projected, +5.5)||(5.69)|
1) Running average based on the daily 20:00 UTC observed solar flux value at
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Month average to date.
3) Running average based on the preliminary daily SWPC ap indices. Values in red are based on the official NGDC ap indices.
This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
