Solar Terrestrial Activity Report

Last major update issued on November 16, 2011 at 04:50 UTC.

[Solar and geomagnetic data - last month (updated daily)]
[Solar wind and electron fluence charts (updated daily)
[Solar cycles 21-24 (last update November 1, 2011)]
[Solar cycles 1-20]
[Graphical comparison of cycles 21, 22, 23 and 24 (last update November 1, 2011)]
[Graphical comparison of cycles 10, 12, 13, 14, 16 and 24 (last update November 1, 2011)]
[Historical solar and geomagnetic data charts 1954-2006 (last update April 5, 2007)]
[Archived reports since January 2003 (last update November 2, 2011)]

[POES auroral activity level since October 2009 - updated November 14, 2011]
Annotated geomagnetic activity charts - Carrington rotation 2114 [August-September 2011] - 2115 [September-October 2011]
[Solar polar fields vs solar cycles - updated June 27, 2011]

Recent activity

The geomagnetic field was quiet to slightly unsettled on November 15. Solar wind speed ranged between 347 and 442 km/s.

Solar flux measured at 20h UTC on 2.8 GHz was 148.3 (increasing 1.0 over the last solar rotation). The planetary A index was 6 (STAR Ap - based on the mean of three hour interval ap indices: 5.8). Three hour interval K indices: 00322211 (planetary), 01332222 (Boulder).

The background x-ray flux is at the class C1 level.

At midnight UTC the visible solar disk had 14 spotted regions (in 2K resolution SDO images).

Region 11340 [S08W70] was quiet and stable.
Region 11341 [N10W50] was quiet and decayed slightly.
Region 11342 [N17W61] was quiet and stable.
Region 11343 [N29W38] was quiet and stable.

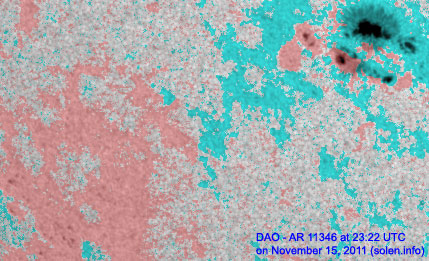

Region 11346 [S18E27] still has a weak magnetic delta structure in a small penumbra south of the main penumbra. Flare: M1.9 at 12:43 UTC
Region 11347 [N09E18] decayed further and was quiet.
Region 11348 [N20W85] developed further with a magnetic delta structure forming in a trailing penumbra. Further M class flaring is likely while the region is near the northwest limb. Flares: M1.2 at 09:12, C3.3 at 16:33, C7.8 at 20:34, M1.1/1F at 22:35 UTC.
Region 11349 [N17W15] was quiet and stable.
Region 11350 [N26E69] was quiet and stable.

Spotted regions not reported by NOAA/SWPC:
[S1321] emerged in the northeast quadrant on November 12. Location at midnight: N10W09
[S1322] emerged in the northeast quadrant on November 13. Location at midnight: N10E34
[S1323] emerged in the northeast quadrant on November 13, was spotless the next day and reemerged on Nov.15. Location at midnight: N20E13
[S1325] rotated into view at the southeast limb on November 15. Location at midnight: S23E80
[S1326] emerged in the southeast quadrant near the central meridian on November 15. Location at midnight: S33E01

Coronal mass ejections (CMEs)

November 13-15: No obviously Earth directed CMEs observed.

Coronal holes

Coronal hole history (since late October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

No obvious coronal holes are near Earth facing positions.

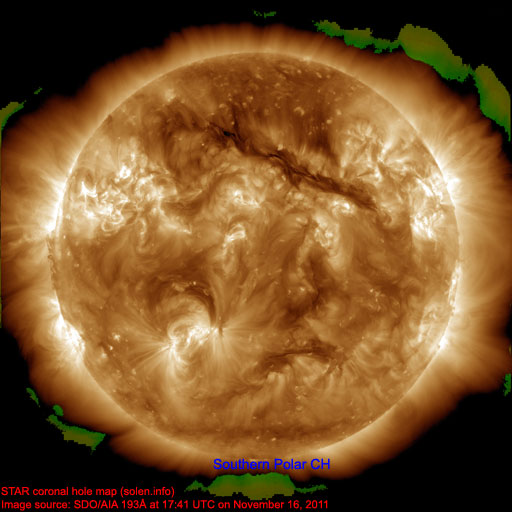

The above coronal hole map is based on a new method where coronal holes are detected automatically. The method may need some fine tuning, however, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using the new method, the extent and intensity of both holes are consistent with other data sources.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor to fair.

Forecast

The geomagnetic field is expected to be quiet on November 16-18.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)



1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Active solar regions

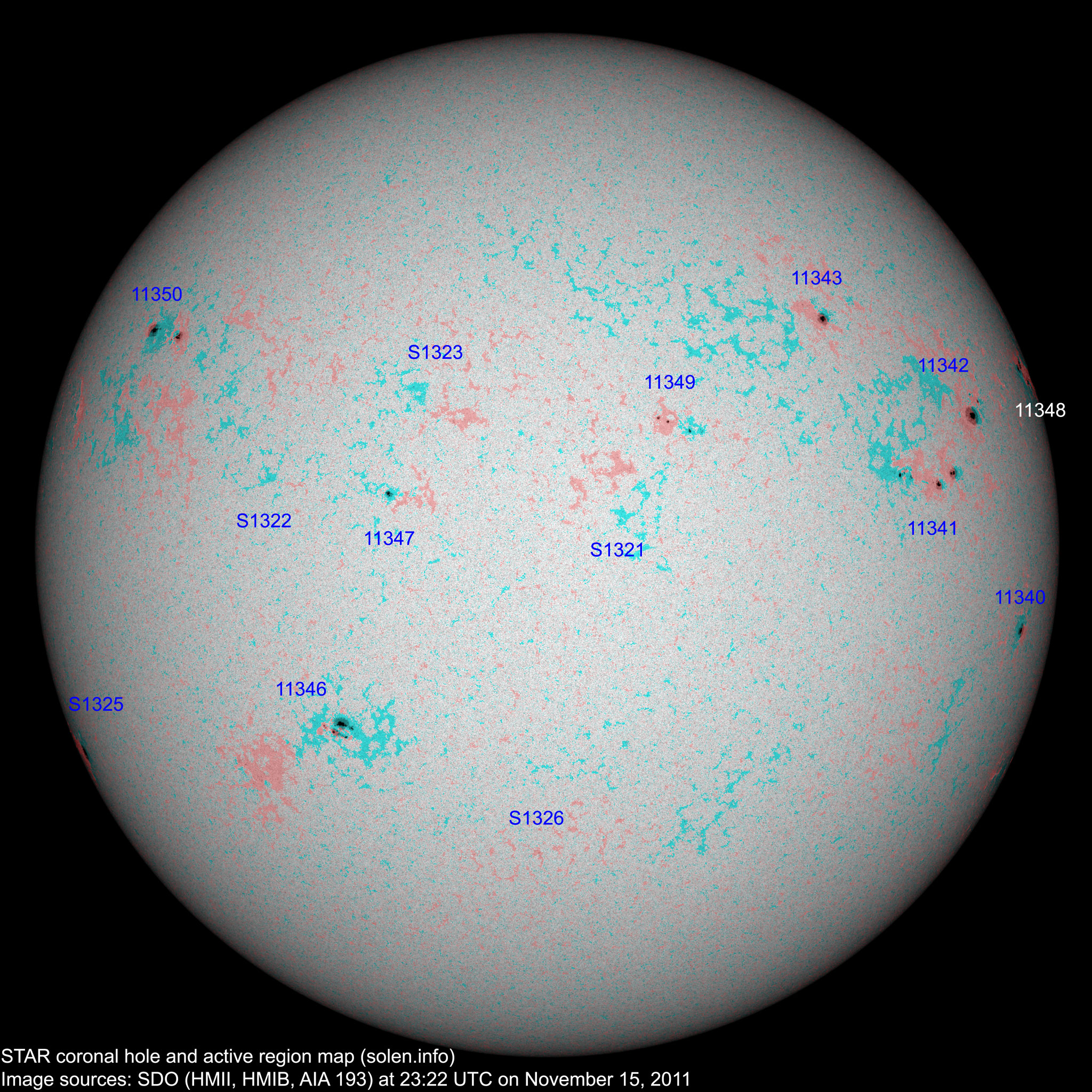

(Click on image for higher resolution image) Compare to the previous day's image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlay
Comment
SWPC STAR SDO SWPC STAR Current Previous
11340 2011.11.04
2011.11.05
1 1 S08W70 0070 HSX HSX
11341 2011.11.05 7 11 N09W49 0120 DSO DSO



11342 2011.11.05 1 3 N17W62 0110 HSX CSO

area: 0210

11343 2011.11.05
2011.11.06
1 2 N28W39 0070 HSX HSX location: N29W38
S1315 2011.11.08     S20W37           plage
11345 2011.11.09     S24W85

plage

S1318 2011.11.10     N15W28           plage
11346 2011.11.11
2011.11.12
5 15 S18E27 0120 DSO DAO beta-gamma-delta

area: 0210

11347 2011.11.12
2011.11.13
2 5 N08E14 0030 HAX HRX
S1321 2011.11.12   3 N10W09 0000   BXO
S1322 2011.11.13   1 N10E34 0000   AXX
S1323 2011.11.13   2 N20E13 0000   BXO
11348 2011.11.13
2011.11.14
5 7 N20W84 0120 DSO DHO beta-gamma-delta

area: 0400

11349 2011.11.14 8 6 N15W16 0020 CRO DRO
11350 2011.11.14 5 6 N26E53 0170 DSO DSO location: N26E56
11351 2011.11.14 2   S24E37 0010 BXO       SWPC has decided that the trailing spots of region 11346 is an independent region
S1325 2011.11.15   1 S23E80 0100   HSX
S1326 2011.11.15   1 S33E01 0000   AXX
Total spot count: 37 64
Sunspot number: 137 204  (total spot count + 10 * number of spotted regions)
Classification adjusted SN: 80 115  (Sum of total spot count + classification adjustment for each AR. Classification adjustment: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 82 92  k * (sunspot number). k = 0.6 for SWPC. k = 0.45 (changed from 0.33 on Nov.1) for STAR SDO

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2008.07 65.7 (SF minimum) 0.5 2.8 (-0.4)
2008.12 69.2 0.8 1.7 (-)
sunspot minimum
3.25
2010.07 79.8 16.1 16.7 (+0.3) 6.31 / 5.15
2010.08 79.2 19.6 17.4 (+0.7) 8.49 / 7.77
2010.09 81.1 25.2 19.6 (+2.2) 5.33 / 5.45
2010.10 81.6 23.5 23.2 (+3.6) 6.07 / 6.27
2010.11 82.5 21.5 26.5 (+3.3) 4.80 / 5.50
2010.12 84.2 14.4 28.8 (+2.3) 3.41 / 4.35
2011.01 83.6 19.1 31.0 (+2.2) 4.32 / 5.51
2011.02 94.6 29.4 33.4 (+2.4) 5.41 / 6.44
2011.03 115.0 56.2 36.9 (+3.5) 7.79 / 8.18
2011.04 112.6 54.4 41.8 (+4.9) 9.71 / 8.83
2011.05 95.8 41.6 (47.4 predicted, +5.6) 9.18 / 8.94
2011.06 95.8 37.0 (52.5 predicted, +5.1) 8.96 / 8.06
2011.07 94.2 43.9 (58.2 predicted, +5.7) 9.14 / 8.16
2011.08 101.7 50.6 (63.7 predicted, +5.5) 8.16 / 7.26
2011.09 133.8 78.0 (67.0 predicted, +3.3) 12.80 / 12.27
2011.10 137.3 88.0 (70.5 predicted, +3.5) 7.52
2011.11  167.0 (1) 71.8 (2A) / 143.7 (2B) (74.9 predicted, +4.4) (4.75)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Month average to date.
3) Running average based on the preliminary daily SWPC ap indices. Values in red are based on the official NGDC ap indices.

This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
