Solar Terrestrial Activity Report

Last major update issued on November 24, 2011 at 05:30 UTC.

[Solar and geomagnetic data - last month (updated daily)]
[Solar wind and electron fluence charts (updated daily)
[Solar cycles 21-24 (last update November 1, 2011)]
[Solar cycles 1-20]
[Graphical comparison of cycles 21, 22, 23 and 24 (last update November 1, 2011)]
[Graphical comparison of cycles 10, 12, 13, 14, 16 and 24 (last update November 1, 2011)]
[Historical solar and geomagnetic data charts 1954-2006 (last update April 5, 2007)]
[Archived reports since January 2003 (last update November 2, 2011)]

[POES auroral activity level since October 2009 - updated November 23, 2011]
Annotated geomagnetic activity charts - Carrington rotation 2114 [August-September 2011] - 2115 [September-October 2011]
[Solar polar fields vs solar cycles - updated June 27, 2011]

Recent activity

The geomagnetic field was quiet on November 23. Solar wind speed ranged between 347 and 465 km/s under the influence of a relatively low speed stream from CH485.

Solar flux measured at 20h UTC on 2.8 GHz was 140.0 (increasing 8.5 over the last solar rotation). The planetary A index was 5 (STAR Ap - based on the mean of three hour interval ap indices: 5.0). Three hour interval K indices: 22111112 (planetary), 22212222 (Boulder).

The background x-ray flux is at the class B4 level.

At midnight UTC the visible solar disk had 9 spotted regions (in 2K resolution SDO images).

Region 11346 [S16W85] rotated to the southwest limb and was mostly quiet. Flare: C2.6 at 13:28 UTC
Region 11352 [S25W24] decayed slowly and quietly.
Region 11353 [N08W07] was quiet and stable.
Region 11354 [S17W07] decayed slowly and quietly.
Region 11355 [N14E07] was quiet and stable.
Region 11356 [N16E29] simplified magnetically but could still produce occasional C flares and maybe a minor M class flare. Flare: C2.0 at 03:11 UTC
Region 11357 [N18W56] was mostly quiet and stable. Flare: C1.0 at 05:28 UTC
Region 11358 [N20E67] rotated fully into view revealing a few small trailing spots. Flare: C2.3 at 07:23 UTC

Spotted regions not reported by NOAA/SWPC:
[S1334] emerged in the northeast quadrant on November 19, was spotless the next day and reemerged on Nov.21. Location at midnight: N16W37

Coronal mass ejections (CMEs)

November 21, 23: No obviously Earth directed CMEs observed.
November 22: A filament eruption between regions 11356 and 11355 began near 06:24 UTC and caused a weak partial halo CME as observed by SOHO/LASCO.

Coronal holes

Coronal hole history (since late October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A coronal hole (CH486) in the southern hemisphere will likely rotate into an Earth facing position on November 26-27.

The above coronal hole map is based on a new method where coronal holes are detected automatically. The method may need some fine tuning, however, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using the new method, the extent and intensity of both holes are consistent with other data sources.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor to fair. Propagation on long distance northeast-southwest paths is poor to fair.

Forecast

The geomagnetic field is expected to be quiet on November 24-26. On Nov.26 there's a possibility of weak CME effects from the CME observed on Nov.22.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)



1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Active solar regions

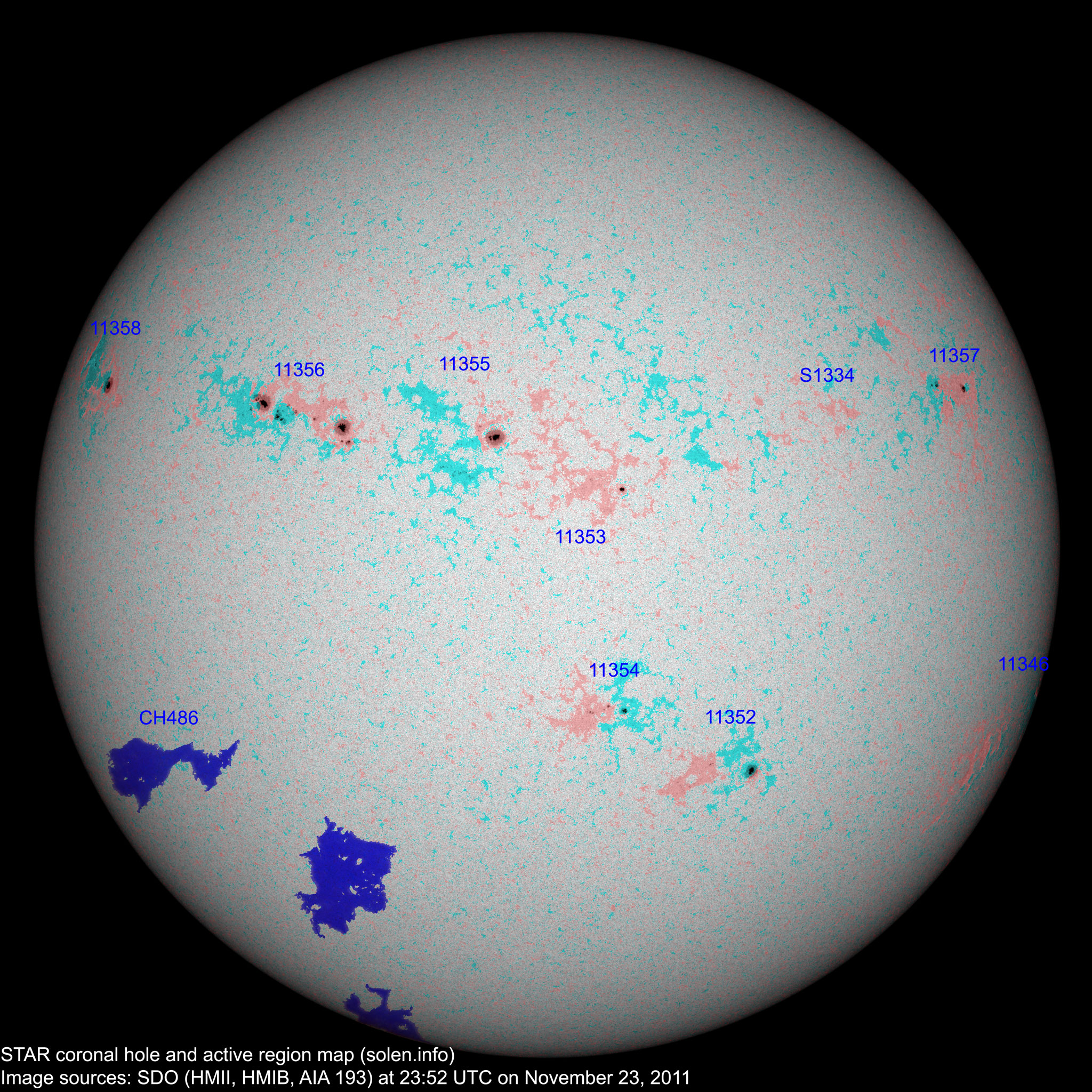

Click on image for higher resolution image) Compare to the previous day's image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlay
Comment
SWPC STAR SDO SWPC STAR Current Previous
11346 2011.11.11
2011.11.12
3 1 S15W82 0030 CSO AXX



11350 2011.11.14     N25W53           plage
11352 2011.11.15
2011.11.16
1 5 S25W27 0060 HSX CSO

location: S25W24

S1327 2011.11.16     S25W41           plage
11354 2011.11.16
2011.11.17
7 9 S17W09 0040 CSO DSO
11353 2011.11.16
2011.11.17
2 7 N08W10 0010 AXX HRX
11355 2011.11.17
2011.11.18
10 24 N14E06 0100 CSO CSO

area: 0240

11357 2011.11.17
2011.11.20
8 11 N18W55 0040 DSO DSO
S1332 2011.11.18     N24E12           plage
11356 2011.11.19 11 26 N15E28 0300 EAO ESI

location: N16E29

S1333 2011.11.19     N11W18         plage
S1334 2011.11.19   2 N16W37 0000   AXX
11358 2011.11.22 1 6 N19E63 0090 HSX CSO area: 0140

location: N20E67

Total spot count: 43 91
Sunspot number: 123 181  (total spot count + 10 * number of spotted regions)
Classification adjusted SN: 78 124  (Sum of total spot count + classification adjustment for each AR. Classification adjustment: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 74 81  k * (sunspot number). k = 0.6 for SWPC. k = 0.45 (changed from 0.33 on Nov.1) for STAR SDO

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2008.07 65.7 (SF minimum) 0.5 2.8 (-0.4)
2008.12 69.2 0.8 1.7 (-)
sunspot minimum
3.25
2010.07 79.8 16.1 16.7 (+0.3) 6.31 / 5.15
2010.08 79.2 19.6 17.4 (+0.7) 8.49 / 7.77
2010.09 81.1 25.2 19.6 (+2.2) 5.33 / 5.45
2010.10 81.6 23.5 23.2 (+3.6) 6.07 / 6.27
2010.11 82.5 21.5 26.5 (+3.3) 4.80 / 5.50
2010.12 84.2 14.4 28.8 (+2.3) 3.41 / 4.35
2011.01 83.6 19.1 31.0 (+2.2) 4.32 / 5.51
2011.02 94.6 29.4 33.4 (+2.4) 5.41 / 6.44
2011.03 115.0 56.2 36.9 (+3.5) 7.79 / 8.18
2011.04 112.6 54.4 41.8 (+4.9) 9.71 / 8.83
2011.05 95.8 41.6 (47.4 predicted, +5.6) 9.18 / 8.94
2011.06 95.8 37.0 (52.5 predicted, +5.1) 8.96 / 8.06
2011.07 94.2 43.9 (58.2 predicted, +5.7) 9.14 / 8.16
2011.08 101.7 50.6 (63.7 predicted, +5.5) 8.16 / 7.26
2011.09 133.8 78.0 (67.0 predicted, +3.3) 12.80 / 12.27
2011.10 137.3 88.0 (70.5 predicted, +3.5) 7.52
2011.11  158.3 (1) 104.1 (2A) / 135.7 (2B) (74.9 predicted, +4.4) (4.24)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Month average to date.
3) Running average based on the preliminary daily SWPC ap indices. Values in red are based on the official NGDC ap indices.

This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
