The geomagnetic field was quiet to unsettled on April 17. Solar wind speed at SOHO ranged between 289 and 408 km/s, after 04h UT under the influence of a low speed stream from CH513.
Solar flux measured at 20h UTC on 2.8 GHz was 113.8 (increasing 13.9 over the last solar rotation). The Potsdam WDC planetary A index was 12 (STAR Ap - based on the mean of three hour interval ap indices: 12.0). Three hour interval K indices: 21333333 (planetary), 10323332 (Boulder).
The background x-ray flux is at the class B3 level.
At midnight UTC the visible solar disk had 13 spotted active regions (in 2K resolution SDO images).
Region 11455 [N06W79] decayed slowly and was mostly quiet.
Region 11457 [N22W07] was quiet and stable.
Region 11458 [N08E31] was quiet and stable.
Region 11459 [S16E42] developed slowly adding spots and penumbral area and
was mostly quiet. C and minor M class
flares are possible. There's minor polarity intermixing.
Region 11460 [N15E27] developed significantly and has minor polarity
intermixing. C flares are possible.
New region 11461 [N12E66] rotated into view at the northeast limb on
April 16 and was assigned a number by SWPC one day later.
New region 11462 [S24W05] emerged in the southeast quadrant on April 14
and was noticed by SWPC 3 days later.
Spotted active regions not numbered by NOAA/SWPC:
S1581 [N05W21] reemerged with a tiny spot.
S1591 [S27E27] was quiet and stable.
S1593 [N16E03] was quiet and stable.
New region S1595 [S27W02] emerged near AR 11462 with a few spots.
New region S1596 [N08W39] emerged in the northwest quadrant and has
potential for further development.
New region S1597 [S27W23] emerged in the southwest quadrant.
April 15 and 17: No obviously Earth directed CMEs were observed in LASCO and
STEREO imagery.
April 16: A partial halo CME was observed after the M1 event in region
S1592. There's a chance of a flank CME impact on April 19.
Coronal hole history (since October
2002)
Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago
A coronal hole (CH514) in the northern hemisphere will likely rotate into an Earth facing position on April 21.
The above coronal hole map is based on a method where coronal holes are detected automatically. While the method may need some fine tuning, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using this method, the extent and intensity of both CHs are consistent with other data sources.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is fair to good.
The geomagnetic field is expected to be quiet to active on April 18 due to effects from CH513 and quiet on April 19-20. There's a chance of a weak CME impact on April 19.
Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

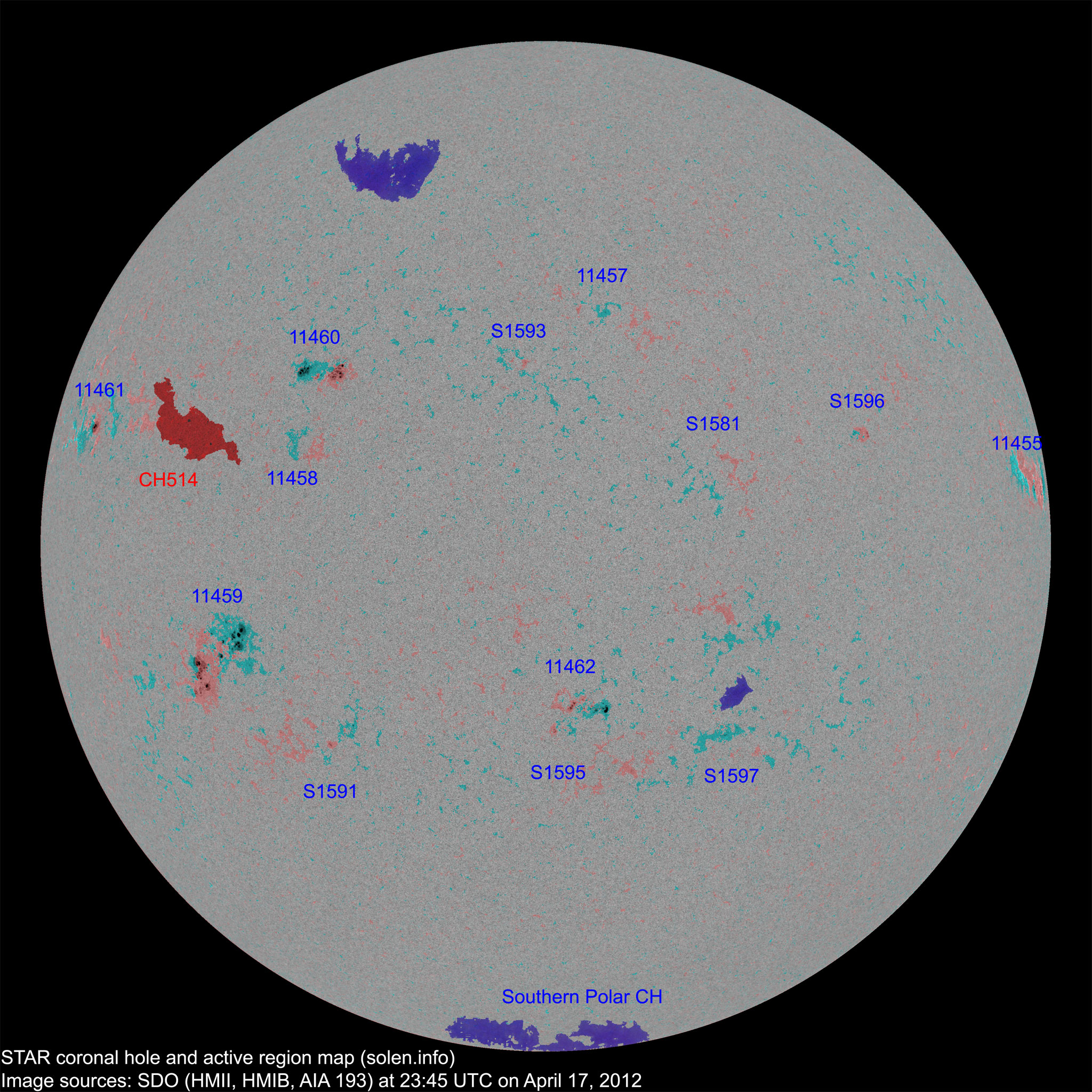

Click on image for higher resolution image) Compare to the previous day's image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlay |
Comment | ||||
---|---|---|---|---|---|---|---|---|---|---|---|
SWPC | STAR SDO | SWPC | STAR | Current | Previous | ||||||
2K | 1K | ||||||||||
11454 | 2012.04.09 2012.04.10 |
S12W28 | plage | ||||||||
S1575 | 2012.04.10 | S27W32 | plage | ||||||||
11455 | 2012.04.10 2012.04.11 |
3 | 6 | 1 | N05W78 | 0030 | CAO | CRO | |||
S1581 | 2012.04.12 | 1 | N05W21 | 0000 | AXX | ||||||
11457 | 2012.04.12 2012.04.13 |
1 | N20W11 | 0000 | AXX |
location: N22W07 |
|||||
S1583 | 2012.04.13 | S31W17 | plage | ||||||||
S1585 | 2012.04.13 | S21W39 | plage | ||||||||
11458 | 2012.04.14 | 1 | N06E26 | 0000 | AXX |
area: 0000 location: N08E31 |
|||||

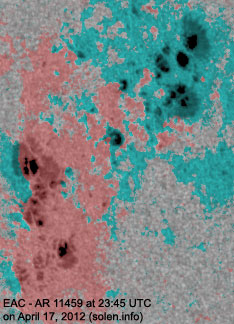

11459 | 2012.04.14 | 11 | 47 | 20 | S15E40 | 0150 | DAO | EAC |
beta-gamma area: 0500 |
||
11462 | 2012.04.14 2012.04.17 |
7 | 13 | 6 | S23W07 | 0030 | CAO | DRI | location: S24W05 | ||
S1589 | 2012.04.14 | N26W56 | plage | ||||||||
11460 | 2012.04.15 2012.04.16 |
6 | 25 | 8 | N16E26 | 0050 | DSO | DAO |
beta-gamma area: 0250 |
||
S1591 | 2012.04.16 | 2 | 2 | S27E27 | 0010 | CRO | |||||
11461 | 2012.04.16 2012.04.17 |
1 | 3 | 1 | N13E66 | 0040 | HSX | HSX | |||
S1593 | 2012.04.16 | 1 | N16E03 | 0000 | AXX | ||||||
S1594 | 2012.04.16 | S14E04 | plage | ||||||||
S1595 | 2012.04.17 | 3 | 1 | S27W02 | 0010 | BXO | |||||
S1596 | 2012.04.17 | 3 | 2 | N08W39 | 0010 | BXO | |||||
S1597 | 2012.04.17 | 2 | 1 | S27W23 | 0000 | AXX | |||||
Total spot count: | 28 | 108 | 41 | ||||||||
Sunspot number: | 78 | 238 | 131 | (total spot count + 10 * number of spotted regions) | |||||||
Weighted penumbral SN: | 53 | 132 | 65 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
Relative sunspot number (Wolf number): | 47 | 83 | 72 | k * (sunspot number). k = 0.6 for SWPC, k = 0.35 (changed from 0.45 on March 1, 2011) for STAR SDO 2K, k = 0.55 for STAR SDO 1K |
Month | Average measured solar flux | International sunspot number (SIDC) | Smoothed sunspot number | Average ap (3) |
---|---|---|---|---|
2008.07 | 65.7 (SF minimum) | 0.5 | 2.8 (-0.4) | |
2008.12 | 69.2 | 0.8 | 1.7 (-) sunspot minimum |
|
2011.01 | 83.6 | 19.1 | 31.0 (+2.2) | 5.51 |
2011.02 | 94.6 | 29.4 | 33.4 (+2.4) | 6.44 |
2011.03 | 115.0 | 56.2 | 36.9 (+3.5) | 8.18 |
2011.04 | 112.6 | 54.4 | 41.8 (+4.9) | 8.83 |
2011.05 | 95.8 | 41.6 | 47.6 (+5.8) | 8.94 |
2011.06 | 95.8 | 37.0 | 53.2 (+5.6) | 8.06 |
2011.07 | 94.2 | 43.9 | 57.2 (+4.0) | 8.16 |
2011.08 | 101.7 | 50.6 | 59.0 (+1.8) | 7.26 |
2011.09 | 133.8 | 78.0 | 59.5 (+0.5) | 12.27 |
2011.10 | 137.3 | 88.0 | (60.1 projected, +0.6) | 8.28 |
2011.11 | 153.5 | 96.7 | (61.6 projected, +1.5) | 5.55 |
2011.12 | 141.3 | 73.0 | (64.3 projected, +2.7) | 3.78 |
2012.01 | 132.5 | 58.3 | (67.8 projected, +3.5) | 7.15 |
2012.02 | 106.5 | 33.1 | (71.8 projected, +4.0) | 8.81 |
2012.03 | 114.7 | 64.2 | (73.9 projected, +2.1) | 16.08 |
2012.04 | 100.1 (1) | 28.7 (2A) / 50.7 (2B) | (74.9 projected, +1.0) | (11.89) |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The
official SIDC international sunspot number is typically 30-50% lower. 2B) Month
average to date.
3) Running average based on the quicklook Potsdam WDC ap indices.
Values in red are based on the definitive
international Potsdam
WDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
