Recent activity

The geomagnetic field was quiet on December 16. Solar wind speed at SOHO ranged between 347 and 457 km/s under the influence of the weak disturbance which began on Dec.14.

Solar flux measured at 20h UTC on 2.8 GHz was 119.5 (decreasing 14.4 over the last solar rotation). The Potsdam WDC planetary A index was 5 (STAR Ap - based on the mean of three hour interval ap indices: 4.9). Three hour interval K indices: 11112111 (planetary), 20333211 (Boulder).

The background x-ray flux was at the class B5 level.

At midnight UTC the visible solar disk had 8 spotted active regions (in 2K resolution SDO images).

Region 11628 [N11W74] decayed slowly and quietly.
Region 11631 [N20W61] decayed slowly and quietly.
Region 11632 [N17W71] developed slowly and quietly.
Region 11633 [S07E55] was quiet and stable. The region has minor polarity intermixing.
Region 11634 [S13E57] was quiet and stable.

Spotted regions not numbered by NOAA/SWPC:
S2107 [N15W24] decayed slowly and quietly.
S2115 [N04W47] reemerged with tiny spots.
S2116 [N08E17] reemerged with tiny spots.

An active region is approaching the northeast limb and could rotate into view later today. The region could produce C and maybe minor M class flares.

Coronal mass ejections (CMEs)

December 14-16: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.

Coronal holes

Coronal hole history (since October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

No obvious coronal holes are currently in or near Earth facing positions.

Coronal hole map

The above coronal hole map is based on a method where coronal holes are detected automatically. While the method may need some fine tuning, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using this method, the extent and intensity of both CHs are consistent with other data sources.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor to fair. Propagation on long distance northeast-southwest paths is fair.

Forecast

The geomagnetic field is expected to be quiet with a chance of unsettled intervals on December 17-19.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

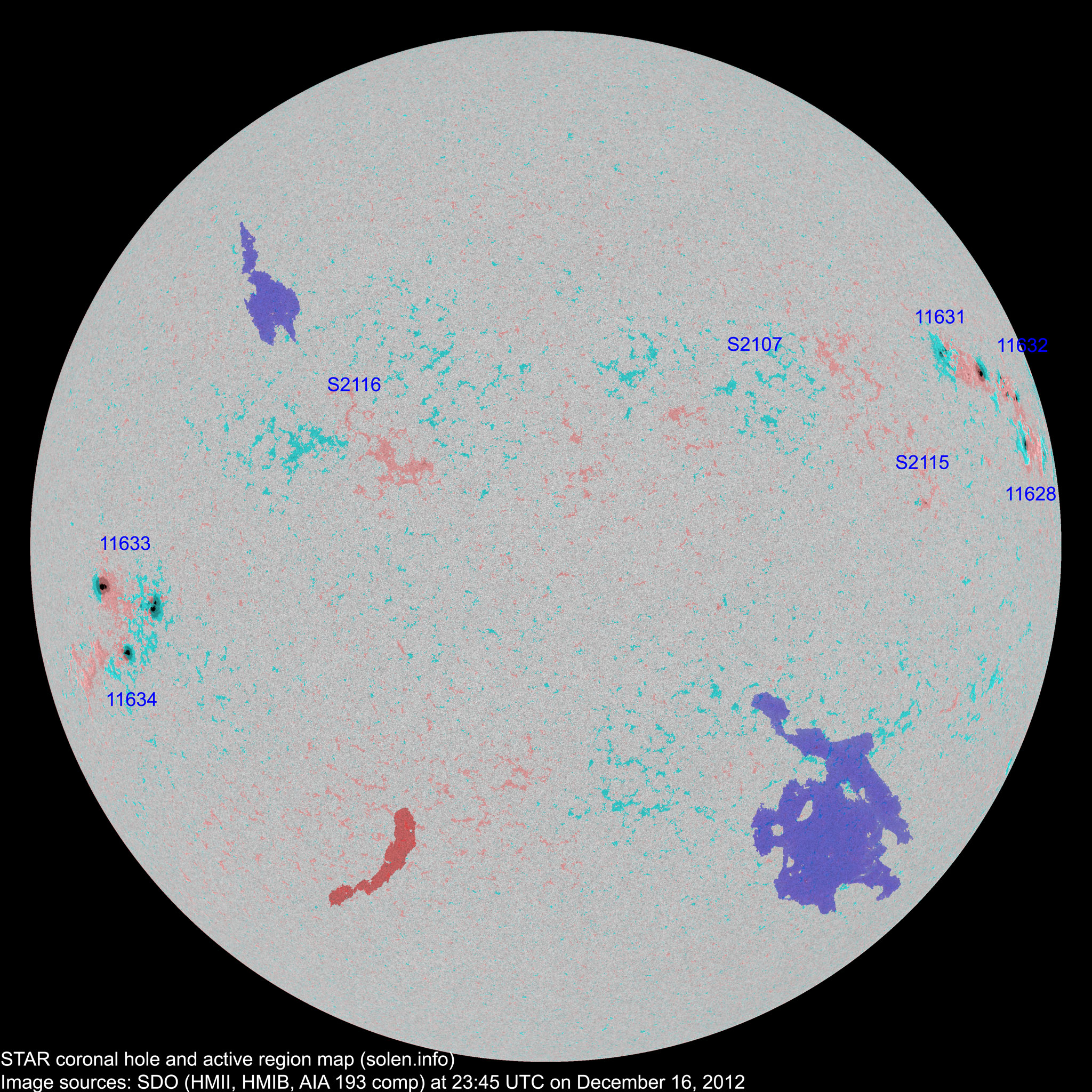

Active solar regions

Click on image for higher resolution image) Compare to the previous day's image. 0.5k image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlay
Comment
SWPC STAR SDO SWPC STAR Current Previous
2K 1K
11628 2012.12.04
2012.12.05
  3 2 N09W87 0130   DAO location: N11W74

see AR 11629

11629 2012.12.08 7     N11W75 0080 DSO       same as AR 11628
S2101 2012.12.08       S17W59           plage
S2102 2012.12.09       N05W53           plage
S2105 2012.12.10       S27W39           plage
S2106 2012.12.10       S21W25           plage
S2107 2012.12.10   1   N15W24 0000   AXX
11631 2012.12.11
2012.12.12
15 12 5 N20W60 0140 DSI DSO

area: 0250

11632 2012.12.12   7 4 N17W70 0050   DRO
S2112 2012.12.13       N14W15         plage
S2113 2012.12.13       S13W28           plage
11633 2012.12.14
2012.12.15
11 13 6 S07E54 0260 EHO EKO area: 0480
S2115 2012.12.14   2 1 N04W47 0010   BXO
S2116 2012.12.14   5   N08E17 0000   BXO
11634 2012.12.15 1 1 1 S12E56 0090 HSX HSX area: 0150

location: S13E57

Total spot count: 34 44 19
Sunspot number: 74 124 79  (total spot count + 10 * number of spotted regions)
Weighted SN: 59 72 47  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 44 43 43 k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for STAR SDO 2K, k = 0.55 for STAR SDO 1K

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2011.09 133.8 78.0 59.5 (+0.5) 12.27
2011.10 137.3 88.0 59.9 (+0.4) 8.28
2011.11 153.5 (cycle max) 96.7 (cycle max) 61.1 (+1.2) 5.55
2011.12 141.3 73.0 63.4 (+2.3) 3.78
2012.01 132.5 58.3 65.5 (+2.1) 7.15
2012.02 106.5 32.9 66.9 (+1.4)
possible cycle 24 max
8.81
2012.03 114.7 64.3 66.8 (-0.1) 16.08
2012.04 113.0 55.2 64.6 (-2.2) 10.10
2012.05 121.5 69.0 61.7 (-2.9) 7.06
2012.06 119.6 64.5 (59.5 projected, -2.2) 10.08
2012.07 133.9 66.5 (58.8 projected, -0.7) 13.90
2012.08 115.4 63.1 (60.1 projected, +1.3) 7.96
2012.09 122.9 61.5 (61.1 projected, +1.0) 8.07
2012.10 123.3 53.3 (60.7 projected, -0.4) 9.97
2012.11 121.3 61.4 (60.0 projected, -0.7) 7.08
2012.12 105.3 (1) 29.5 (2A) / 57.2 (2B) / 48.9 (2C) (59.3 projected, -0.7) (3.38)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Boulder SN current month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
