Last major update issued on February 26, 2012 at 06:15 UTC.

[Solar and geomagnetic data - last month (updated daily)]
[Solar wind and electron fluence charts (updated daily)
[Solar cycles 21-24 (last update February 2, 2012)]
[Solar cycles 1-20]
[Graphical comparison of cycles 21, 22, 23 and 24 (last update February 2, 2012)]
[Graphical comparison of cycles 10, 12, 13, 14, 16 and 24 (last update February 2, 2012)]
[Historical solar and geomagnetic data charts 1954-2006 (last update April 5, 2007)]
[Archived reports since January 2003 (last update February 5, 2012)]

[POES auroral activity level since October 2009 - updated February 24, 2012]
Annotated geomagnetic activity charts - Carrington rotation 2118 [December 2011 - January 2012] - 2119 [January-February 2012]
[Solar polar fields vs solar cycles - updated June 27, 2011]

Recent activity

The geomagnetic field was quiet to unsettled on February 25. Solar wind speed ranged between 353 and 435 km/s under the influence of a low speed stream from CH502.

Solar flux measured at 20h UTC on 2.8 GHz was 108.0 (decreasing 1.8 over the last solar rotation). The planetary A index was 6 (STAR Ap - based on the mean of three hour interval ap indices: 5.8). Three hour interval K indices: 00123021 (planetary), 10233221 (Boulder).

The background x-ray flux is at the class B3 level.

At midnight UTC the visible solar disk had 9 spotted active regions (in 2K resolution SDO images).

Region 11421 [N17W33] decayed slowly and was quiet.
Region 11422 [N15W77] decayed slowly and quietly.
Region 11423 [N17E44] was quiet and stable.
Region 11424 [N07E56] developed slowly and quietly.

Spotted regions not reported by NOAA/SWPC:
[S1489] emerged in the southeast quadrant on February 22. Location at midnight: S15W06
[S1490] reemerged on February 25. Location at midnight: S22E12
[S1493] reemerged on February 25. Location at midnight: N18E26
[S1494] emerged in the northeast quadrant on February 24. Location at midnight: N15E56
[S1495] emerged in the southeast quadrant on February 25. Location at midnight: S20E27

Coronal mass ejections (CMEs)

February 23, 25: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.
February 24: A very long filament in the northeast quadrant (starting to the east of AR 11421, then curving southwards before continuing northeastwards to and beyond the northeast limb) began erupting in the evening of February 23. A relatively faint asymmetric full halo CME was observed in LASCO C3 images early in the day.

Coronal holes

Coronal hole history (since October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A recurrent coronal hole (CH503) in the northern hemisphere willl likely rotate into an Earth facing position on February 26-27. A short lived coronal hole (CH504) formed in the northern hemisphere between AR 11421 and the filament which erupted on Feb.23-24. CH504 rotated across the central meridian and had almost closed by the end of Feb.24.

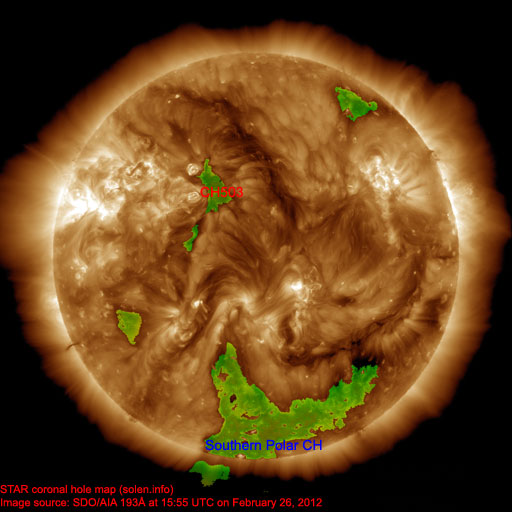

The above coronal hole map is based on a method where coronal holes are detected automatically. While the method may need some fine tuning, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using this method, the extent and intensity of both CHs are consistent with other data sources.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor to fair. Propagation on long distance northeast-southwest paths is poor to fair.

Forecast

The geomagnetic field is expected to be intially quiet on February 26. The CME observed early on Feb.24 will likely reach Earth between noon on Feb.26 and early Feb.27. Unsettled to minor storm conditions are possible. The coronal hole (CH504) created by the filament eruption could lengthen the disturbance as a high speed stream is likely to be trailing the CME.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

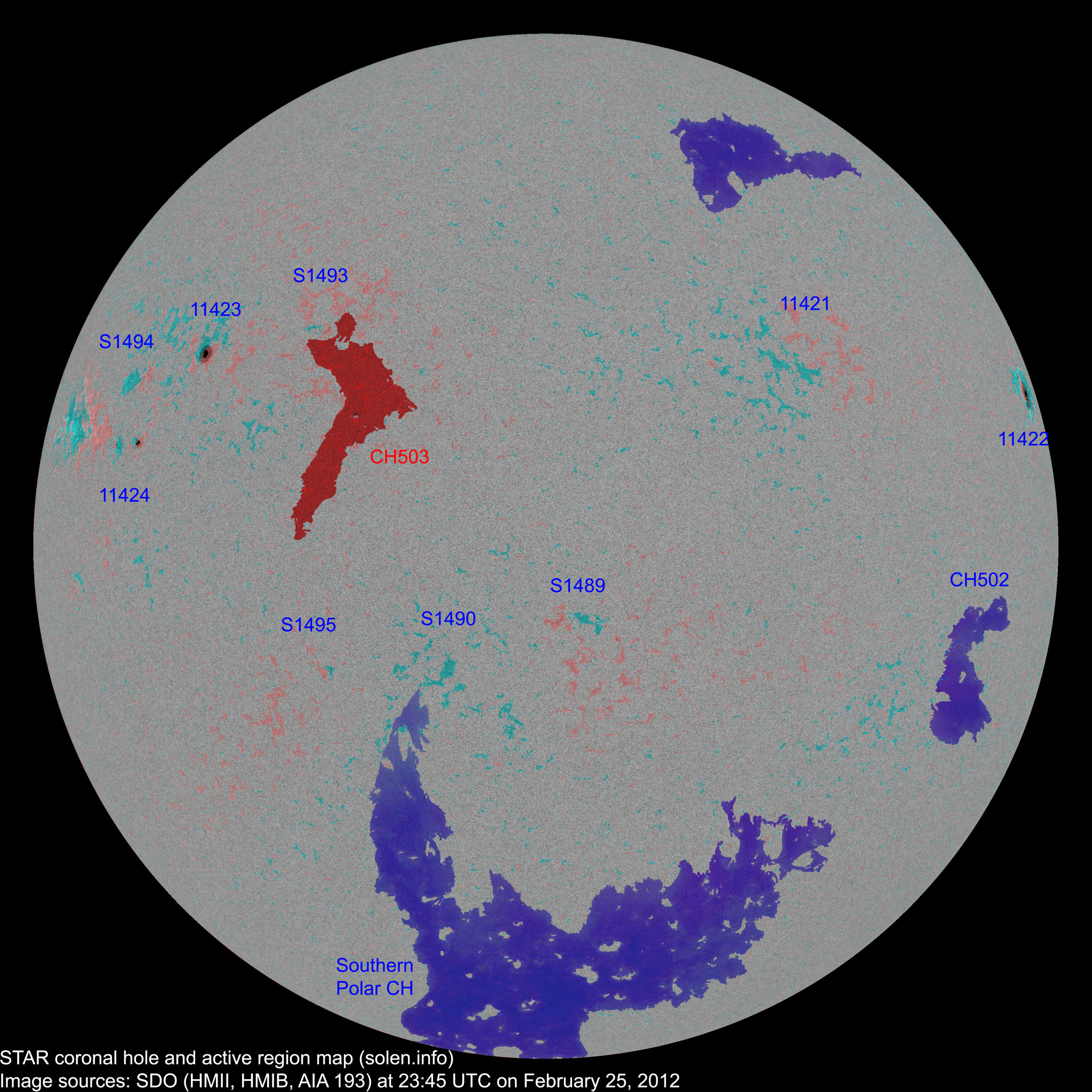

Active solar regions

Click on image for higher resolution image) Compare to the previous day's image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlay
Comment
SWPC STAR SDO SWPC STAR Current Previous
2K 1K
11421 2012.02.17
2012.02.18
  1   N14W34 0000   BXO location: N17W33
11422 2012.02.18
2012.02.19
3 3 2 N15W78 0180 CAO CKO

area: 0300

S1489 2012.02.22   3   S15W06 0000   BXO
S1490 2012.02.22   1 1 S22E12 0000   AXX
11423 2012.02.22
2012.02.23
1 1 1 N18E42 0090 HSX HSX location: N17E44

area: 0200

S1493 2012.02.23   1   N18E26 0000   AXX
11424 2012.02.24 2 5 3 N08E52 0030 CSO CAO location: N07E56
S1494 2012.02.24   4   N15E56 0000   AXX
S1495 2012.02.25   3   S20E27 0000   BXO
Total spot count: 6 22 7
Sunspot number: 36 112 47  (total spot count + 10 * number of spotted regions)
Weighted penumbral SN: 21 42 27  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 22 50    k * (sunspot number). k = 0.6 for SWPC. k = 0.45 (changed from 0.33 on Nov.1, 2011) for STAR SDO 2K

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2008.07 65.7 (SF minimum) 0.5 2.8 (-0.4)
2008.12 69.2 0.8 1.7 (-)
sunspot minimum
3.25
2010.11 82.5 21.5 26.5 (+3.3) 4.80 / 5.50
2010.12 84.2 14.4 28.8 (+2.3) 3.41 / 4.35
2011.01 83.6 19.1 31.0 (+2.2) 4.32 / 5.51
2011.02 94.6 29.4 33.4 (+2.4) 5.41 / 6.44
2011.03 115.0 56.2 36.9 (+3.5) 7.79 / 8.18
2011.04 112.6 54.4 41.8 (+4.9) 9.71 / 8.83
2011.05 95.8 41.6 47.6 (+5.8) 9.18 / 8.94
2011.06 95.8 37.0 53.2 (+5.6) 8.96 / 8.06
2011.07 94.2 43.9 57.2 (+4.0) 9.14 / 8.16
2011.08 101.7 50.6 (60.4 projected, +3.2) 8.16 / 7.26
2011.09 133.8 78.0 (63.1 projected, +2.7) 12.80 / 12.27
2011.10 137.3 88.0 (65.8 projected, +2.7) 7.52 / 8.28
2011.11 153.5 96.7 (69.1 projected, +3.3) 4.58 / 5.55
2011.12 141.3 73.0 (73.9 projected, +4.8) 3.32
2012.01 132.5 58.3 (79.3 projected, +5.4) 6.59
2012.02 106.8 (1) 42.6 (2A) / 49.4 (2B) (82.4 projected, +3.1) (7.79)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Month average to date.
3) Running average based on the preliminary daily SWPC ap indices. Values in red are based on the official NGDC ap indices.

This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
