Recent activity

The geomagnetic field was very quiet on January 14. Solar wind speed ranged between 349 and 460 km/s.

Solar flux measured at 20h UTC on 2.8 GHz was 132.3. The planetary A index was 2 (STAR Ap - based on the mean of three hour interval ap indices: 2.4). Three hour interval K indices: 10001111 (planetary), 01102211 (Boulder).

The background x-ray flux is at the class B6 level.

At midnight UTC the visible solar disk had 13 spotted regions (in 2K resolution SDO images).

Region 11395 [N22W31] decayed slowly and quietly.
Region 11396 [N26W05] lost penumbral area and gained a few spots.
Region 11397 [S19E05] decayed slowly and quietly.
Region 11398 [N13W36] lost many spots and was quiet.
Region 11399 [S23E56] decayed slowly and quietly.
Region 11401 [N17E66] has polarity intermixing and could produce C and minor M class flares. The region displayed significantly less activity than during the previous day.
Region 11402 [N28E67] was mostly quiet and remains capable of producing an M class flare. This region was the source of a very long duration C6.4 event peaking between 04 and 05 UTC on January 16. An associated CME is visible in STEREO-B images.
New region 11403 [S18E28] emerged in the southeast quadrant on January 14 and got an SWPC number the following day.

Spotted regions not reported (or interpreted differently) by NOAA/SWPC:
[S1431] emerged in the northeast quadrant on January 14. Location at midnight: N11E18
[S1432] emerged in the northeast quadrant on January 14. Location at midnight: N13W04
[S1433] emerged in the southwest quadrant on January 14. Location at midnight: S30W53
[S1434] rotated into view at the northeast limb on January 15. Location at midnight: N12E81
[S1435] emerged in the northwest quadrant on January 15. Location at mdnight: N13W15

Coronal mass ejections (CMEs)

January 12-14: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.

Coronal holes

Coronal hole history (since October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A recurrent trans equatorial coronal hole (CH493) was in an Earth facing position on January 12-13. A trans equatorial coronal hole (CH494) could rotate into an Earth facing position on January 17.

The above coronal hole map is based on a method where coronal holes are detected automatically. While the method may need some fine tuning, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using this method, the extent and intensity of both CHs are consistent with other data sources.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor to fair. Propagation on long distance northeast-southwest paths is poor to fair.

Forecast

The geomagnetic field is expected to be quiet to unsettled on January 16-17 due to effects from CH493. Quiet conditions are likely on January 18-20 with a chance of unsettled intervals on January 20 due to effects from CH494.

Coronal holes (1) Coronal mass ejections (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

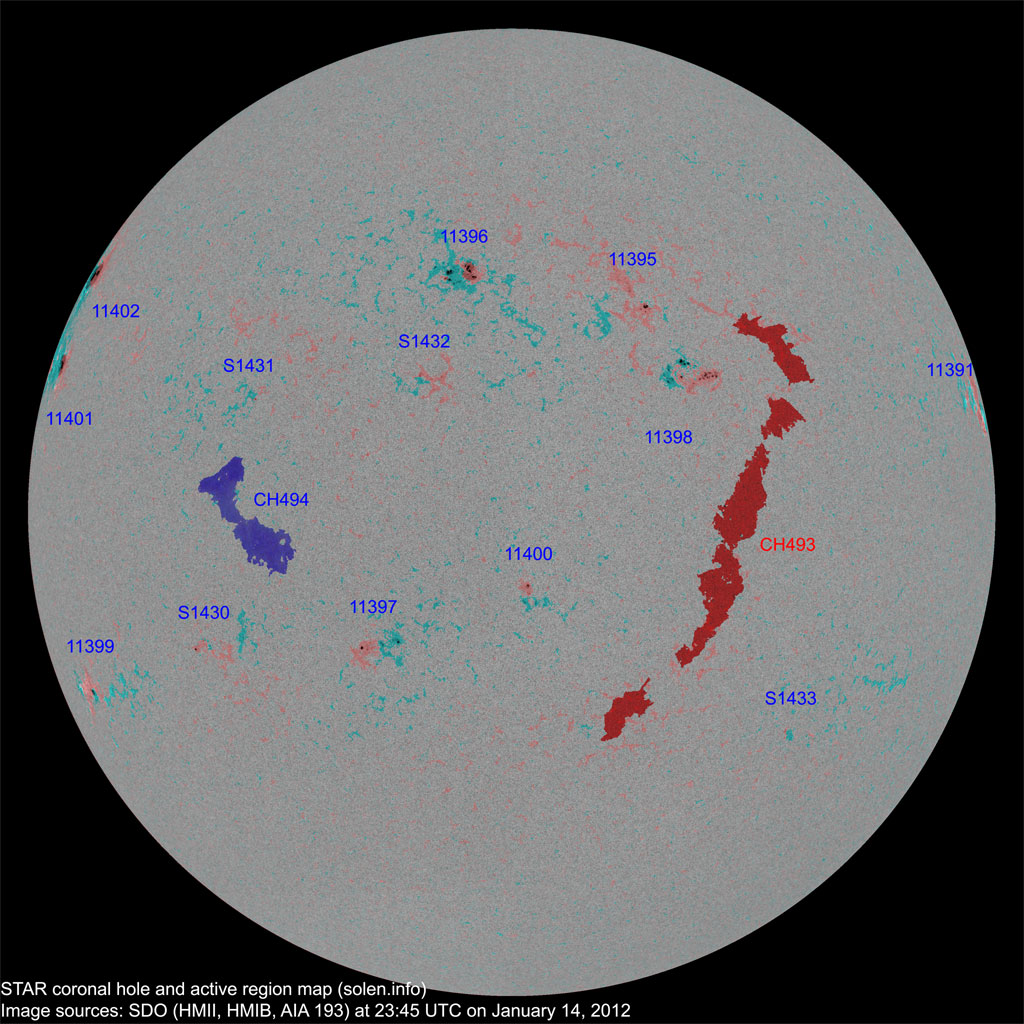

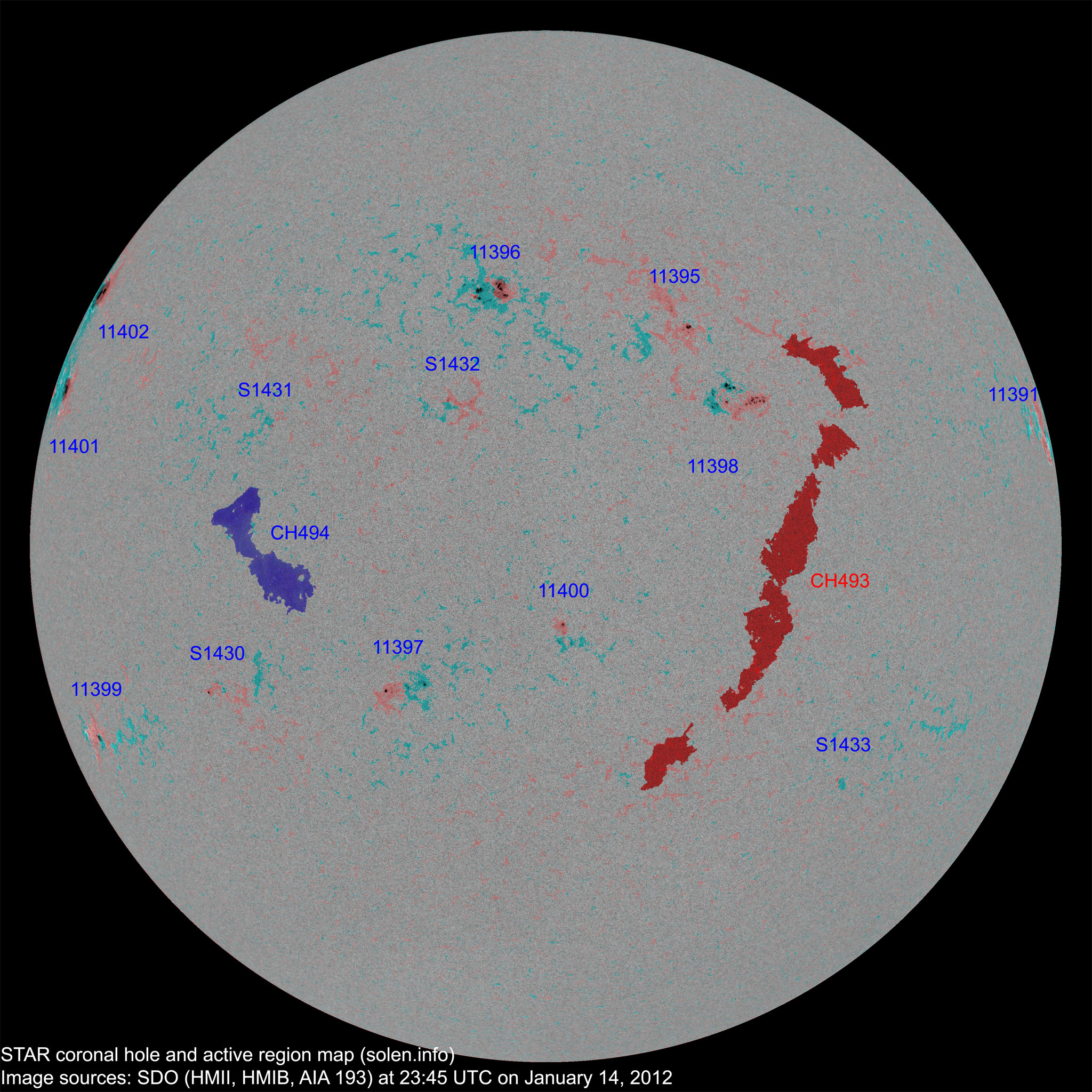

Active solar regions

Click on image for higher resolution image) Compare to the previous day's image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlay
Comment
SWPC STAR SDO SWPC STAR Current Previous
11391 2012.01.02 9 3 N12W80 0120 DAO HRX
11394 2012.01.05
2012.01.06
    N18W70           plage
S1411 2012.01.06     S20W57           plage
11395 2012.01.07
2012.01.08
2 6 N21W18 0020 HSX CRO

location: N22W16

11396 2012.01.09
2012.01.12
15 18 N27E06 0110 DAO CRI location: N26E07
S1422 2012.01.10     S16W30           plage
S1423 2012.01.10     S26W21           plage
S1424 2012.01.11     S16E34           plage
11398 2012.01.11
2012.01.13
13 28 N14W22 0050 DAO DRI
11397 2012.01.12
2012.01.13
4 7 S20E14 0030 DAO BXO location: S19E17
S1427 2012.01.12     S24E08           plage
11399 2012.01.13
2012.01.14
4 3 S24E69 0030 CAO CRO
11400 2012.01.13
2012.01.14
3 6 S14W04 0010 CRO CRO
11401 2012.01.14 2 3 N15E73 0040 HSX CKO

location: N17E76

11402 2012.01.14 3 3 N26E75 0100 HSX CHO area: 0500

location: N28E78

S1430 2012.01.14   2 S18E42 0000   BXO
S1431 2012.01.14   2 N11E33 0000   BXO
S1432 2012.01.14   2 N13E09 0000   AXX
S1433 2012.01.14   2 S30W41 0000   BXO
Total spot count: 55 85
Sunspot number: 145 215  (total spot count + 10 * number of spotted regions)
Weighted penumbral SN: 98 123  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 87 97  k * (sunspot number). k = 0.6 for SWPC. k = 0.45 (changed from 0.33 on Nov.1, 2011) for STAR SDO

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2008.07 65.7 (SF minimum) 0.5 2.8 (-0.4)
2008.12 69.2 0.8 1.7 (-)
sunspot minimum
3.25
2010.10 81.6 23.5 23.2 (+3.6) 6.07 / 6.27
2010.11 82.5 21.5 26.5 (+3.3) 4.80 / 5.50
2010.12 84.2 14.4 28.8 (+2.3) 3.41 / 4.35
2011.01 83.6 19.1 31.0 (+2.2) 4.32 / 5.51
2011.02 94.6 29.4 33.4 (+2.4) 5.41 / 6.44
2011.03 115.0 56.2 36.9 (+3.5) 7.79 / 8.18
2011.04 112.6 54.4 41.8 (+4.9) 9.71 / 8.83
2011.05 95.8 41.6 47.6 (+5.8) 9.18 / 8.94
2011.06 95.8 37.0 53.2 (+5.6) 8.96 / 8.06
2011.07 94.2 43.9 (57.8 projected, +4.6) 9.14 / 8.16
2011.08 101.7 50.6 (62.0 projected, +4.2) 8.16 / 7.26
2011.09 133.8 78.0 (65.3 projected, +3.3) 12.80 / 12.27
2011.10 137.3 88.0 (68.8 projected, +3.5) 7.52
2011.11 153.5 96.7 (73.2 projected, +4.3) 4.58
2011.12 141.3 73.0 (78.6 projected, +5.5) 3.32
2012.01 132.4 (1) 43.8 (2A) / 90.6 (2B) (84.4 projected, +5.8) (4.36)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Month average to date.
3) Running average based on the preliminary daily SWPC ap indices. Values in red are based on the official NGDC ap indices.

This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
