The geomagnetic field was quiet to unsettled on July 4. Solar wind speed at SOHO ranged between 449 and 585 km/s under the decreasing influence of a high speed stream from CH521.
Solar flux measured at 17h UTC on 2.8 GHz was 149.2 (increasing 21.0 over the last solar rotation, the measurement at 20h UTC was flare enhanced). The Potsdam WDC planetary A index was 12 (STAR Ap - based on the mean of three hour interval ap indices: 11.6). Three hour interval K indices: 33332113 (planetary), 33332312 (Boulder).
The background x-ray flux is at the class C5 level.
At midnight UTC the visible solar disk had 11 spotted active regions (in 2K resolution SDO images).
Region 11512 [S15W84] added trailing spots and was quiet.
Region 11513 [N15W37] decayed slowly and remains capable of
producing C and M class flares. Flare:
M1.8/2N at 16:39 UTC. This event was associated with a very weak type II radio
sweep and a small CME. The CME was observed off the east limb in STEREO-A and
west limb in STEREO-B and could reach Earth on July 7. The CME was not easily
observed in LASCO imagery.
Region 11514 [S16W36] decayed slowly and quietly.

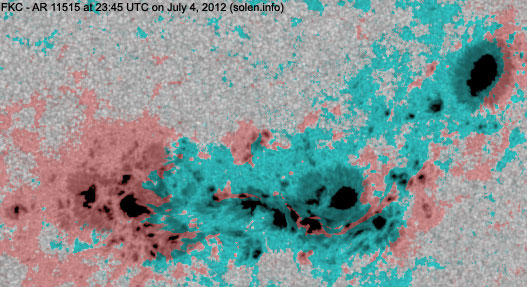

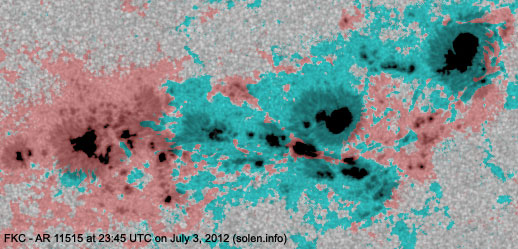

Region 11515 [S18W25] displayed impressive development in the central
spot section. Several magnetic delta structures are evident as negative polarity
spots are trapped inside positive polarity flux. This has caused a significant
increase in the background x-ray level. There's a high probability
of major M or X class flares.
Flares: C5.1/1F at 01:45, C6.1 at 04:10,
M2.3 at 04:37, C6.7 at 09:06, major M5.3/2B at 09:55, C5.8 at 11:17, C5.6 at
14:13, M1.3/1F at 14:40, C8.2 at 14:49, C6.4 at 15:50, C6.9 at 16:12, C9.5 at
21:27, M4.6 at 22:09, C7.4 at 22:45, M1.2 at 23:55 UTC.
Region 11516 [N12W53] decayed slowly and quetly.

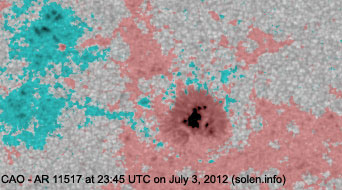

Region 11517 [N19W13] decayed slowly and quietly.
New region 11518 [N09E68] rotated into view on July 3 and was numbered by
SWPC the next day.
New region 11519 [S15E76] rotated into view with a single spot.
Spotted active regions not numbered or interpreted differently by NOAA/SWPC:
S1767 [N20W24] was quiet and stable.

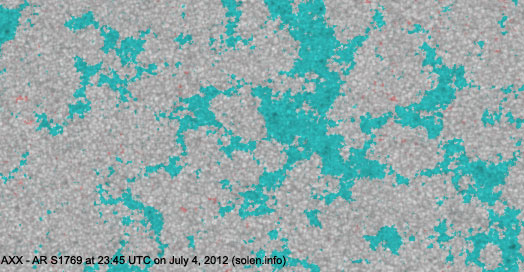

S1769 [N16E03] was quiet and stable.
New region S1774 [S25E73] rotated into view with two small spots.
July 2-3: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.
July 4: A weak CME observed after an M1 flare in AR 11513 could reach
Earth on July 7.
Coronal hole history (since October
2002)
Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago

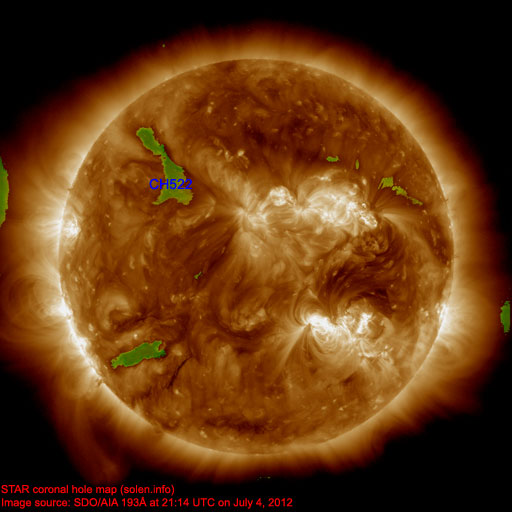

A coronal hole (CH522] in the northern hemisphere could rotate into an Earth facing position on July 6.
The above coronal hole map is based on a method where coronal holes are detected automatically. While the method may need some fine tuning, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using this method, the extent and intensity of both CHs are consistent with other data sources.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is fair to good.
The geomagnetic field is expected to be quiet to unsettled on July 5-7 with a chance of active intervals on July 7 if the CME observed on July 4 reaches Earth.
Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

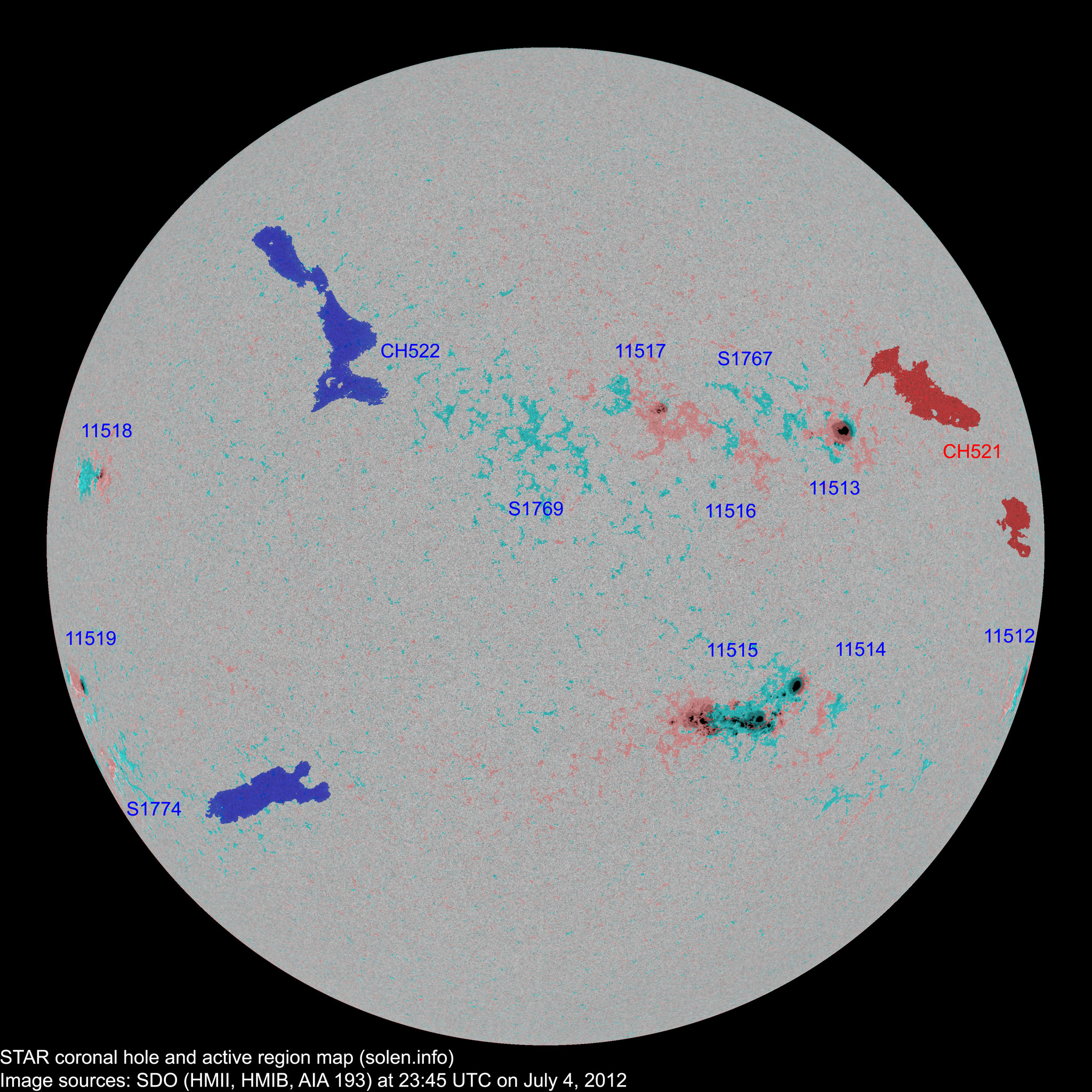

Click on image for higher resolution image) Compare to the previous day's image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlay |
Comment | ||||
---|---|---|---|---|---|---|---|---|---|---|---|
SWPC | STAR SDO | SWPC | STAR | Current | Previous | ||||||
2K | 1K | ||||||||||
11512 | 2012.06.24 2012.06.25 |
1 | 3 | 1 | S15W84 | 0080 | HSX | CSO |
|
||
S1753 | 2012.06.25 | S27W50 | plage | ||||||||
11513 | 2012.06.25 2012.06.26 |
13 | 15 | 9 | N17W36 | 0160 | CSO | DHO |
beta-gamma area: 0290 location: N15W37 |
||
11514 | 2012.06.26 2012.06.27 |
3 | 1 | S14W41 | 0000 | AXX |
location: S16W36 |
||||
11515 | 2012.06.26 2012.06.27 |
45 | 105 | 59 | S17W23 | 0640 | FKC | FKC |
beta-gamma-delta area: 1400 location: S18W25 |
||
11516 | 2012.06.27 2012.06.29 |
4 | 1 | N14W25 | 0000 | BXO | |||||
S1762 | 2012.06.27 | N03W53 | plage | ||||||||
S1765 | 2012.06.29 | S28W41 | plage | ||||||||
11517 | 2012.06.30 2012.07.01 |
7 | 14 | 6 | N19W13 | 0070 | DSO | CAO | area: 0170 | ||
S1767 | 2012.06.30 | 2 | N20W24 | 0000 | AXX | ||||||
S1769 | 2012.07.01 | 7 | 3 | N16E03 | 0000 | AXX | |||||
S1770 | 2012.07.01 | N03W22 | plage | ||||||||
11518 | 2012.07.03 2012.07.04 |
2 | 6 | 3 | N09E65 | 0010 | AXX | CAO |
area: 0030 location: N09E68 |
||
S1773 | 2012.07.03 | N23W38 | plage | ||||||||
11519 | 2012.07.04 | 1 | 1 | 1 | S14E76 | 0030 | HSX | HSX | area: 0080 | ||
S1774 | 2012.07.04 | 2 | S25E73 | 0000 | BXO | ||||||
Total spot count: | 69 | 162 | 84 | ||||||||
Sunspot number: | 129 | 272 | 174 | (total spot count + 10 * number of spotted regions) | |||||||
Weighted penumbral SN: | 99 | 177 | 124 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
Relative sunspot number (Wolf number): | 77 | 95 | 96 | k * (sunspot number). k = 0.6 for SWPC, k = 0.35 (changed from 0.45 on March 1, 2011) for STAR SDO 2K, k = 0.55 for STAR SDO 1K |
Month | Average measured solar flux | International sunspot number (SIDC) | Smoothed sunspot number | Average ap (3) |
---|---|---|---|---|
2008.07 | 65.7 (SF minimum) | 0.5 | 2.8 (-0.4) | |
2008.12 | 69.2 | 0.8 | 1.7 (-) sunspot minimum |
|
2011.04 | 112.6 | 54.4 | 41.8 (+4.9) | 8.83 |
2011.05 | 95.8 | 41.6 | 47.6 (+5.8) | 8.94 |
2011.06 | 95.8 | 37.0 | 53.2 (+5.6) | 8.06 |
2011.07 | 94.2 | 43.9 | 57.2 (+4.0) | 8.16 |
2011.08 | 101.7 | 50.6 | 59.0 (+1.8) | 7.26 |
2011.09 | 133.8 | 78.0 | 59.5 (+0.5) | 12.27 |
2011.10 | 137.3 | 88.0 | 59.9 (+0.4) | 8.28 |
2011.11 | 153.5 | 96.7 | 61.1 (+1.2) | 5.55 |
2011.12 | 141.3 | 73.0 | 63.4 (+2.3) | 3.78 |
2012.01 | 132.5 | 58.3 | (65.0 projected, +1.6) | 7.15 |
2012.02 | 106.5 | 33.1 | (66.5 projected, +1.5) | 8.81 |
2012.03 | 114.7 | 64.2 | (67.2 projected, +0.7) | 16.08 |
2012.04 | 113.0 | 55.2 | (66.5 projected, -0.7) | 10.10 |
2012.05 | 121.5 | 69.0 | (64.8 projected, -1.7) | 7.06 |
2012.06 | 119.6 | 64.5 | (64.0 projected, -0.8) | 12.58 |
2012.07 | 142.2 (1) | 18.3 (2A) / 141.8 (2B) | (65.0 projected, +1.0) | (18.94) |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The
official SIDC international sunspot number is typically 30-50% lower. 2B) Month
average to date.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices.
Values in red are based on the definitive
international Potsdam
WDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
