Recent activity

The geomagnetic field was quiet to minor storm on March 27. Solar wind speed at SOHO ranged between 315 and 407 km/s under the influence of a low speed stream associated with CH509.

Solar flux measured at 20h UTC on 2.8 GHz was 105.6 (increasing 3.6 over the last solar rotation). The Potsdam WDC planetary A index was 21 (STAR Ap - based on the mean of three hour interval ap indices: 21.0). Three hour interval K indices: 33233345 (planetary), 12233324 (Boulder).

The background x-ray flux is at the class B3 level.

At midnight UTC the visible solar disk had 11 spotted active regions (in 2K resolution SDO images).

Region 11438 [S14W23] developed slowly as new flux emerged near the leader spot.
Region 11443 [N13W02] was quiet and stable.
Region 11444 [N20W13] was the source of a C5.3/1F flare at 03:08 UTC. This event was associated with a full halo CME (poorly defined in the south) superimposed on a much larger full halo CME originating from a large flare (late on March 26) in old region 11429 behind the northeast limb.
Region 11445 [S23E26] was quiet and stable. Some small spots emerged centrally.
New region 11447 [S24W55] emerged in the southwest quadrant on March 23 and was noticed by SWPC 4 days later.

Spotted regions not reported by NOAA/SWPC:
[S1548] emerged in the northeast quadrant on March 23 and developed quickly on March 26. Slow decay was observed on March 27. SWPC has this as AR 11442, a region which was originally further west. Location at midnight: N13W12.
[S1551] rotated into view at the southeast limb on March 26. Location at midnight: S17E69
[S1553] rotated into view at the southeast limb on March 27. Location at midnight: S19E77
[S1554] emerged in the northeast quadrant on March 27. Location at midnight: N16E10
[S1555] emerged in the southwest quadrant on March 27. Location at midnight: S21W12
[S1556] emerged in the southwest quadrant on March 27. Location at midnight: S18W30

Coronal mass ejections (CMEs)

March 25-26: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery. Several CMEs originating in old AR 11429 behind the northeast limb were observed over the last days.
March 27: A full halo CME was associated with a C5 event in region 11444 early in the day. This CME could reach Earth on March 29.

Coronal holes

Coronal hole history (since October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A recurrent trans equatorial coronal hole (CH509) was in an Earth facing position on March 23-25.

The above coronal hole map is based on a method where coronal holes are detected automatically. While the method may need some fine tuning, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using this method, the extent and intensity of both CHs are consistent with other data sources.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is good.

Forecast

The geomagnetic field is expected to be unsettled to minor storm on March 28 due to a low speed stream from CH509. A CME could arrive on March 29 and cause some unsettled and active intervals. Quiet to unsettled is likely on March 30-31. The chance of an M or X class flare from old AR 11429 behind the northeast limb is significant.

1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

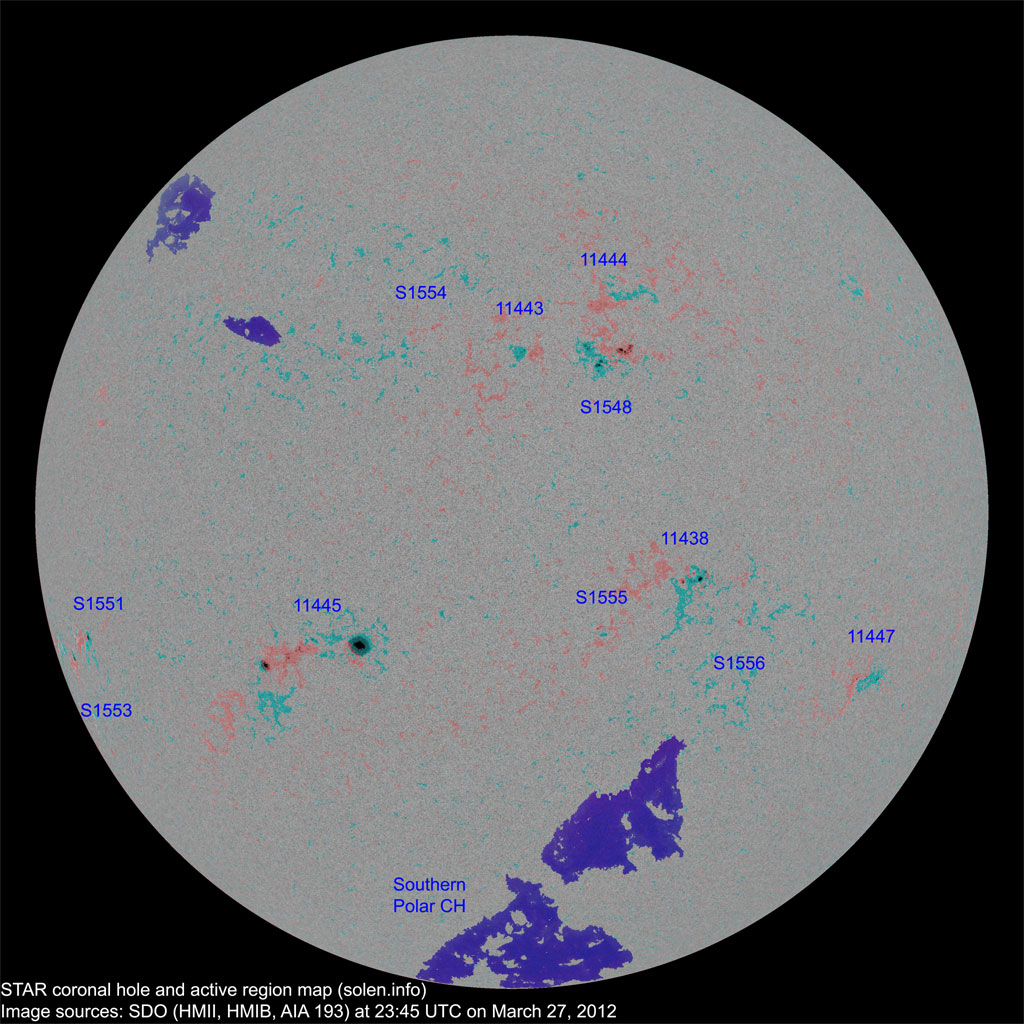

Active solar regions

Click on image for higher resolution image) Compare to the previous day's image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region	Date numbered detected	Spot count			Location at midnight	Area	Classification		SDO / HMI 4K continuum image with magnetic polarity overlay		Comment
		SWPC	STAR SDO				SWPC	STAR	Current	Previous
			2K	1K
11438	2012.03.19 2012.03.20	3	7	4	S14W24	0030	CAO	DRO
11442	2012.03.21 2012.03.22	9			N12W13	0050	DAI				spotless location: N12W19 SWPC data is for AR S1548
11443	2012.03.21 2012.03.22		5	2	N16W03	0000		BXO			location: N13W02
11444	2012.03.22 2012.03.23		2		N21W17	0000		BXO
11446	2012.03.22 2012.03.25				N23W53						plage
11445	2012.03.23	6	17	7	S22E25	0210	ESO	FSO			area: 0300
11447	2012.03.23 2012.03.27	5	6	3	S25W55	0040	CRO	BXO
S1547	2012.03.23				N29W10						plage
S1548	2012.03.23		19	8	N13W12	0060		DRI
S1550	2012.03.24				S18E10						plage
S1551	2012.03.26		2	1	S17E69	0010		HRX
S1552	2012.03.26				N12E05						plage
S1553	2012.03.27		2	1	S19E77	0010		AXX
S1554	2012.03.27		1		N16E10	0000		AXX
S1555	2012.03.27		2	1	S21W12	0000		BXO
S1556	2012.03.27		1	1	S18W30	0000		AXX
Total spot count:		23	64	28
Sunspot number:		63	174	118	(total spot count + 10 * number of spotted regions)
Weighted penumbral SN:		41	78	42	(Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number):		38	61	65	k * (sunspot number). k = 0.6 for SWPC, k = 0.35 (changed from 0.45 on March 1, 2011) for STAR SDO 2K, k = 0.55 for STAR SDO 1K

Monthly solar cycle data

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Month average to date.
3) Running average based on the quicklook Potsdam WDC ap indices. Values in red are based on the definitive international Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
