Recent activity

The geomagnetic field was quiet to unsettled on March 29. Solar wind speed at SOHO ranged between 315 and 368 km/s.

Solar flux measured at 20h UTC on 2.8 GHz was 111.5 (increasing 3.3 over the last solar rotation). The Potsdam WDC planetary A index was 4 (STAR Ap - based on the mean of three hour interval ap indices: 4.4). Three hour interval K indices: 00002123 (planetary), 00001212 (Boulder).

The background x-ray flux is at the class B3 level.

At midnight UTC the visible solar disk had 11 spotted active regions (in 2K resolution SDO images).

Region 11438 [S14W52] decayed slowly and quietly.
Region 11443 [N13W28] was quiet and stable.
Region 11445 [S23W03] decayed and lost penumbra on the trailing spots.
Region 11447 [S25W78] was mostly quiet and stable.
Region 11448 [S17E43] developed slowly and quietly.
New region 11449 [S18W17] was assigned a number by SWPC one day after it emerged.

Spotted regions not reported by NOAA/SWPC:
[S1548] emerged in the northeast quadrant on March 23 and developed quickly on March 26. Slow decay was observed on March 27 while new spots emerged in the leading spot section on March 28 resulting in minor polarity intermixing. The region simplified n March 29. SWPC has this as AR 11442, a region which was originally further west. Location at midnight: N13W40.
[S1552] reemerged with spots on March 29. Location at midnight: N07W23
[S1553] rotated into view at the southeast limb on March 27. Location at midnight: S17E56
[S1558] emerged in the southeast quadrant on March 28. Location at midnight: S30E09
[S1559] emerged in the northeast quadrant on March 29. Location at midnight: N27E01

The two most significant flares during the day were recorded as C7.7 at 09:53 and C5.0 at 13:21 UTC. Both had their origin in old AR 11429. This region has rotated partly into view early on March 30, so far only with small spots visible.

Coronal mass ejections (CMEs)

March 28-29: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery. Several CMEs originating in old AR 11429 behind the northeast limb were observed over the last days.
March 27: A full halo CME was associated with a C5 event in region 11444 early in the day. This CME could reach Earth on March 30.

Coronal holes

Coronal hole history (since October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A coronal hole (CH510) in the northern hemisphere will be in an Earth facing position on March 30.

The above coronal hole map is based on a method where coronal holes are detected automatically. While the method may need some fine tuning, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using this method, the extent and intensity of both CHs are consistent with other data sources.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor.

Forecast

The geomagnetic field is expected to be quiet to active on March 30 due to weak CME effects. Quiet conditions are likely on March 31 and April 1.

1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

Active solar regions

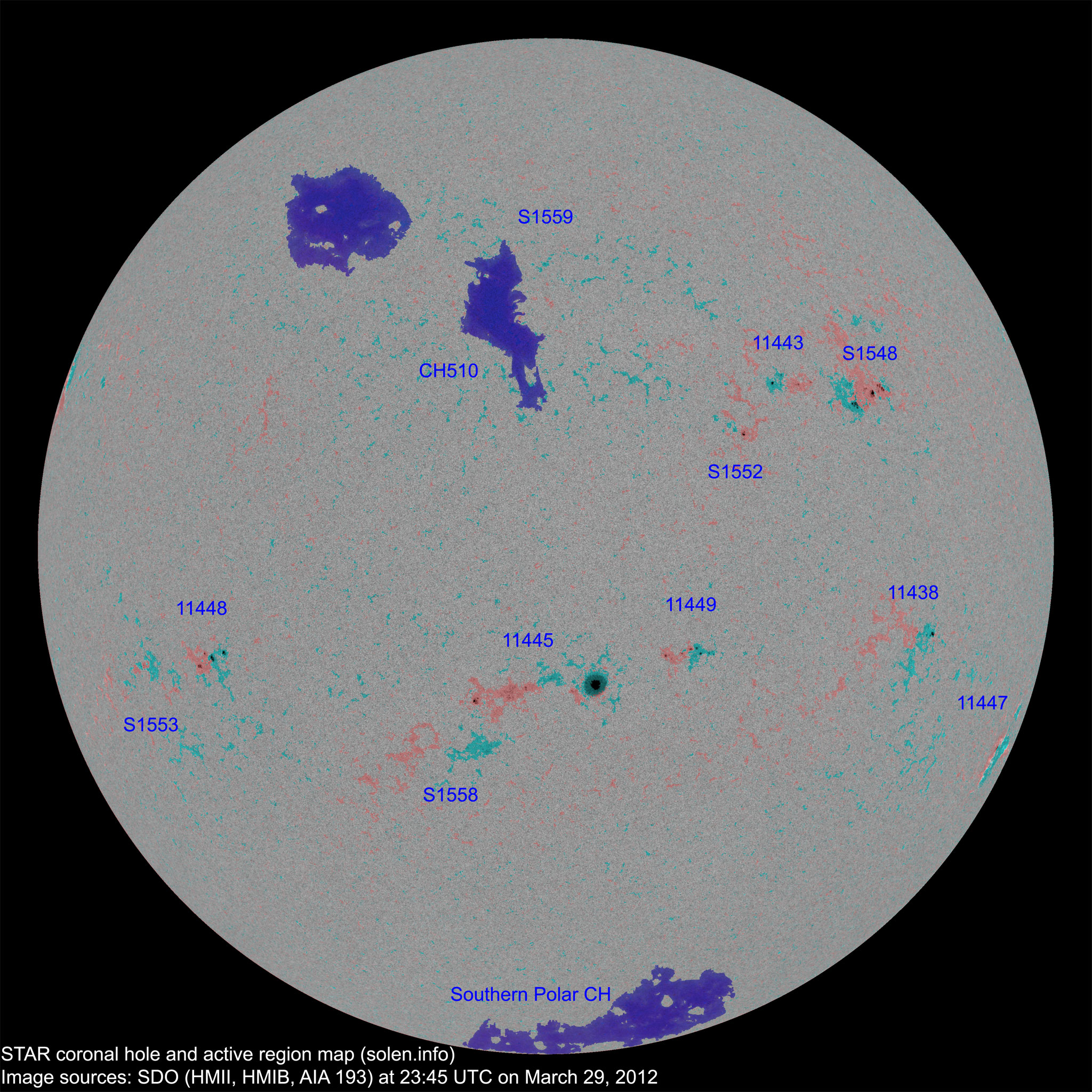

Click on image for higher resolution image) Compare to the previous day's image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region	Date numbered detected	Spot count			Location at midnight	Area	Classification		SDO / HMI 4K continuum image with magnetic polarity overlay		Comment
		SWPC	STAR SDO				SWPC	STAR	Current	Previous
			2K	1K
11438	2012.03.19 2012.03.20	4	4	2	S14W51	0030	CSO	CRO
11442	2012.03.21 2012.03.22	7			N13W41	0050	DSO				spotless location: N12W45 SWPC data is for AR S1548
11443	2012.03.21 2012.03.22	2	5	4	N12W28	0010	CSO	CRO
11444	2012.03.22 2012.03.23				N21W45						plage location: N19W37
11446	2012.03.22 2012.03.25				N23W82						plage
11445	2012.03.23	9	10	4	S23W00	0220	FSO	CHO			area: 0280
11447	2012.03.23 2012.03.27	2	1	1	S24W79	0010	AXX	AXX
S1547	2012.03.23				N29W23						plage
S1548	2012.03.23		18	8	N13W40	0060		DAI
11448	2012.03.26 2012.03.28	2	8	4	S17E41	0010	DAO	DRO
S1552	2012.03.26		2	1	N08W23	0010		HRX
S1553	2012.03.27		4		S17E56	0000		BXO
S1554	2012.03.27				N16W16						plage
S1555	2012.03.27				S21W38						plage
S1556	2012.03.27				S18W56						plage
11449	2012.03.28 2012.03.29	4	9	6	S18W17	0020	DRO	CRO
S1558	2012.03.28		3		S30E09	0000		AXX
S1559	2012.03.29		1	1	N27E01	0000		AXX
Total spot count:		30	65	31
Sunspot number:		100	175	121	(total spot count + 10 * number of spotted regions)
Weighted penumbral SN:		58	95	61	(Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number):		60	61	67	k * (sunspot number). k = 0.6 for SWPC, k = 0.35 (changed from 0.45 on March 1, 2011) for STAR SDO 2K, k = 0.55 for STAR SDO 1K

Monthly solar cycle data

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Month average to date.
3) Running average based on the quicklook Potsdam WDC ap indices. Values in red are based on the definitive international Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
