The geomagnetic field was quiet on November 5. Solar wind speed at SOHO ranged between 270 and 343 km/s.
Solar flux measured at 20h UTC on 2.8 GHz was 96.6 (decreasing 9.6 over the last solar rotation). The Potsdam WDC planetary A index was 3 (STAR Ap - based on the mean of three hour interval ap indices: 3.0). Three hour interval K indices: 00111211 (planetary), 00111211 (Boulder).
The background x-ray flux was at the class B2 level.
At midnight UTC the visible solar disk had 9 spotted active regions (in 2K resolution SDO images).
Region 11604 [N08E20] was quiet and stable.
Region 11605 [N17E09] decayed slowly and quietly.
Region 11606 [S17E33] decayed slowly and quietly.
New region 11607 [N12W46] emerged quickly on November 4 and was numbered
by SWPC the next day. The region developed slowly and quietly on Nov.5.
New region 11608 [S21E64] rotated into view on November 4 and got its
NOAA number the next day.
Spotted regions not numbered by NOAA/SWPC:
S2022 [N02W29] reemerged with a tiny spot.
New region S2033 [S18E44] emerged with a tiny spot.
New region S2034 [S14E88] rotated partly into view. The region produced
the only C class event of the day, a C2.3 flare at 18:39 UTC.
New region S2035 [S12W30] emerged with a tiny spot.
November 3-5: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.
Coronal hole history (since October
2002)
Compare today's report to the situation one solar rotation ago:
28 days ago
27 days ago
26 days ago
An area with poorly defined corona rotated across the central meridian on November 5 and could cause a minor enhancement in geomagnetic activity on November 8-9.
The above coronal hole map is based on a method where coronal holes are detected automatically. While the method may need some fine tuning, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using this method, the extent and intensity of both CHs are consistent with other data sources.
Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is fair to good. Propagation on long distance northeast-southwest paths is poor.
The geomagnetic field is expected to be quiet on November 6-9, there's a small chance of unsettled intervals on Nov. 8-9.
Coronal holes (1) | Coronal mass ejection (2) | M and X class flares (3) |
1) Effects from a coronal hole could reach Earth within the
next 5 days. When the high speed stream has arrived the color changes to
green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48
hours.
Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

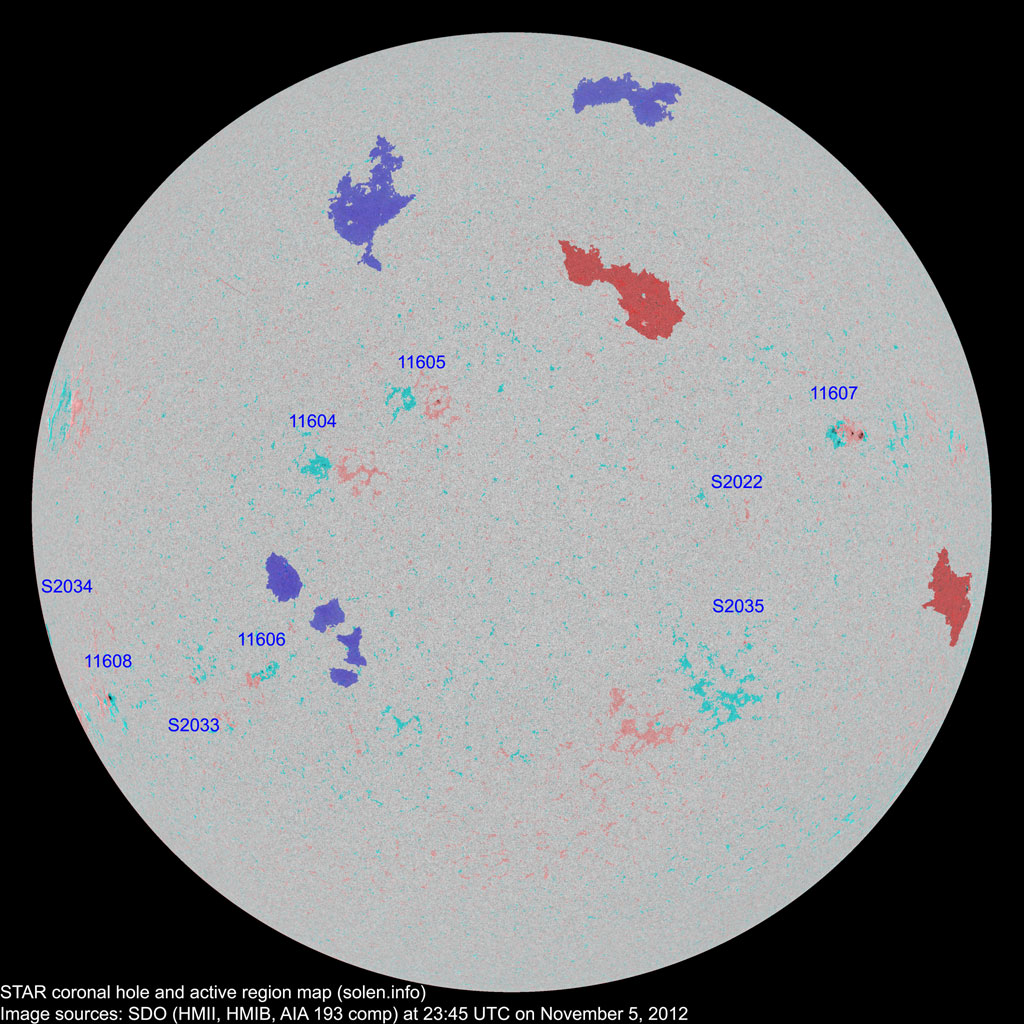

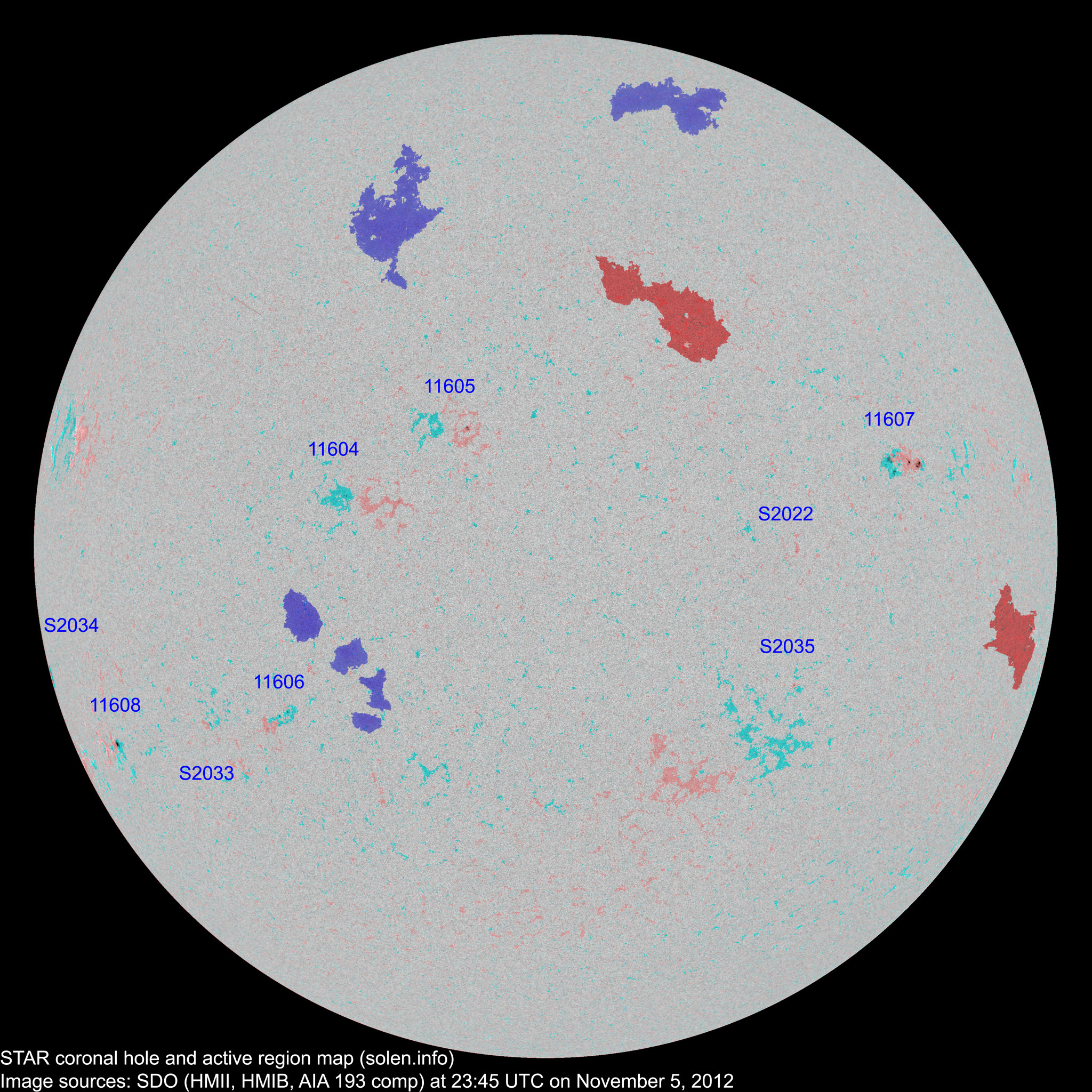

Click on image for higher resolution image) Compare to the previous day's image. 0.5k image
When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.
Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.
Active region | Date numbered detected |
Spot count | Location at midnight | Area | Classification | SDO / HMI 4K continuum image with magnetic polarity overlay |
Comment | ||||
---|---|---|---|---|---|---|---|---|---|---|---|
SWPC | STAR SDO | SWPC | STAR | Current | Previous | ||||||
2K | 1K | ||||||||||
11602 | 2012.10.28 2012.10.29 |
S19W29 | plage | ||||||||
S2020 | 2012.10.29 | N12W55 | plage | ||||||||
S2022 | 2012.10.30 | 1 | N02W29 | 0000 | AXX | ||||||
11603 | 2012.10.30 2012.11.01 |
N08W74 | plage | ||||||||
11605 | 2012.11.01 2012.11.04 |
2 | 2 | 1 | N17E10 | 0010 | AXX | HRX | |||
11604 | 2012.11.02 2012.11.03 |
3 | 1 | N07E19 | |||||||
S2028 | 2012.11.02 | N26E04 | plage | ||||||||
11606 | 2012.11.04 | 1 | 4 | 2 | S16E31 | 0010 | AXX | BXO | |||
11608 | 2012.11.04 2012.11.05 |
1 | 1 | 1 | S20E62 | 0010 | HRX | HRX |
location: S21E64 area: 0020 |
||
S2030 | 2012.11.04 | N07W36 | plage | ||||||||
11607 | 2012.11.04 2012.11.05 |
3 | 13 | 8 | N12W47 | 0010 | BXO | DRI | area: 0050 | ||
S2032 | 2012.11.04 | N12W45 | plage | ||||||||
S2033 | 2012.11.05 | 1 | S18E44 | 0000 | AXX | ||||||
S2034 | 2012.11.05 | 1 | S14E88 | 0060 | HSX | ||||||
S2035 | 2012.11.05 | 1 | S12W30 | 0000 | AXX | ||||||
Total spot count: | 7 | 27 | 13 | ||||||||
Sunspot number: | 47 | 117 | 63 | (total spot count + 10 * number of spotted regions) | |||||||
Weighted SN: | 10 | 41 | 27 | (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10) | |||||||
Relative sunspot number (Wolf number): | 28 | 41 | 35 | k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for STAR SDO 2K, k = 0.55 for STAR SDO 1K |
Month | Average measured solar flux | International sunspot number (SIDC) | Smoothed sunspot number | Average ap (3) |
---|---|---|---|---|
2011.09 | 133.8 | 78.0 | 59.5 (+0.5) | 12.27 |
2011.10 | 137.3 | 88.0 | 59.9 (+0.4) | 8.28 |
2011.11 | 153.5 | 96.7 | 61.1 (+1.2) | 5.55 |
2011.12 | 141.3 | 73.0 | 63.4 (+2.3) | 3.78 |
2012.01 | 132.5 | 58.3 | 65.5 (+2.1) | 7.15 |
2012.02 | 106.5 | 32.9 | 66.9 (+1.4) possible cycle 24 max |
8.81 |
2012.03 | 114.7 | 64.3 | 66.8 (-0.1) | 16.08 |
2012.04 | 113.0 | 55.2 | 64.6 (-2.2) | 10.10 |
2012.05 | 121.5 | 69.0 | (61.2 projected, -3.4) | 7.06 |
2012.06 | 119.6 | 64.5 | (58.8 projected, -2.4) | 10.08 |
2012.07 | 133.9 | 66.5 | (58.6 projected, -0.2) | 13.90 |
2012.08 | 115.4 | 63.1 | (60.4 projected, +1.8) | 7.96 |
2012.09 | 122.9 | 61.5 | (61.8 projected, +1.4) | 8.07 |
2012.10 | 123.3 | 53.3 | (61.5 projected, -0.3) | 10.40 |
2012.11 | 96.0 (1) | 7.0 (2A) / 42.0 (2B) / 50.2 (2C) | (61.2 projected, -0.3) | (8.15) |
1) Running average based on the daily 20:00 UTC observed solar flux value at
2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder
(NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The
official SIDC international sunspot number is typically 30-50% lower. 2B)
Boulder SN current month
average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices.
Values in red are based on the definitive
international Potsdam
WDC
ap indices.
This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.
SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
