Recent activity

The geomagnetic field was quiet to severe storm on October 1 due to CME effects. Solar wind speed at SOHO ranged between 315 and 394 km/s.

Solar flux measured at 20h UTC on 2.8 GHz was 128.1 (decreasing 9.5 over the last solar rotation). The Potsdam WDC planetary A index was 34 (STAR Ap - based on the mean of three hour interval ap indices: 33.9). Three hour interval K indices: 76422112 (planetary), 66423222 (Boulder).

The background x-ray flux is at the class B6 level.

At midnight UTC the visible solar disk had 13 spotted active regions (in 2K resolution SDO images).

Region 11577 [N08W85] was quiet and stable.
Region 11579 [S10W20] decayed slowly and quietly.
Region 11580 [N18W10] was quiet and stable.
Region 11582 [S12E03] developed slightly and has polarity intermixing near the large penumbra.
Region 11584 [S23E15] decayed slowly and quietly.

Spotted regions not numbered by NOAA/SWPC:
S1929 [N07W68] developed slowly and quietly.
S1936
[N05W48] reemerged with a few tiny spots.
S1943
[N14W32] was quiet and stable.
New region S1954 [S17E79] rotated into view with a single spot.
New region S1955 [S09E15] emerged with two spots.
New region S1956 [S08E30] emerged with tiny spots.
New region S1957 [N04W28] emerged with tiny spots.
New region S1958 [N07E16] emerged with tiny spots.

AR 11583 at and behind the northwest limb was the source of most the day's flaring.

Coronal mass ejections (CMEs)

September 29  - October 1: No obviously Earth directed CMEs were observed in LASCO and STEREO imagery.

Coronal holes

Coronal hole history (since October 2002)
Compare today's report to the situation one solar rotation ago: 28 days ago 27 days ago 26 days ago

A poorly defined coronal hole (CH537) in the northern hemisphere will rotate into an Earth facing position on October 1-2. A recurrent coronal hole (CH538) in the southern hemisphere will rotate into an Earth facing position on October 5-6.

Coronal hole map

The above coronal hole map is based on a method where coronal holes are detected automatically. While the method may need some fine tuning, it has significant advantages over detecting coronal holes manually. The main improvement is the ability to detect coronal holes at and just beyond the solar limbs. Early results using this method for SDO images over a span of several weeks indicate a good match between coronal holes observed over the visible disk and their extent and position at the east and west limbs. Note that the polar coronal holes are easily detected using this method, the extent and intensity of both CHs are consistent with other data sources.

Propagation

Long distance low and medium frequency (below 2 MHz) propagation along paths north of due west over high and upper middle latitudes is poor. Propagation on long distance northeast-southwest paths is poor.

Forecast

The geomagnetic field is expected to be mostly quiet on October 2-4. There's a chance of weak effects from CH537 on October 5-6.

Coronal holes (1) Coronal mass ejection (2) M and X class flares (3)


1) Effects from a coronal hole could reach Earth within the next 5 days. When the high speed stream has arrived the color changes to green.
2) Effects from a CME are likely to be observed at Earth within 96 hours.
3) There is a possibility of either M or X class flares within the next 48 hours.

Green: 0-20% probability, Yellow: 20-60% probability, Red: 60-100% probability.

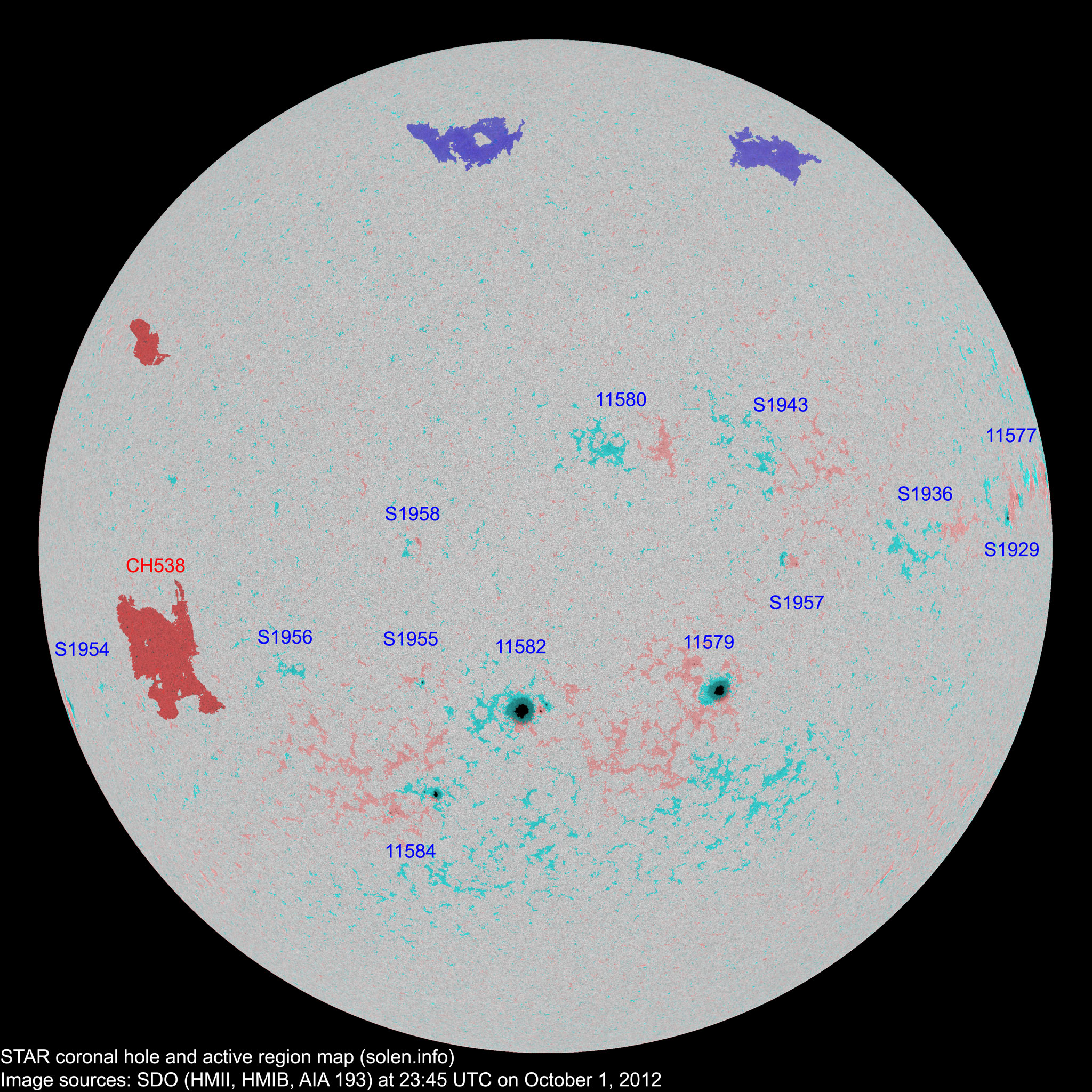

Active solar regions

Click on image for higher resolution image) Compare to the previous day's image. 0.5k image

When available the active region map has a coronal hole polarity overlay where red (pink) is negative and blue (blue-green) is positive.

Data for all numbered solar regions according to the Solar Region Summary provided by NOAA/SWPC. Comments are my own, as is the STAR spot count (spots observed at or inside a few hours before midnight) and data for regions not numbered by SWPC or where SWPC has observed no spots. SWPC active region numbers in the table below and in the active region map above are the historic SWPC/USAF numbers.

Active region Date numbered
detected
Spot count Location at midnight Area Classification SDO / HMI 4K continuum
image with magnetic polarity overlay
Comment
SWPC STAR SDO SWPC STAR Current Previous
2K 1K
11581 2012.09.19
2012.09.25
      N22W80

plage

S1929 2012.09.21   7 3 N07W68 0030   CRO
11577 2012.09.22 1 1 1 N09W82 0040 DSO HRX location: N08W85
11579 2012.09.23
2012.09.24
2 10 6 S09W21 0170 CAO CSO area: 0230

location: S10W20

S1936 2012.09.23   3   N05W48 0000   AXX
11578 2012.09.24 1     N21W88 0020 HSX       plage
S1937 2012.09.24       S22W23           plage
11580 2012.09.24
2012.09.25
  7 1 N19W14 0000   BXO
11582 2012.09.25
2012.09.26
1 7 4 S11E02 0310 HHX DHO area: 0470

location: S12E03

S1943 2012.09.26   5 1 N14W32 0000   BXO
S1946 2012.09.27       S12W54           plage
S1950 2012.09.28       N18W35           plage
S1951 2012.09.29       S19W29           plage
S1952 2012.09.29       N09W75         plage
11584 2012.09.30 4 6 4 S23E16 0040 DSO CAO
S1953 2012.09.30       N12W27         plage
S1954 2012.10.01   1 1 S17E79 0020   HRX
S1955 2012.10.01   2 1 S09E15 0010   CRO
S1956 2012.10.01   3   S08E30 0000   AXX
S1957 2012.10.01   3 3 N04W28 0010   BXO
S1958 2012.10.01   2   N07E16 0000   BXO
Total spot count: 9 57 25
Sunspot number: 59 187 125  (total spot count + 10 * number of spotted regions)
Weighted SN: 39 89 61  (Sum of total spot count + classification weighting for each AR. Classification weighting: X=0, R=3, A/S=5, H/K=10)
Relative sunspot number (Wolf number): 35 65 69 k * (sunspot number). k = 0.6 for SWPC, k = 0.35 for STAR SDO 2K, k = 0.55 for STAR SDO 1K

Monthly solar cycle data

Month Average measured solar flux International sunspot number (SIDC) Smoothed sunspot number Average ap
(3)
2011.08 101.7 50.6 59.0 (+1.8) 7.26
2011.09 133.8 78.0 59.5 (+0.5) 12.27
2011.10 137.3 88.0 59.9 (+0.4) 8.28
2011.11 153.5 96.7 61.1 (+1.2) 5.55
2011.12 141.3 73.0 63.4 (+2.3) 3.78
2012.01 132.5 58.3 65.5 (+2.1) 7.15
2012.02 106.5 32.9 66.9 (+1.4)
possible solar max
8.81
2012.03 114.7 64.3 66.8 (-0.1) 16.08
2012.04 113.0 55.2 (65.3 projected, -1.5) 10.10
2012.05 121.5 69.0 (63.3 projected, -2.0) 7.06
2012.06 119.6 64.5 (61.9 projected, -1.4) 10.08
2012.07 133.9 66.5 (62.2 projected, +0.3) 13.90
2012.08 115.4 63.1 (64.6 projected, +2.4) 7.96
2012.09 122.9 61.5 (65.8 projected, +1.2) 8.64
2012.10 128.1 (1)  1.9 (2A) / 59.0 (2B) / 62.0 (2C) (66.0 projected, +0.2) (33.9)

1) Running average based on the daily 20:00 UTC observed solar flux value at 2800 MHz.
2A) Current impact on the monthly sunspot number based on the Boulder (NOAA/SWPC) sunspot number (accumulated daily sunspots / month days). The official SIDC international sunspot number is typically 30-50% lower. 2B) Month average to date. 2C) STAR SDO 1K Wolf number 30 day average.
3) Running average based on the quicklook and definitive Potsdam WDC ap indices. Values in red are based on the definitive international Potsdam WDC ap indices.

This report has been prepared by Jan Alvestad. It is based on analysis of data from whatever sources are available at the time the report is prepared. All time references are to the UTC day. Comments and suggestions are always welcome.

SDO images are courtesy of NASA/SDO and the AIA, EVE, and HMI science teams.
